RETRACTABLE POWER SOCKET FOR USE IN SHOWROOMS AND OTHER LARGE INDOOR SPACES

Single socket connection

Safe secure and lockable in-ground power supply

Stainless steel cover with almond design finish

Single or three phase supply

16 amp or 32 amp CEE IP67 socket

A lower cost option for a single power point into a location which has a cable length of 1.5m

Flybox provides safe power connectivity within large internal spaces exactly where you need it. It provides all the benefits of a flip-lid floor box, which keeps sockets hidden under the floor until you need them, with the versatility 1.5m cable. The result is easy access to power in all corners of the building – a socket where you need it, when you need it.

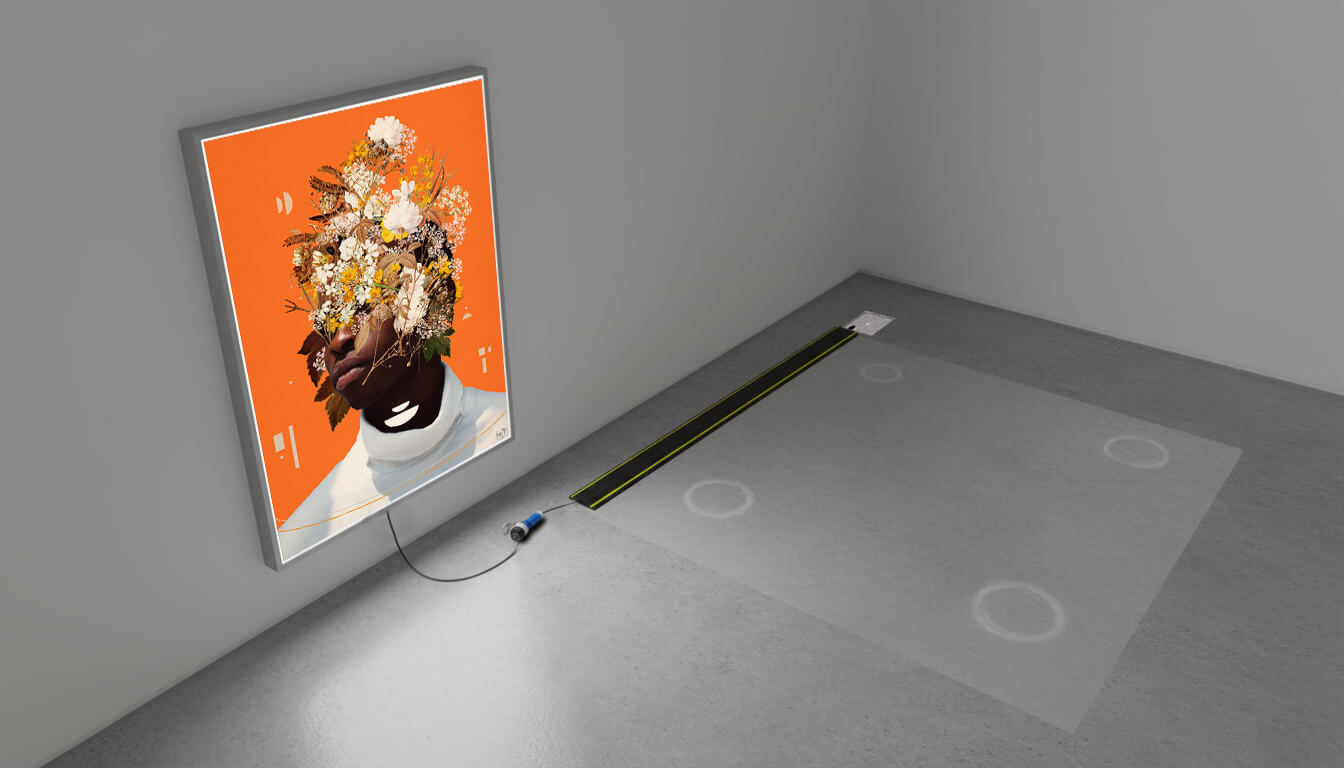

Simply open the lid and pull the retractable fly lead to the location where a 16 amp or 32 amp socket is needed and cover the trailing cable with cable protectors to prevent trips. Simple and versatile, Flybox provides power accessibility for a wide range of commercial and public building uses, such as digital displays, lighting, signage, freestanding heaters and even lighting up the Christmas tree! When the power source is no longer needed, unplug the devices, return the fly lead to the floor box and close the lid. No need for additional extension cables or standard fly leads – everything is contained within the floor box and stored away until you need it next time.

With a robust stainless steel construction, Flybox is ideal for all kinds of large internal spaces, including showrooms, museums, event spaces, exhibition halls, pop-up food and drink festivals and temporary indoor markets. It can also provide safe access to power in covered outdoor areas, subject to adequate protection from moisture and rainfall.

FLYBOX

For use in internal or covered spaces. A single socket, total power up to 32 amps, single or three phase.

PRODUCT DATA
MECHANICAL SPECIFICATIONS
  • AISI 304 stainless steel
  • AISI 316L stainless steel (only on demand)
  • Single socket connection
  • 125kN stainless steel cover with almond finish
  • External dimensions 120mm x 120mm depth 400mm
  • Total unit weight – 20kgs

ELECTRICAL SPECIFICATIONS
  • Up to 32 Amp (single socket)
  • Voltage 230V / 400 V
  • Single or three phase
  • Frequency 50hz to 60hz
  • Standard protection for the CEE socket IP67
  • Complies with regulation EN 60947-1 and EN 61439
SUGGESTED SOCKET CONFIGURATIONS
  • 1x no 16 amp single phase fly socket
  • 1x no 32 amp single phase fly socket
  • 1x no 16 amp three phase fly socket
  • 1x no 32 amp three phase fly socket
NOTE: 13 amp sockets are not available for this product. This unit has only one socket.
PHYSICAL INFORMATION
STRUCTURE
  • Stainless steel casing
  • Stainless steel cover with almond pattern finished
  • 1.5m cable and CEE socket with IP67 rating

UNIT INTERNAL ACCESS
  • Square profile key

CONNECTION SYSTEM
  • TBC
ADDITIONAL EQUIPMENT
  • No additional equipment for this unit

FLYBOX UNITS GALLERY

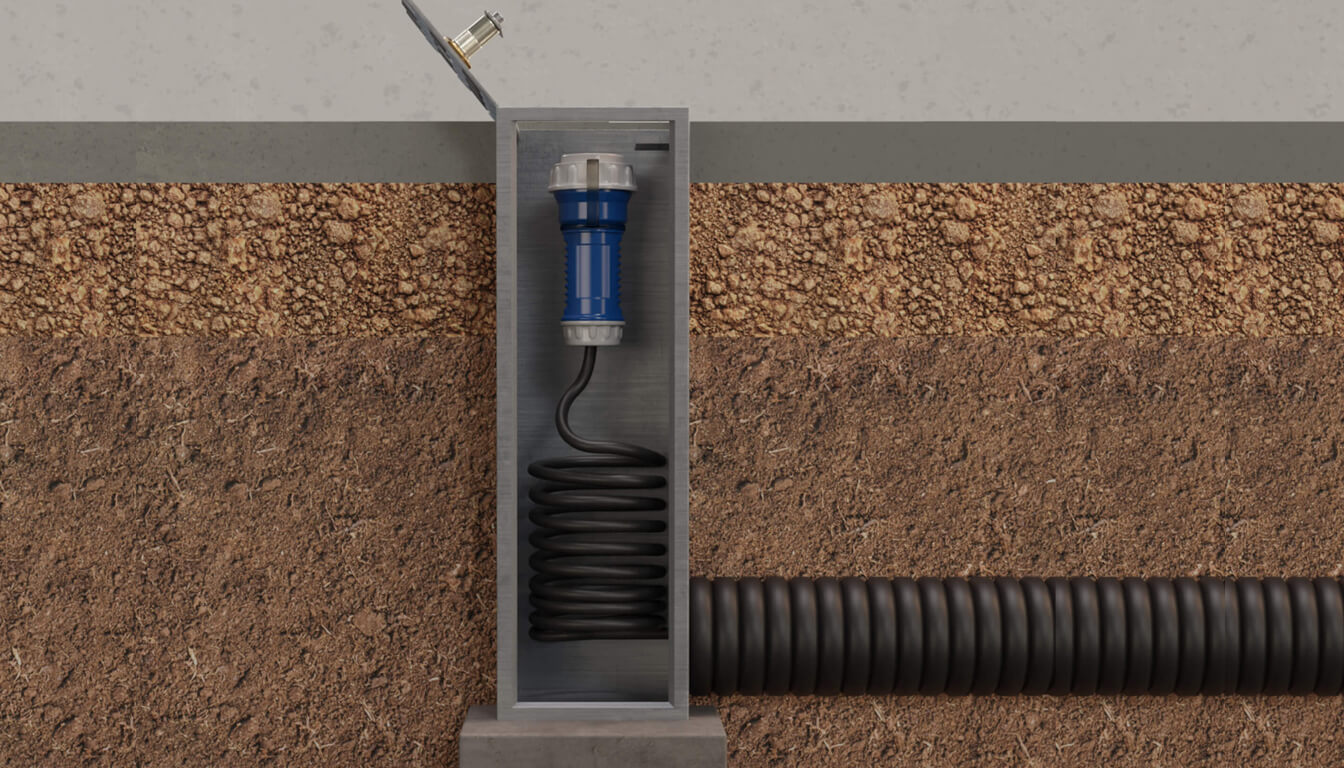

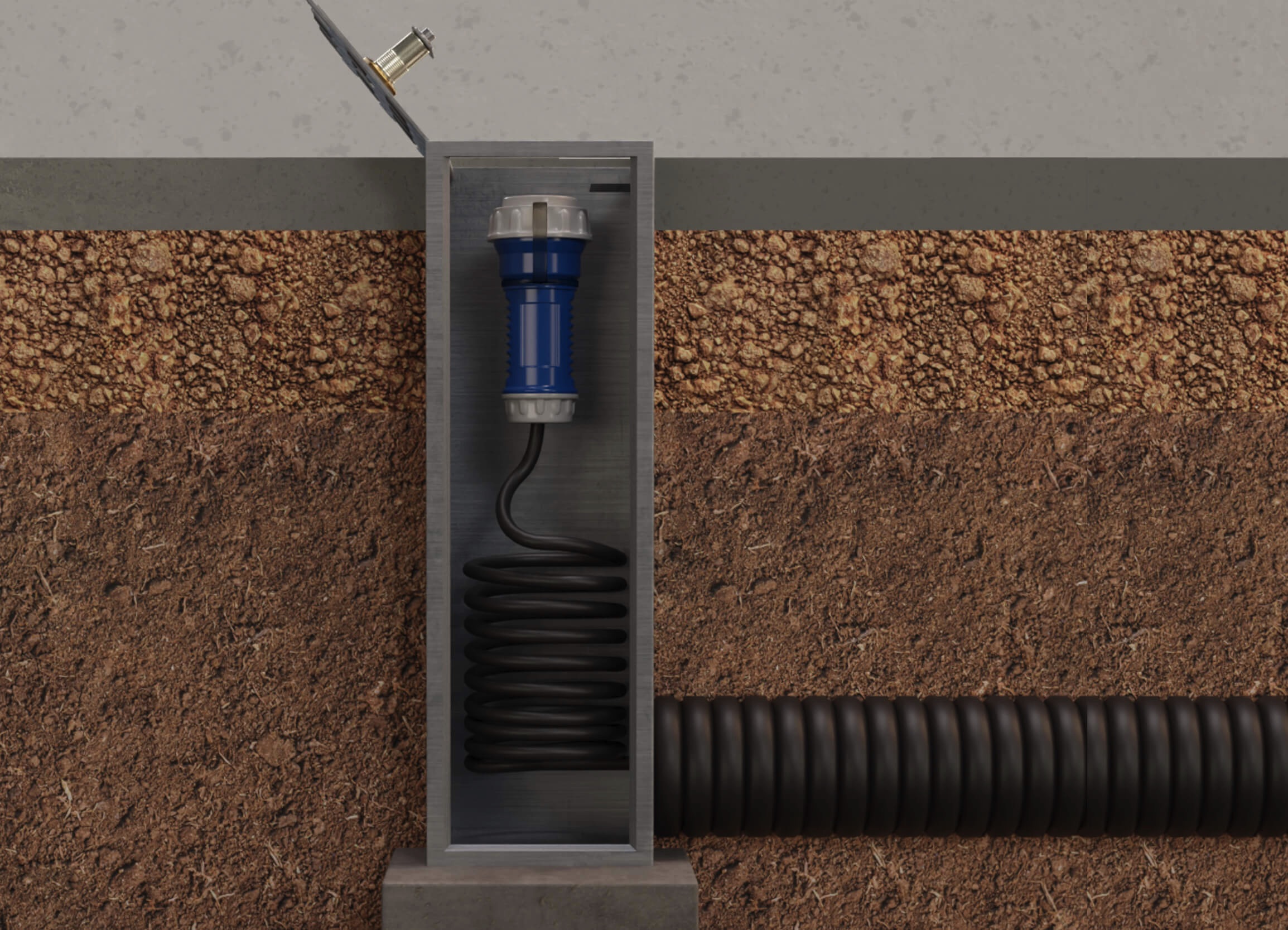

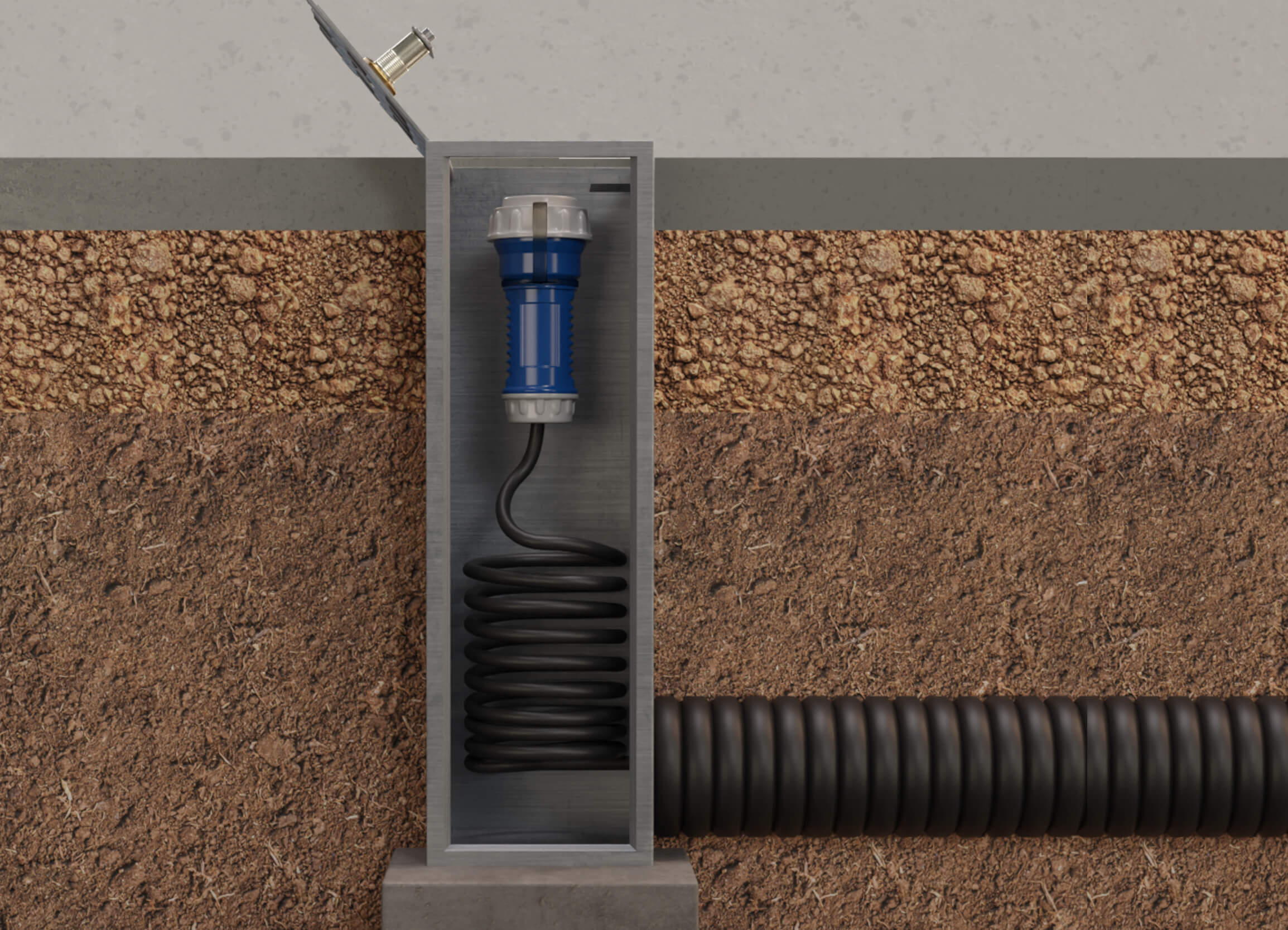

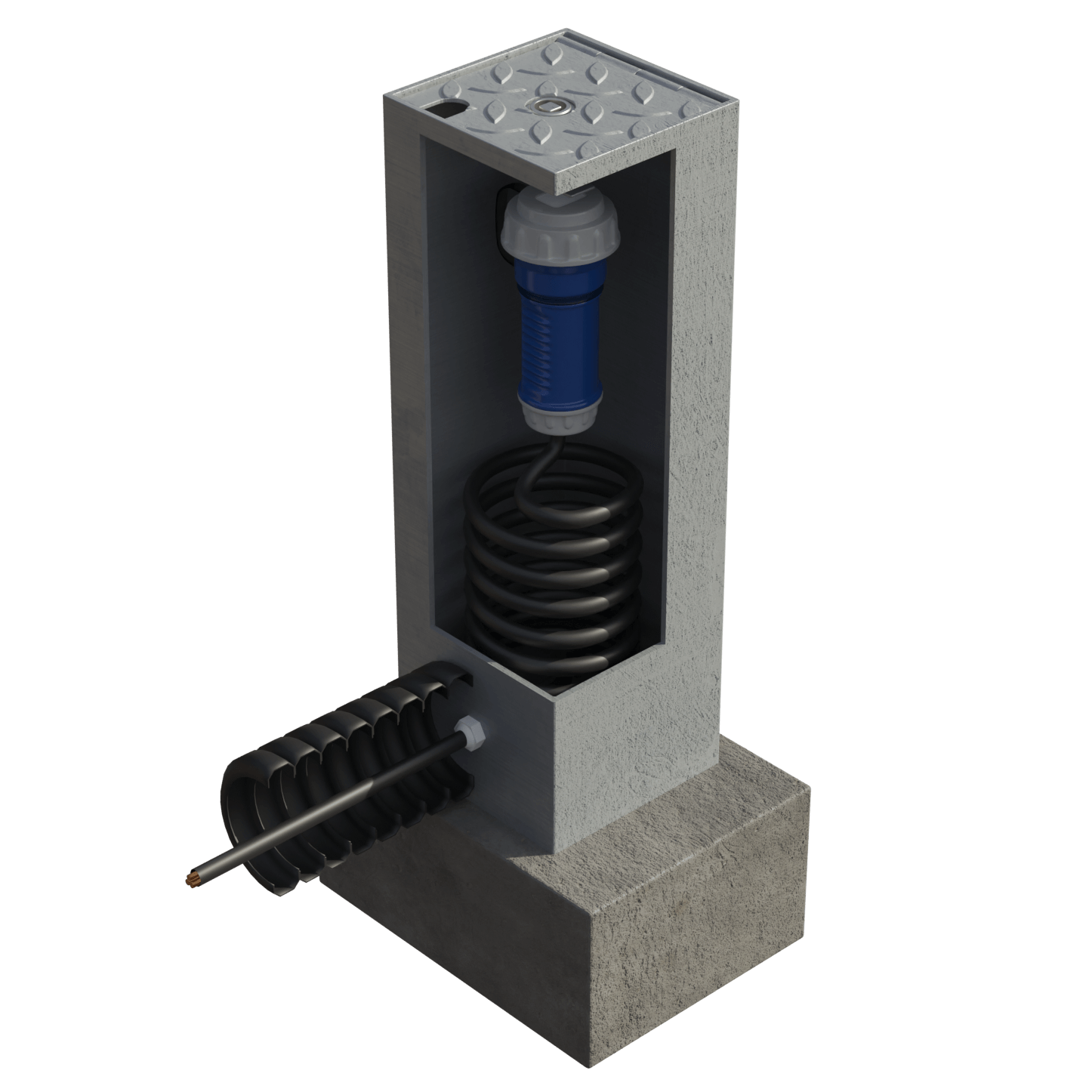

FLYBOX CUT AWAY

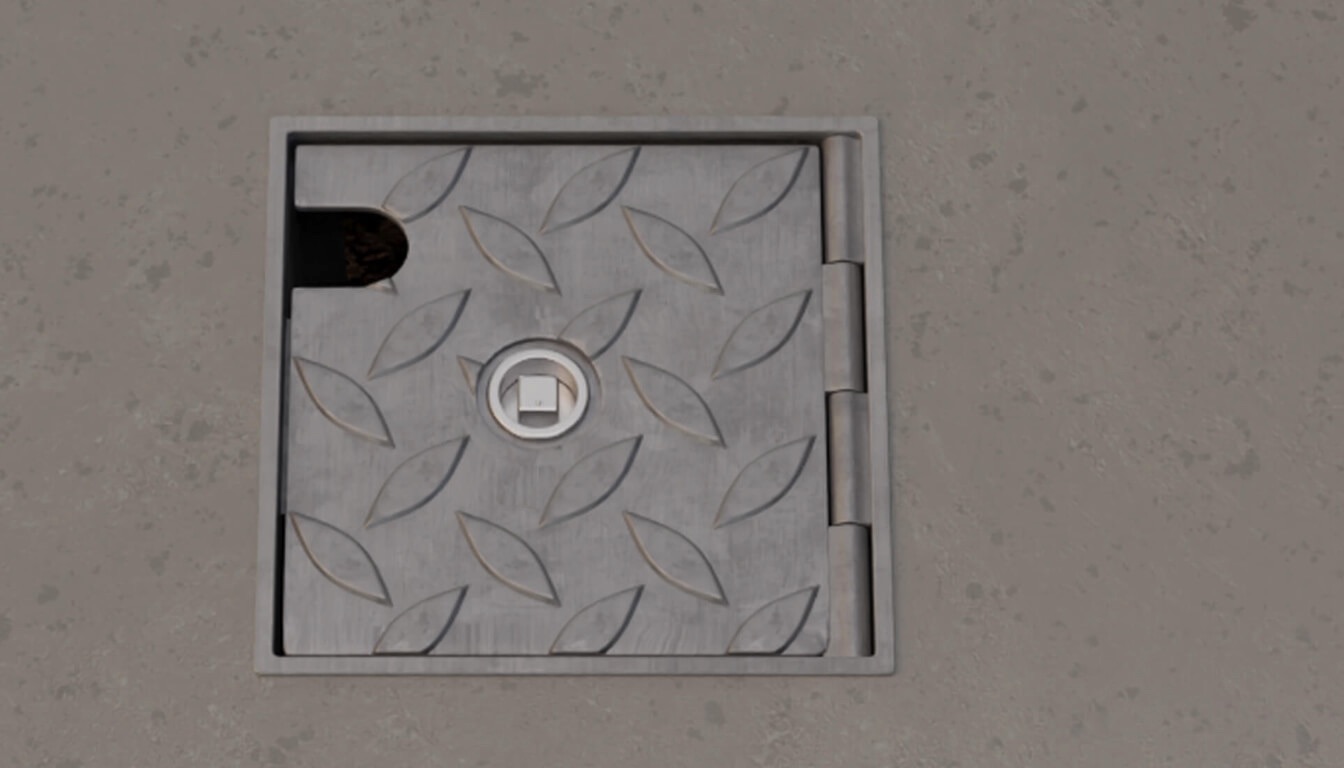

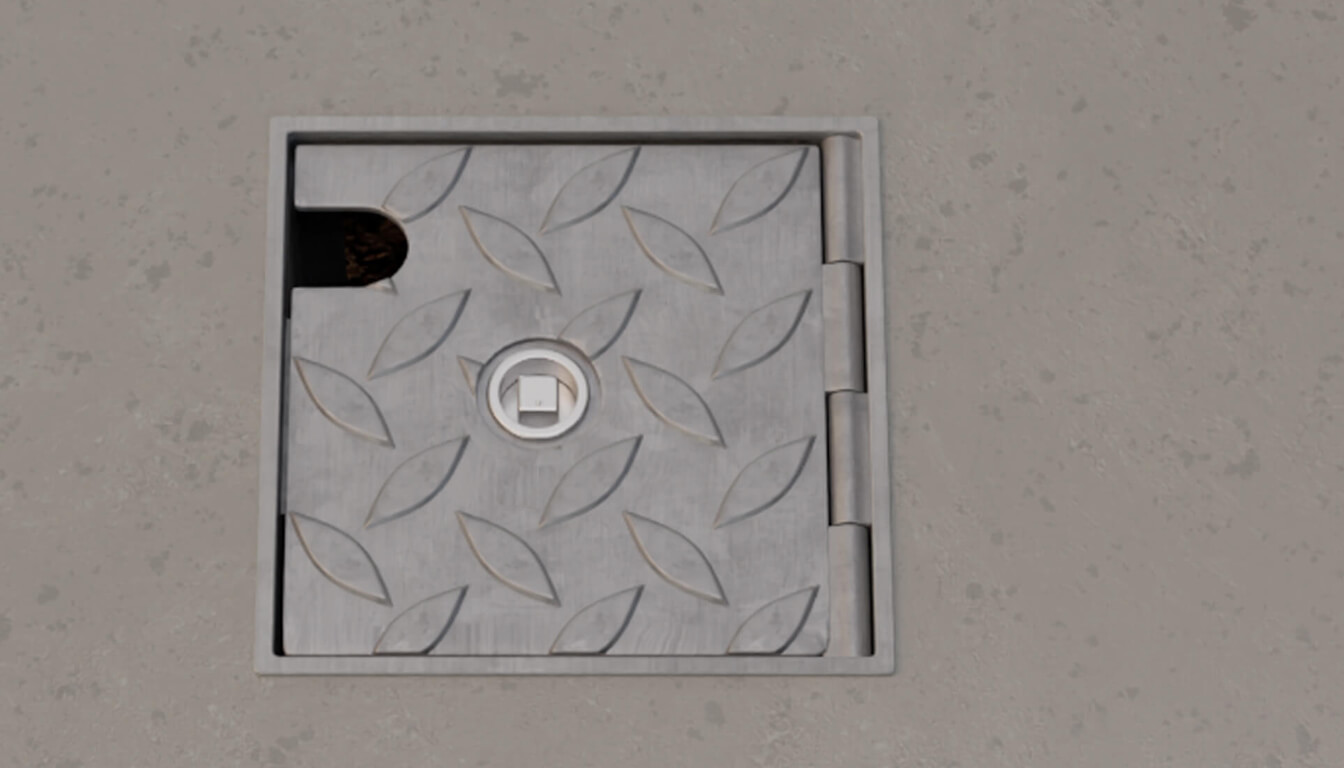

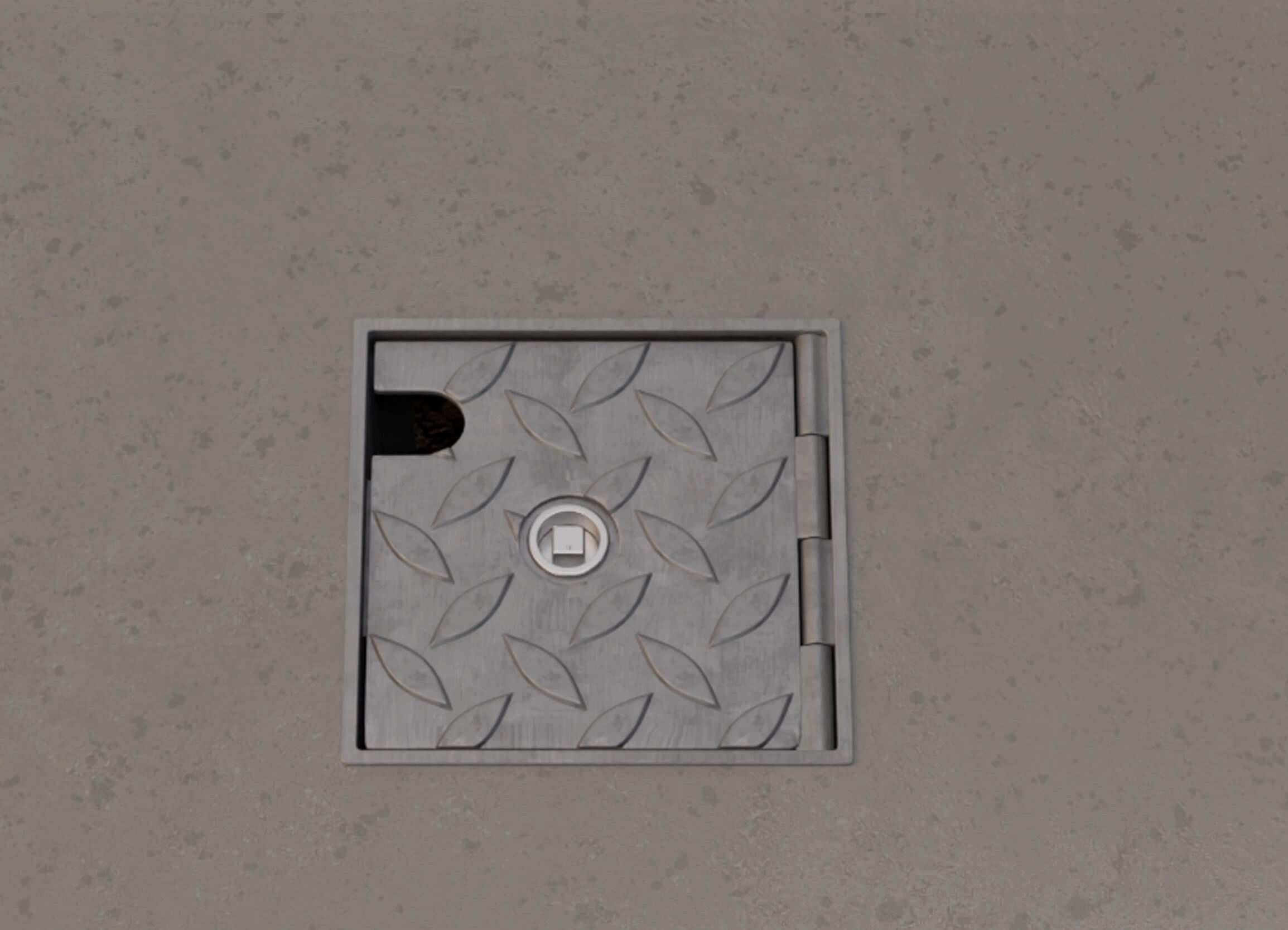

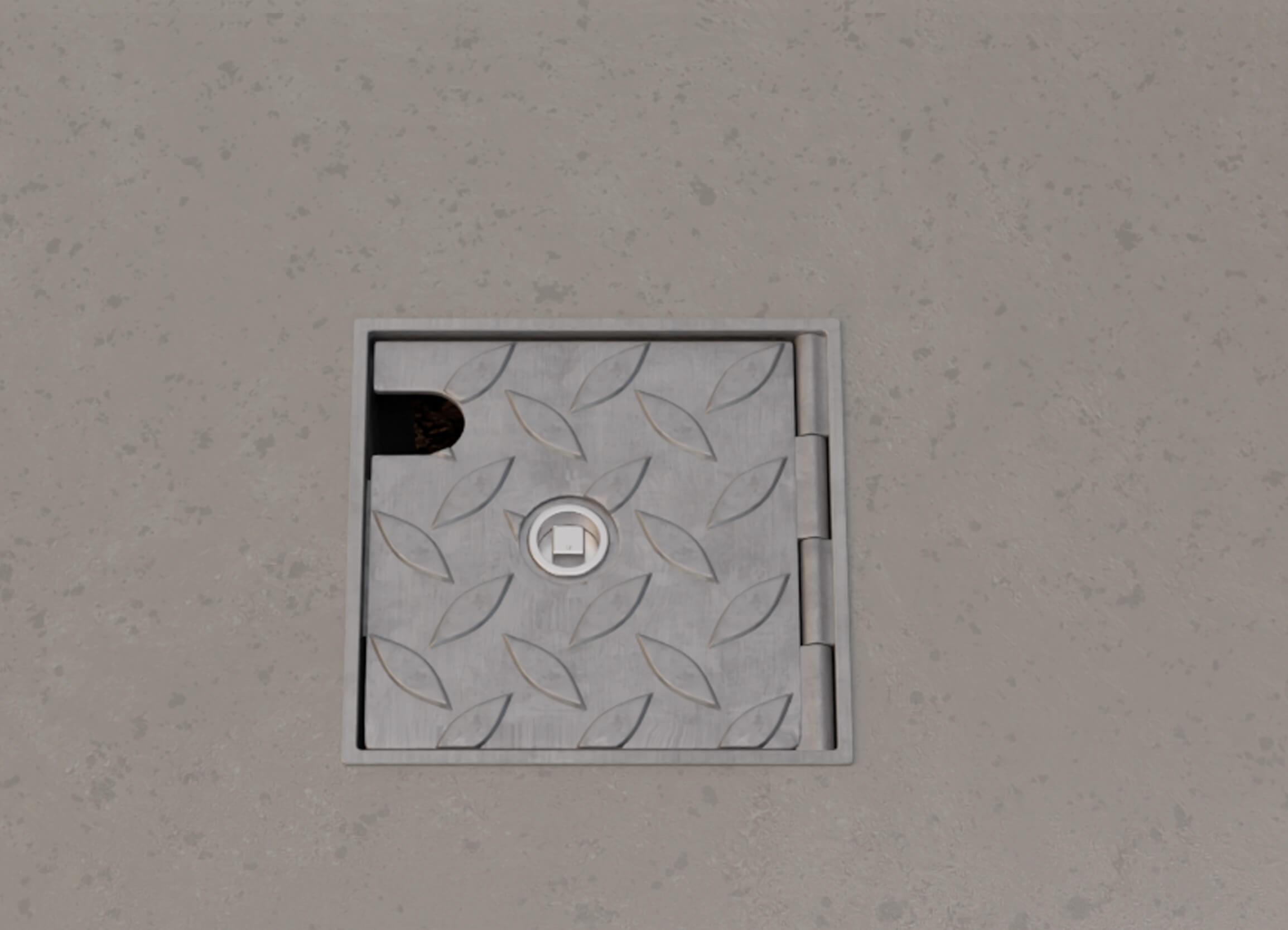

FLYBOX LID CLOSED

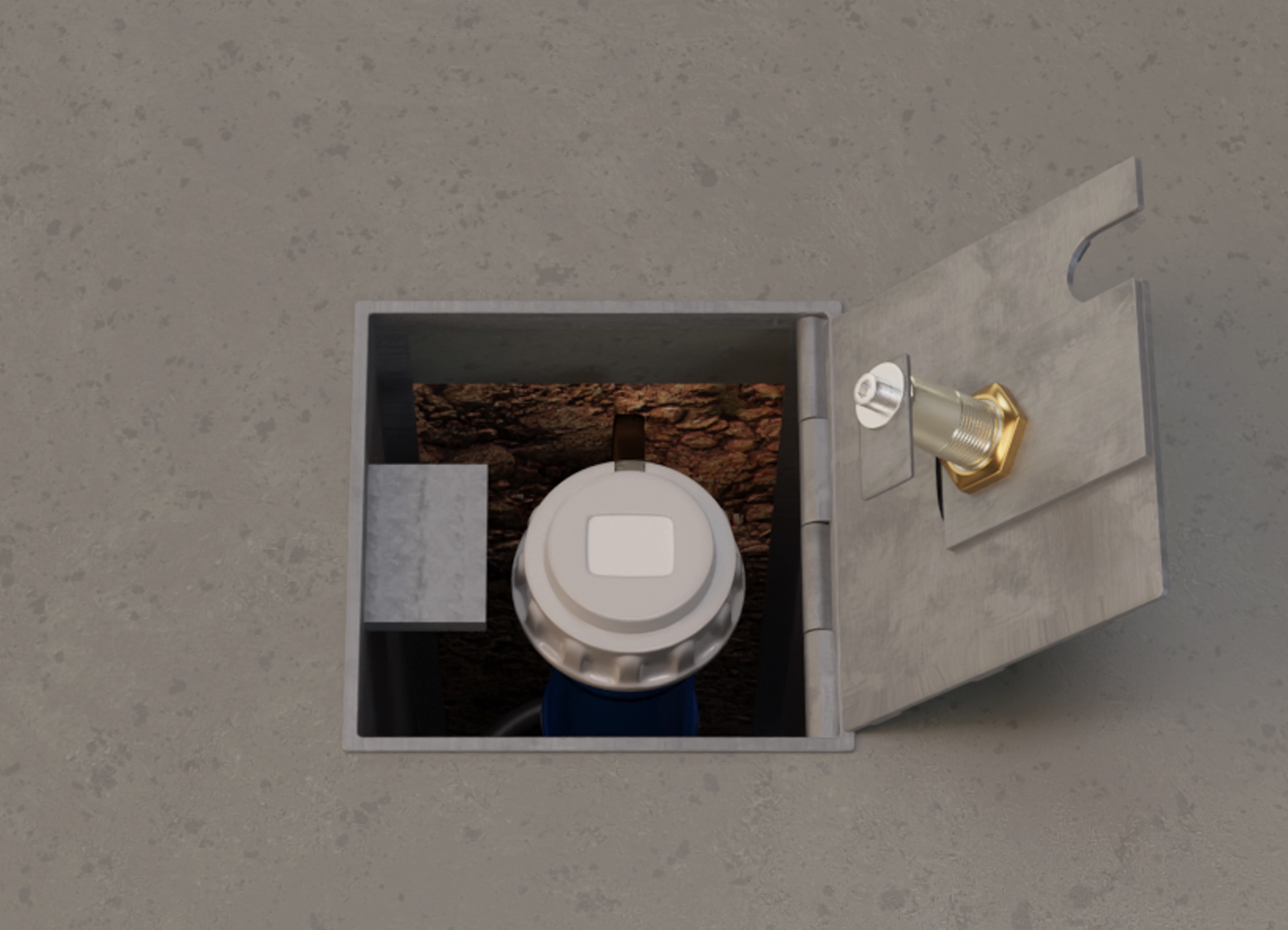

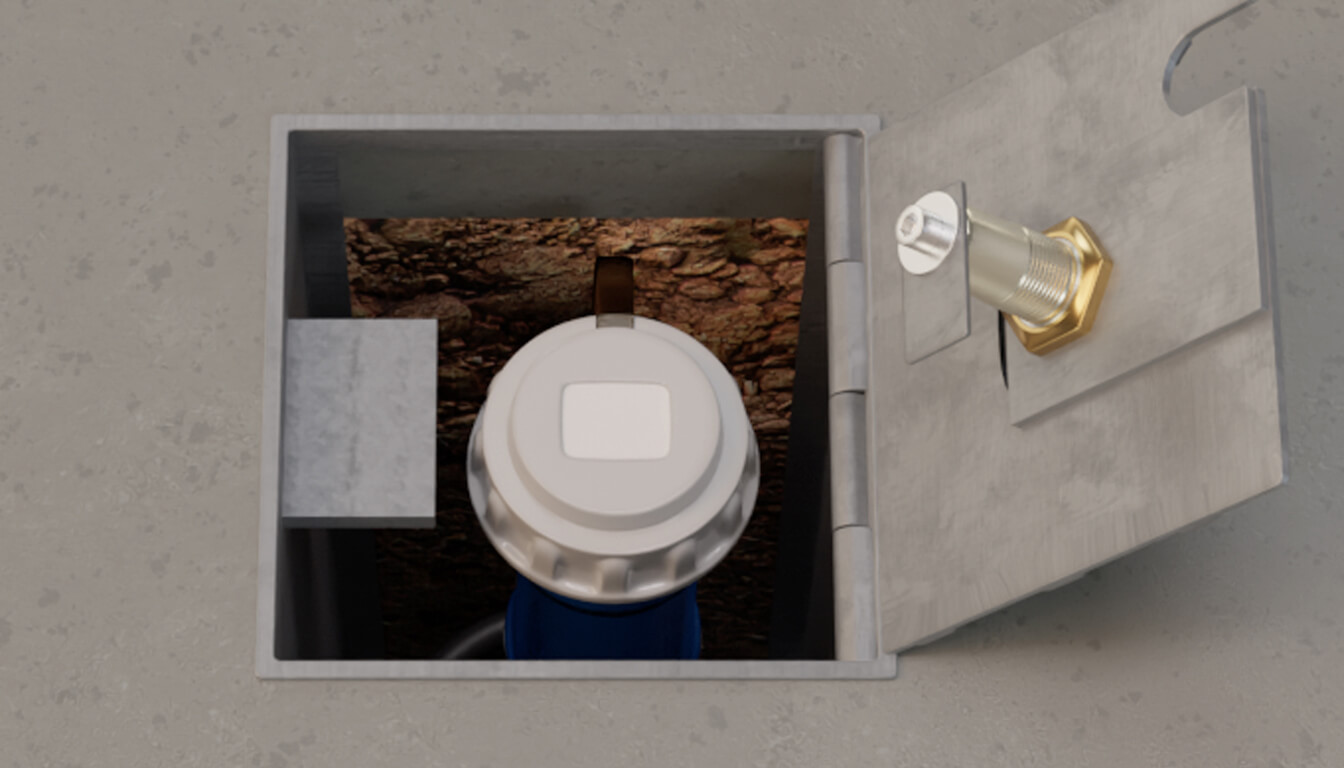

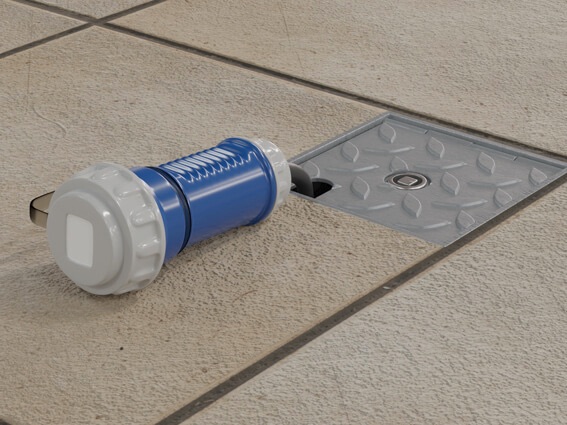

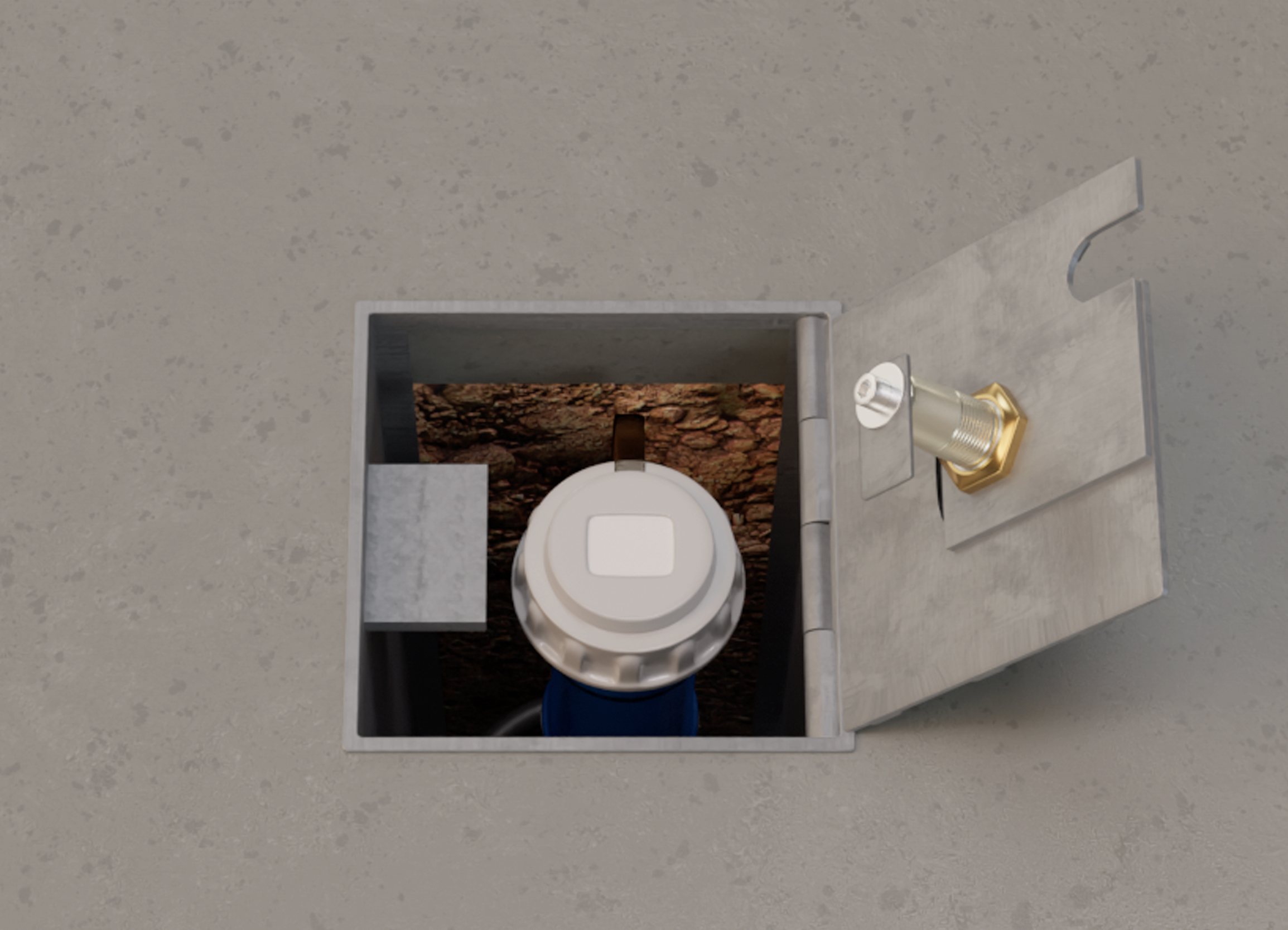

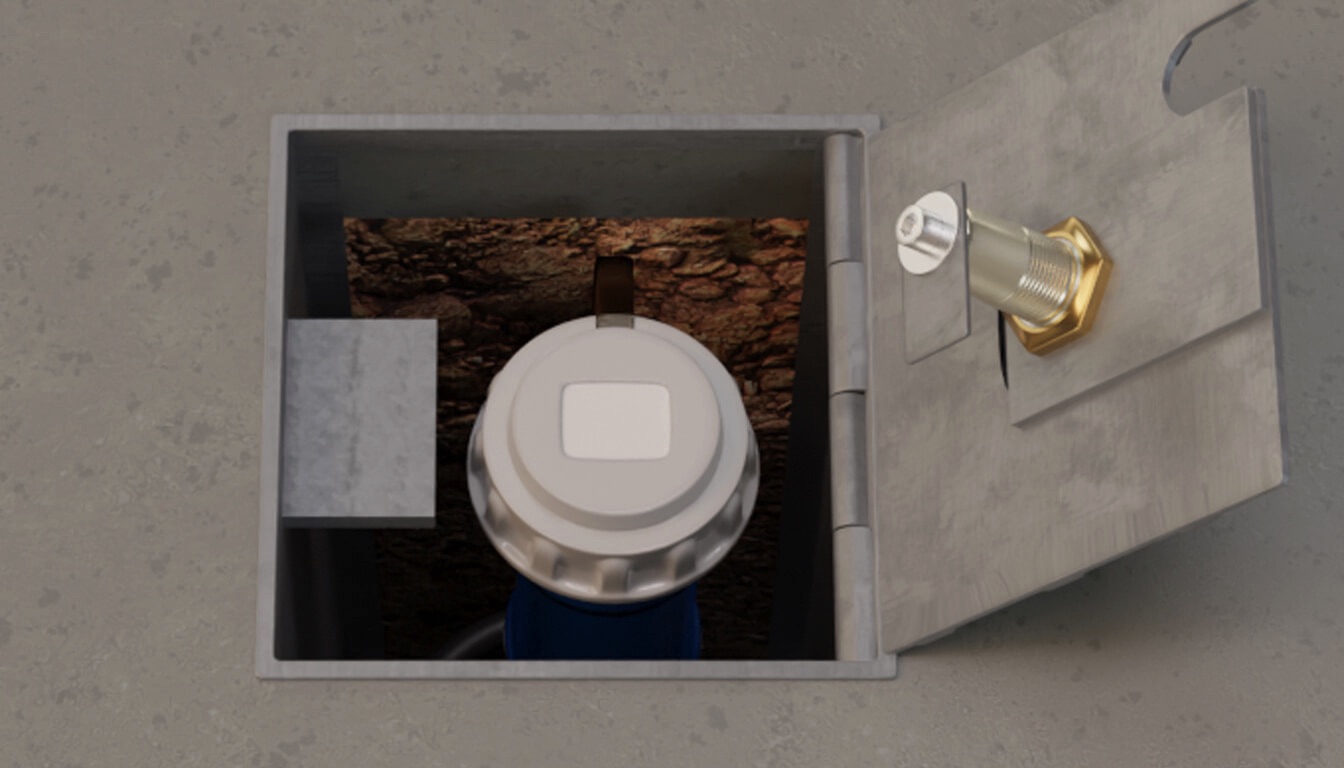

FLYBOX LID OPEN

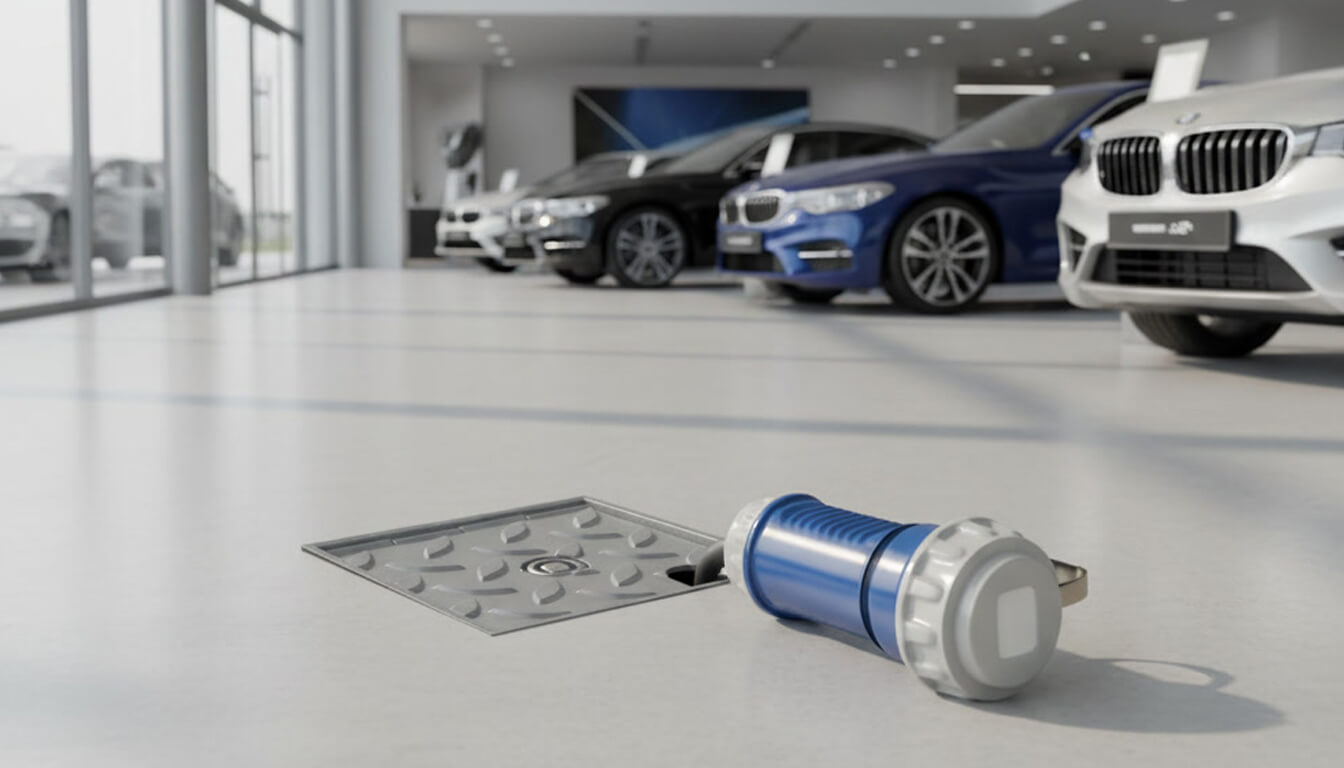

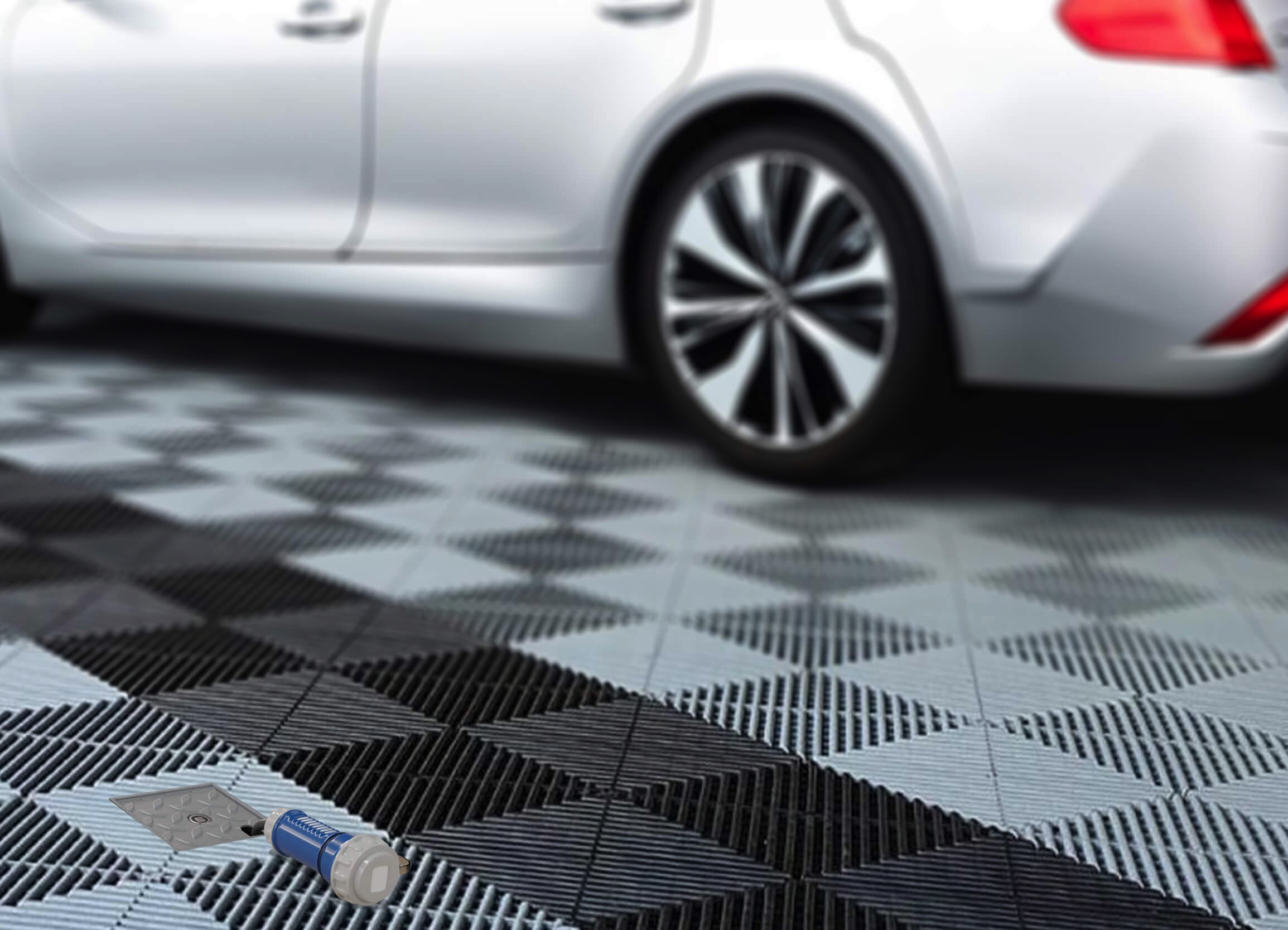

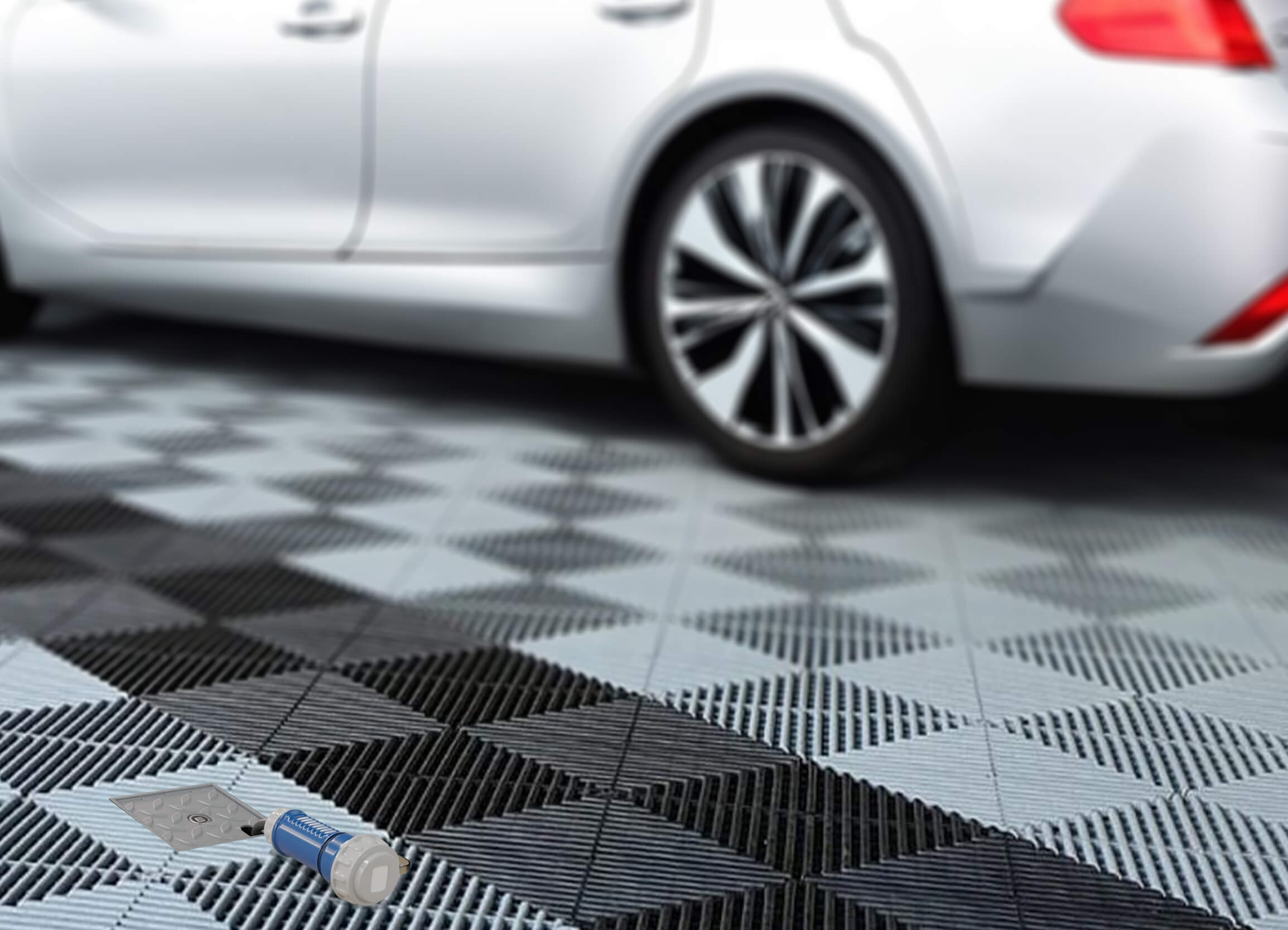

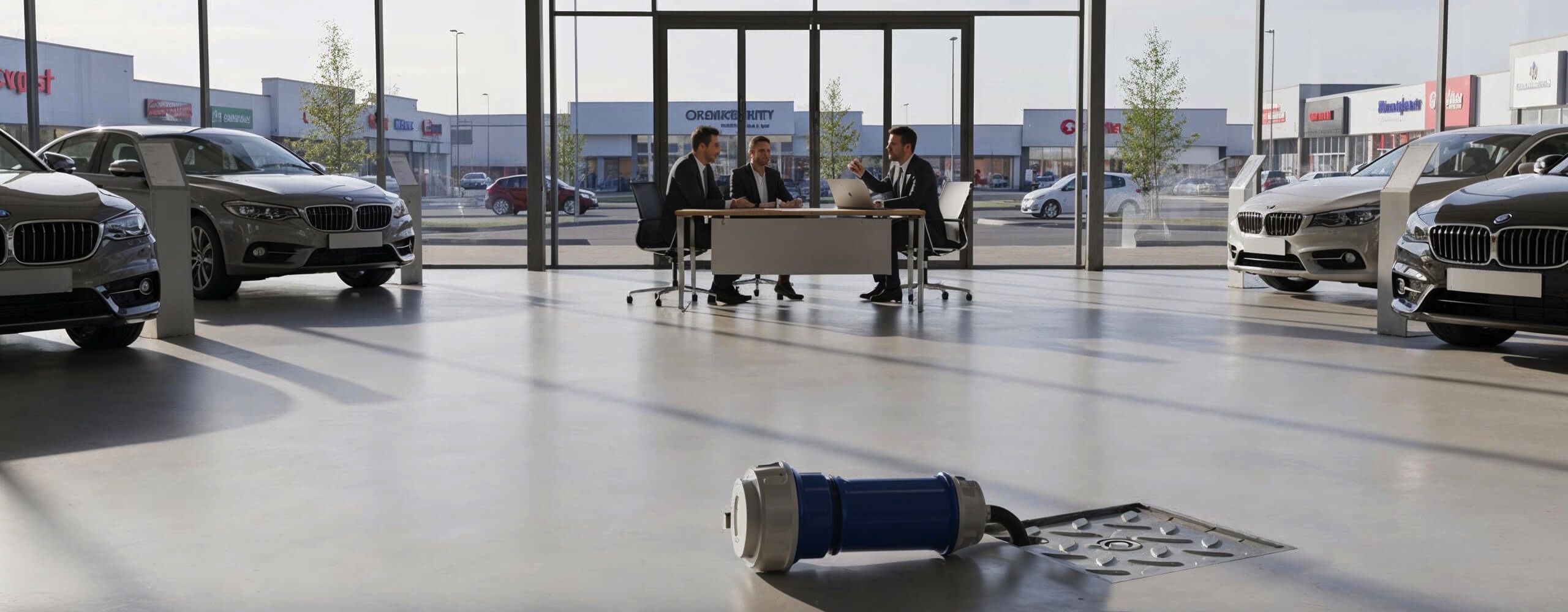

CAR SHOWROOM

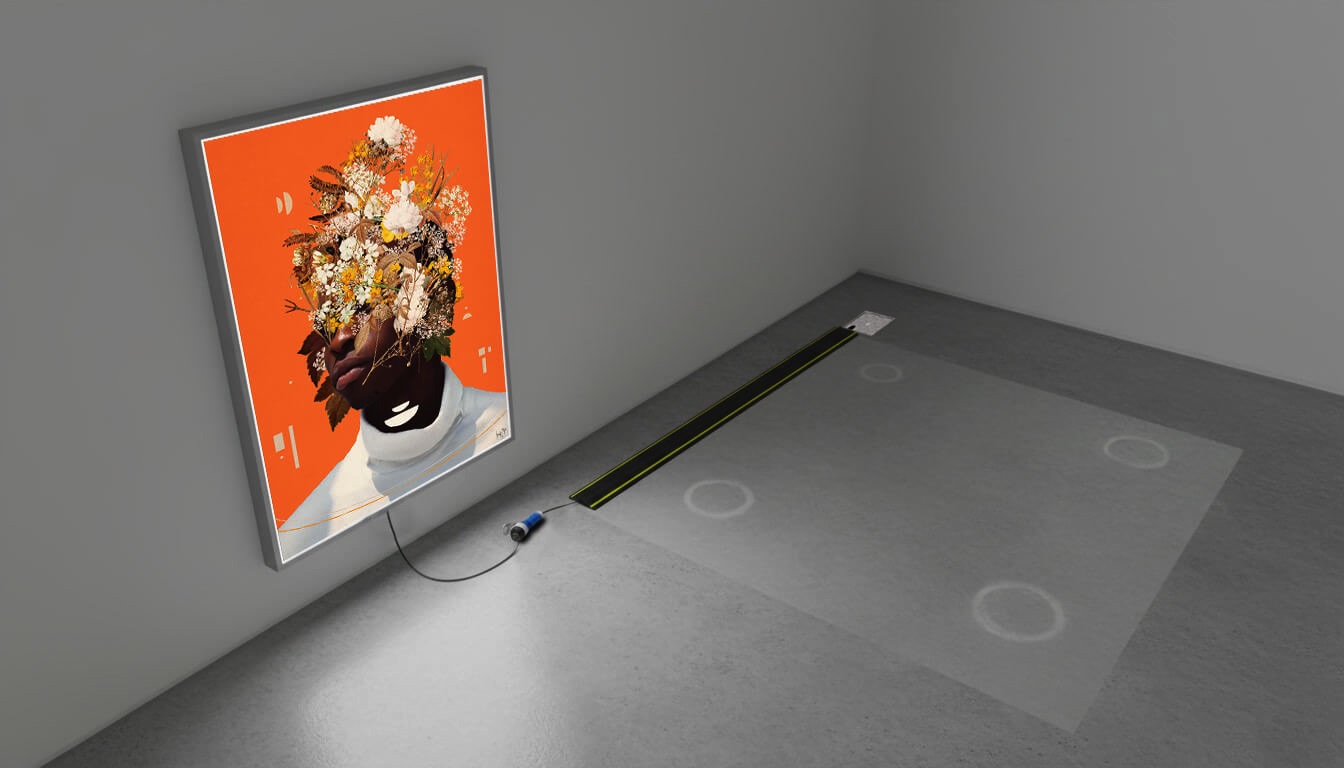

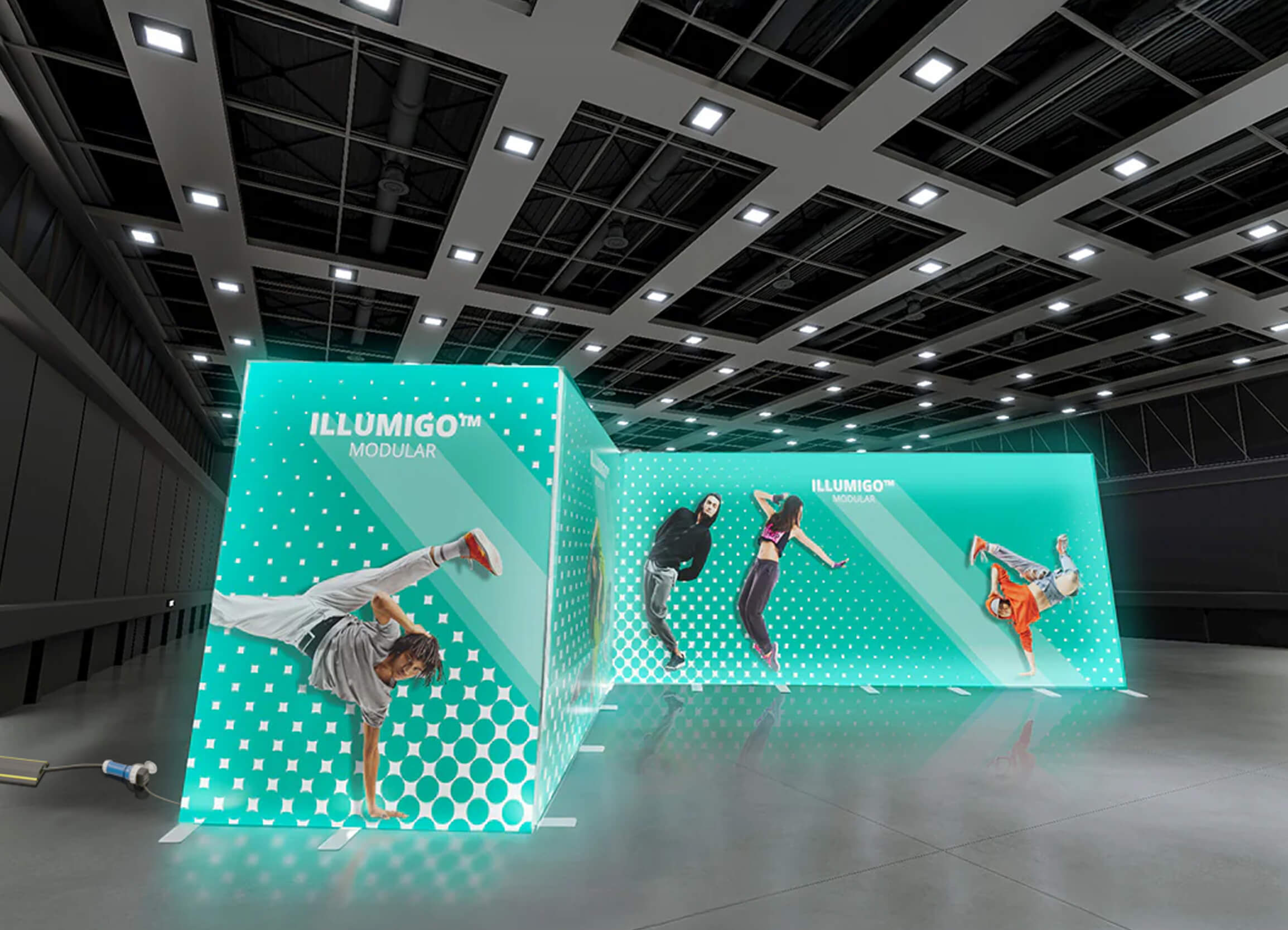

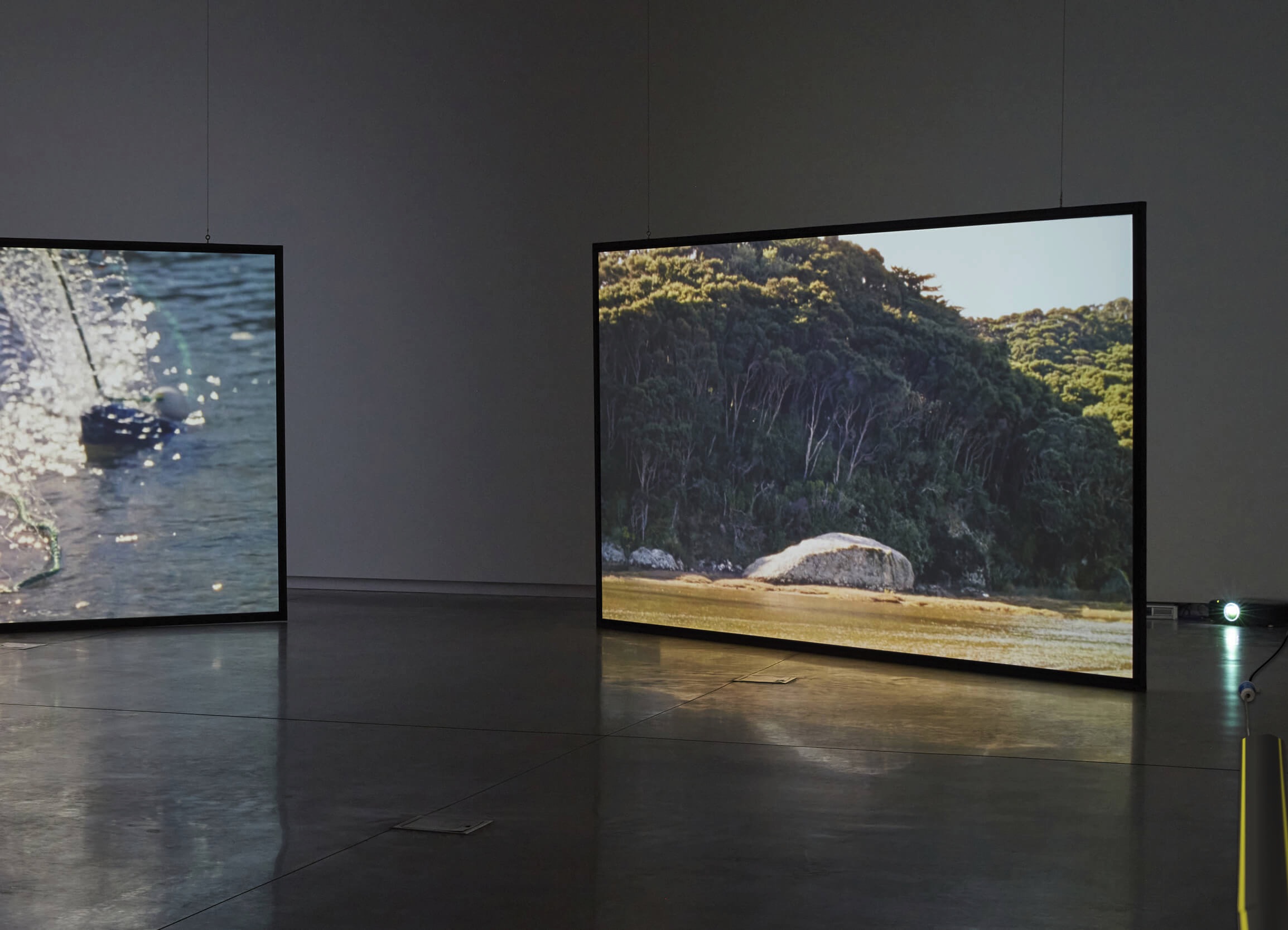

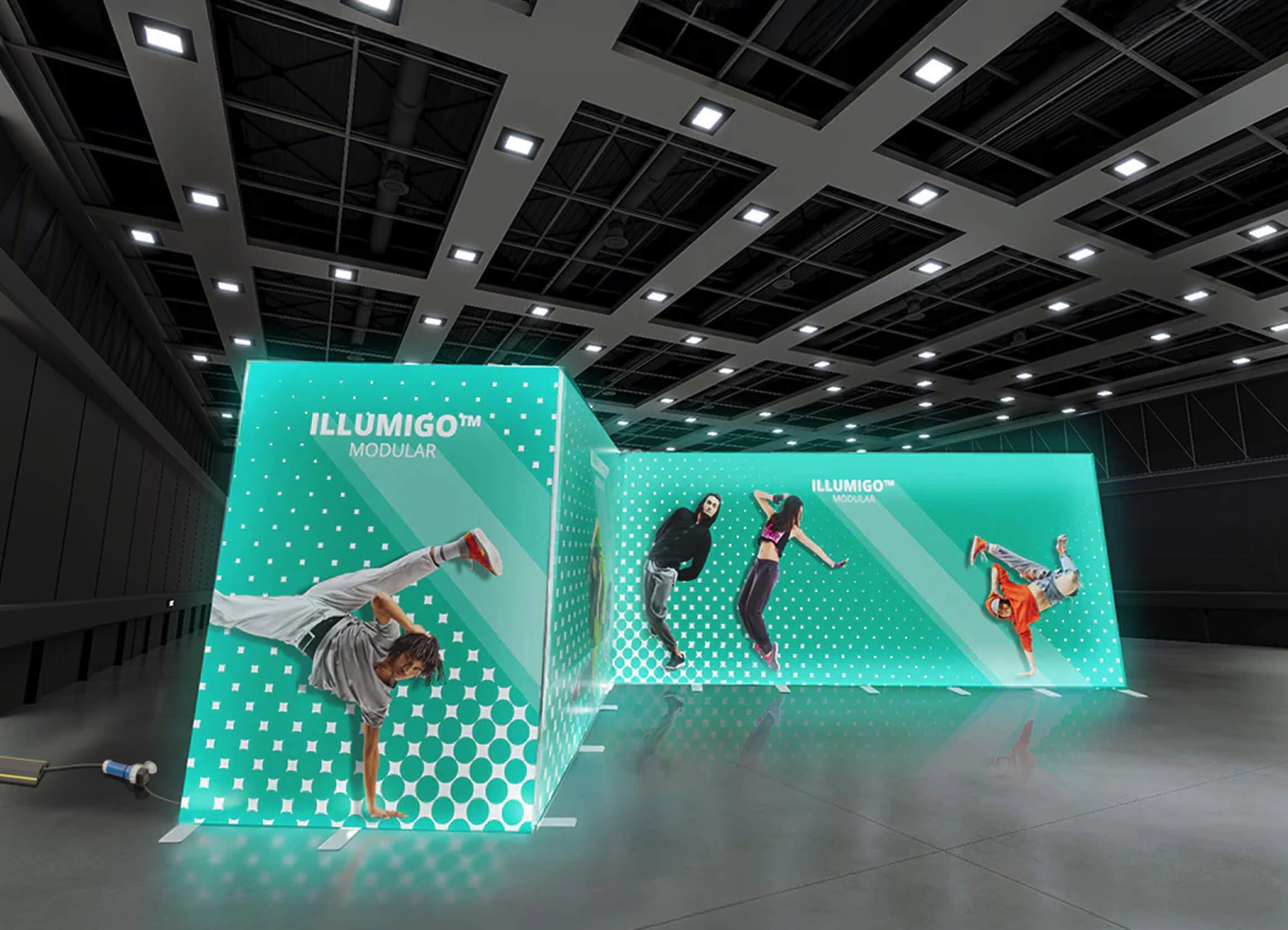

CIVIC SPACES, GALLERIES & EXHIBITION HALLS

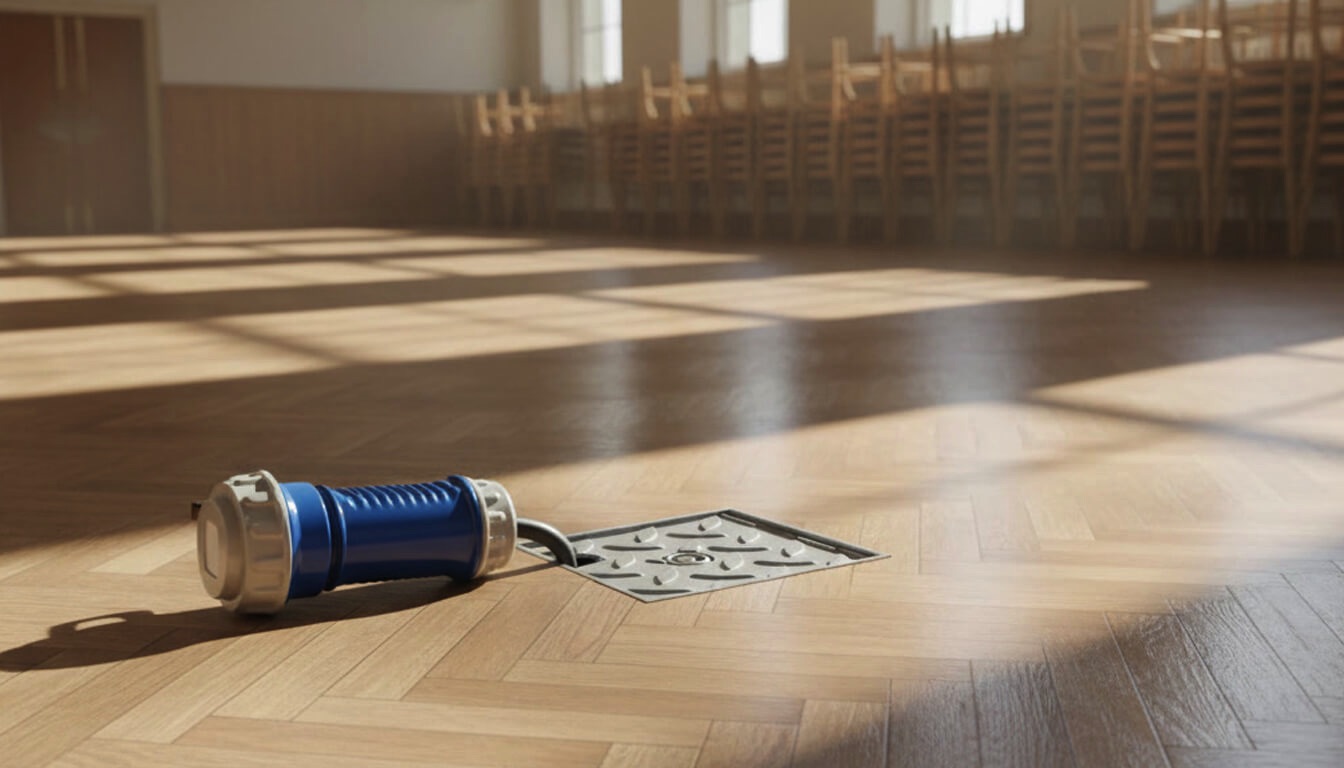

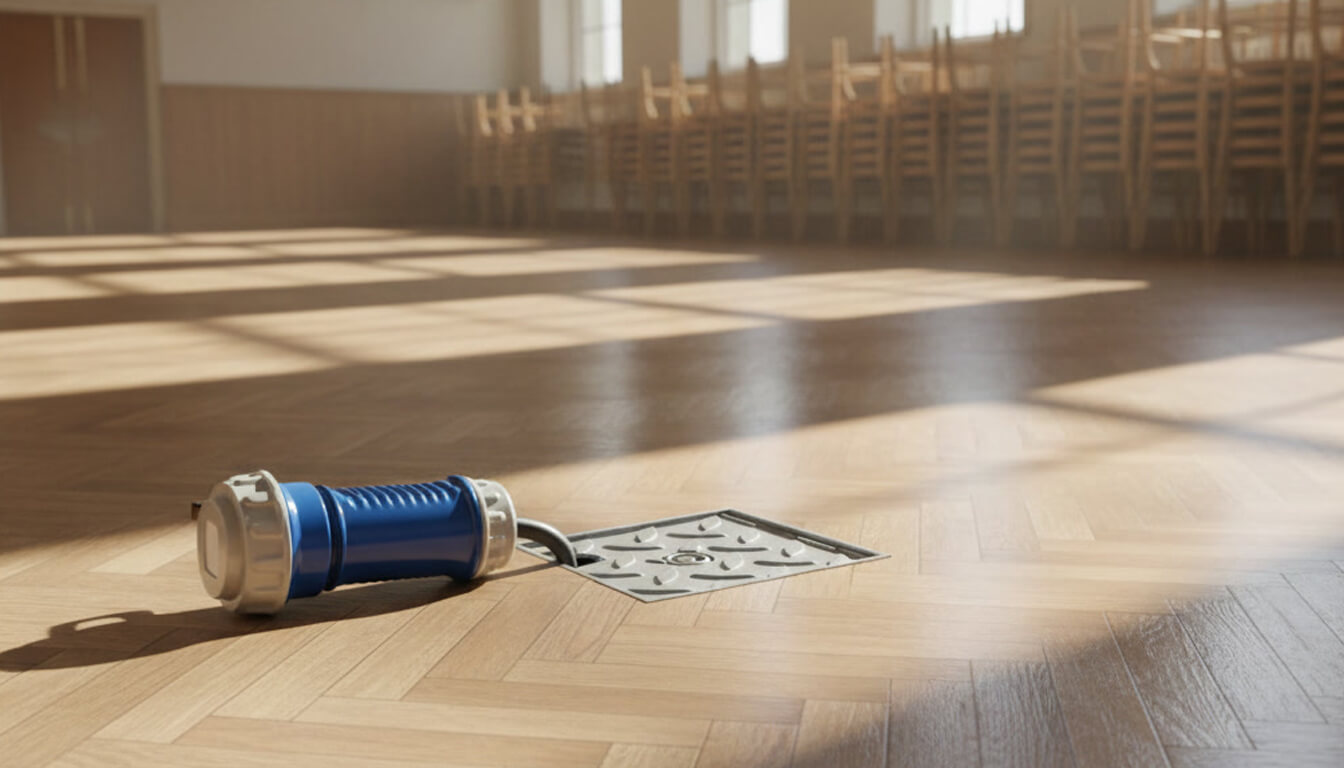

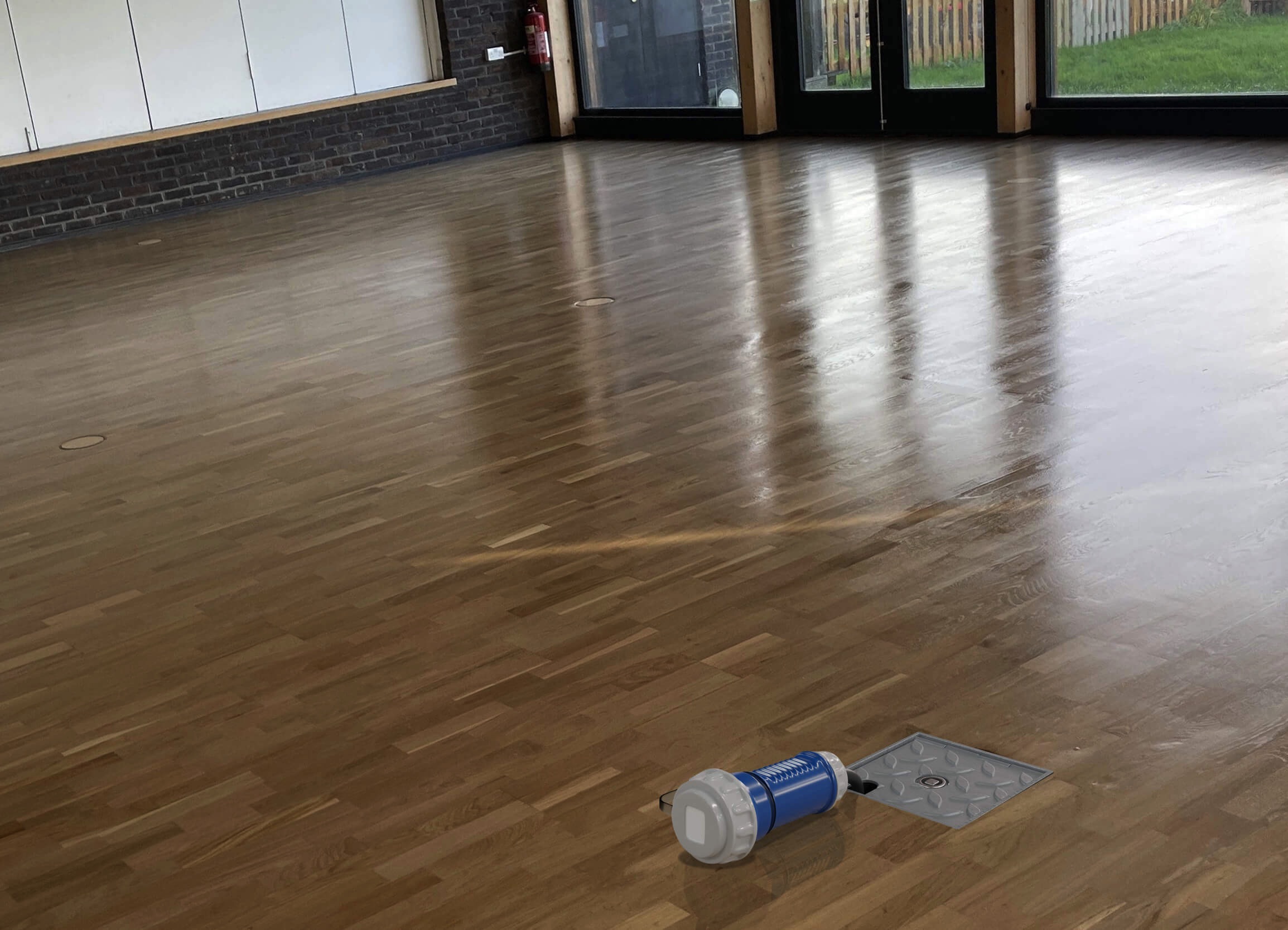

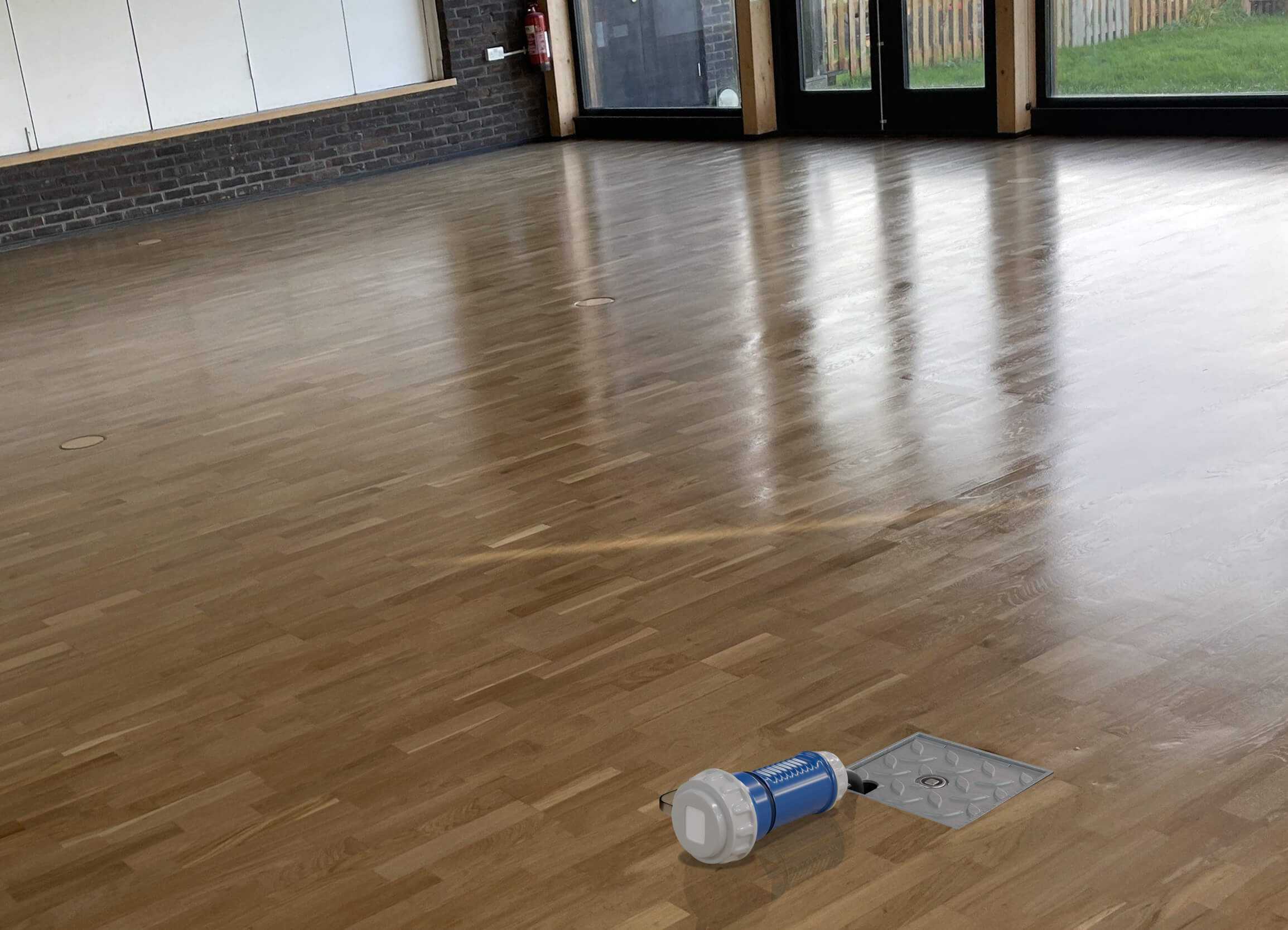

SCHOOL & VILLAGE HALLS

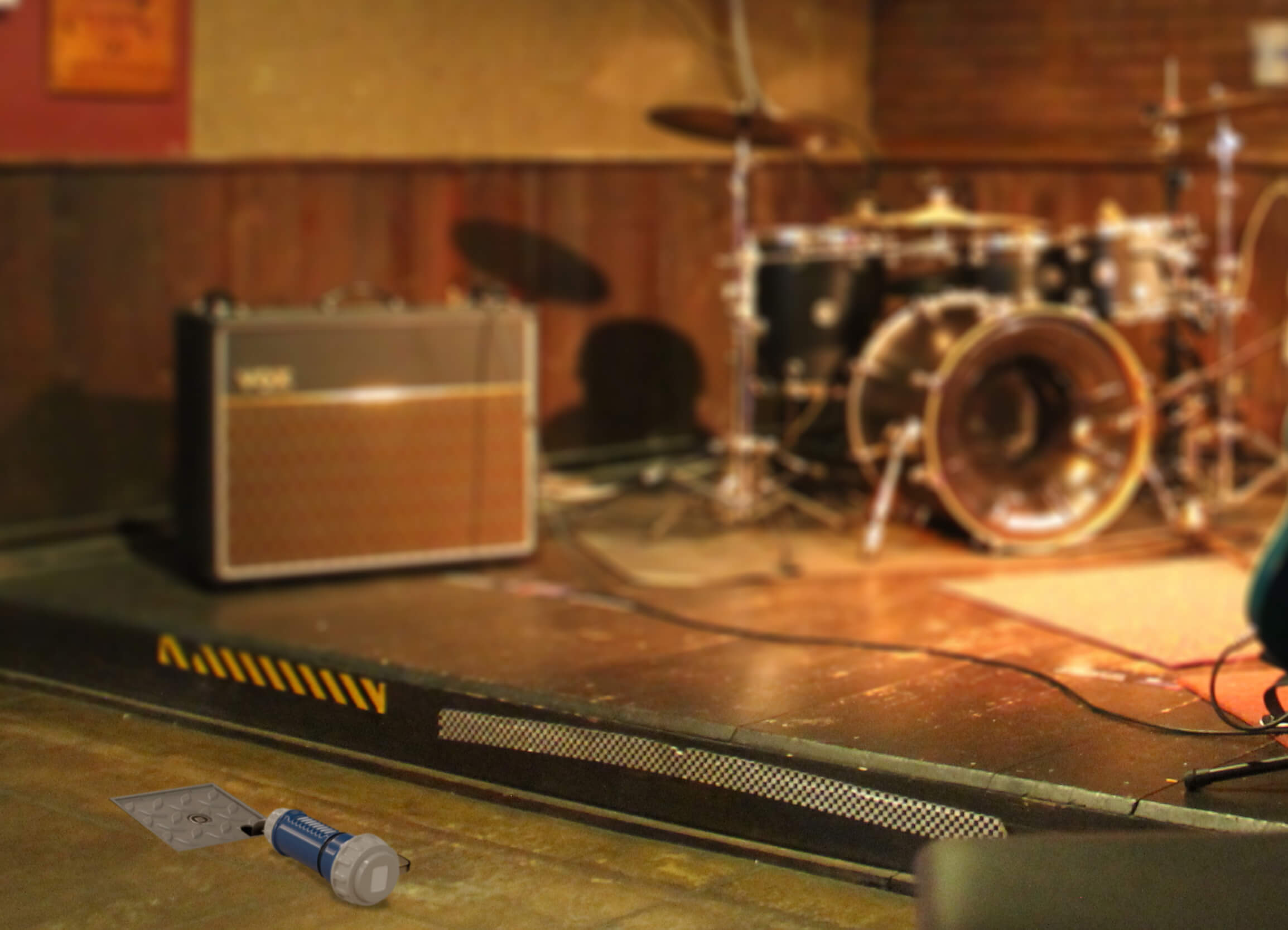

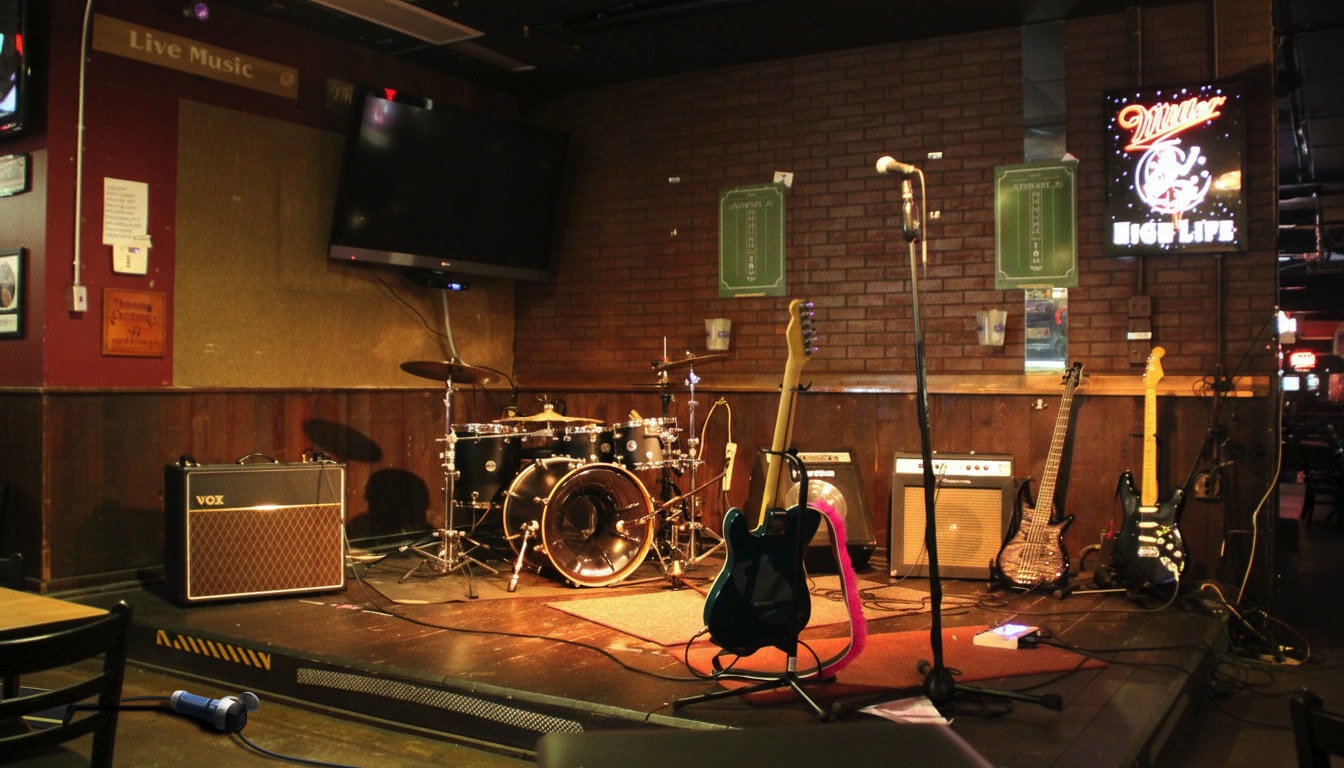

PUB VENUES

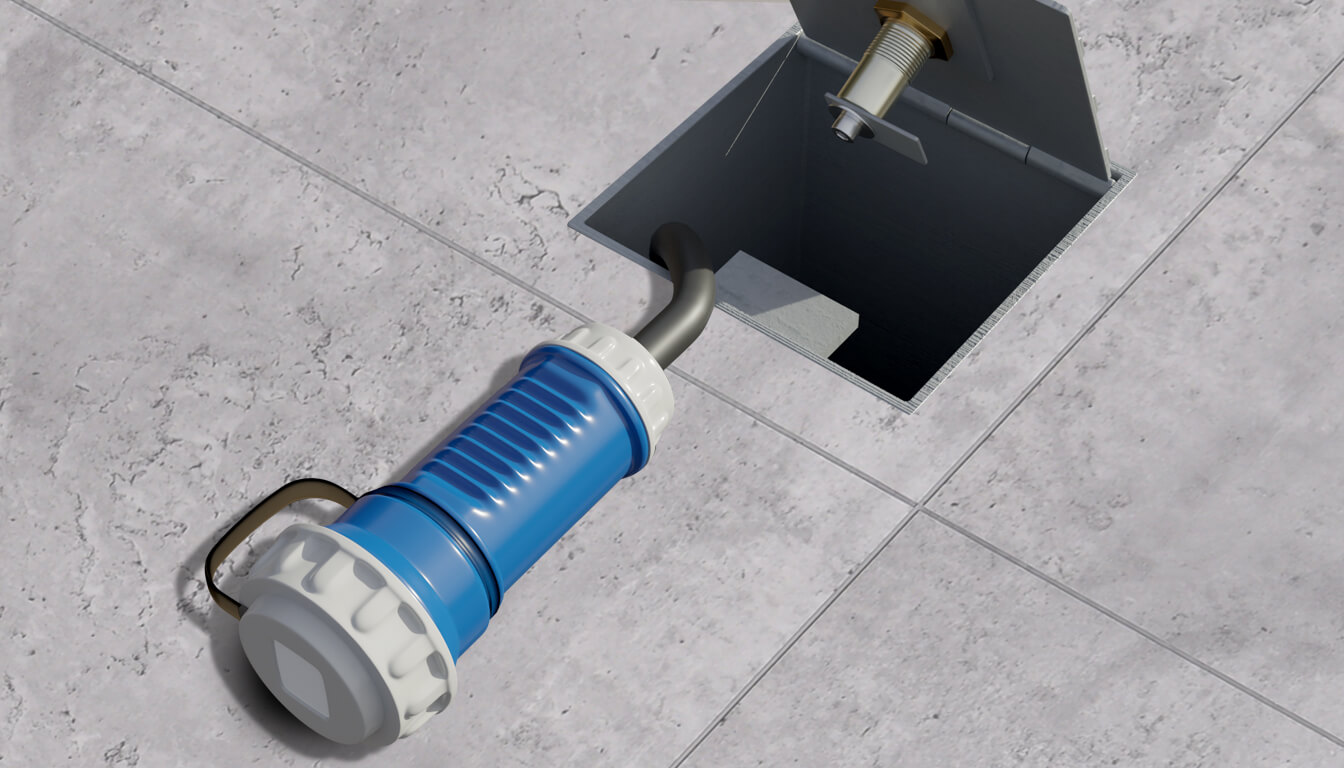

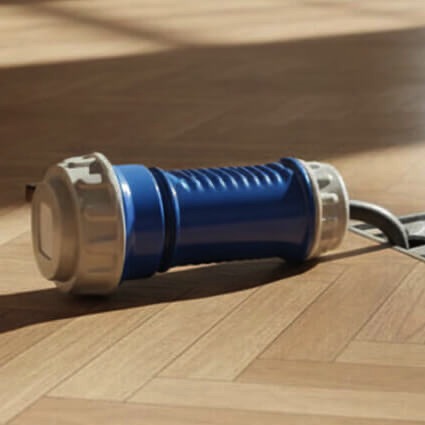

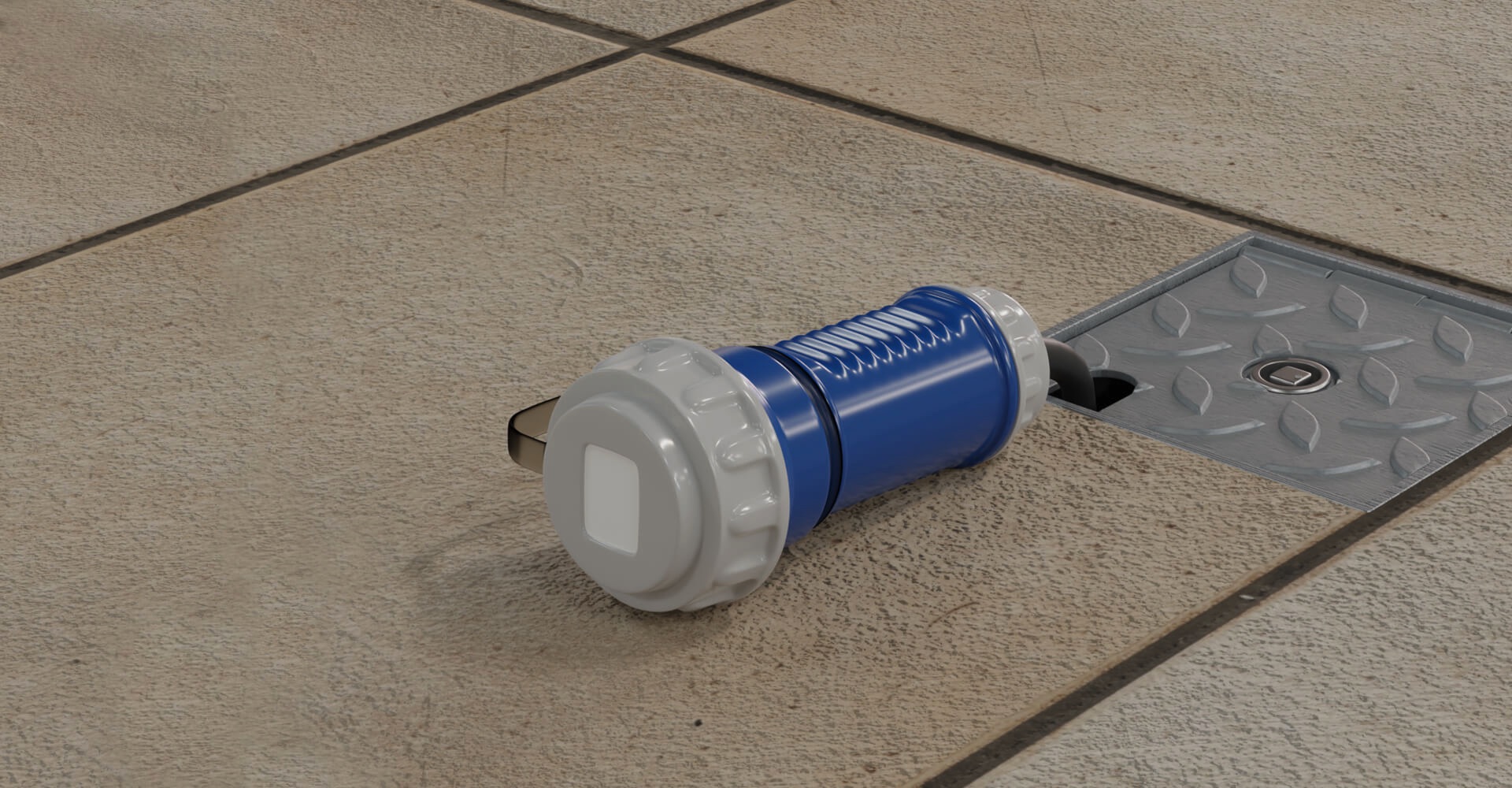

FLYBOX OPEN WHEN EXTENDING CABLE
