Pop Up Power Supplies Power Bollards

WHY ARE POP UP POWER UNITS SO USEFUL?


Pop Up units are manufactured in stainless steel AISI304 and have an epoxy-polyester powder finish. The tops are available in stainless steel or cast iron.

The adaptability of these retractable feeder pillars makes them suitable for all outdoor environments. Most importantly, the “Pop Up” nature of the units improves the quality of the area. The retractable units are space saving and mitigate the need for generators, which are both polluting and noisey.

Our Pop Up power units provide an outdoor power supply for many projects throughout the UK, including Wembley Arena Square, Covent Garden, Edinburgh Castle, and the University of Exeter to name a few. Our Pop Up Electrical Sockets can be used in a variety of settings. They provide a safe, silent and secure power supply and are suitable for most outdoor requirements.

ENQUIRE ABOUT POP UP UNITS

POP UP POWER UNIT FEATURES:

Raised using a winding handle (except PUPS04)

Allows power cables to be easily connected

Epoxy-polyester powder finish

Unit covers are AISI 304 stainless steel

Optional cast iron cover on PUPS01 and PUPS08

Covers take either 25 or 40 tonne loading

Sockets available 16, 32, 63 and 125 amps (depending on unit size)

Option for recessed top to accommodate surface material

Suitable for use in HGV areas

OUR FULL RANGE OF RETRACTABLE POWER UNITS

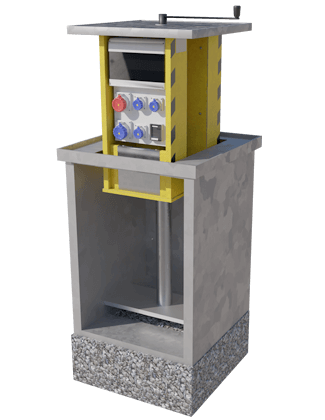

PUPS01

Total power 125 amps single or three phase incoming supply. Our most versatile unit - suitable for market places, heritage sites, industrial commercial. Able to supply power to multiple points.

PUPS01 PRODUCT DATA
MECHANICAL SPECIFICATIONS
  • For the supply of electricity, telephone and data
  • RBK concrete containment chamber
  • Made with AISI 304 stainless steel
  • Available with AISI 316L stainless steel (only on demand)
  • Cast Iron worm screw lifting system
  • Supported by self-lubricating polythene guides for easy raising
  • Optional cover in cast iron (D400 and D250)
  • Optional cover in AISI 304 stainless steel – closed or recessed
  • External dimensions 660 x 660, depth 1050mm
  • Total unit weight – 560kg

ELECTRICAL SPECIFICATIONS
  • Up to 125 amps
  • Voltage 230V/400V single or three phase incoming supply
  • Frequency from 50hz to 60hz
  • Standard protection of the CEE sockets IP67
  • Complies with Regulation EN 60947-1 and EN 61439
SUGGESTED SOCKET CONFIGURATIONS
  1. 1x 63 amp three phase sockets with RCBO protection
    2x 32 amp single phase sockets with RCBO protection
    4x 16 amp single phase sockets with RCBO protection

  2. 1x 125 amp three phase sockets with RCBO protection
    1x 32 amp three phase sockets with RCBO protection
    1x 32 amp single phase sockets with RCBO protection

  3. 4x 16 amp single phase sockets with RCBO protection
    2x 32 amp single phase sockets with RCBO protection
    6x 16 amp single phase sockets with RCBO protection

  4. 4x 16 amp single phase sockets with RCBO protection
    1x 32 amp three phase sockets with RCBO protection
    1x 32 amp single phase sockets with RCBO protection
    5x 16 amp single phase sockets with RCBO protection
    1x RJ45 outlet

NOTE: 13 amp socket outlets in watertight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
PHYSICAL INFORMATION
STRUCTURE
  • RBK concrete containment chamber
  • Made with AISI 304 stainless stee
  • Available with AISI 316L stainless steel (only on demand)
  • Cast Iron worm screw lifting system
  • Optional cover in cast iron (D400 and D250)
  • External dimensions 660 x 660mm, depth 1040mm
  • Total unit weight – 560kg

NOTE: The unit casing is not water tight, it has no IP rating. All CEE sockets installed have a rating of IP67.

UNIT INTERNAL ACCESS
  • Raised by winding handle operating a cast iron worm screw system with self-lubricating polythene guides
CONNECTION SYSTEM
  • Connection to 3 metre (standard) H07RN-F cable tail from unit to be connected to incoming supply by underground polymer joint (torpedo joint).
ADDITIONAL EQUIPMENT
  • RJ45 Data and telephone connectors
  • Energy consumption meters

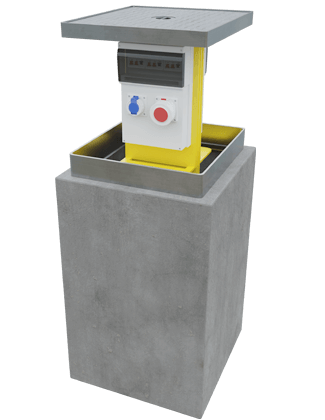

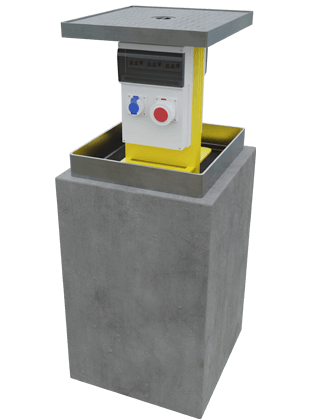

PUPS04

63 amp single or three phase incoming supply, our smallest retractable tower unit. Ideal for smaller areas where space is a premium. Raised manually by hook.

PUPS04 PRODUCT DATA
MECHANICAL SPECIFICATIONS
  • RBK concrete containment chamber
  • For the supply of electricity, telephone and data
  • Raised by manual lifting hook (less than 15 kgs)
  • Made with AISI 304 stainless steel
  • Available with AISI 316L stainless steel (only on demand)
  • External dimensions 490 x 490, depth 812mm
  • Total unit weight – 170kg

ELECTRICAL SPECIFICATIONS
  • Up to 63 amps
  • Voltage 230V/400V single or three phase incoming supply
  • Frequency from 50hz to 60hz
  • Standard protection of the CEE sockets IP67
  • Regulation EN 60947-1 and EN 61439
SUGGESTED SOCKET CONFIGURATIONS
  1. 1x 63 amp three phase sockets with RCBO protection
  2. 2x 32 amp three phase sockets with RCBO protection
  3. 6x 16 amp single phase sockets with RCBO protection
    2x 32 amp single phase sockets with RCBO protection
  4. 8x 16 amp single phase sockets with RCBO protection

NOTE: 13 amp socket outlets in watertight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
PHYSICAL INFORMATION
STRUCTURE
  • RBK concrete containment chamber
  • Made with AISI 304 stainless steel
  • Available with AISI 316L stainless steel (only on demand)
  • Cast Iron worm screw lifting system
  • Optional cover in cast iron (D400 and D250)
  • External dimensions 490 x 490mm, depth 830mm
  • Total unit weight 160kg

NOTE: The unit casing is not water tight, it has no IP rating. All CEE sockets installed have a rating of IP67.

UNIT INTERNAL ACCESS
  • Raised to working height by manual lifting the central unit using a lifting hook (15kg max).
 CONNECTION SYSTEM
  • Connection to 3 metre (standard) H07RN-F cable tail from unit to be connected to incoming supply by underground polymer joint (torpedo joint).
ADDITIONAL EQUIPMENT
  • RJ45 Data and telephone connectors
  • Energy consumption meters

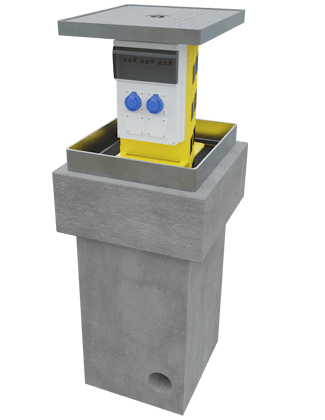

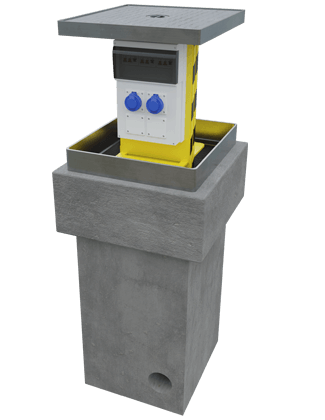

    PUPS05

    63 amp single or three phase incoming supply retractable power tower ideal for market spaces and small event stages. Raised using wormscrew lifting system.

    PUPS05 PRODUCT DATA
    MECHANICAL SPECIFICATIONS
    • Total power 63 amps single or three phase incoming supply
    • Can be used to supply electricity, data and telephone
    • Raised by winding handle operating a worm screw lifting system
    • The unit raises easily on self-lubricating polythene guides
    • Made with AISI 304 stainless steel
    • Optional AISI 304 stainless steel closed or recess cover
    • Available with AISI 316L stainless steel (only on demand)
    • External dimensions 490 x 490, depth 823mm
    • Total unit weight – 170kg
    ELECTRICAL SPECIFICATIONS
    • Up to 63 amps
    • Voltage 230V/400V single or three phase incoming supply
    • Frequency from 50hz to 60hz
    • Standard protection of the CEE sockets IP67
    • Complies with regulation EN 60947-1 and EN 6143
    SUGGESTED SOCKET CONFIGURATIONS
    1. 1x 63 amp three phase sockets with RCBO protection
    2. 2x 32 amp three phase sockets with RCBO protection
    3. 6x 16 amp single phase sockets with RCBO protection
      2x 32 amp single phase sockets with RCBO protection
    4. 8x 16 amp single phase sockets with RCBO protection

    NOTE: 13 amp socket outlets in watertight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
    PHYSICAL INFORMATION
    STRUCTURE
    • RBK concrete containment chamber
    • Made with AISI 304 stainless steel
    • Available with AISI 316L stainless steel (only on demand)
    • Cast Iron worm screw lifting system
    • Optional cover in cast iron (D400 and D250)
    • External dimensions 490 x 490mm, depth 830mm
    • Total unit weight 160kg

     NOTE: The unit casing is not water tight, it has no IP rating. All CEE sockets installed have a rating of IP67.

    UNIT INTERNAL ACCESS
    • Raised by winding handle operating a cast iron worm screw system with self-lubricating polythene guides.
    CONNECTION SYSTEM
    • Connection to 3 metre (standard) H07RN-F cable tail from unit to be connected to incoming supply by underground polymer joint (torpedo joint).
    ADDITIONAL EQUIPMENT
    • RJ45 Data and telephone connectors
    • Energy consumption meters

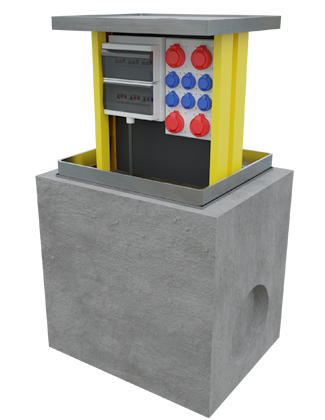

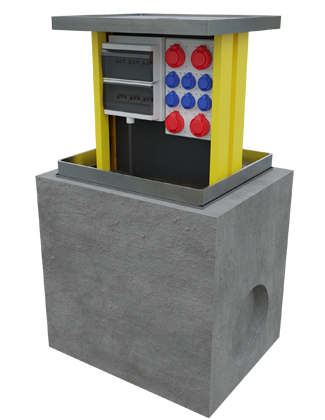

    PUPS08

    600amp single and three phase supply retractable power tower to power even the largest event areas. Raised using wormscrew lifting system.

    PUPS08 PRODUCT DATA
    MECHANICAL SPECIFICATIONS
    • Total power 600 amps
    • For the supply of electricity, data and telephone
    • This is a special build unit tailored to client’s requirements
    • RBK concrete containment chamber
    • Made with AISI 304 stainless steel
    • Available with AISI 316L stainless steel (only on demand)
    • Cast Iron worm screw lifting system
    • Optional closed or recessed cover in cast iron available
    • External dimensions 1000 x 1000, depth 1028mm
    • Total unit weight – 1020kg

    ELECTRICAL SPECIFICATIONS
    • Up to 600 amps
    • Voltage 230V/400V single or three phase incoming supply
    • Frequency from 50hz to 60hz
    • Standard protection of the CEE sockets IP67
    • Complies with regulation EN 60947-1 and EN 61439
    SUGGESTED SOCKET CONFIGURATIONS
    1. 1x 125 amp three phase sockets with RCBO protection
      1x 125 amp three phase sockets with RCBO protection
      1x 63 amp three phase sockets with RCBO protection
      2x 32 amp three phase sockets with RCBO protection
      1x 16 amp three phase sockets with RCBO protection
      2x 32 amp single phase sockets with RCBO protection
      6x 16 amp single phase sockets with RCBO protection

    2. 2x 125 amp 5P sockets with RCBO protection
      2x 125 amp three phase sockets with RCBO protection
      2x 63 amp three phase sockets with RCBO protection
      2x 32 amp three phase sockets with RCBO protection
      1x 16 amp three phase sockets with RCBO protection
      2x 32 amp single phase sockets with RCBO protection
      4x 16 amp single phase sockets with RCBO protection

    NOTE: 13 amp socket outlets in watertight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
    PHYSICAL INFORMATION
    STRUCTURE
    • RBK concrete containment chamber
    • Made with AISI 304 stainless steel
    • Available with AISI 316L stainless steel (only on demand)
    • Optional closed or recessed cover in cast iron available
    • External dimensions 1000 x 1000, depth 1028mm
    • Total unit weight – 1020kg

    UNIT INTERNAL ACCESS
    Raised by winding handle operating a cast iron worm screw system with self-lubricating polythene guides.

    CONNECTION SYSTEM
    Connection to 3 metre (standard) H07RN-F cable tail from unit to be connected to incoming supply by underground polymer joint (torpedo joint).
    ADDITIONAL EQUIPMENT
    • RJ45 Data and telephone connectors
    • Energy consumption meters

    POP UP POWER UNITS APPLICATIONS

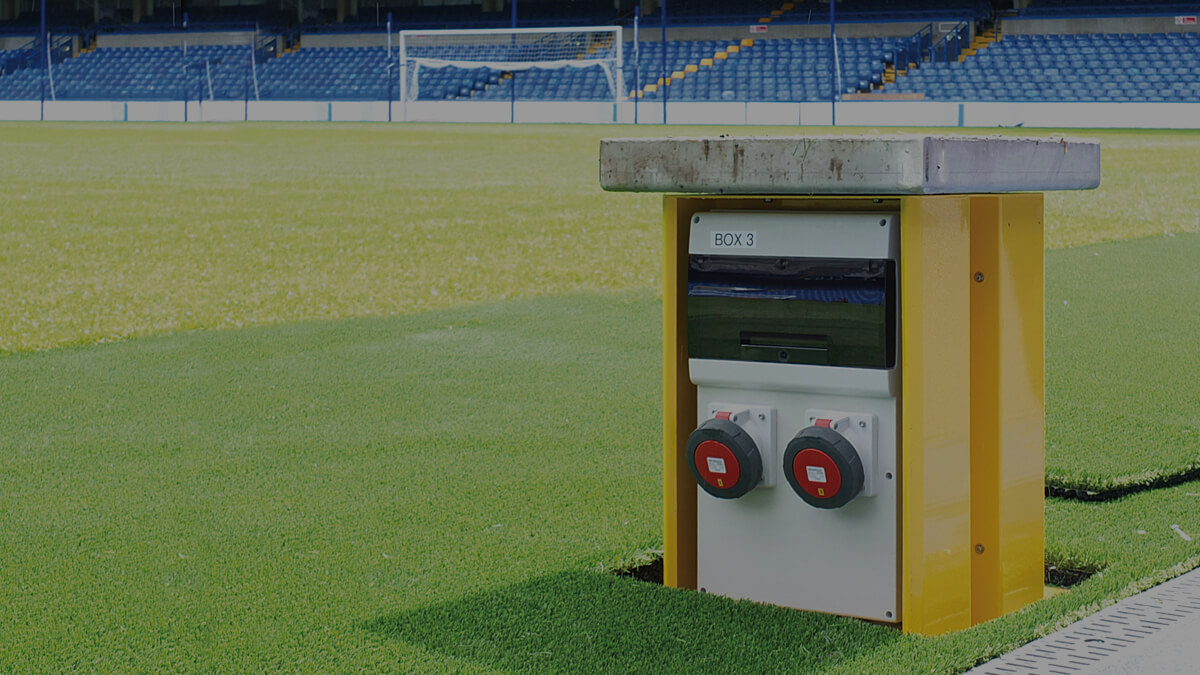

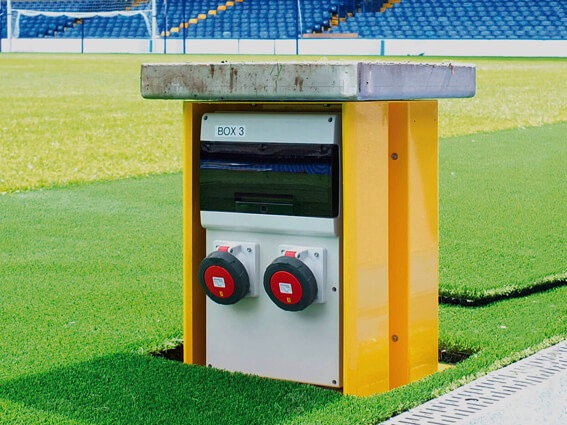

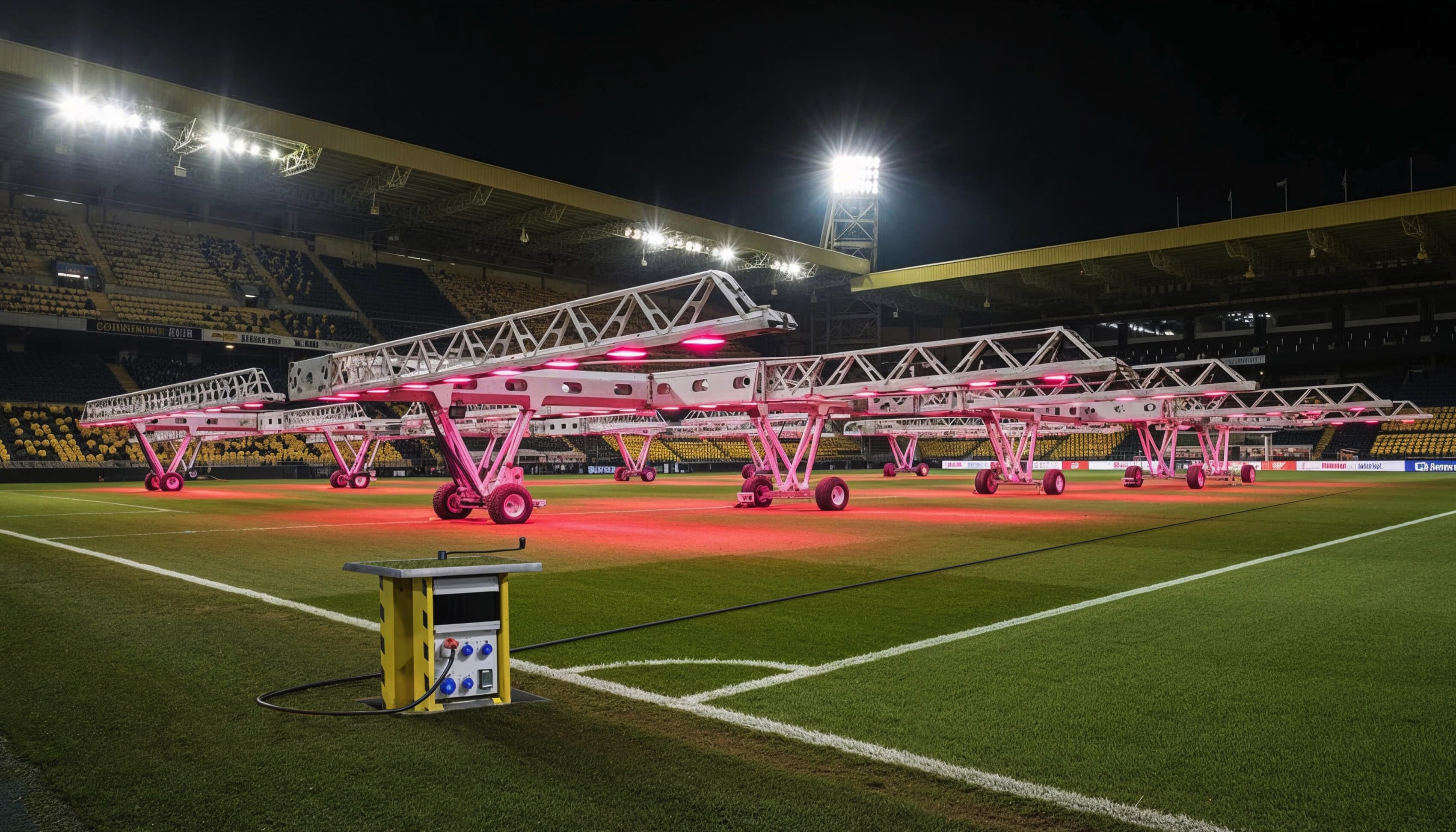

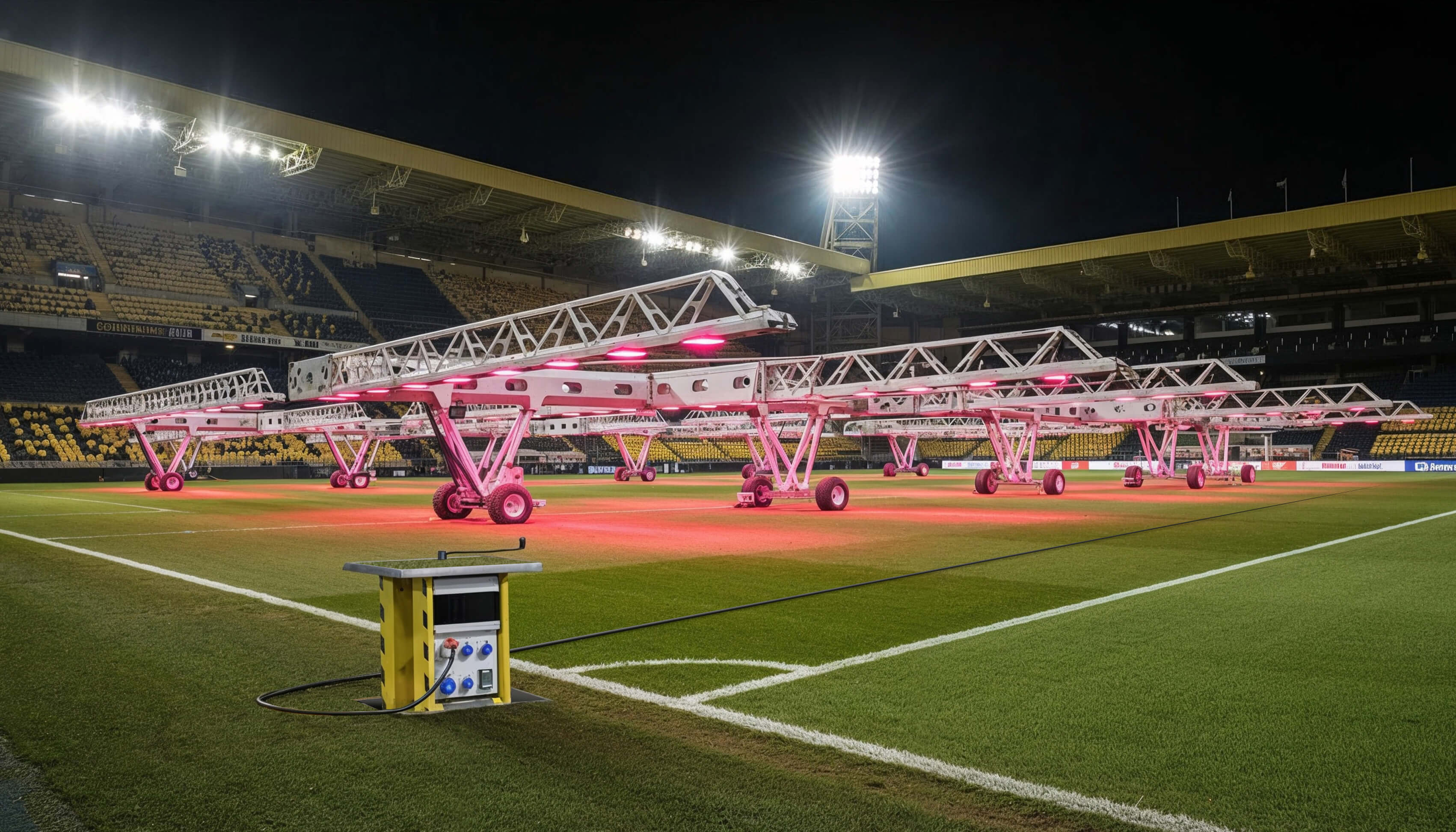

    LED LIGHTING UNITS AT SPORTS STADIUMS

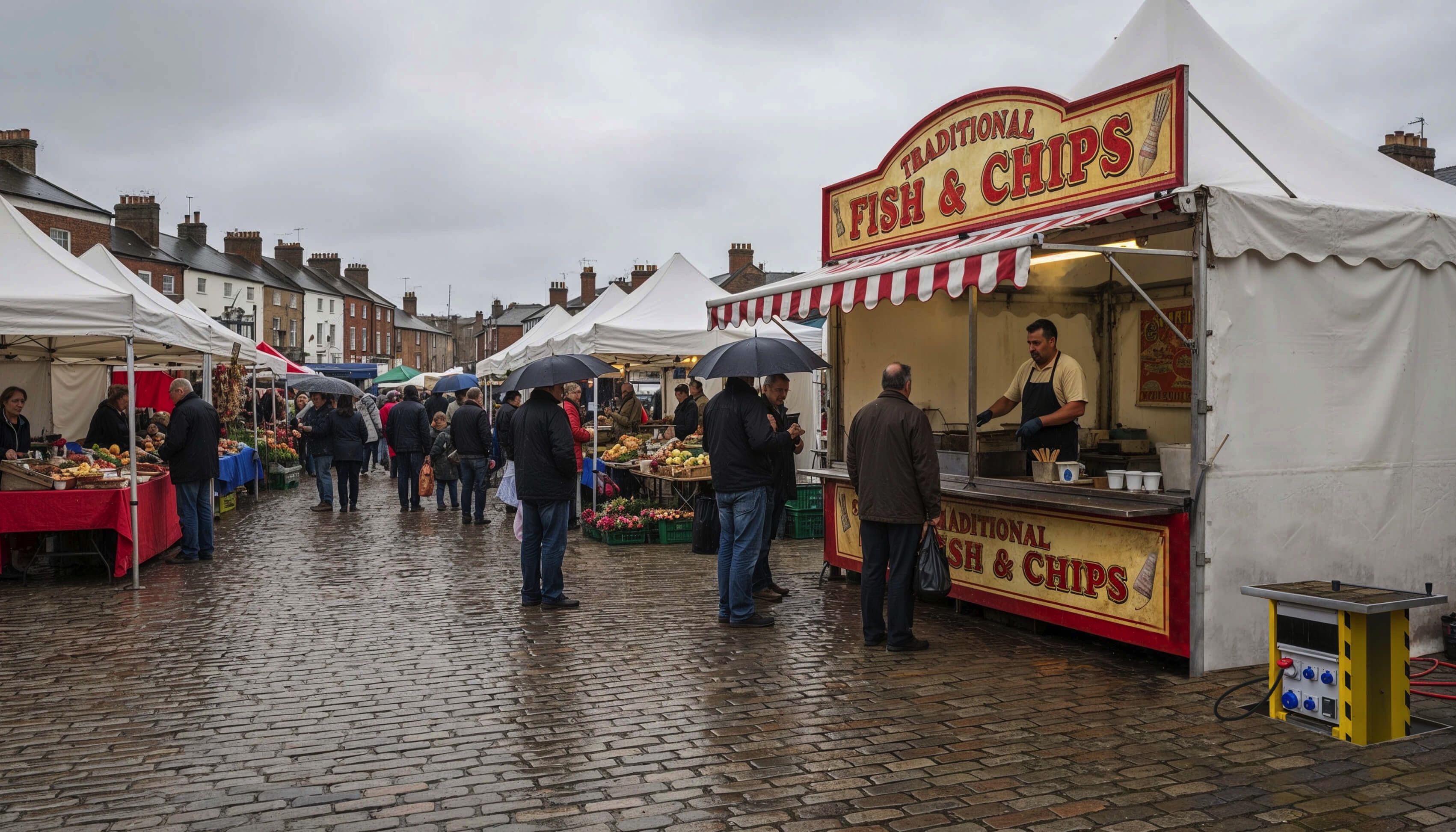

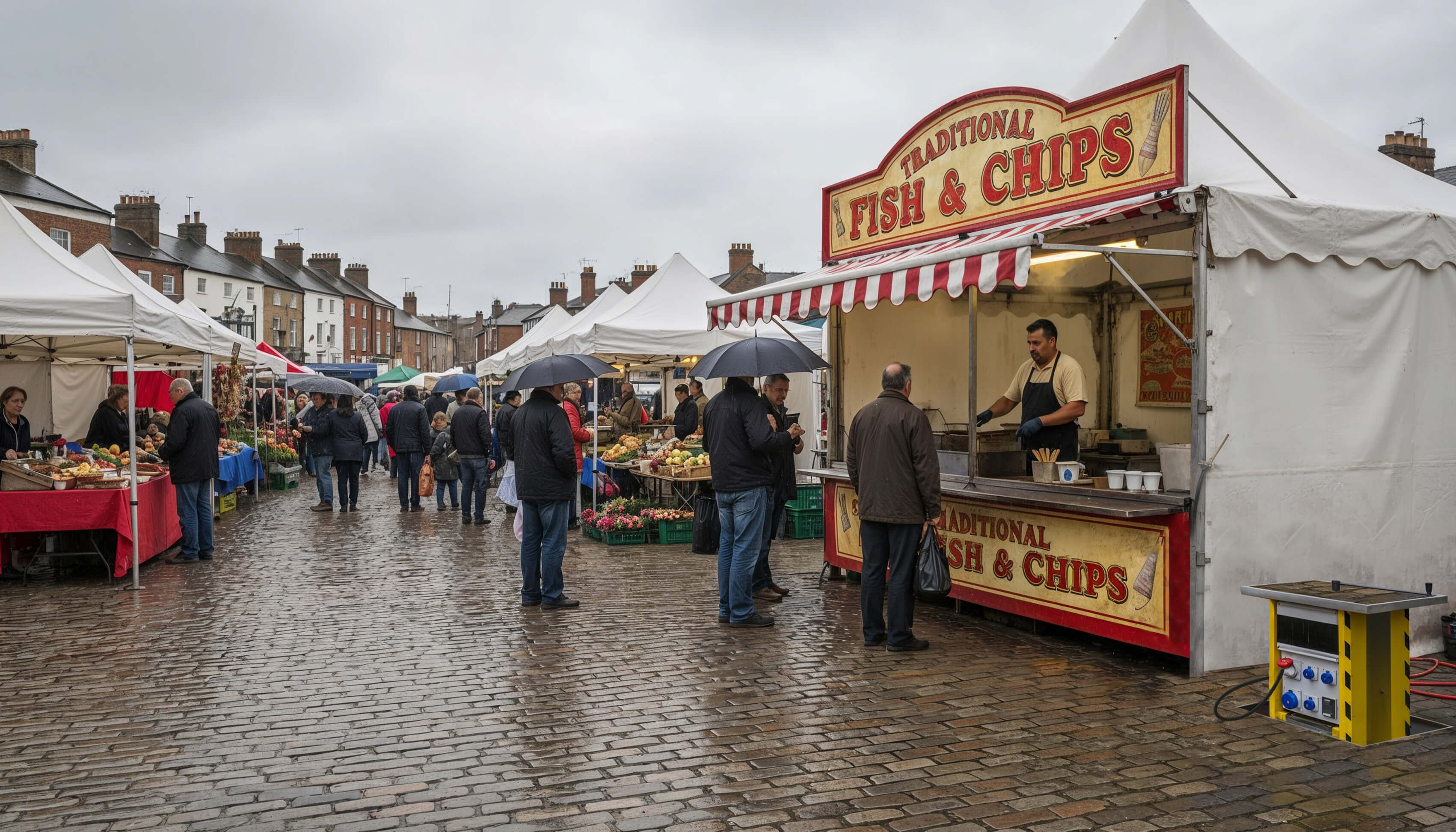

    OUTDOOR MARKET FOOD STALLS

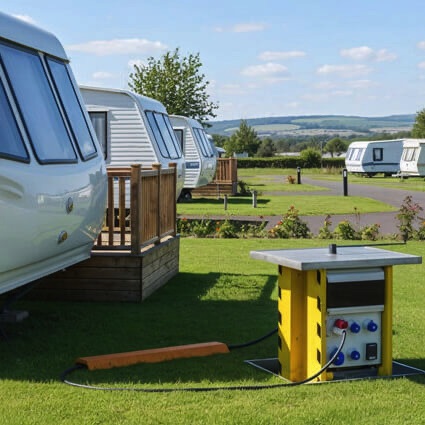

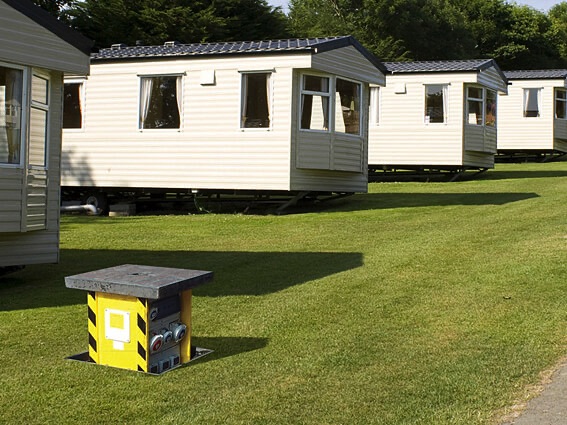

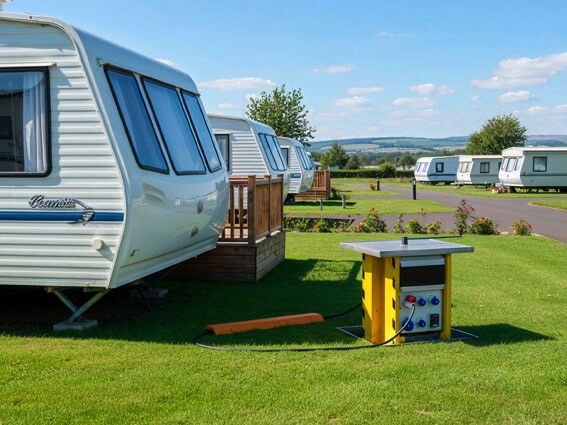

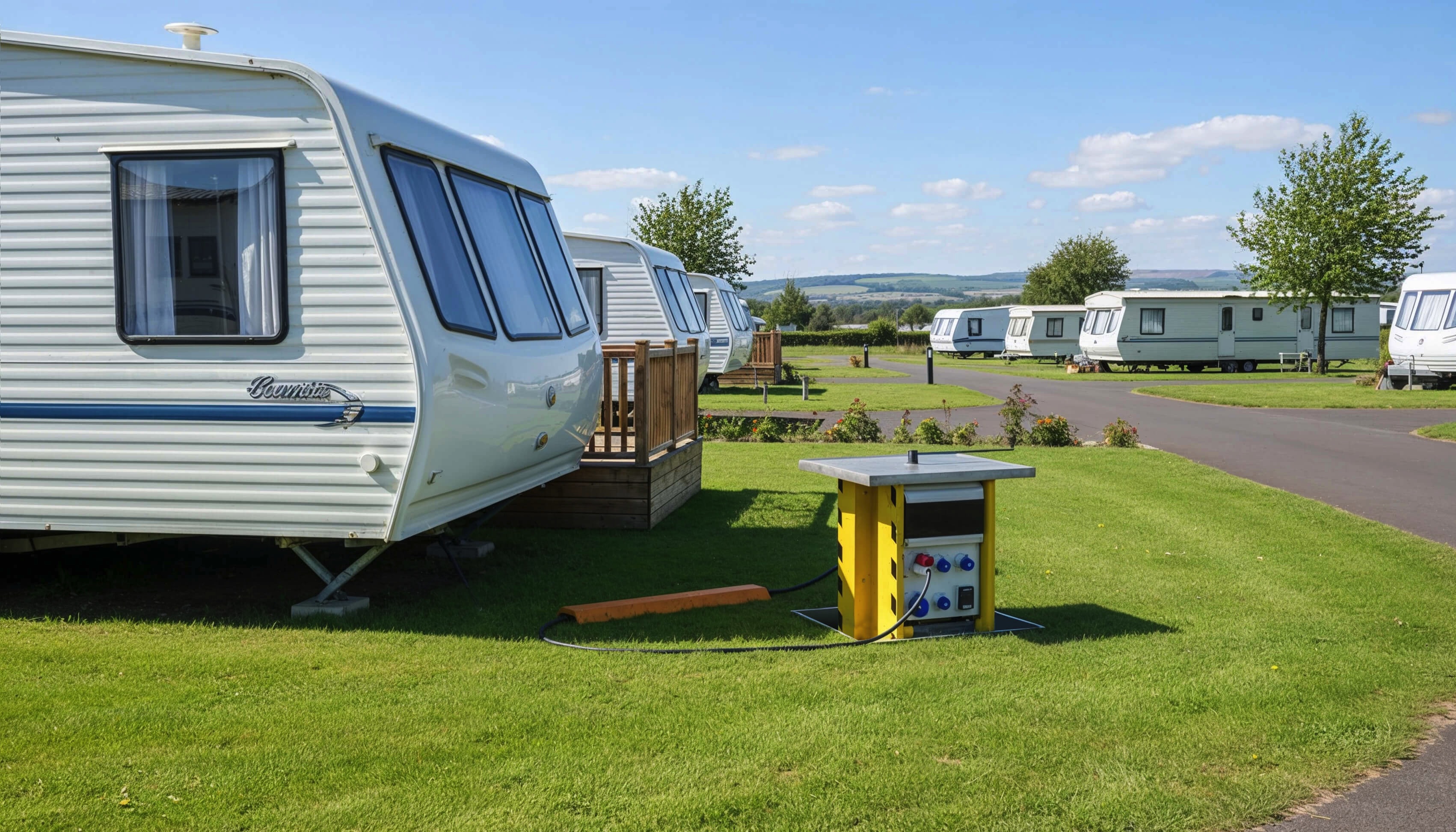

    HOLIDAY PARKS

    POP UP POWER UNITS GALLERY

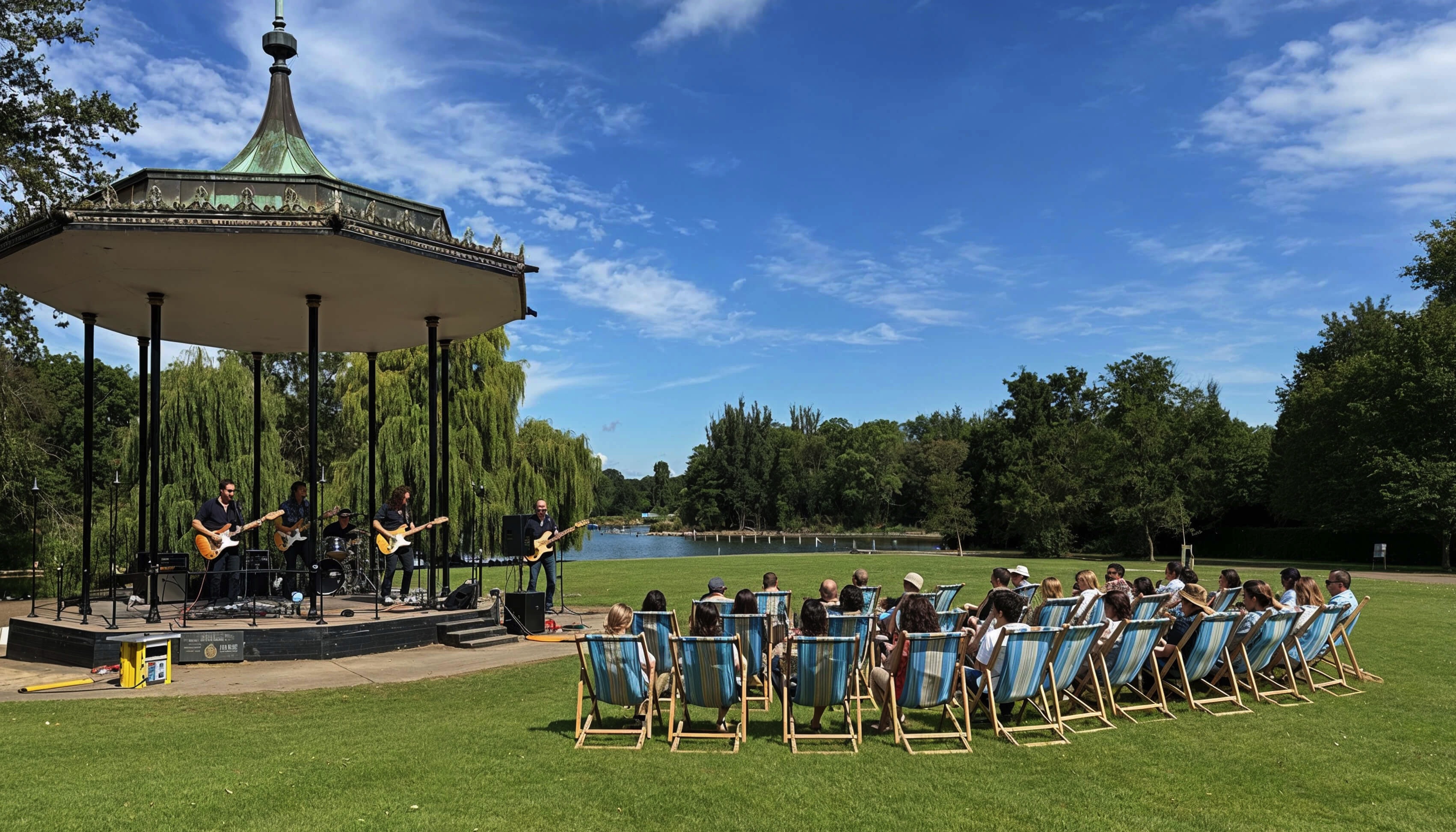

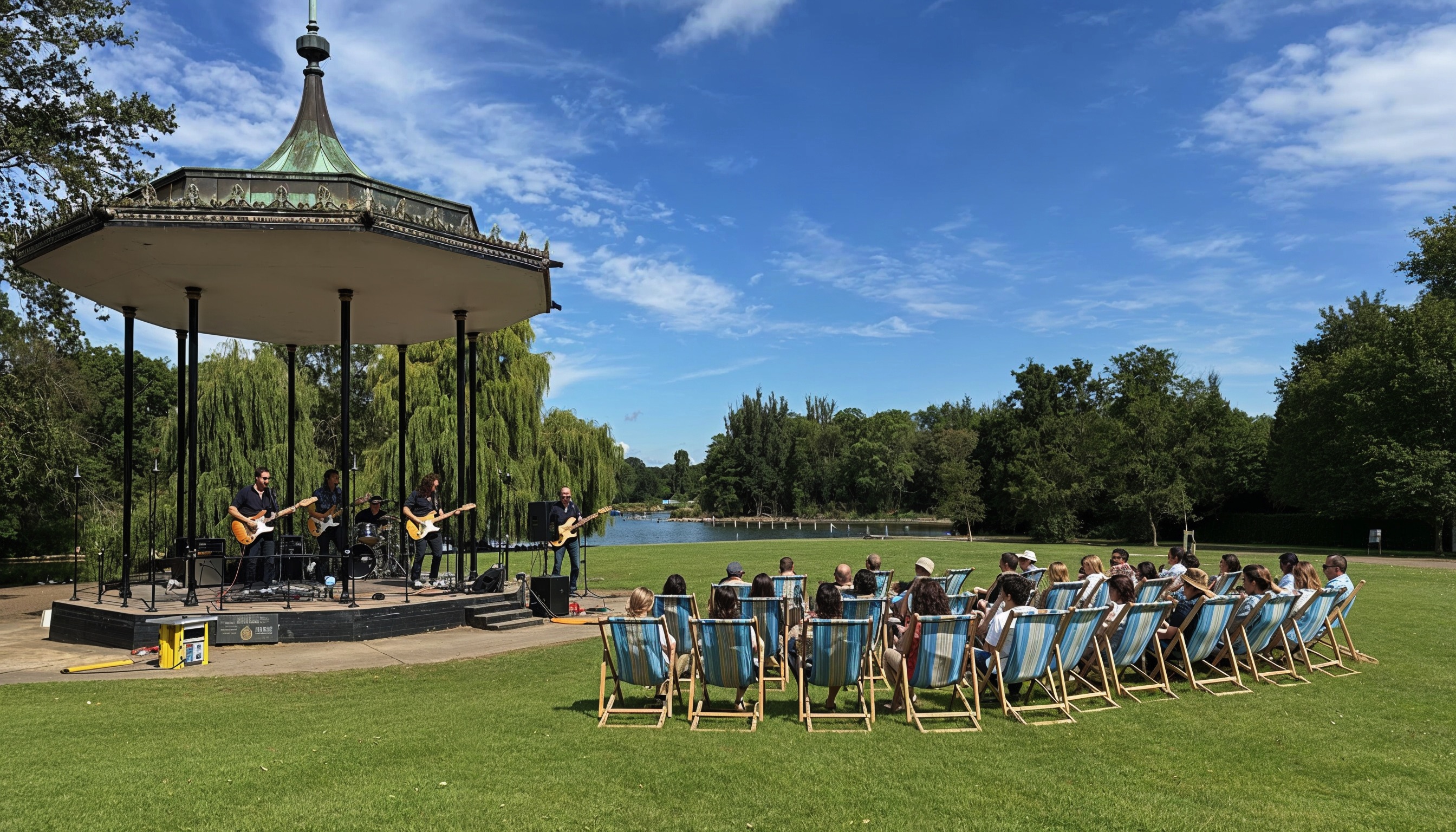

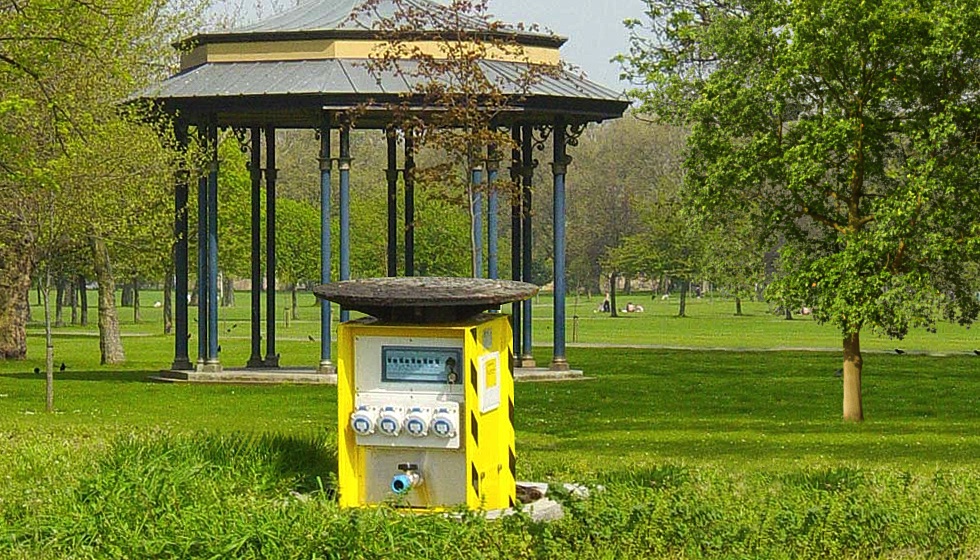

    A pop up, retractable service unit by Pop Up Power Supplies providing on-demand access to power and water in the heart of Regents Park.

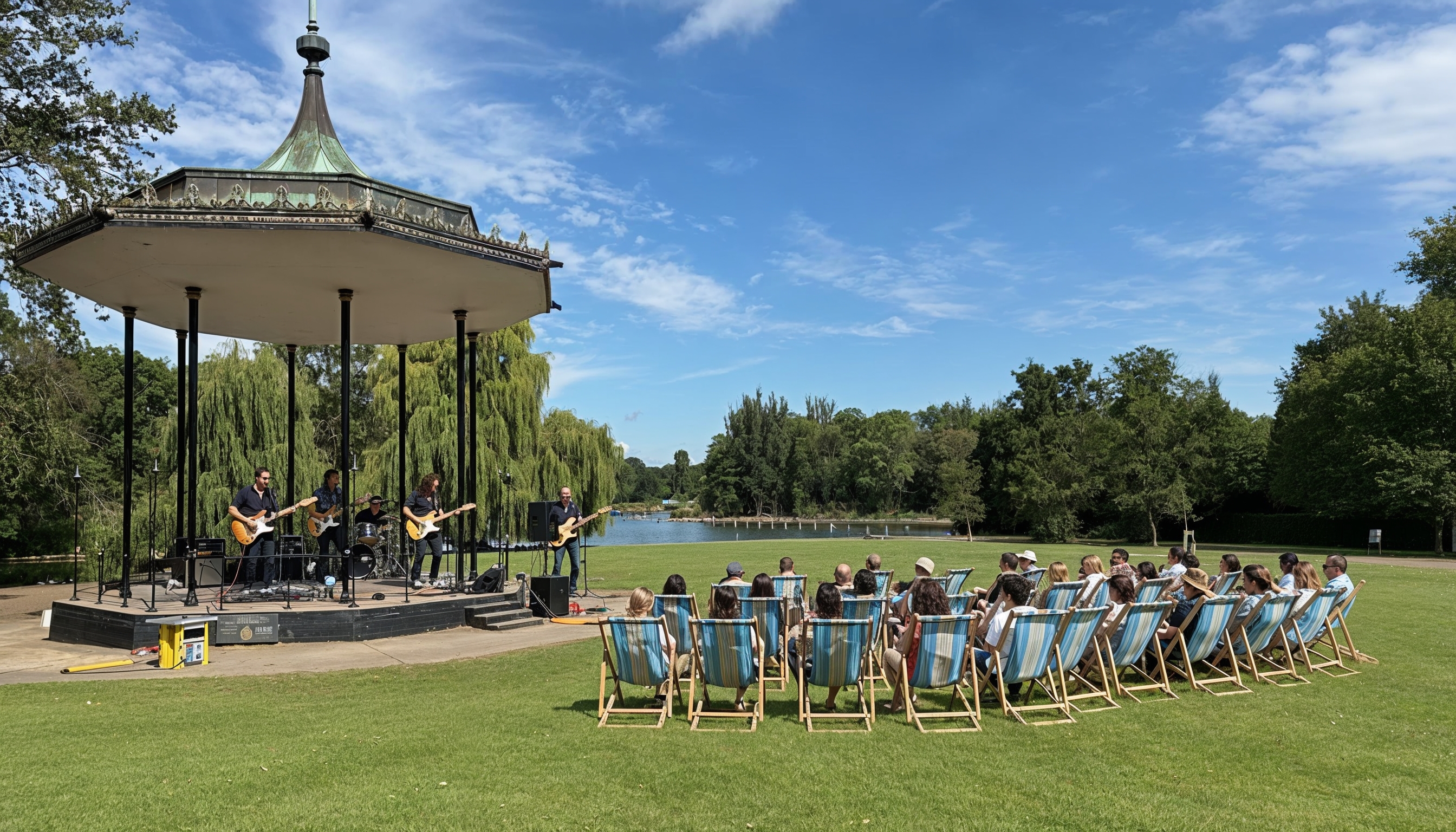

    REGENTS PARK

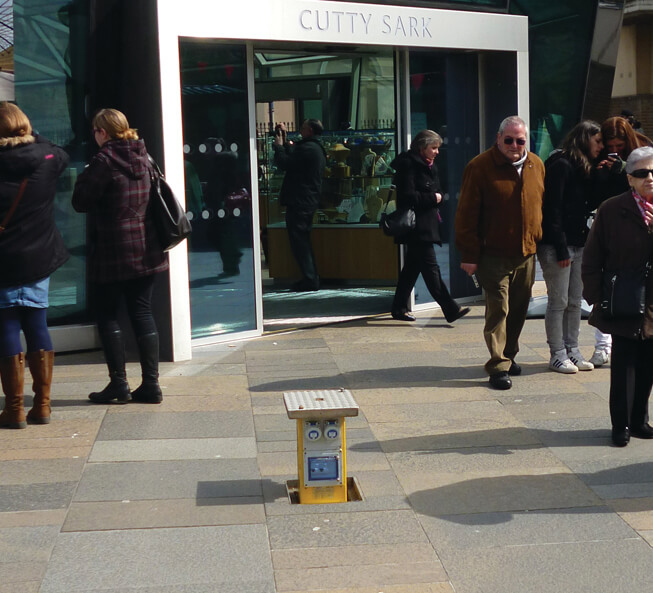

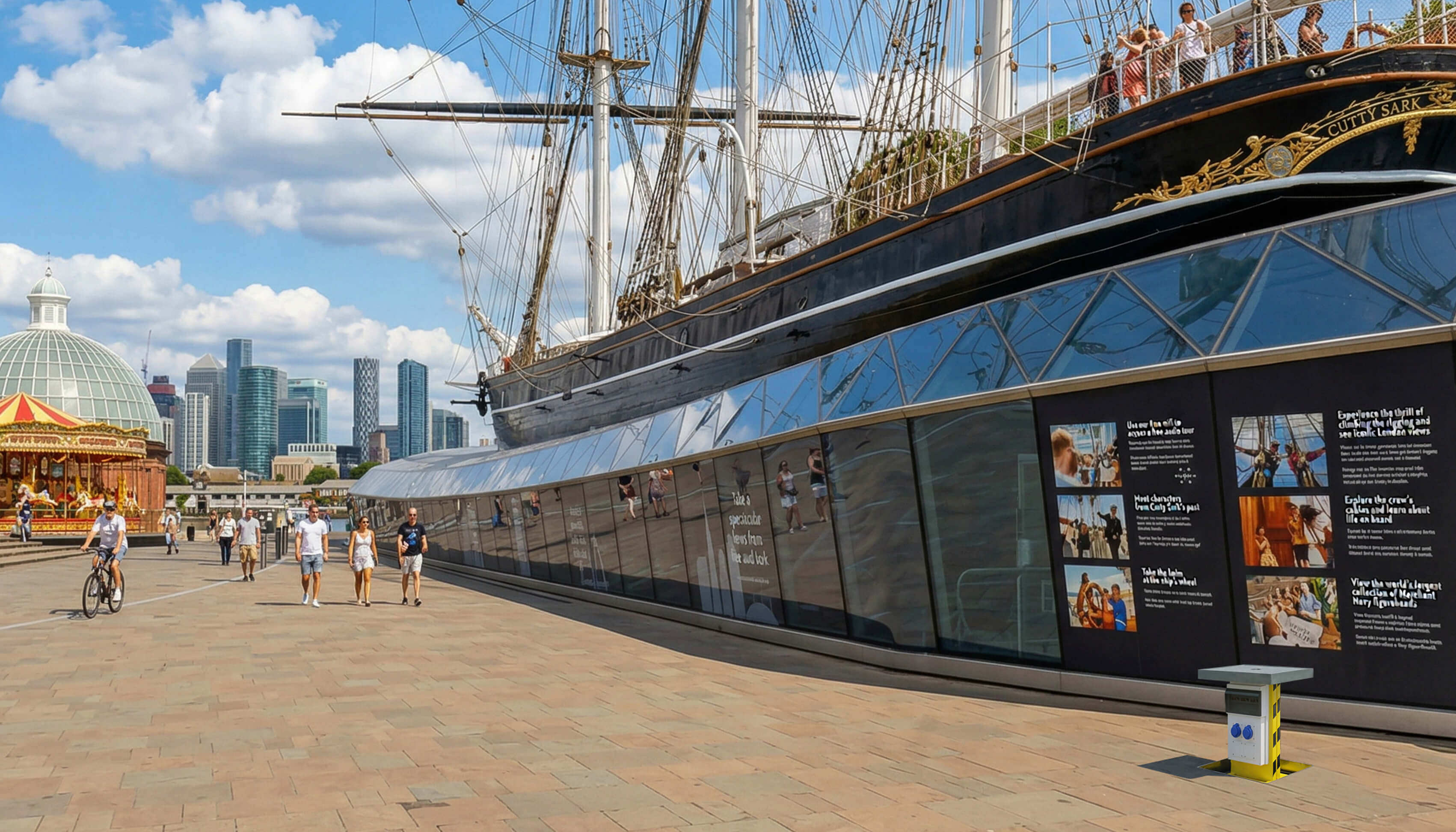

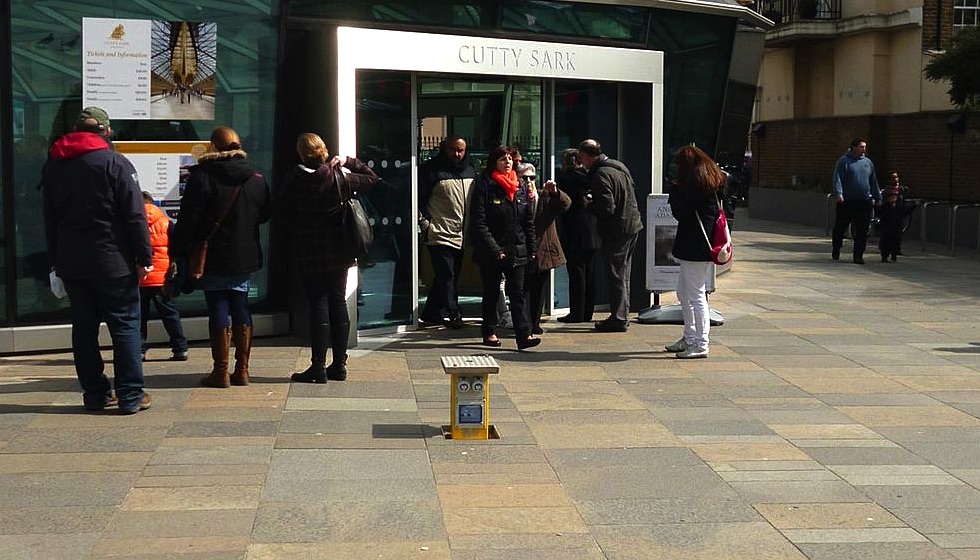

    On demand access to power and other services provided in the pedestrianised spaces of the Cutty Sark attraction by using a retractable service unit from Pop Up Power Supplies.
    CUTTY SARK, GREENWICH

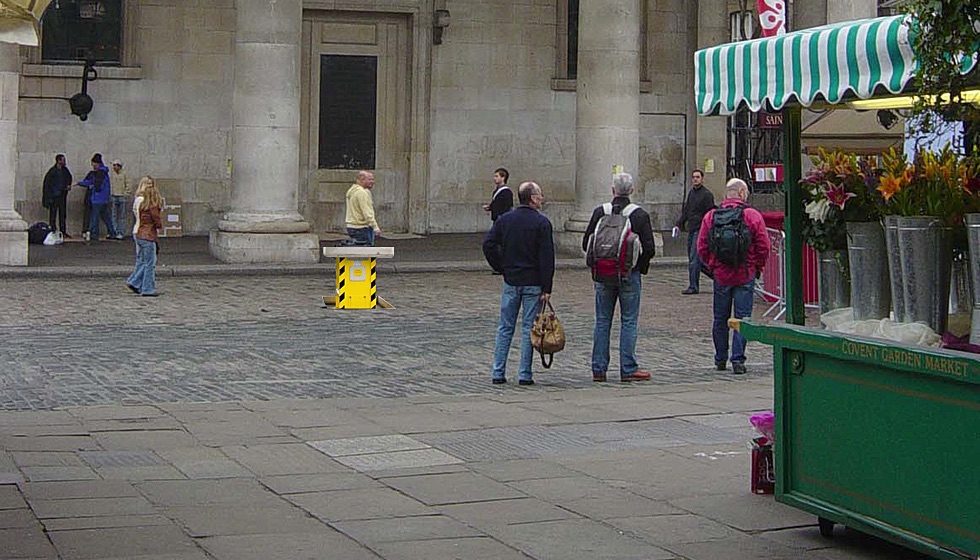

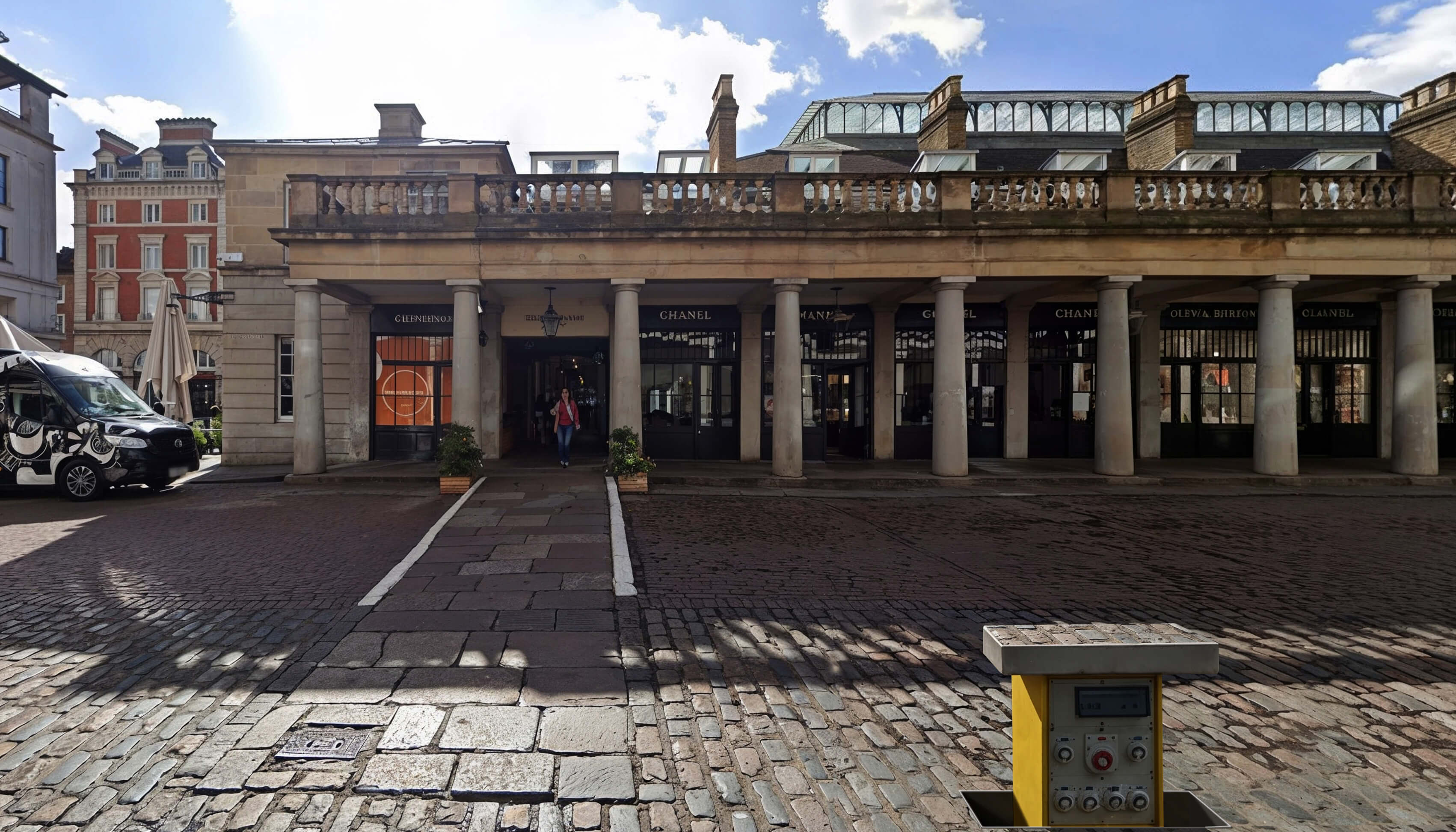

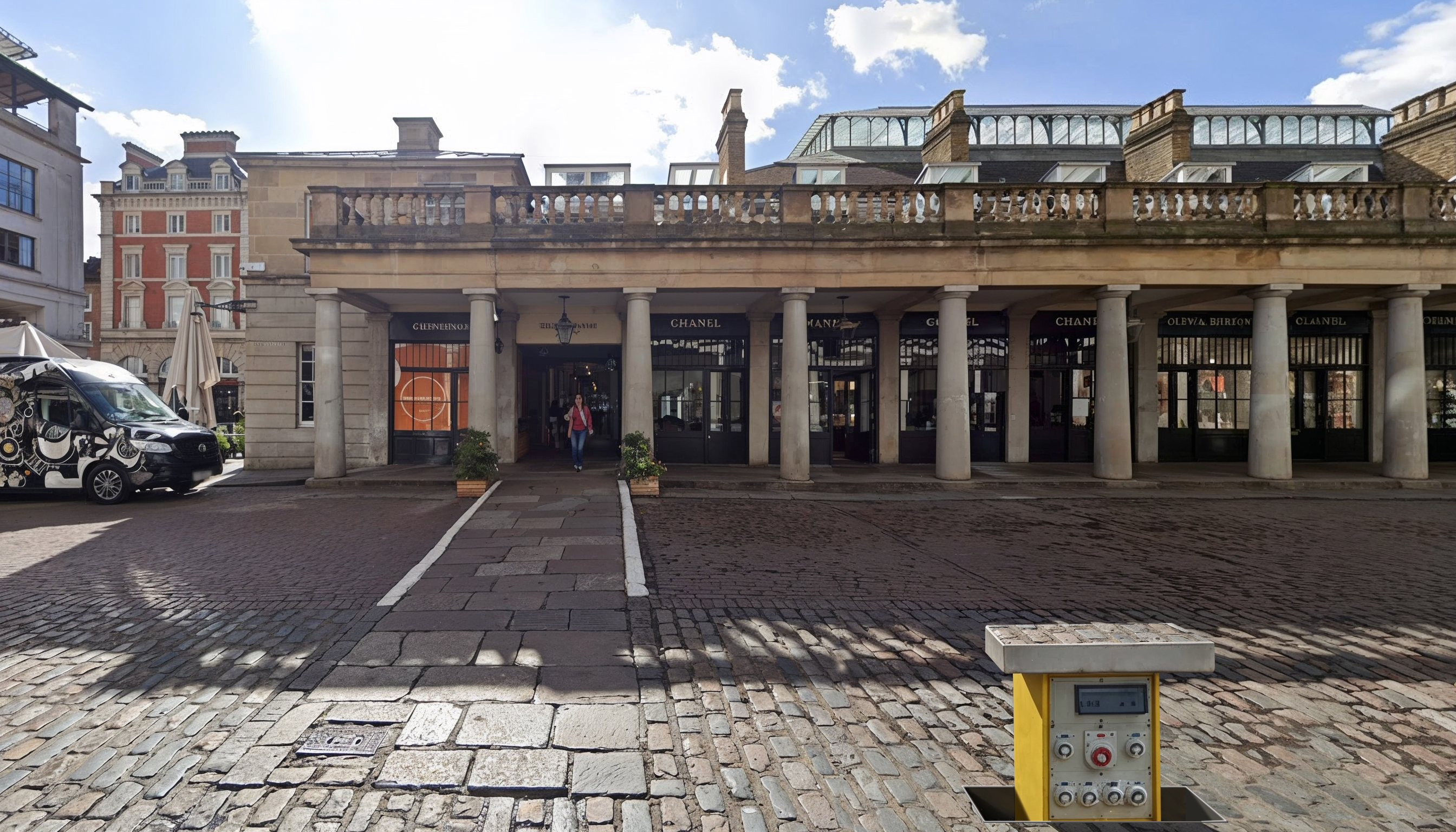

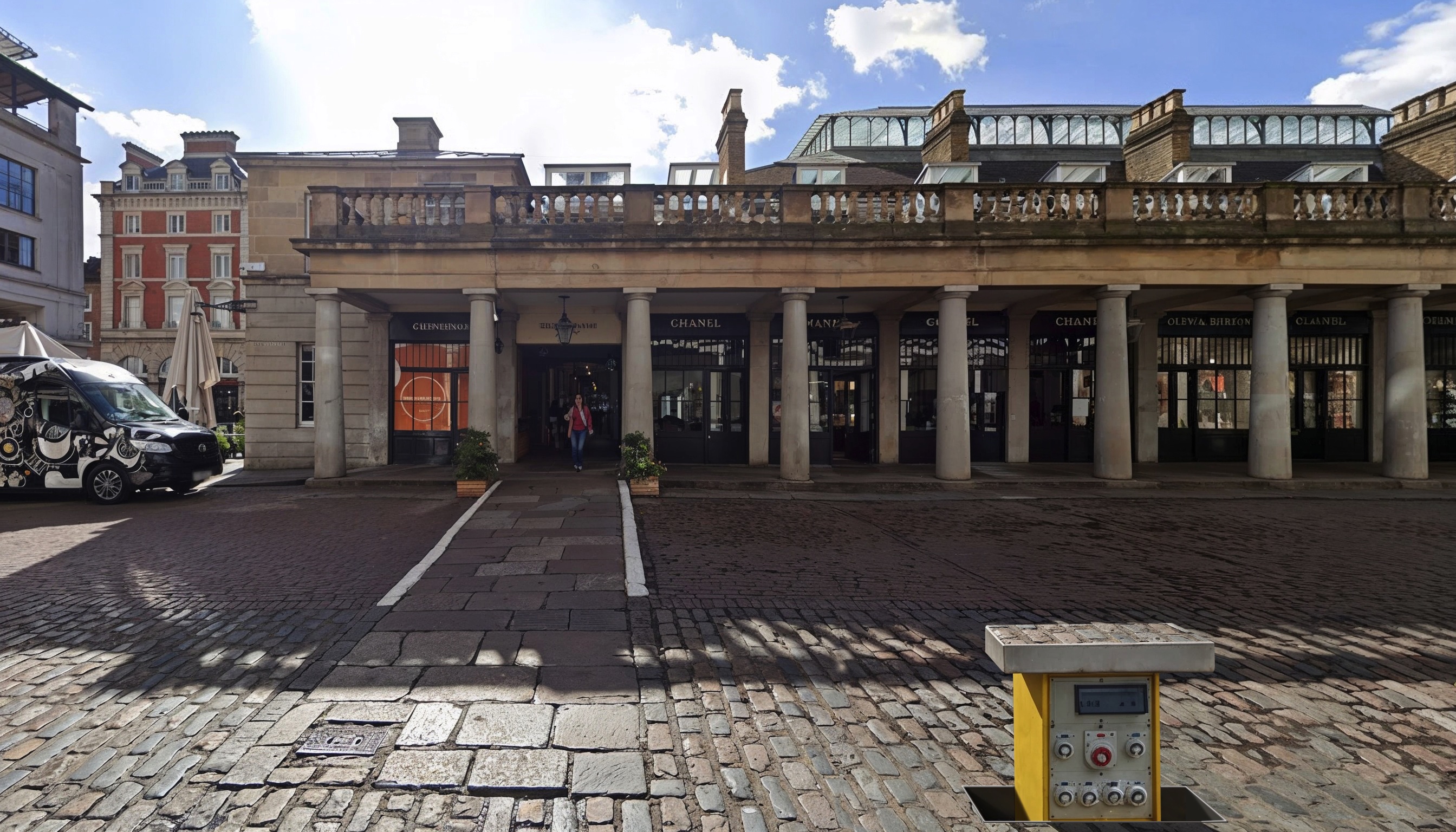

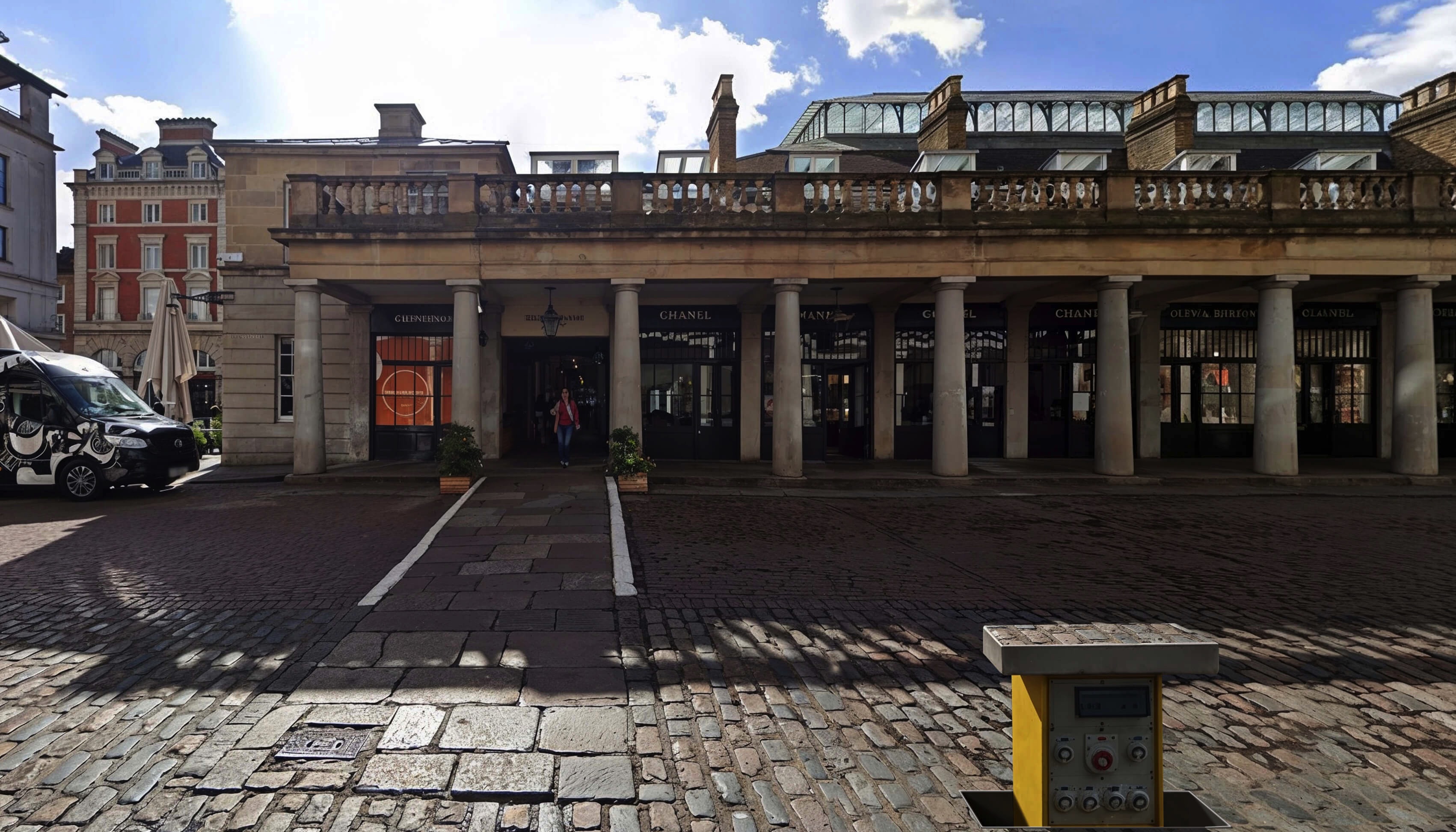

    A pop up, retractable service unit installed at London’s Covent Garden, where it allows outdoor events to be staged as and when required.
    COVENT GARDEN

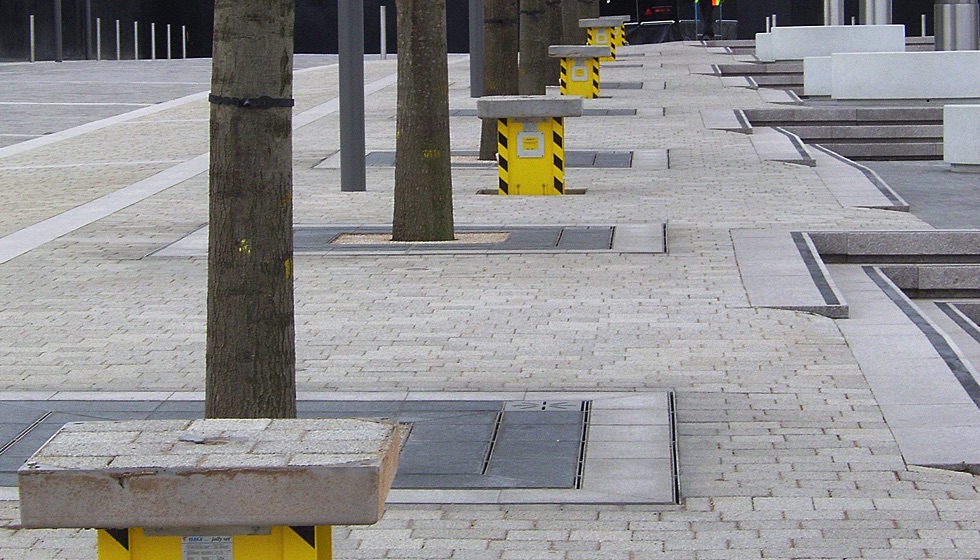

    Wembley Arena Square, where multiple Pop Up Power retractable service units are installed to help deliver outdoor events and facilities.
    WEMBLEY ARENA SQUARE

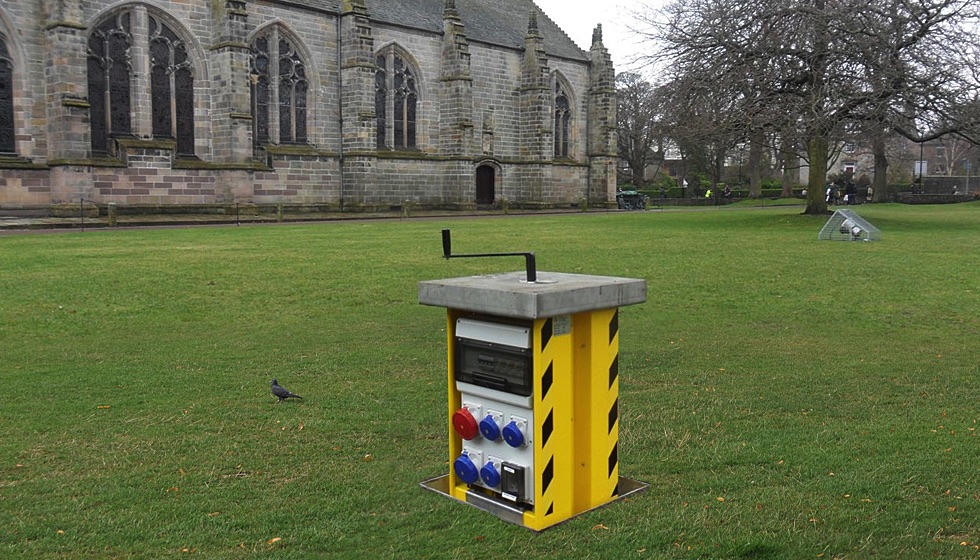

    A retractable service unit by Pop Up Power Supplies installed in a sensitive setting within the Aberdeen University campus.
    ABERDEEN UNIVERSITY

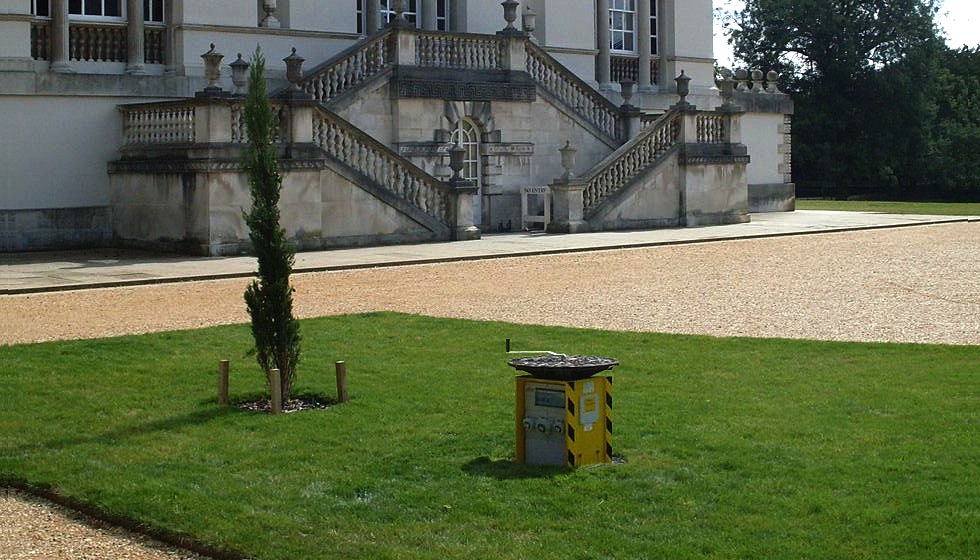

    Demonstrating how Pop Up Power’s retractable service units can be integrated into elegantly landscaped gardens, a pop up service unit at Chiswick House.
    CHISWICK HOUSE

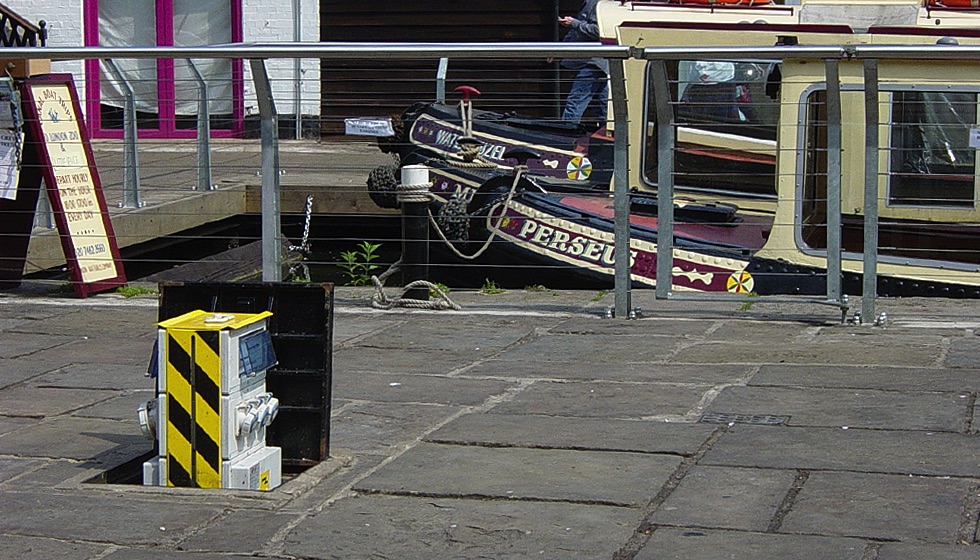

    A retractable service unit installed at Camden Lock to provide canal-side berths with access as and when required to power, water and more.
    CAMDEN LOCK

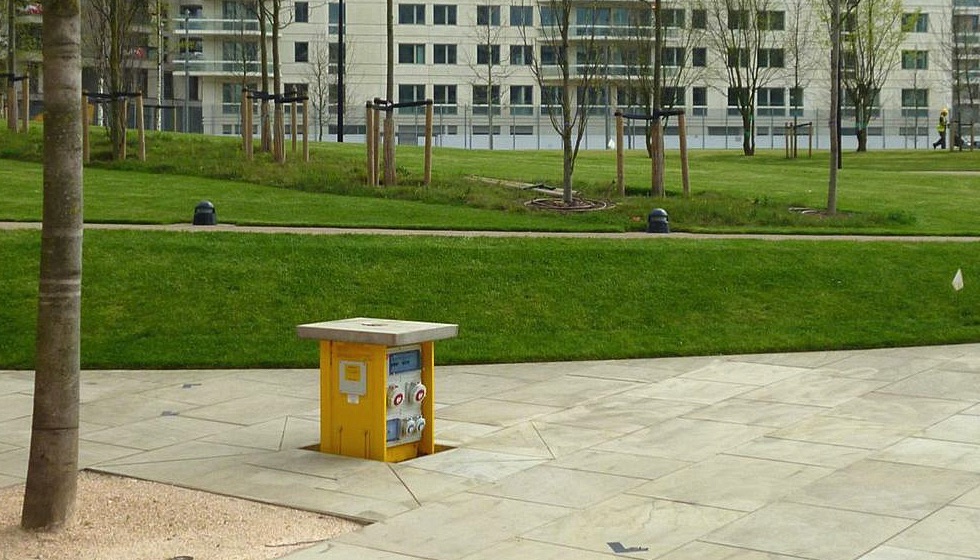

    A pop up service unit installed in the grounds of the Athletes’ Village in Stratford, which was home to those competing in the London 2012 Olympics.
    ATHLETES' VILLAGE STRATFORD

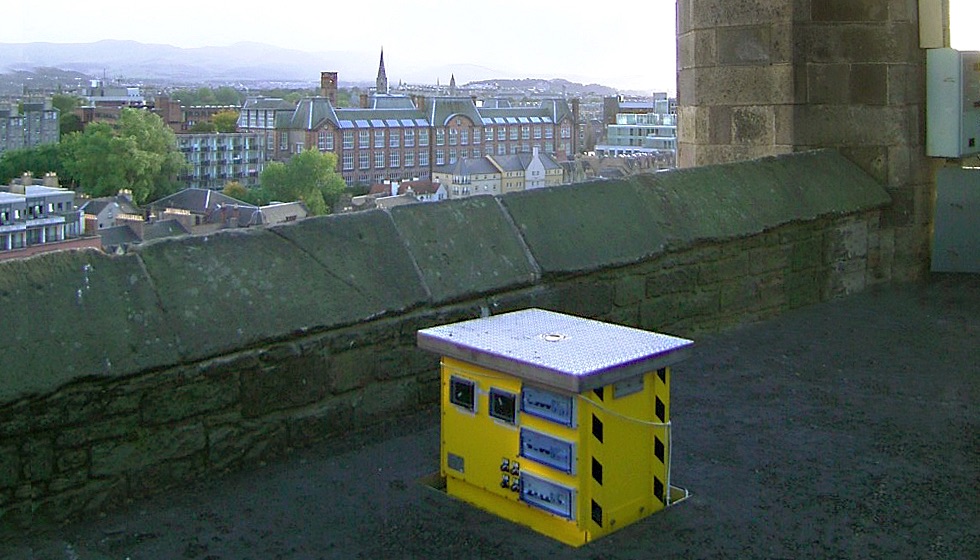

    A pop up service unit in the grounds of Edinburgh Castle, which enables the world-famous attraction to host events outdoors all year round.
    EDINBURGH CASTLE

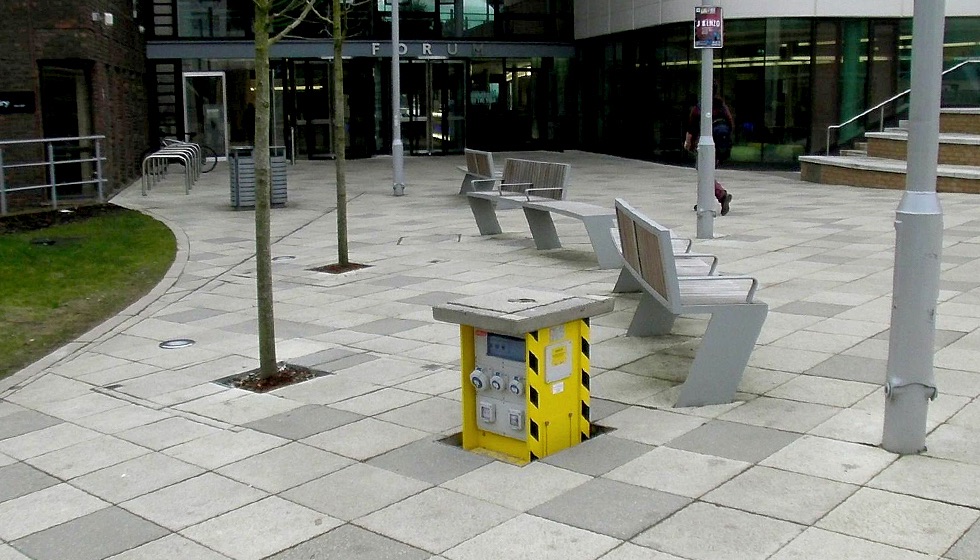

    Demonstrating their suitability for modern university campuses, a pop up service unit installed in a paved area on the grounds of Exeter University.
    EXETER UNIVERSITY

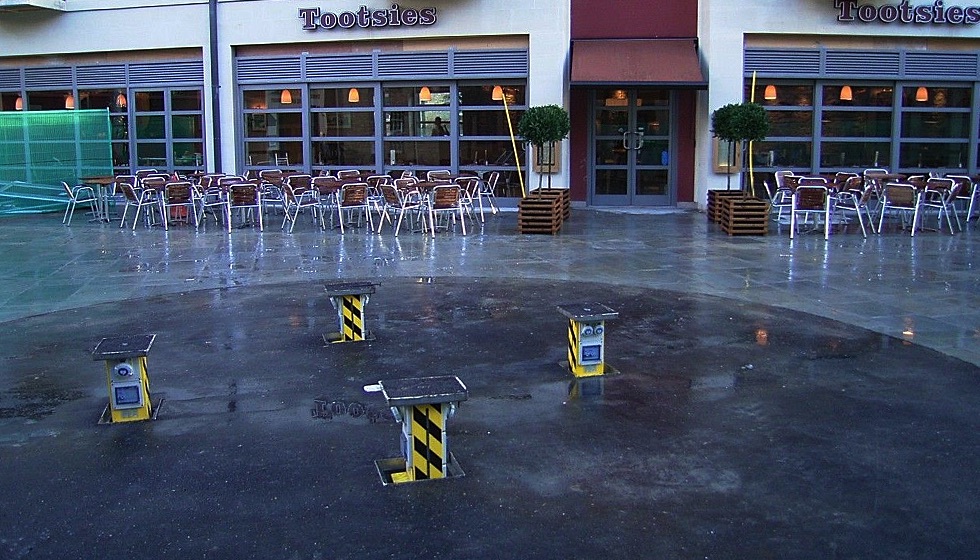

    A retractable service units provides safe, easy access to power and other services on-demand at the retail and leisure attraction, Oxford Castle Quarter.
    OXFORD CASTLE

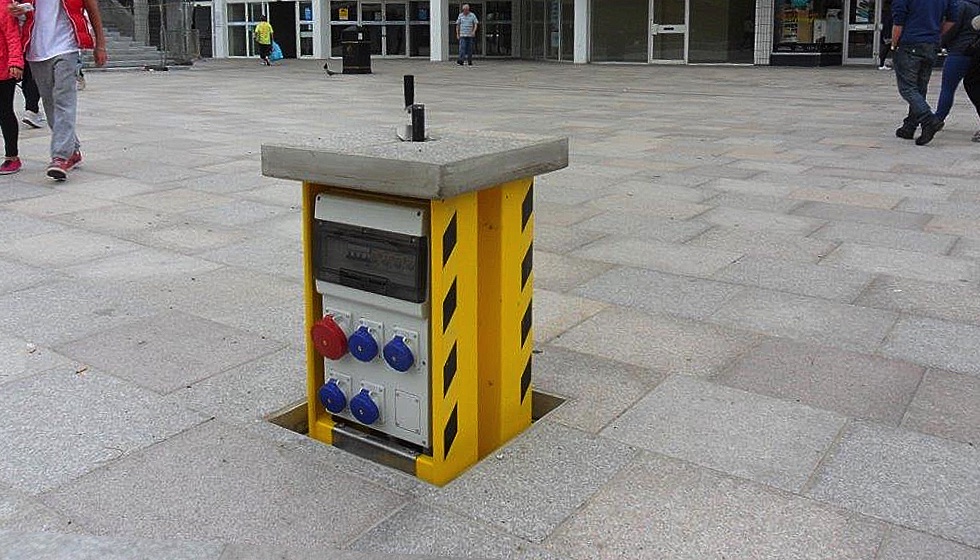

    A pop up service unit installed at the Rivergate Centre, Irvine, which enables the shopping centre to host outdoor events all year round.
    RIVERGATE CENTRE, IRVINE
