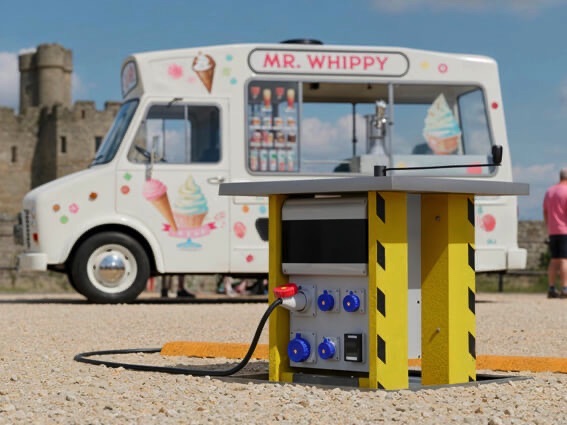

POP UP UNITS
POWER BOLLARDS

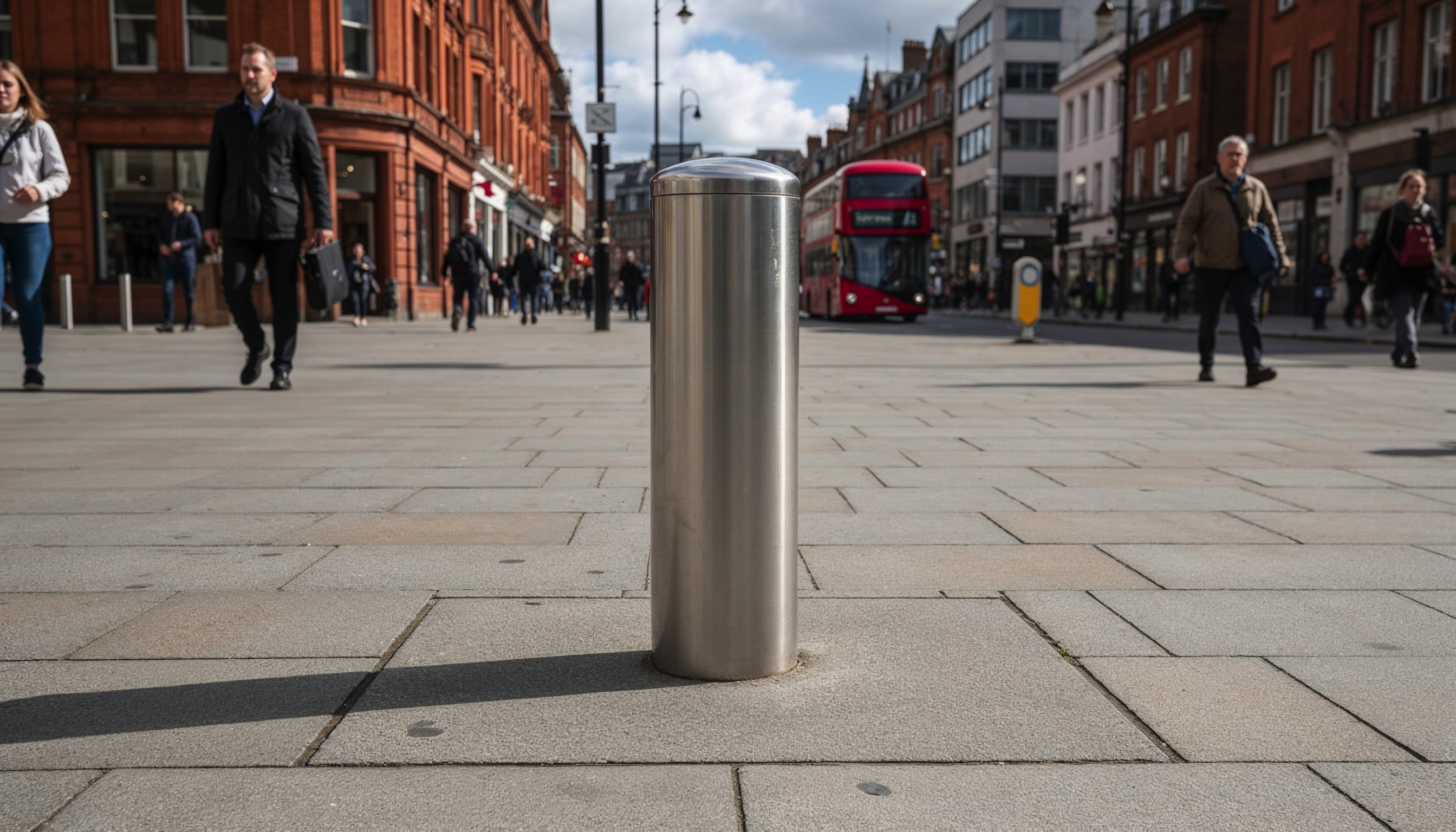

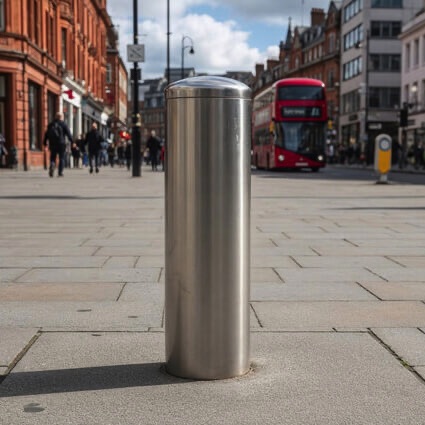

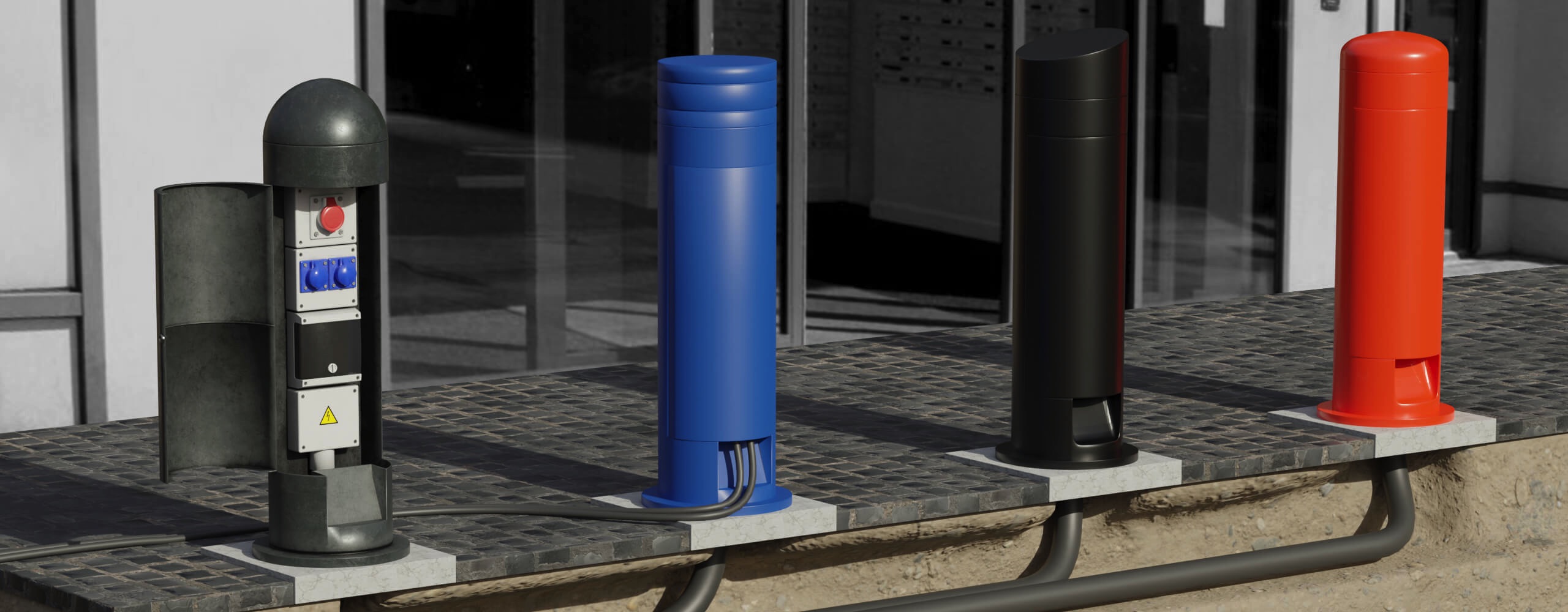

Elegant street furniture housing outdoor power supplies
CONVENIENT POWER HIDDEN DISCREETLY WITHIN STREET BOLLARDS
Safe, secure, lockable bollards
220 - 400 volts and up to 125 amps of power
Configuration 2, 4, 6 or 8 CEE sockets
Can incorporate a LED light diffuser
Electricity, RJ45 data and telephone connectors
Manufactured with stainless steel
Supplied in micaceous grey (RAL 7035) as standard
Other RAL colours are available at a small addition cost

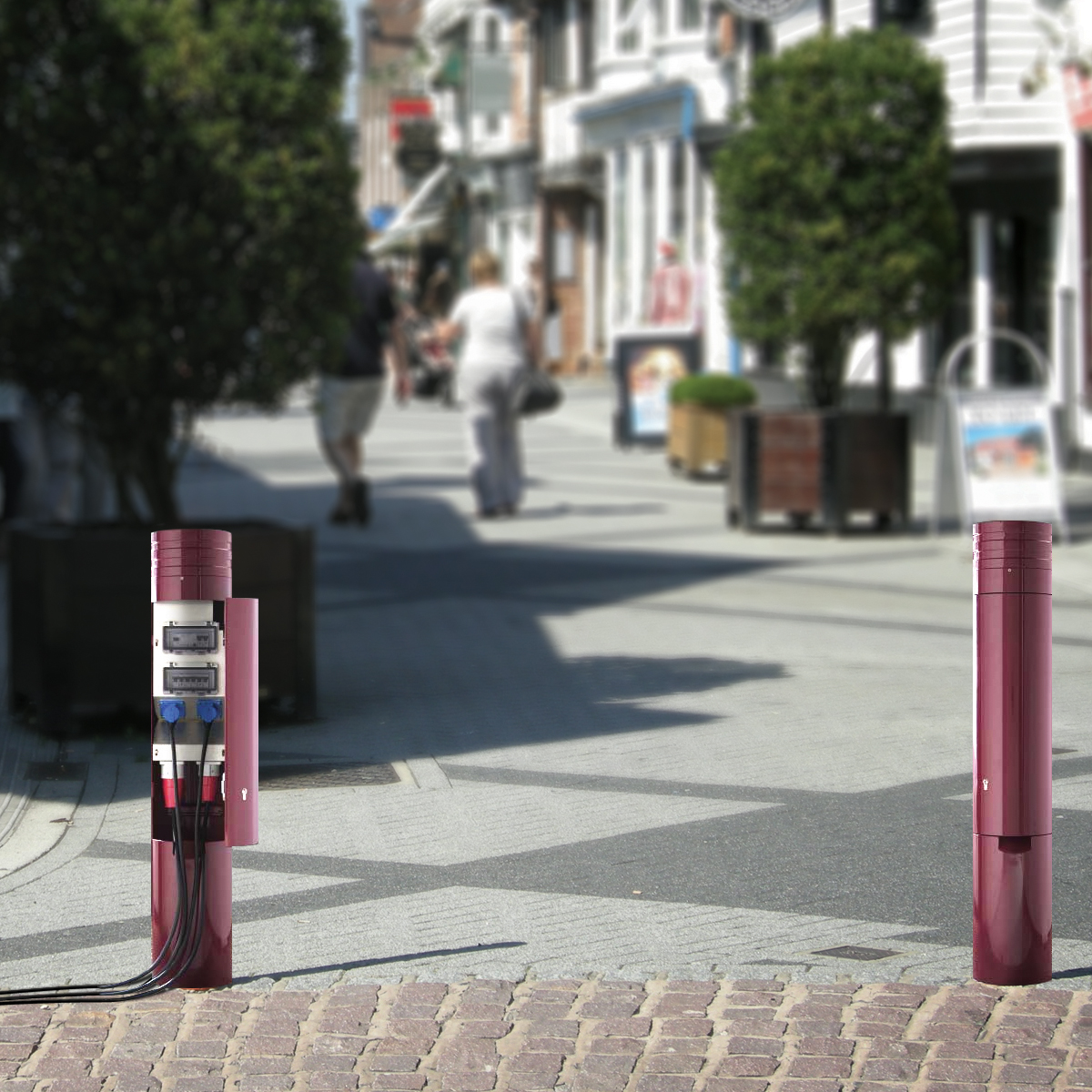

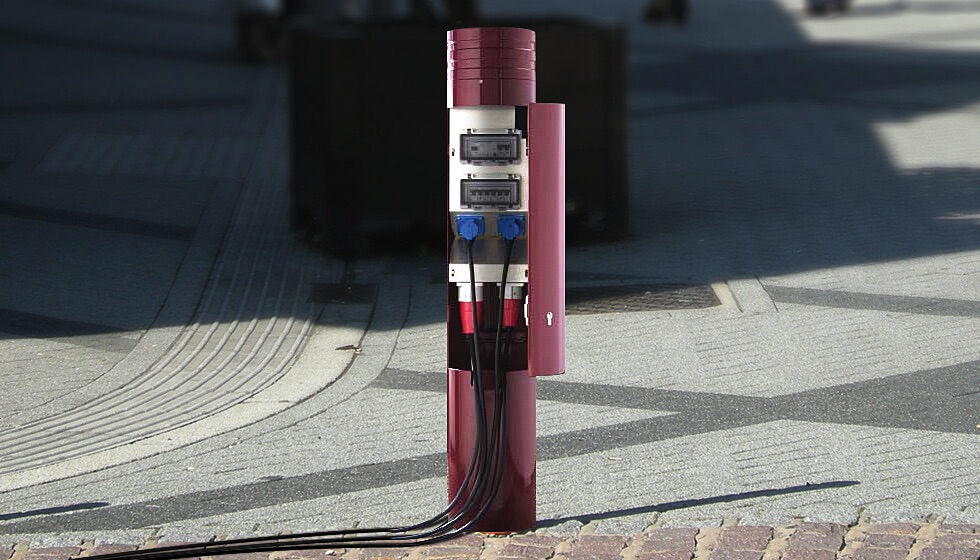

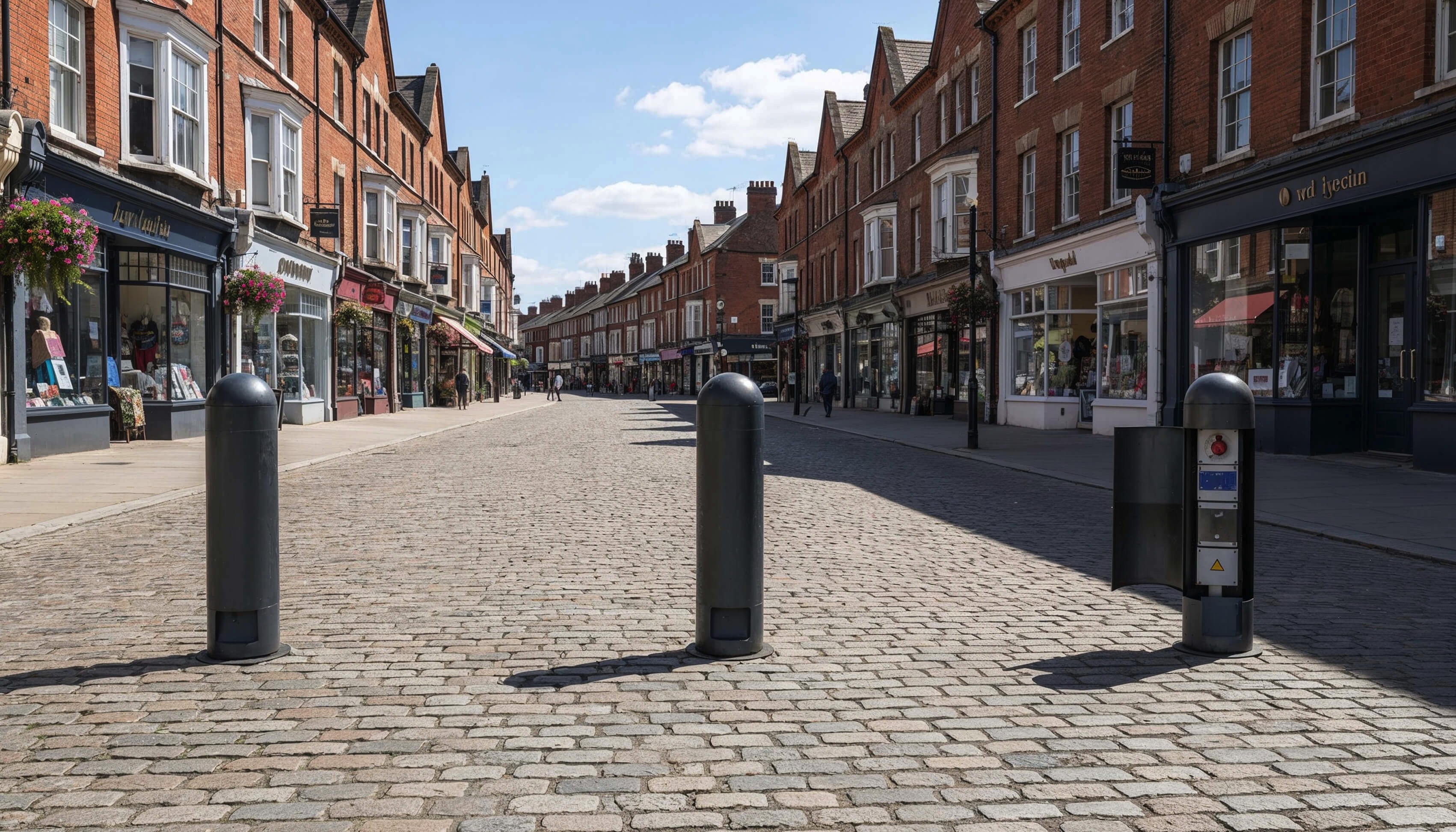

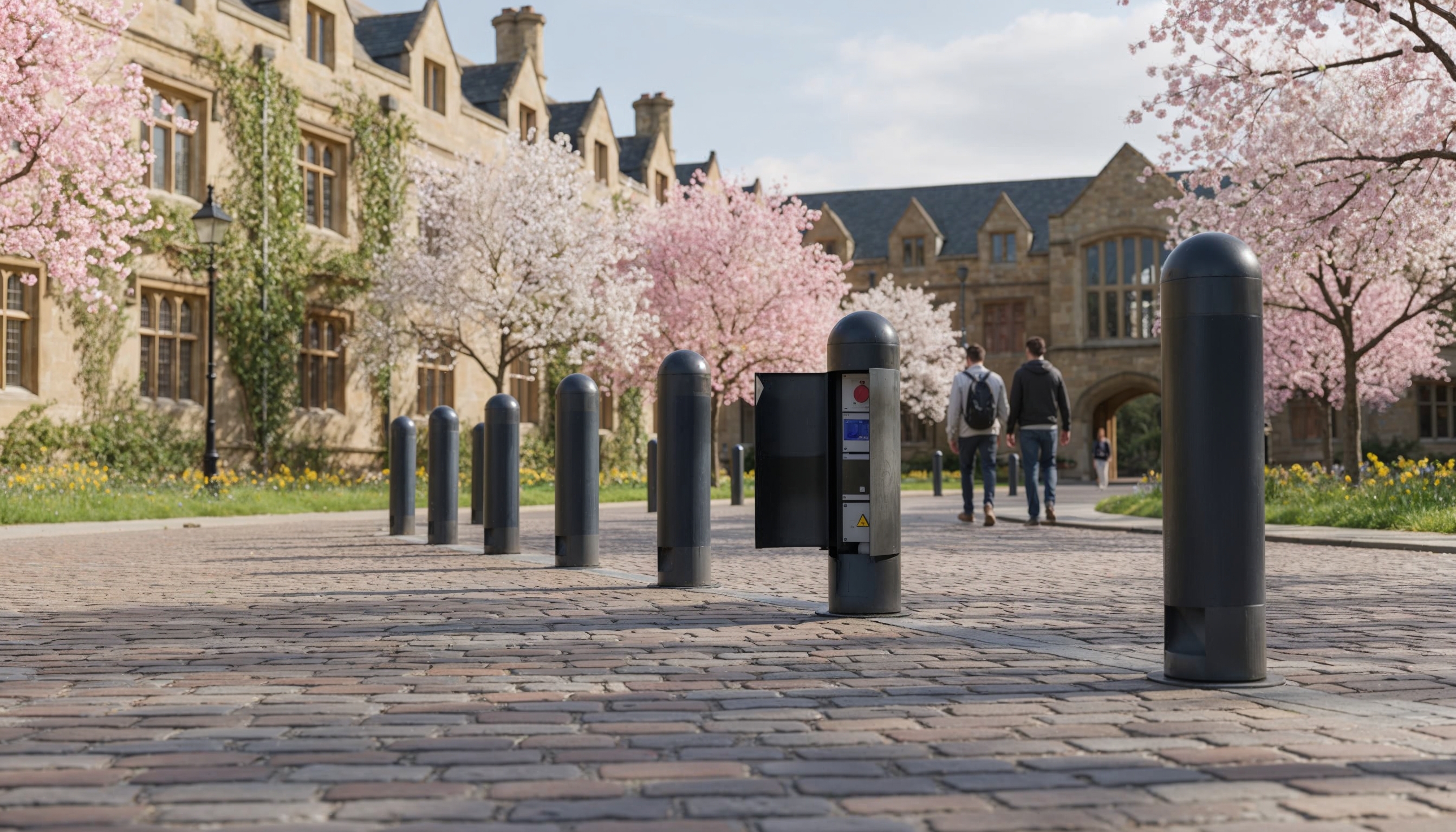

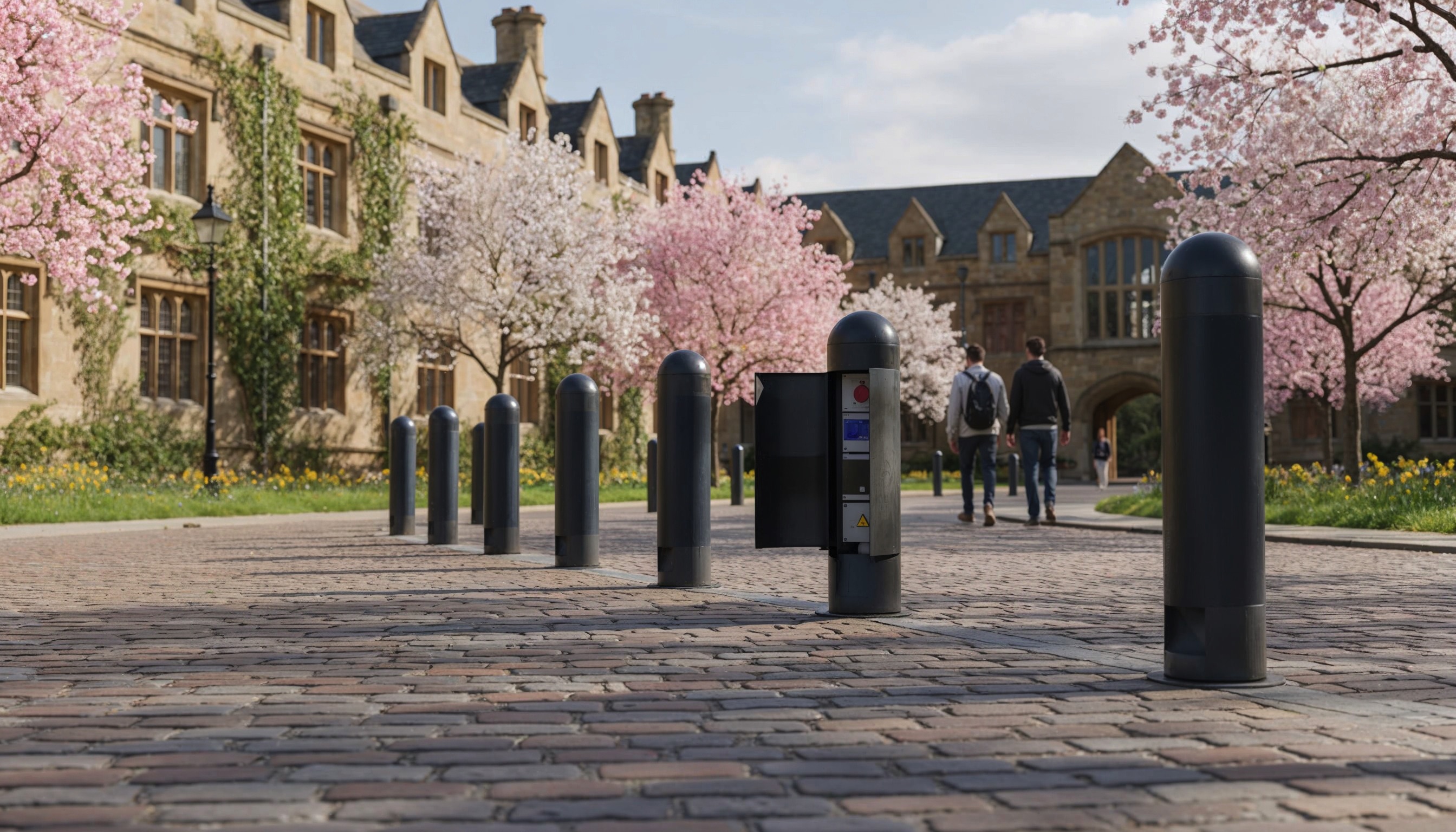

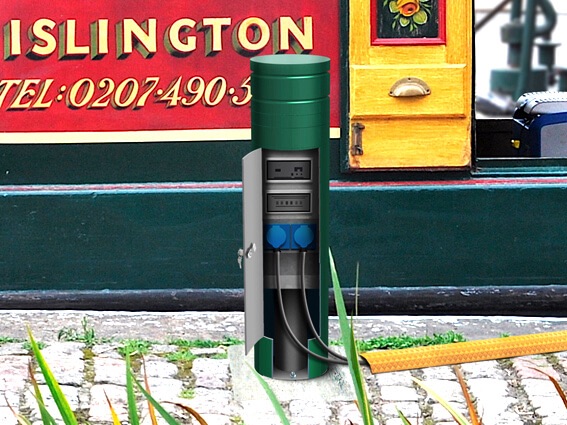

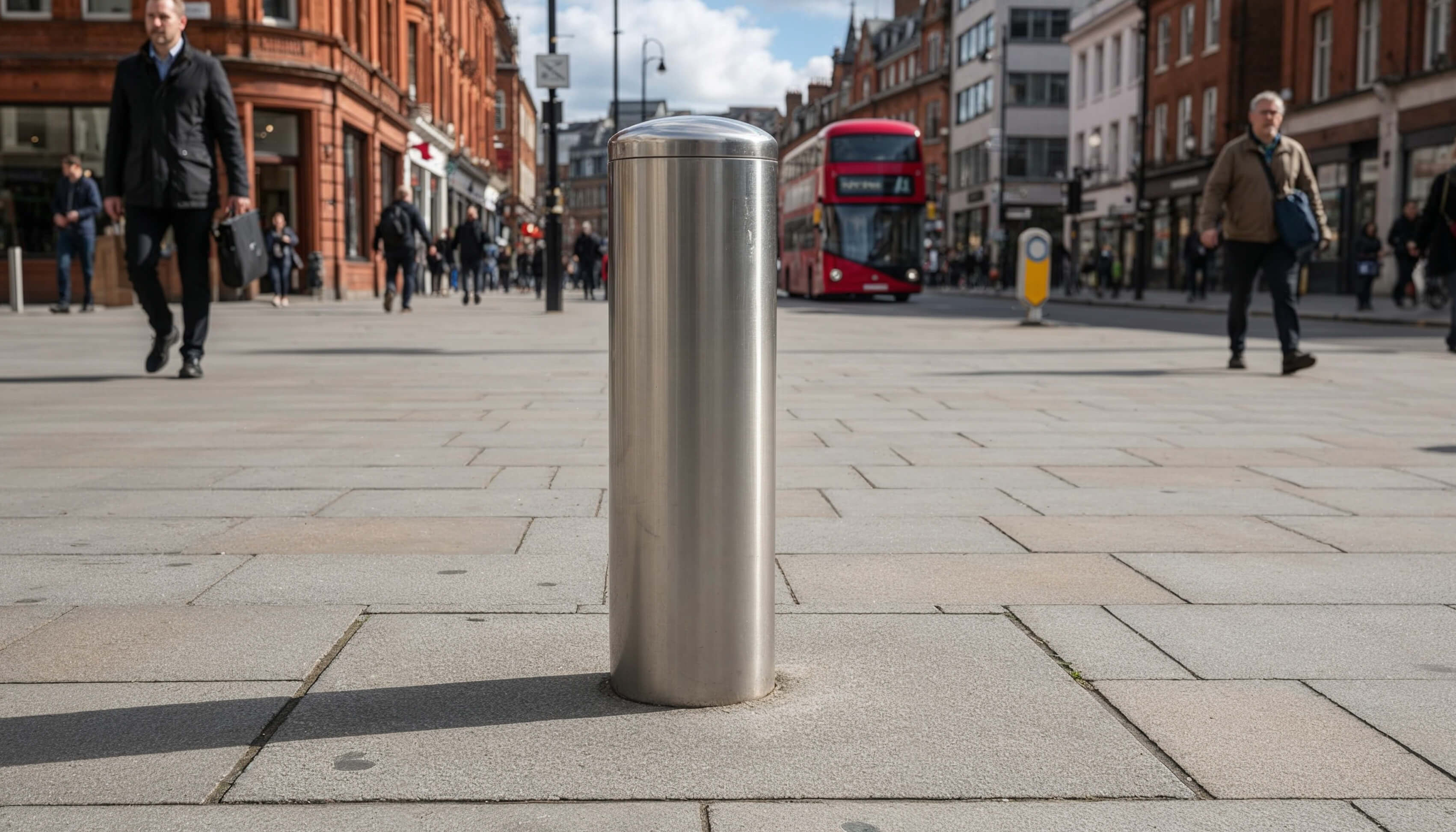

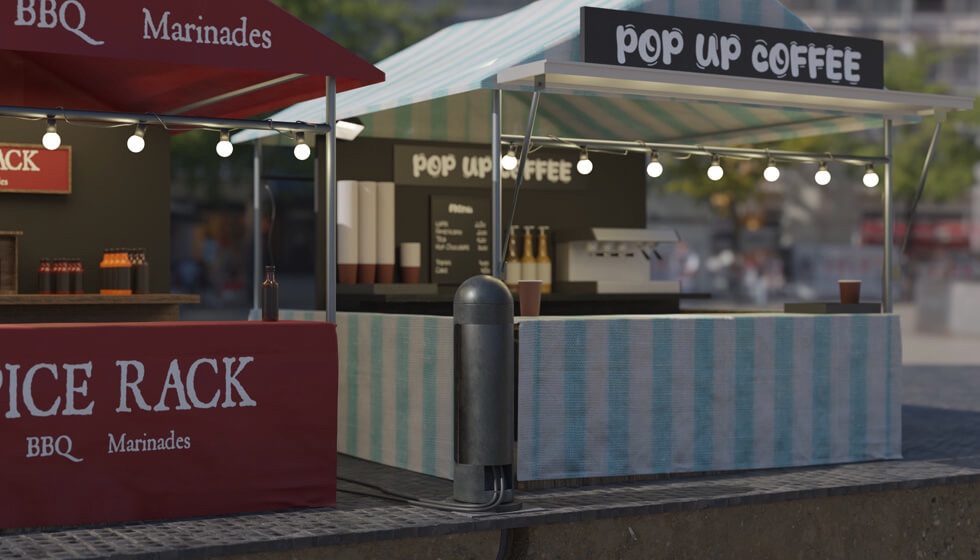

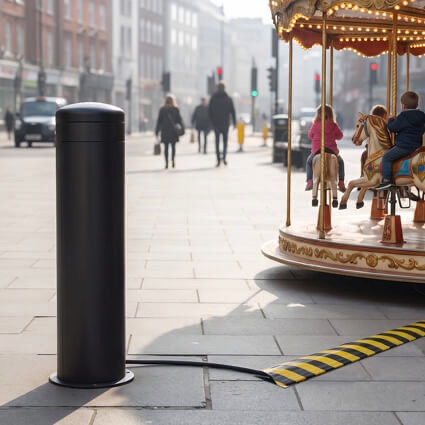

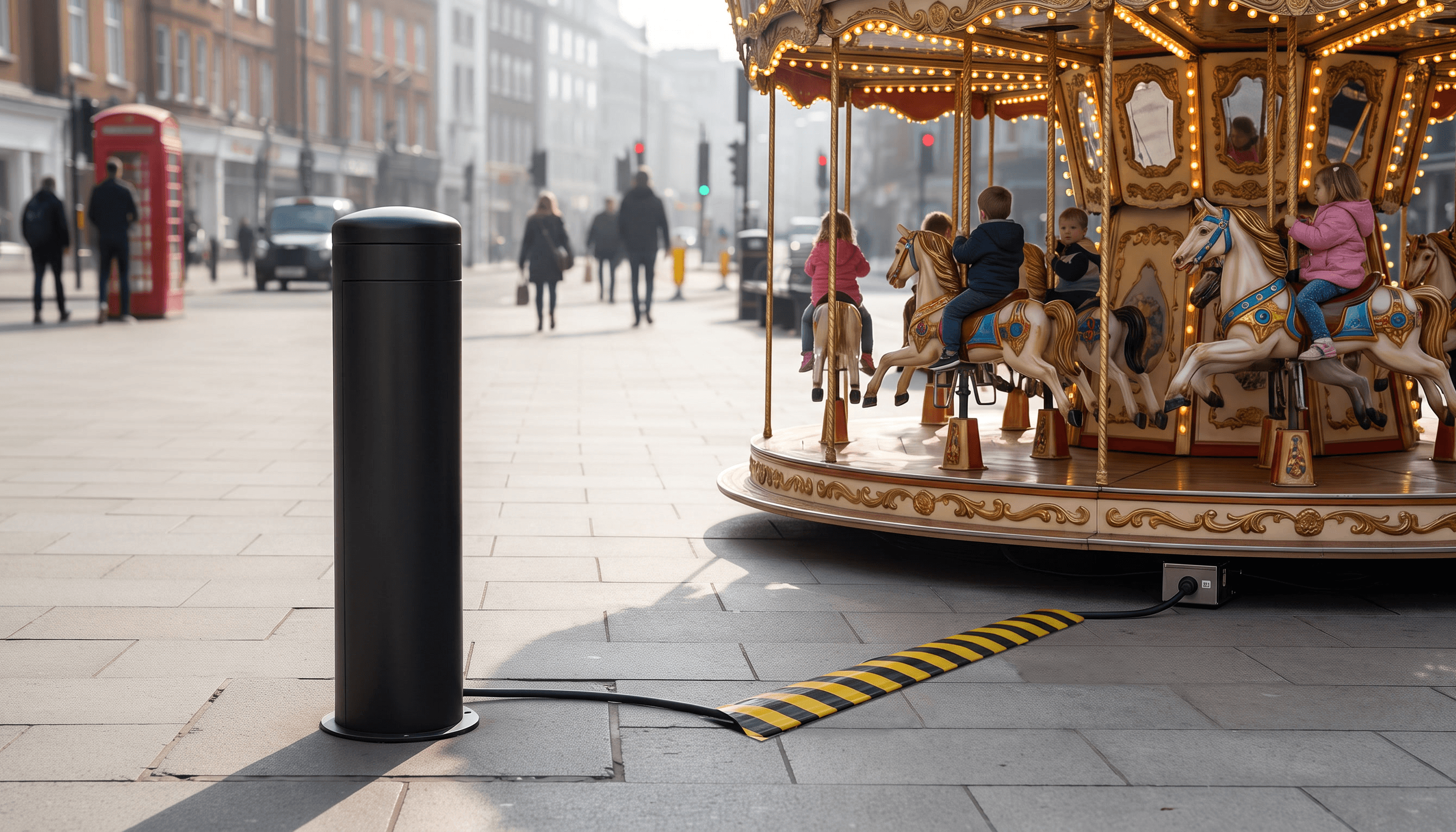

Our Power Bollards provide a reliable and efficient outdoor power supply, in bollard format. The stainless steel bollards are elegantly designed as street furniture and provide power for outdoor settings.
A stainless steel bollard can provide between 220 and 400 volts and 125A of power. They are available with configurations to suit the client’s needs. Additional equipment is also available.

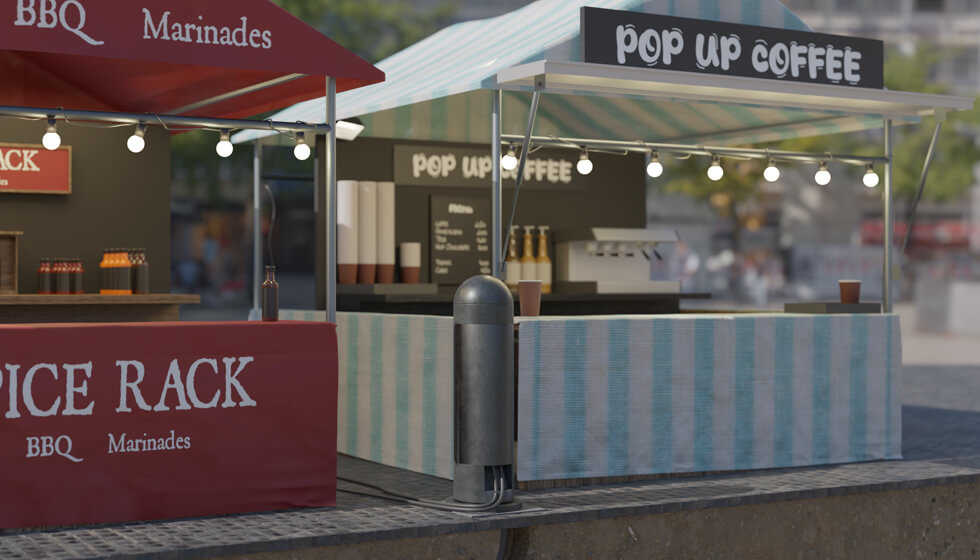

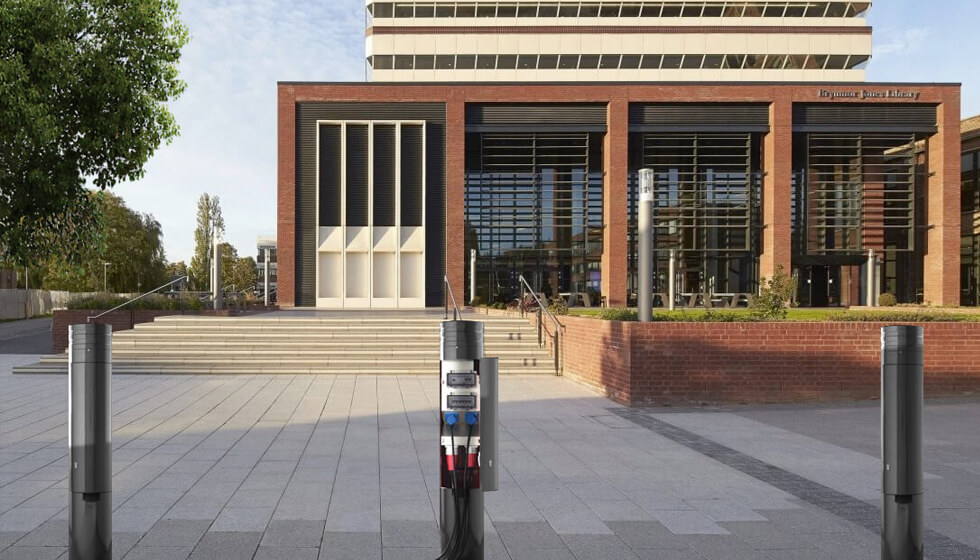

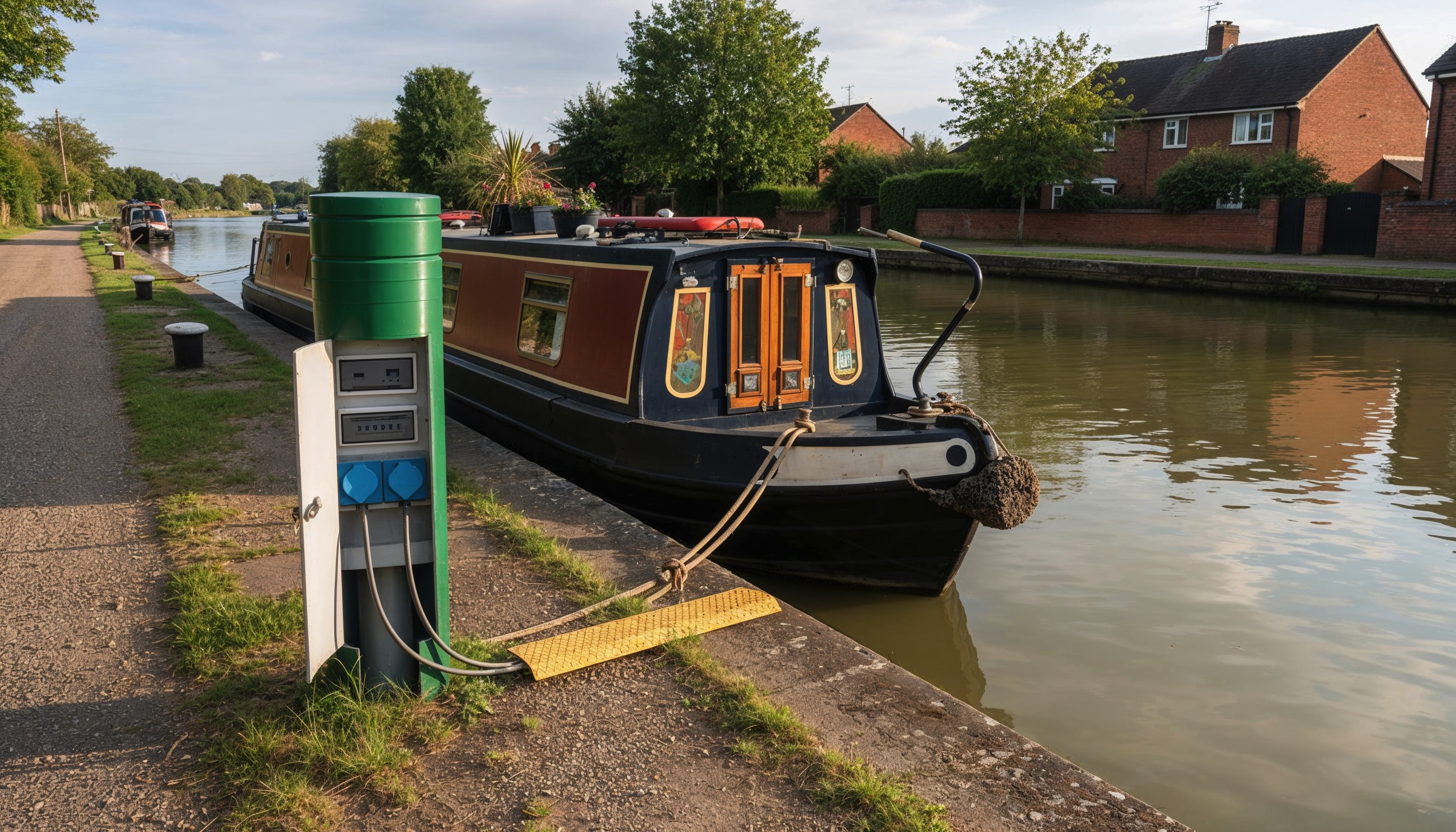

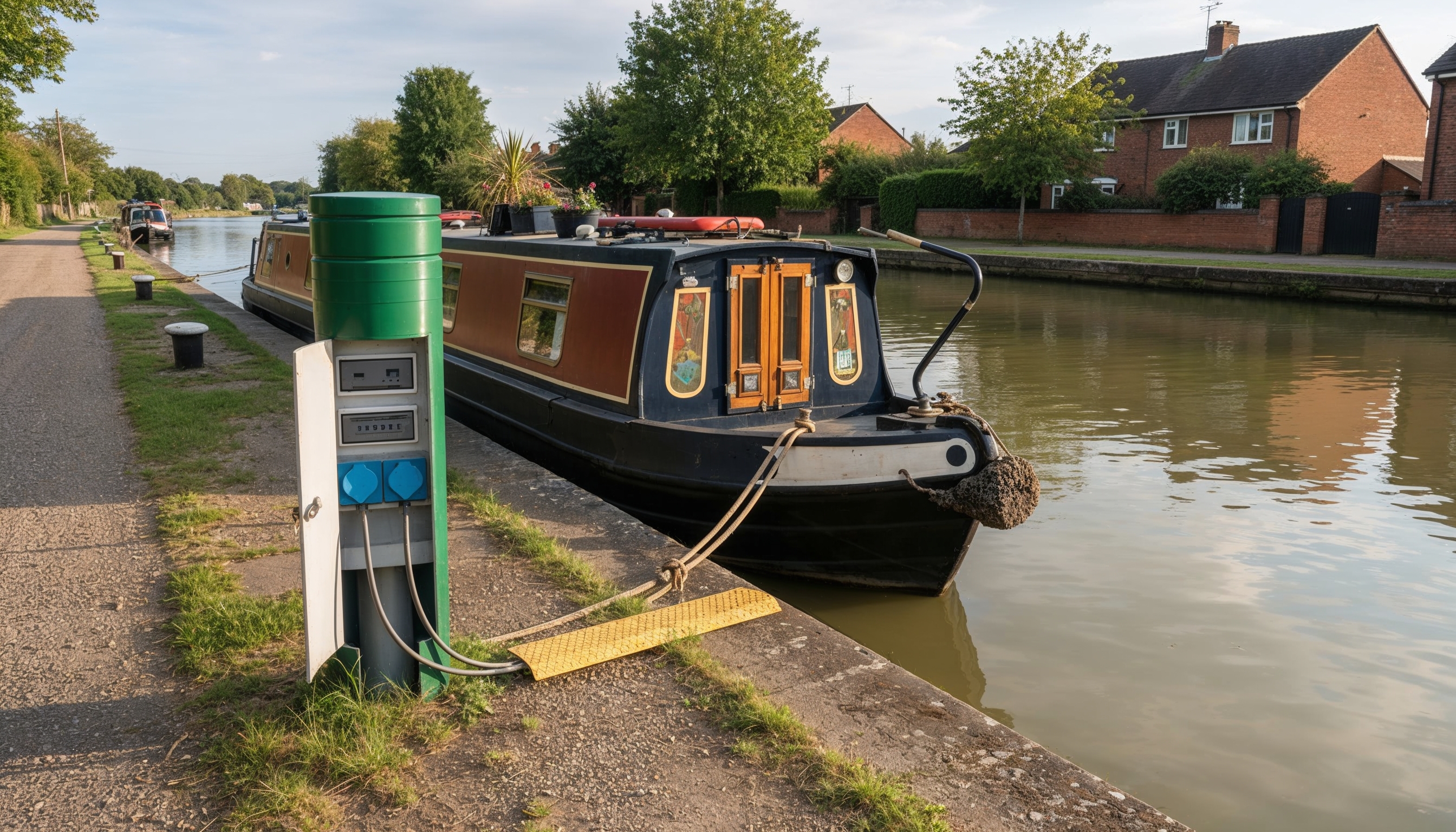

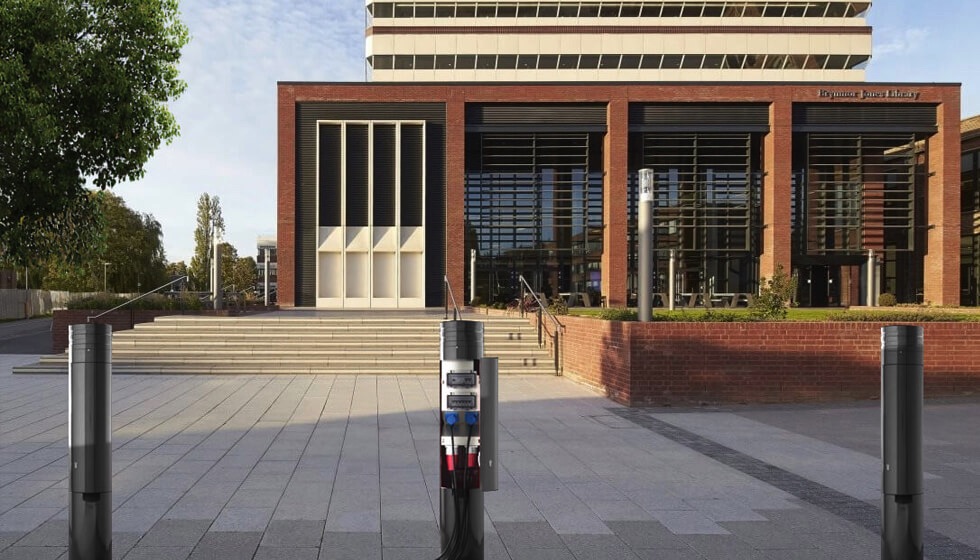

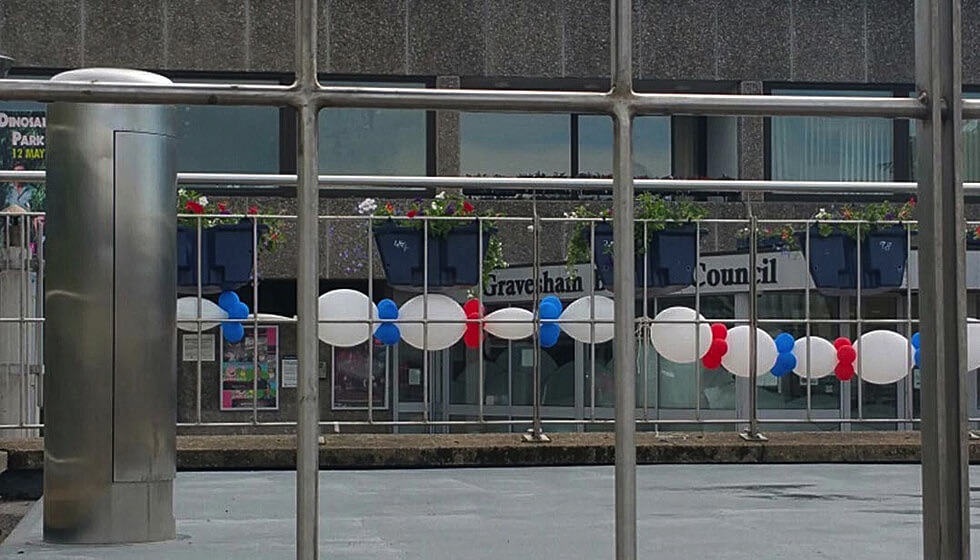

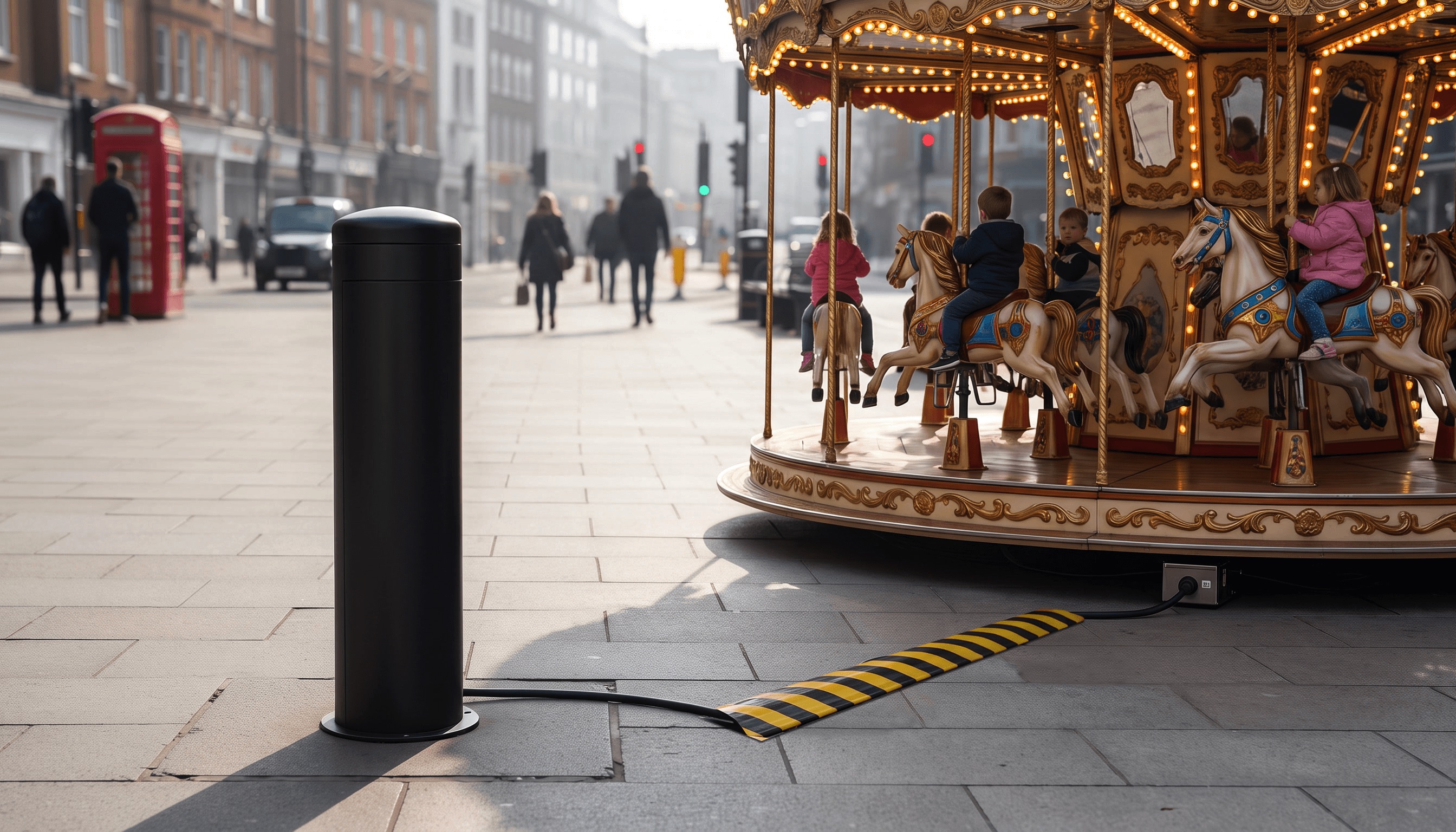

Our Power Bollards are located throughout the UK providing reliable and safe power for all outdoor requirements. Versatile and available to connect on-demand, our Power Bollards are used in many outdoor applications.

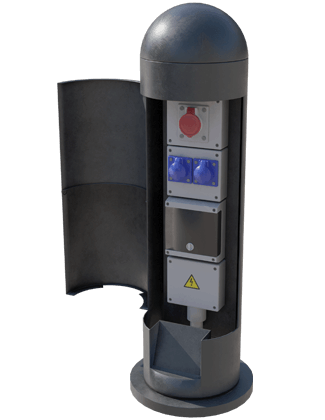

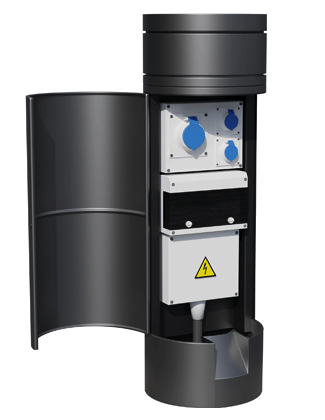

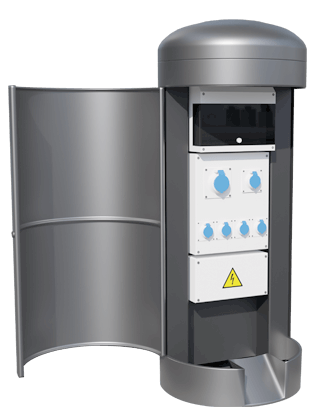

NB: Bollard units are used with the door closed. To enable this to happen we will advise you on the diameter and height of the bollard once we know socket configuration requirements. Please see the 3 Step Guide below.
CHOOSING YOUR BOLLARD IS AS EASY AS 1-2-3
1.

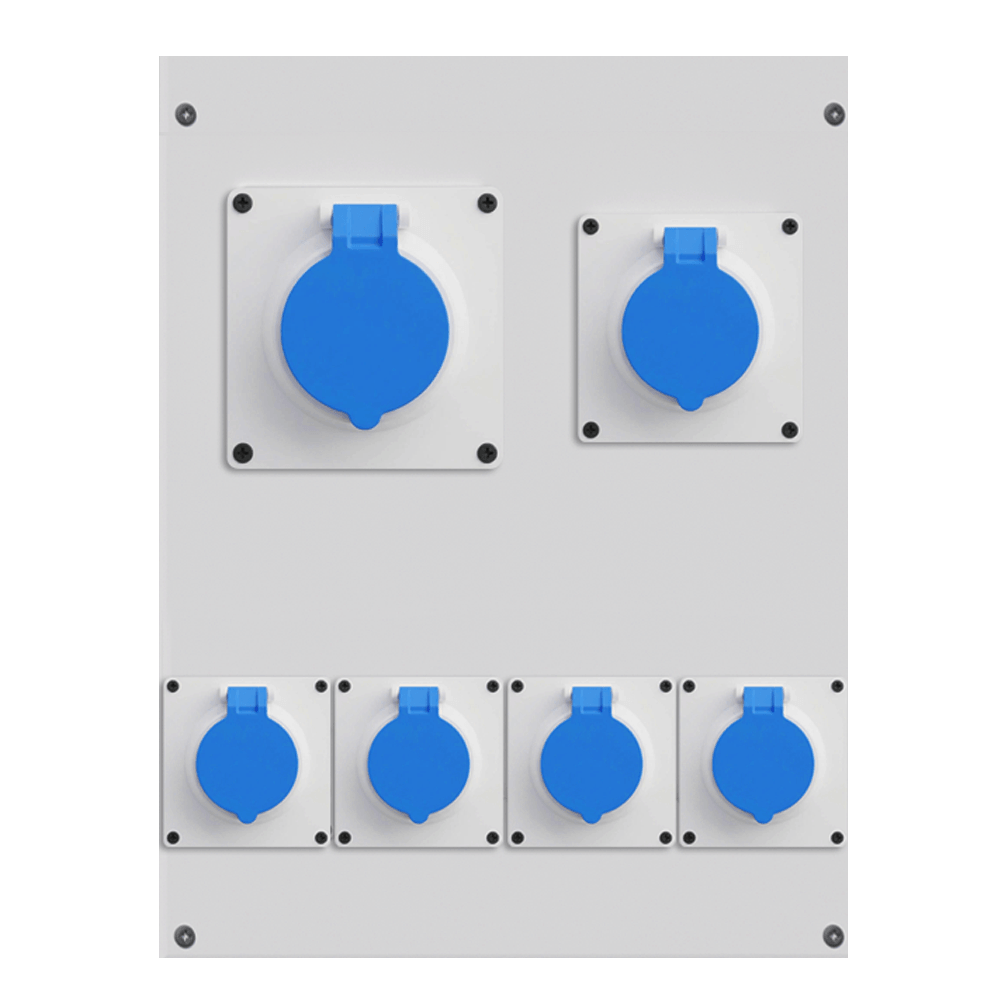

Choose your socket configuration - this will determine the diameter and height of the bollard.
2.

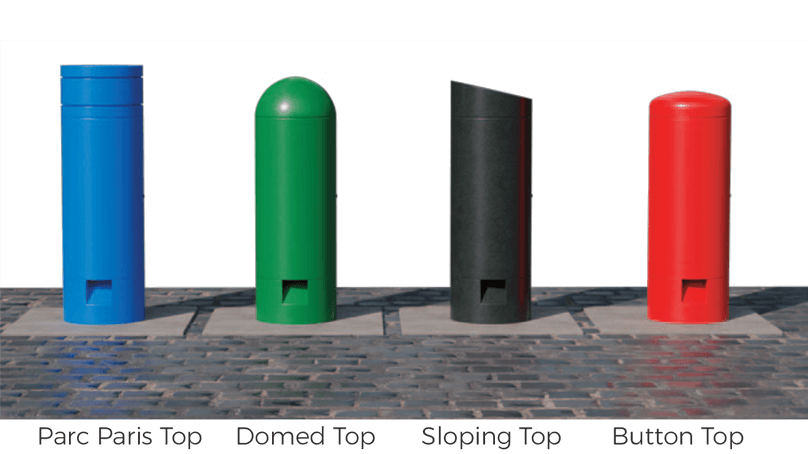

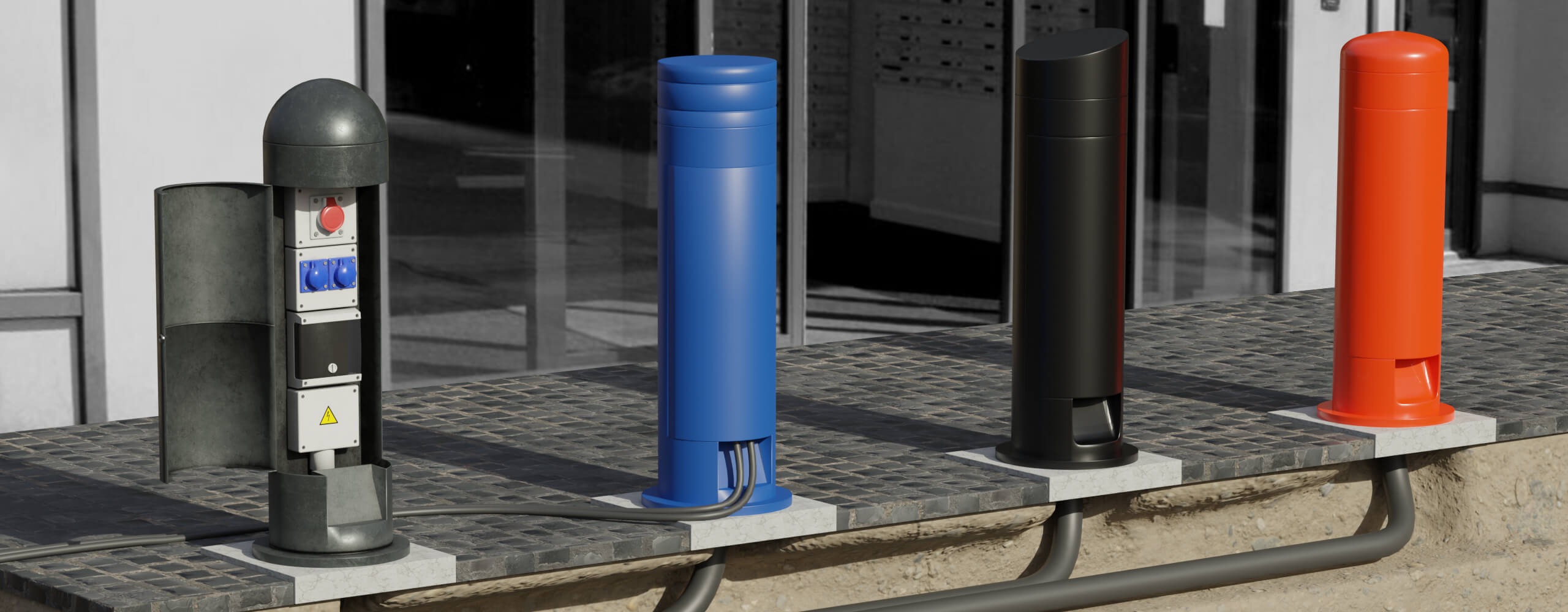

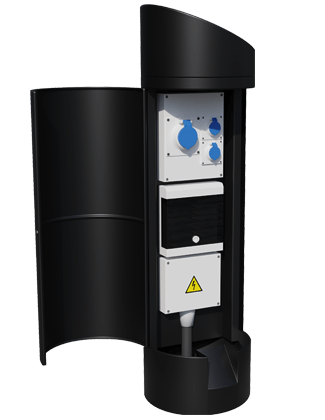

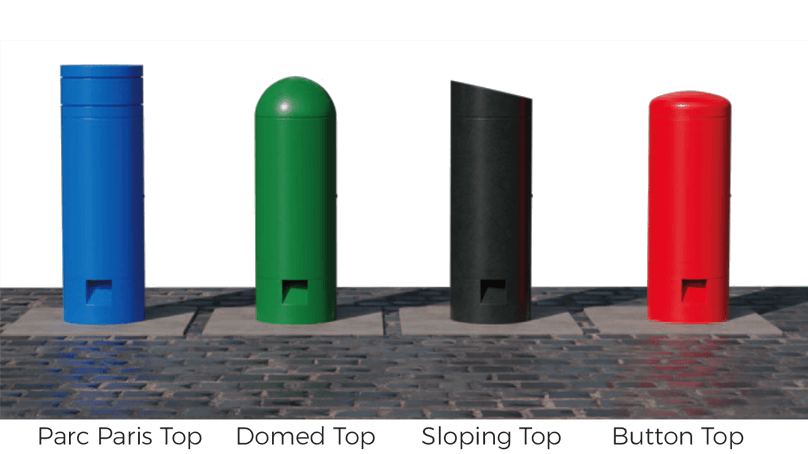

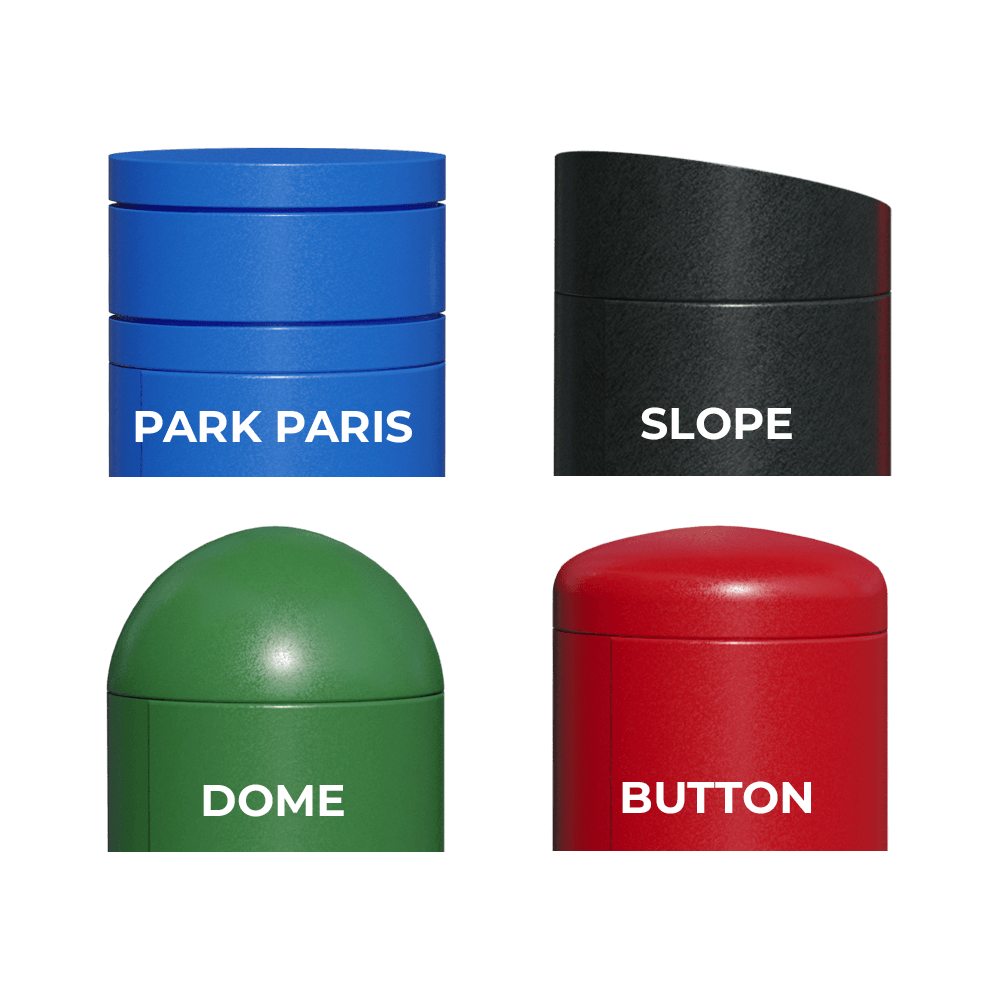

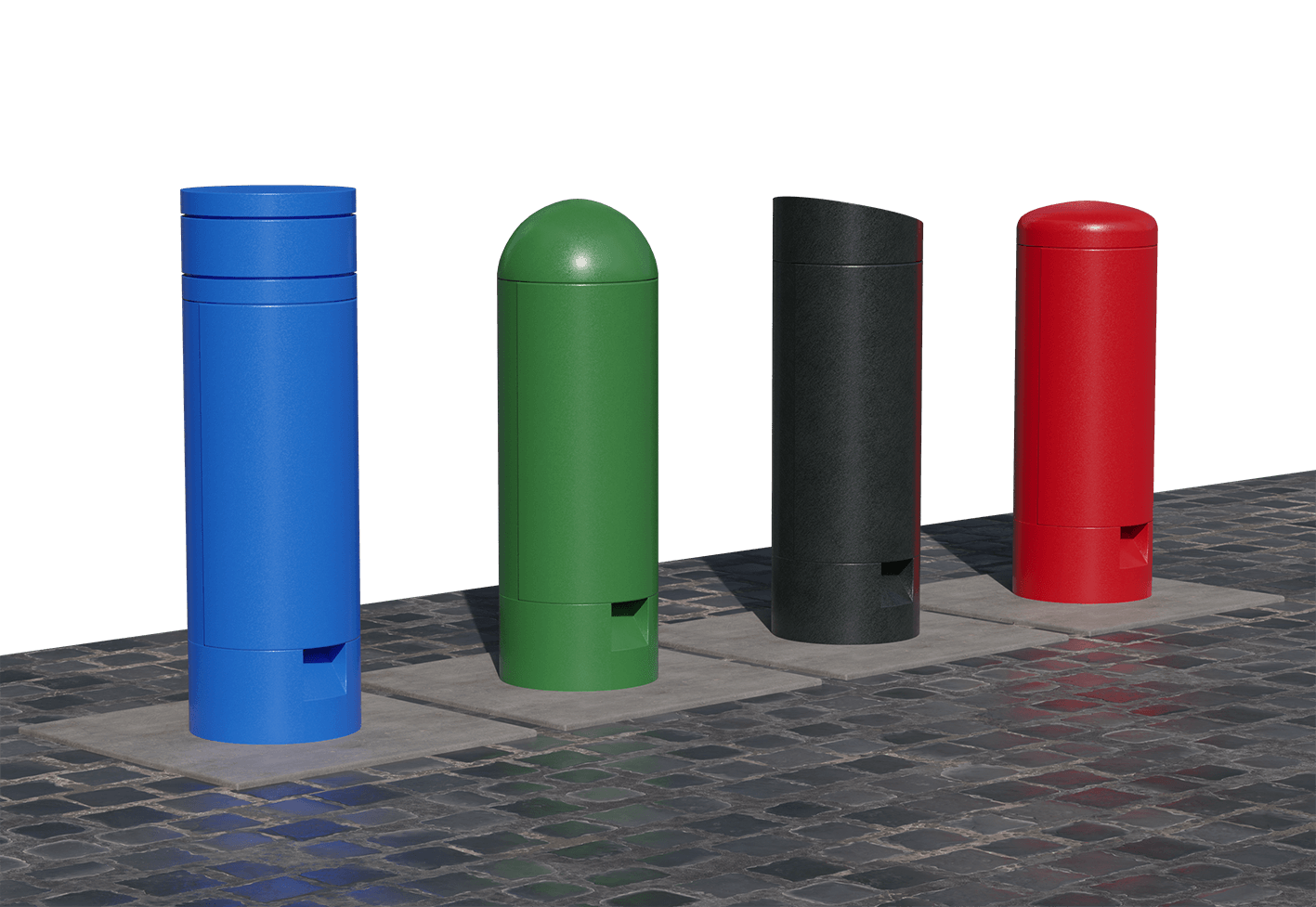

Select a bollard top from the four types available.
3.
Choose your preferred look: standard micaceous grey (RAL 7035) or any RAL colour for a small additional charge.
Then contact us on 020 8227 0208 and we will confirm the height and diameter of your bollards.
BOLLARDS SIZES
Our power bollards come in three standard diameters - 250mm, 325mm and 500mm. Each of these sizes are available in varying heights from 860mm to 1350mm.

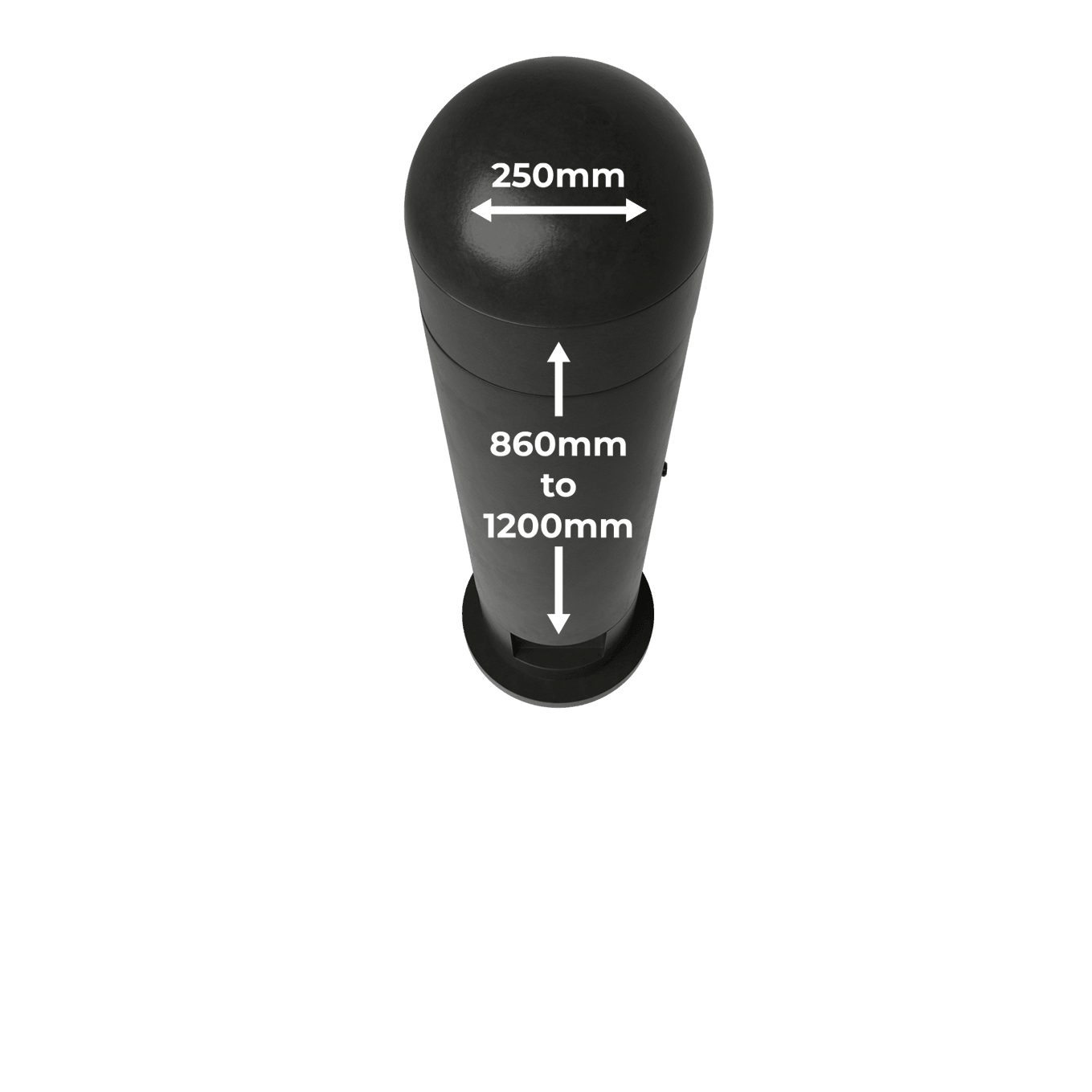

250mm DIAMETER
Heights available:
860mm to 1200mm

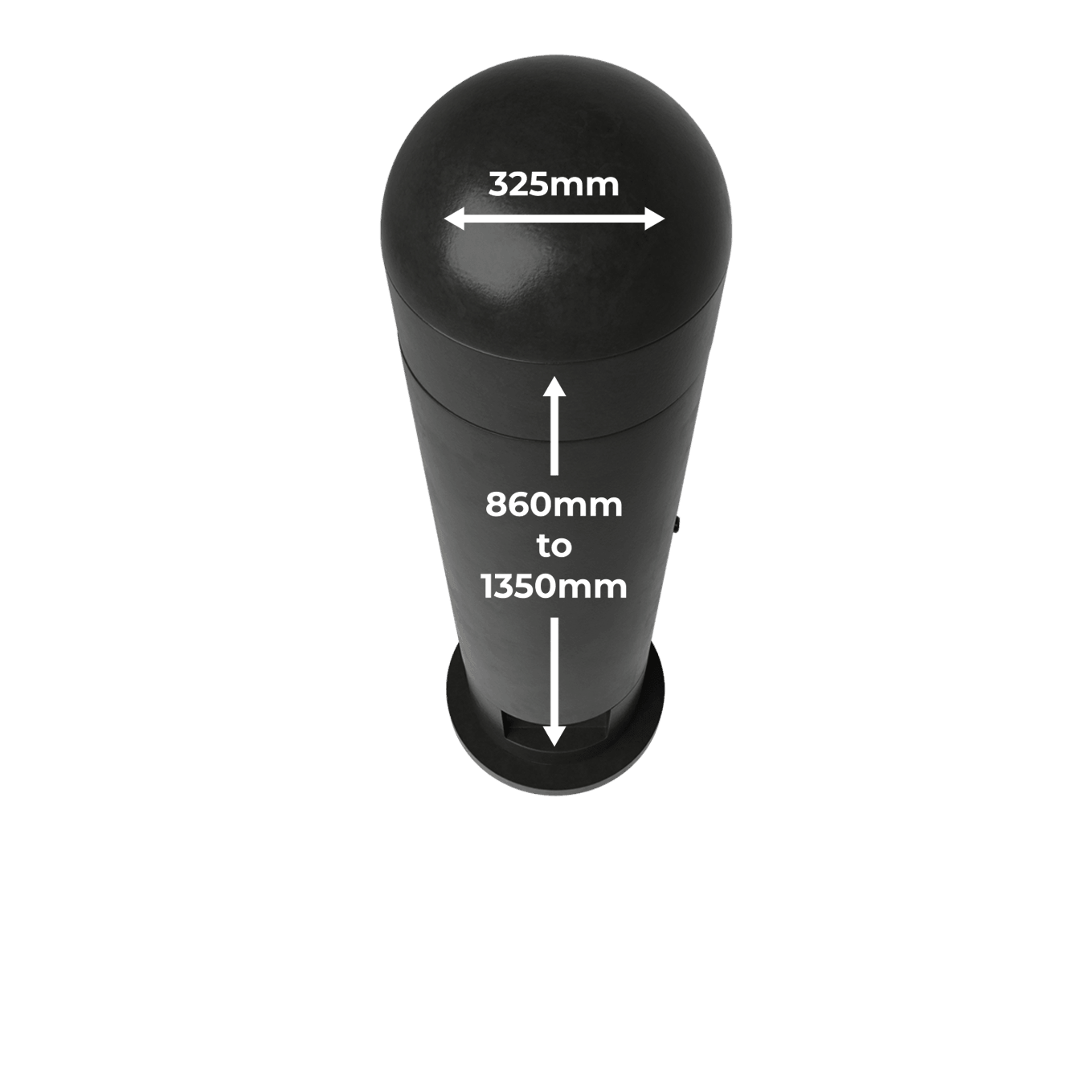

325mm DIAMETER
Heights available:
860mm to 1350mm

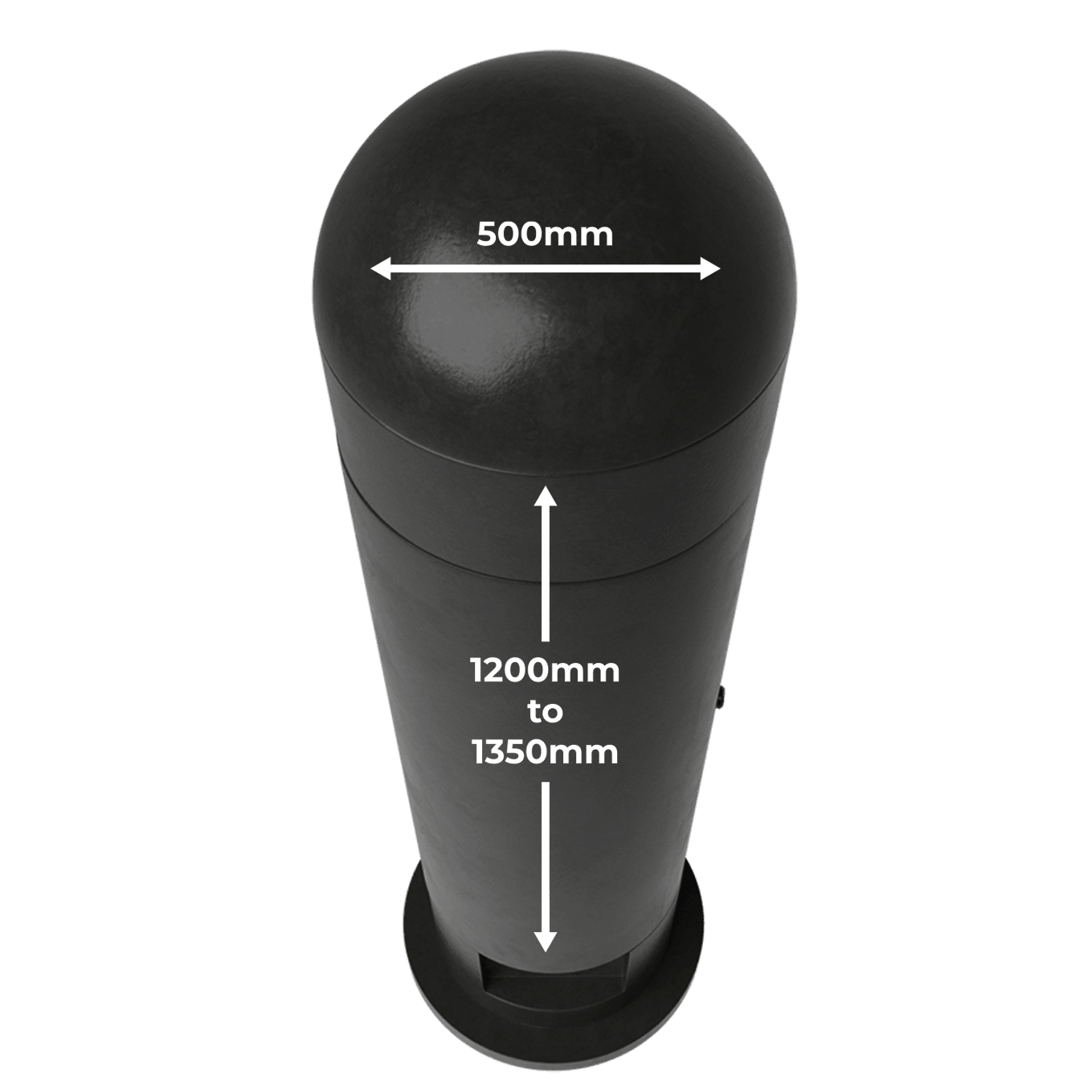

500mm DIAMETER
Heights available:
1200mm to 1350mm
TECHNICAL DETAILS
DATA SHEET- PRODUCT DATA
- MECHANICAL SPECIFICATIONS
- For the supply of electricity, telephone and data
- Doors are designed to close with sockets in place
- Made with AISI 304 stainless steel
- Available with AISI 316L stainless steel (only on demand)
- Diameter options: 250mm, 325mm, 500mm (determined by socket requirements)
- Height will vary depending on selected top and socket combination
ELECTRICAL SPECIFICATIONS- Up to 125 amps
- Voltage 230V/400V single or three phase incoming supply
- Frequency from 50hz to 60hz
- IP44 Protection on sockets
- Complies with Regulation EN 60947-1 EN 60439
- PHYSICAL INFORMATION
- STRUCTURE
- Made with AISI 304 stainless steel
- Available with AISI 316L stainless steel (only on demand)
- External dimensions confirmed with socket combination and unit top selection
- Plate thickness 2mm
- Unit weight estimated at 25 kgs – 60 kgs

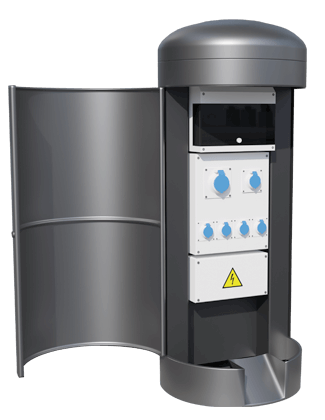

UNIT INTERNAL ACCESS- Accessed through door with triangle profile key

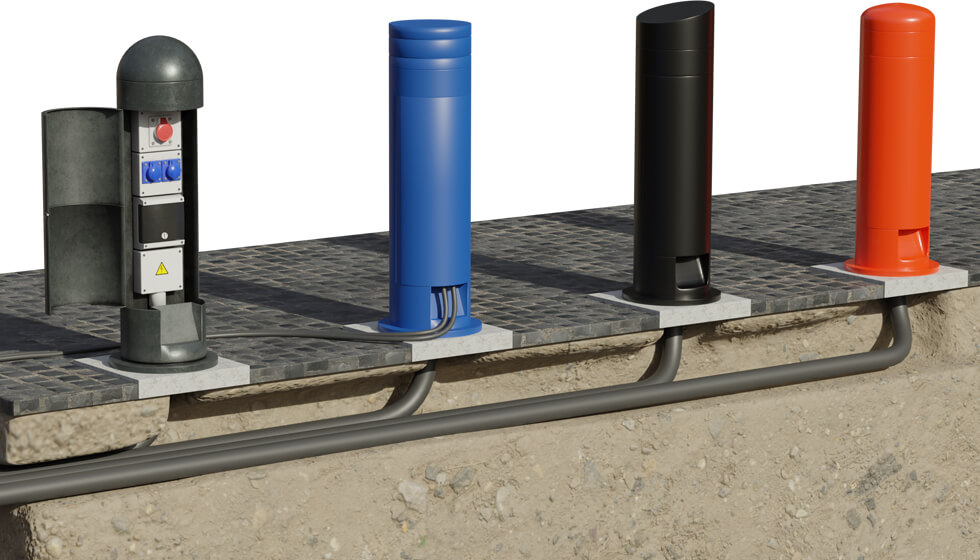

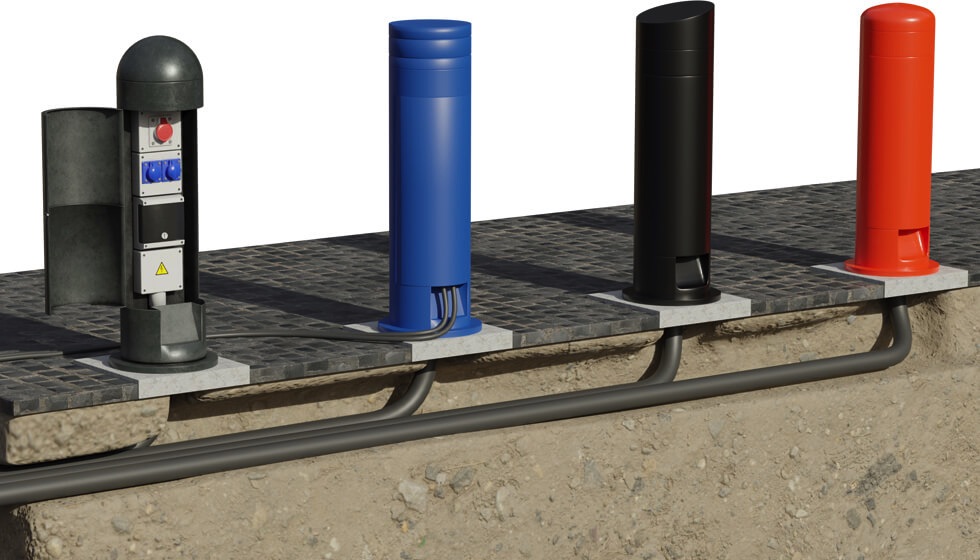

CONNECTION SYSTEM- Internal connection point with terminals for incoming cable
- AVAILABLE COLOURS
- Standard colour - micaceous grey (RAL 7035)
- Any Powder Painted RAL Colours for a small additional charge
- ADDITIONAL EQUIPMENT
- RJ45 data and telephone connectors
- Energy consumption meters
