IN GROUND UNITS

Flip Lid Units for continuous unattended use

THE IN GROUND / FLIP LID UNITS PROVIDE ROUND-THE-CLOCK POWER FOR DAYS, WEEKS OR EVEN MONTHS ON END


They minimise the potential for damage owing to vandalism and harsh weather because they operate unattended with the lid locked down, with only the power cable protruding.

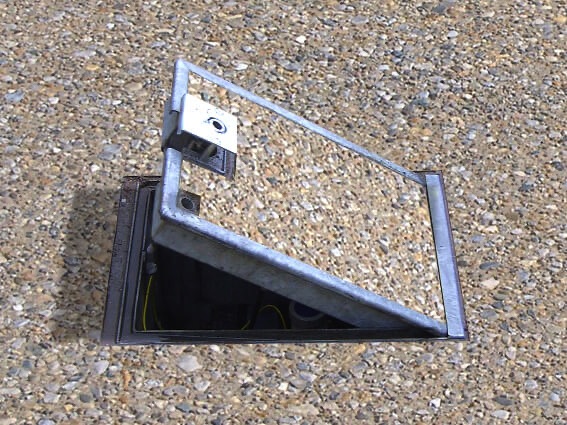

In-Ground Units can be used in smaller spaces to supply an outdoor power supply and telephone connection. They have a double locking lid and can be operated with lid locked down. The lids are raised manually and are gas strut assisted.

Pop Up Power Supplies® range of IGUs complement their electrical feeder pillars and steel bollards, to offer a large range of outdoor pop up sockets and become your one-stop-shop for all your outdoor power requirements.

VIEW SUGGESTED INSTALLATION GUIDE

OUR RANGE OF IN-GROUND UNITS

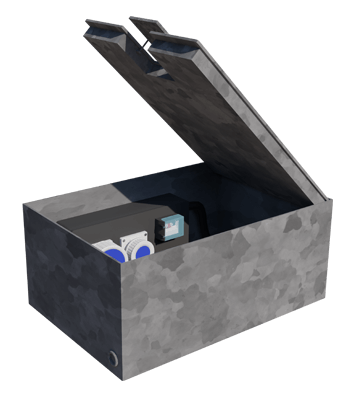

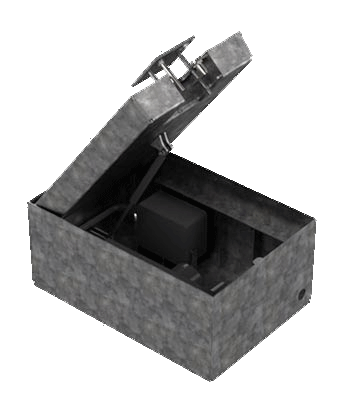

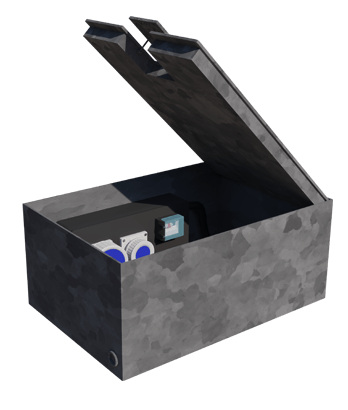

Slim


250mm deep; single-phase incoming supply only.

SLIM PRODUCT DATA
Size:
250mm deep
Profile size 386mm x 570mm, Internal depth of cover 60mm
Cover type:
Recessed cover to accept paving – covers tested unfilled to EN124 B125 load classification (Pedestrian Precincts, Forecourts, Commercial Delivery & Parking areas).
Structure:
Galvanised high grade structural steel plate
  • Can be used in smaller spaces to supply electricity and telephone connection.
  • Double locking lid – can be operated with lid locked down.
  • Lid raised manually – gas strut assisted.

    NOTE:
    The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67
SUGGESTED SOCKET CONFIGURATIONS
Electrical configurations available:
Single phase incoming supply only. 2 x sockets maximum:
A: 1 x 32A IP67 plus 1 x 16A IP67
B: 2 x 16A IP67
C: 2 x 32A IP67
D: 1 x or 2 x 13A IP66
All sockets with individual RCBO protection
Each socket is individually protected by an RCBO
PHYSICAL INFORMATION
Size:
Profile size 386mm x 570 mm.
Internal depth of cover 60mm.
ADDITIONAL INFORMATION
  • Each socket is individually tripped
  • Each socket is individually protected by an RCBO
  • Please contact us for details

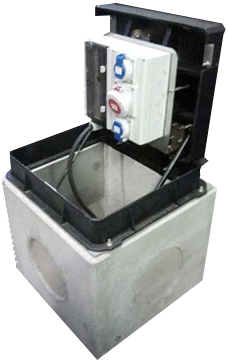

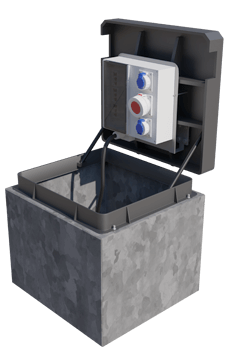

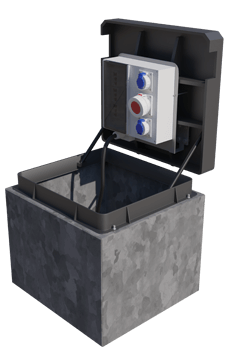

PUPS 03


Total power 63 amps single or 3 phase incoming supply. Can be used to supply electricity, water, gas and telephone. Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).

PRODUCT DATA
  • Total power 63 amps single or 3 phase incoming supply.
  • Can be used to supply electricity, water, gas and telephone.
  • Lid raised manually – gas strut assisted.
  • Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).
NOTE:
The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
SUGGESTED SOCKET CONFIGURATIONS
1. (For a stage or events)
1x no. 63 amp 5P sockets with RCBO protection
2. (For a stage or events)
1x no. 63 amp 2P sockets with RCBO protection
3. (For a market)
2x no. 16 amp 2P sockets with RCBO protection
1x no. 32 amp 2P sockets with RCBO protection
4. (For a market)
3 no. 16 amp 2P sockets with RCBO protection
PHYSICAL INFORMATION
Type of movement
Semi-automatic with 2 gas piston
Total weight
240kg
Structure
Stainless steel, cast iron and concrete
ADDITIONAL INFORMATION
  • Water connectors
  • Compressed air connectors
  • Gas connectors
  • Telephone connectors
  • RJ45 Data Connectors
  • Audio-video connectors

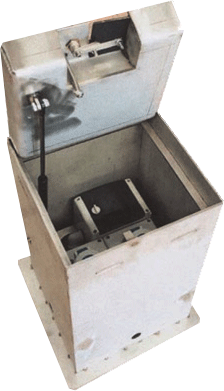

PUPS Floorbox


For power distribution and other services. Cover size 300 x 300mm or 400 x 400mm with a depth of 500mm. Operates with the cover closed and with plug inserted (max 1 x 63A) cable exit through hinged steel port. Internal depth of cover 50mm.

PRODUCT DATA
  • Total power 63 amps single or 3 phase incoming supply.
  • Can be used to supply electricity, water, gas and telephone.
  • Lid raised manually – gas strut assisted.
  • Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).
NOTE:
The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
SUGGESTED SOCKET CONFIGURATIONS
1. Shopping centres / outlet
1 x CEE socket 5p 32A with protection
1 x CEE socket 3p 16A with protection
1 x power supply cable
2. Shopping centres / outlet (400 x 400 unit only)
1 x CEE socket 5p 16A
3 x CEE socket 3p 16A
1 x power supply cable
3. Marketplaces / camping areas (400 x 400 unit only)
1 x CEE interlocked socket 5p 32A
1 x CEE interlocked socket 5p 16A
2 x CEE interlocked socket 3p 16A
1 x power supply cable
PHYSICAL INFORMATION
Type of movement
Semi-automatic lifting assisted with gas ram and release key with pivot to facilitate opening
Dimensions
300 x 300mm or 400 x 400mm – depth 500mm
Structure
Stainless steel
ADDITIONAL INFORMATION
  • Water connectors
  • Compressed air connectors
  • Gas connectors
  • Telephone connectors
  • RJ45 Data Connectors
  • Audio-video connectors

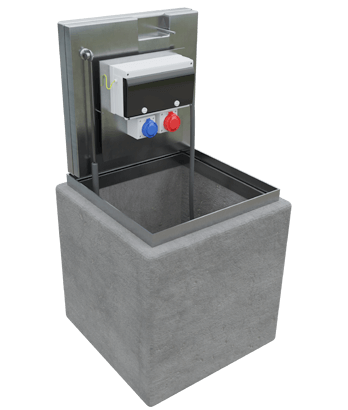

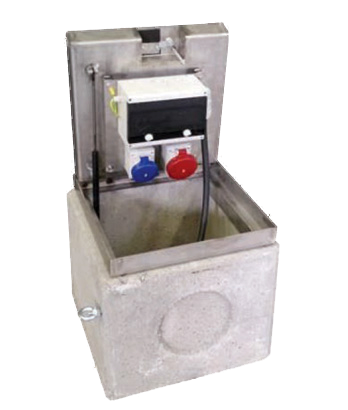

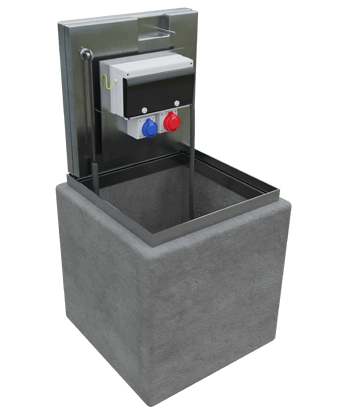

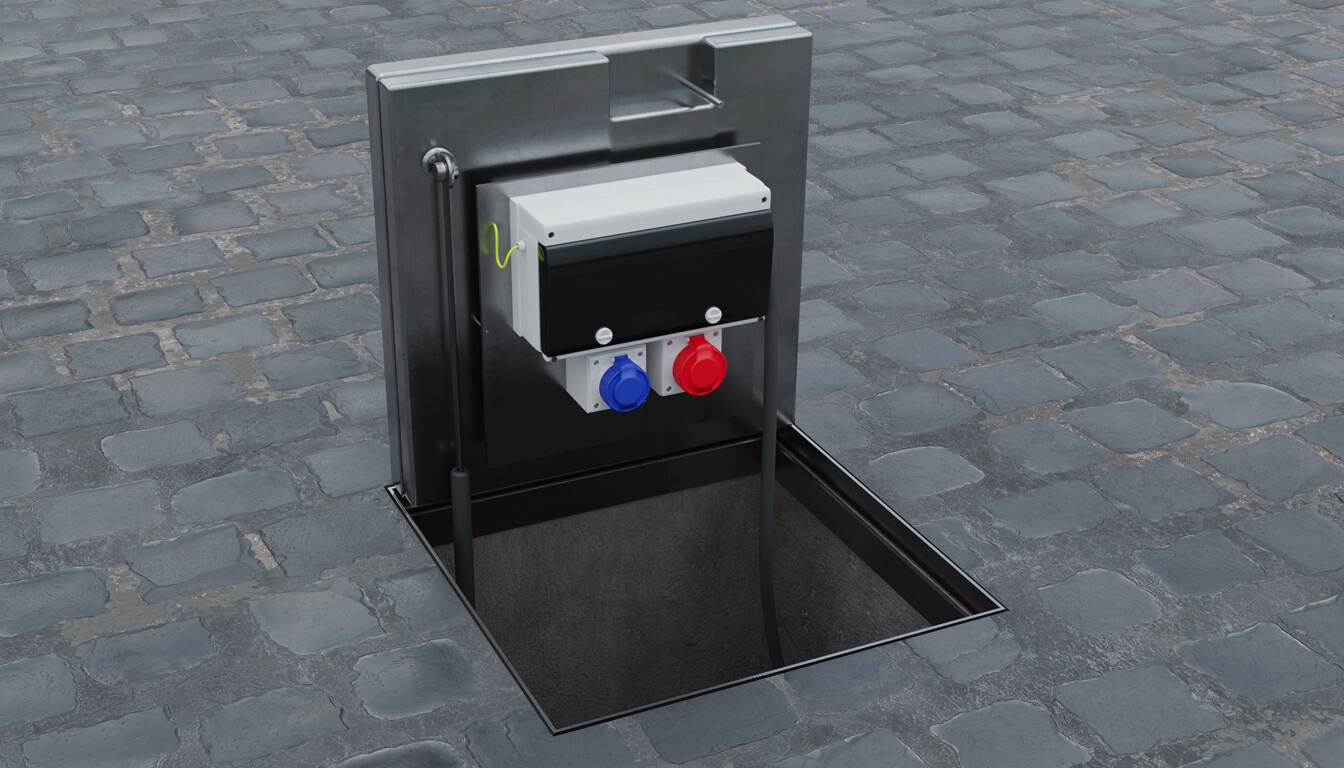

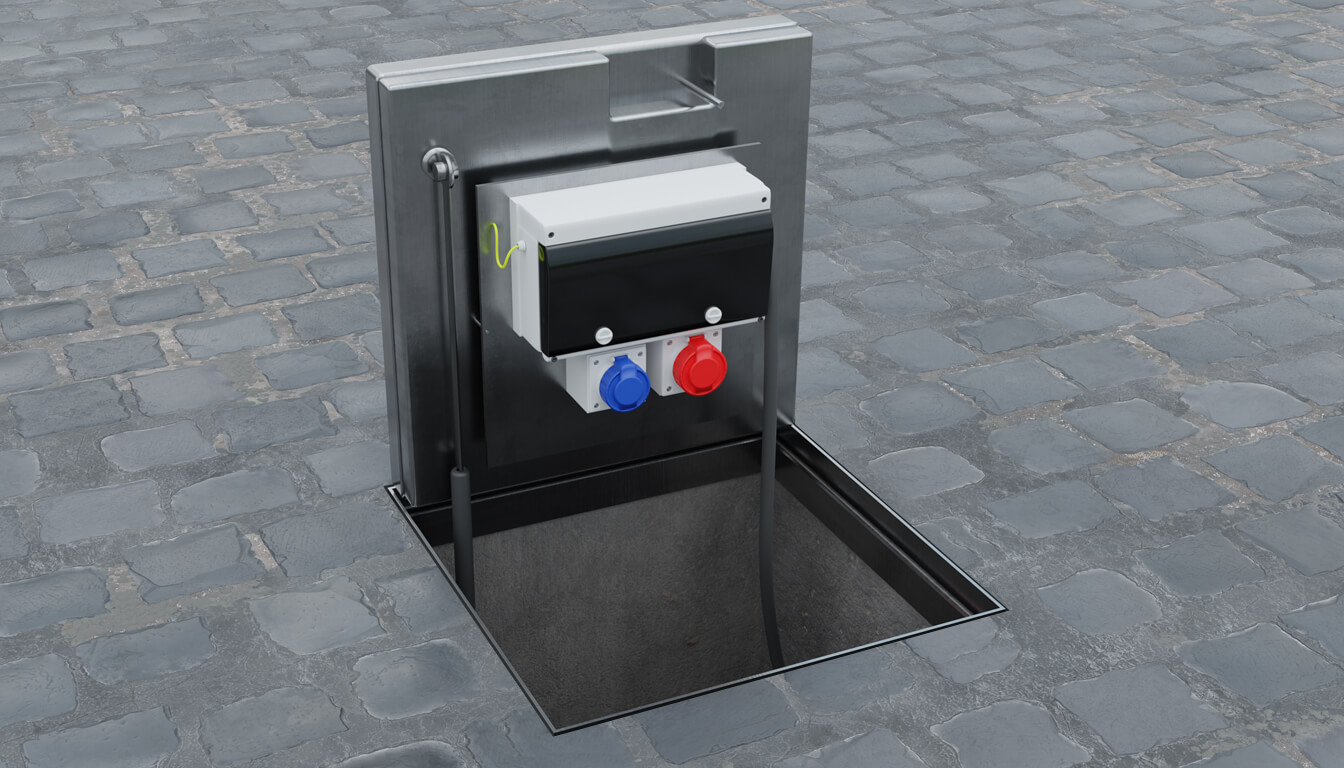

PUPS02 - 4040


Total power 32 amps single supply. Supplies electricity, water and data points to public places. Operates unattended with the lid locked down, with only the power cable protruding.

PRODUCT DATA
  • Total power 63 amps single or 3 phase incoming supply.
  • Can be used to supply electricity, water, gas and telephone.
  • Lid raised manually – gas strut assisted.
  • Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).
NOTE:
The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
SUGGESTED SOCKET CONFIGURATIONS
1. Shopping centres / outlet
1 x CEE socket 5p 32A with protection
1 x CEE socket 3p 16A with protection
1 x power supply cable or terminal block
2. Shopping centres / outlet
1 x CEE socket 5p 32A – without RCBO
1 x CEE socket 5p 16A – without RCBO
2 x CEE socket 3p 16A – without RCBO
1 x power supply cable or terminal block
3. Marketplaces / camping areas
x CEE interlocked socket 5p 32A – without RCBO
1 x CEE interlocked socket 5p 16A – without RCBO
8 x CEE interlocked socket 3p 16A – without RCBO
1 x power supply cable or terminal block
PHYSICAL INFORMATION
Type of movement
Semi-automatic lifting with gas springs and release key with pivot to facilitate opening
Dimensions
440mm x 440mm – depth 450mm
Weight
100kg
Structure
Stainless steel, cast iron and concrete
ADDITIONAL INFORMATION
  • Water connectors
  • Compressed air connectors
  • Gas connectors
  • Telephone connectors
  • RJ45 Data Connectors
  • Audio-video connectors

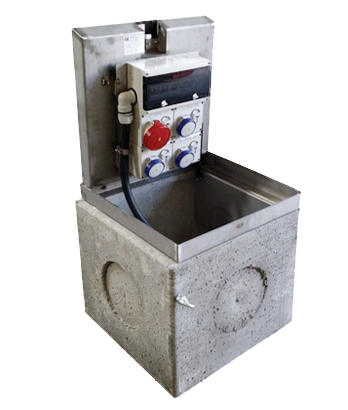

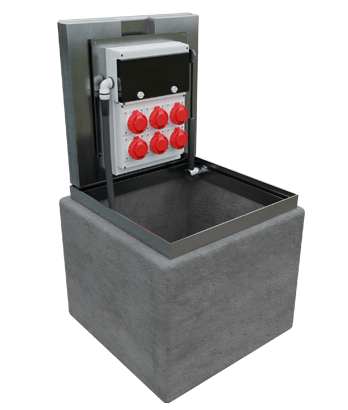

PUPS02 - 5050


Total power 63 amps single supply. Supplies electricity, water and data points to public places. Operates unattended with the lid locked down, with only the power cable protruding.

PRODUCT DATA
  • Power distribution and other services; totally hidden even in operation overall depth of unit 450mm.
  • Cover in stainless steel, recessed to fill with matching surface finish, or closed; cover size 570 x 570mm opening facilitated by a pivot partially pull-out from the lid surface, and a dual gas actuator.
  • Overall depth of unit 550mm. Operates with the cover closed and with plug inserted (max 1 x 63A), through a special rubber door for cable outlet.
  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint).
  • Removable stainless steel plate for water or electrical equipment support (provision for grounding in this case).
SUGGESTED SOCKET CONFIGURATIONS
1. Shows / events
1 x CEE socket 5p 63A with protection
1 x power supply cable or terminal block
2. Shows / events
2 x CEE socket 5p 32A with protection
1 x power supply cable or block
3. Marketplaces
1 x CEE socket 5p 32A with protection
3 x CEE socket 3p 16A with protection
1 x power supply cable or terminal block
4. Marketplaces
6 x CEE socket 3p 16A with protection
1 x power supply cable or terminal block
PHYSICAL INFORMATION
Type of movement
Semi-automatic lifting with gas springs and release key with pivot to facilitate opening
Dimensions
570mm x 570mm – depth 550mm
Weight
180kg
Structure
Stainless steel, cast iron and concrete
ADDITIONAL INFORMATION
  • Water outlet with 1⁄2 3⁄4 1 Ball Valve
  • Connectors for RJ45, video, phono, audio

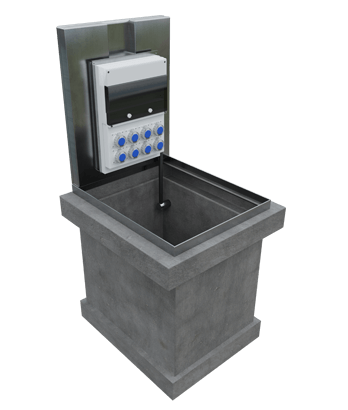

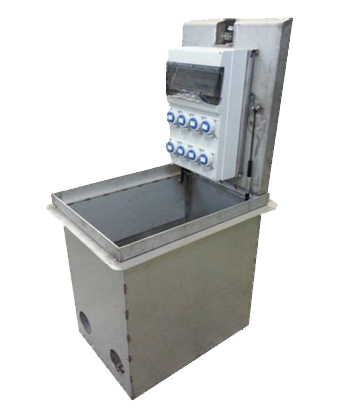

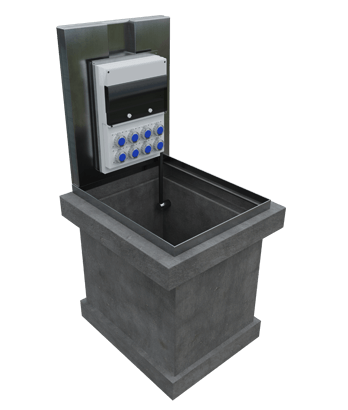

PUPS02 - 7050


Total power 125 amps single supply. Supplies electricity, water and data points to public places. Operates unattended with the lid locked down, with only the power cable protruding.

PRODUCT DATA
  • Power distribution and other services.
  • Cover in stainless steel, recessed to fill with matching surface finish – cover size 700 x 500mm opening facilitated by a pivot, partial pull-out from the lid surface, and a dual gas actuator.
  • Operates with the cover closed and with plug inserted (max 1x125A), through a special rubber door for cable outlet.
  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint).
  • Removable stainless steel plate for water or electrical equipment support (provision for grounding in this case).
SUGGESTED SOCKET CONFIGURATIONS
1. Shows / events
1 x CEE socket 5p 125A with protection
1 x power supply cable or terminal block
2. Shows / events
2 x CEE socket 5p 63A with protection
1 x power supply cable or block
3. Marketplaces
2 x CEE socket 5p 32A with protection
3 x CEE socket 3p 16A with protection
1 x power supply cable or terminal block
4. Marketplaces
8 x CEE socket 3p 16A with protection
1 x power supply cable or terminal block
PHYSICAL INFORMATION
Type of movement
Semi-automatic lifting with gas springs and release key with pivot to facilitate opening
Dimensions
570mm x 570mm – depth 550mm
Weight
100kg
Structure
Stainless steel, cast iron and concrete
ADDITIONAL INFORMATION
  • Water outlet with 1⁄2 3⁄4 1 Ball Valve
  • Connectors for RJ45, video, phono, audio
Connection Systems:
By cable tail type H07RN-F (3mt standard) By internal junction box

IN GROUND POWER UNITS GALLERY

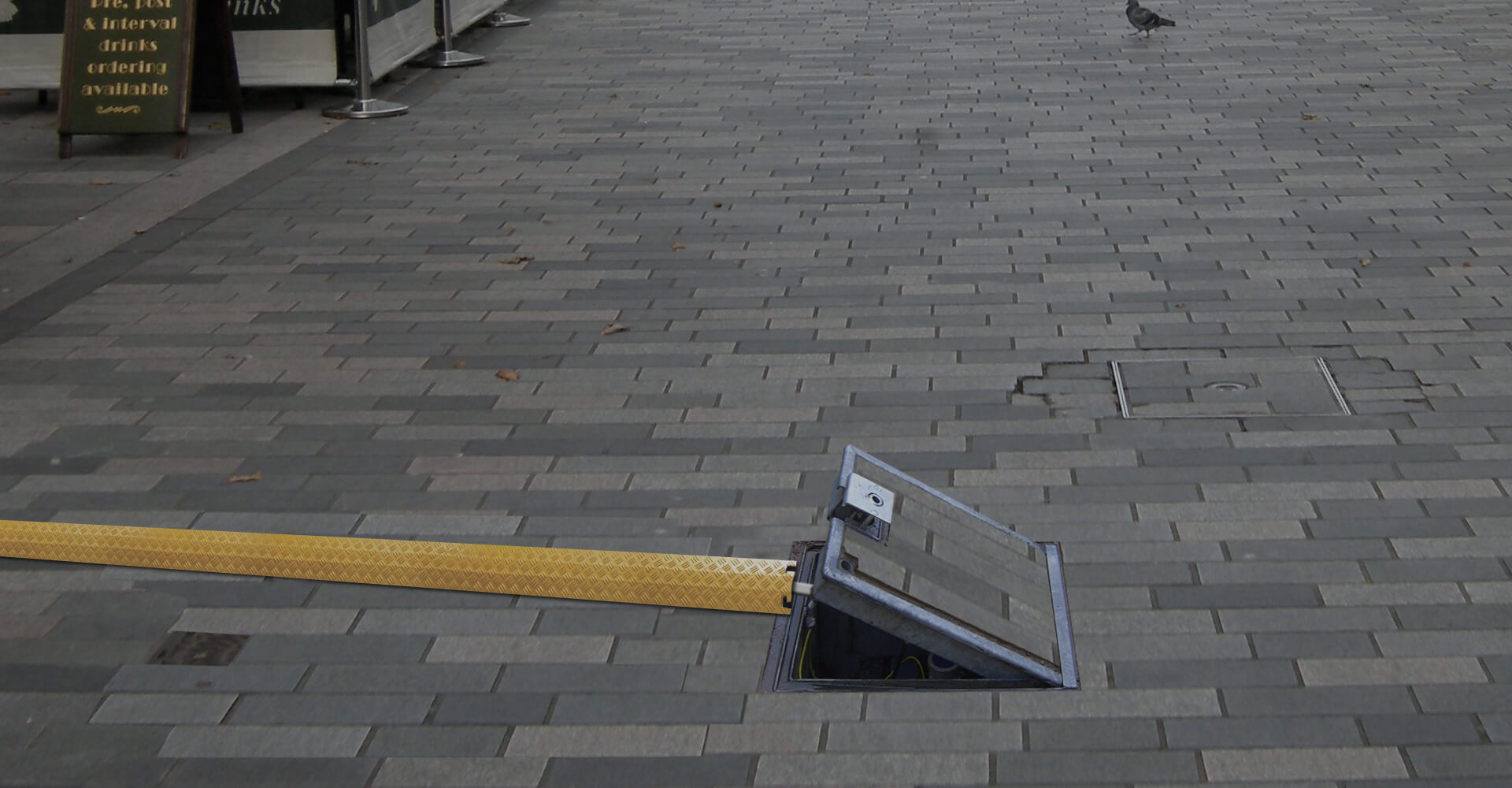

A flip-lid in-ground service unit which provides safe, easy access to power and other services in public outdoor spaces.
A flip-lid in-ground service unit

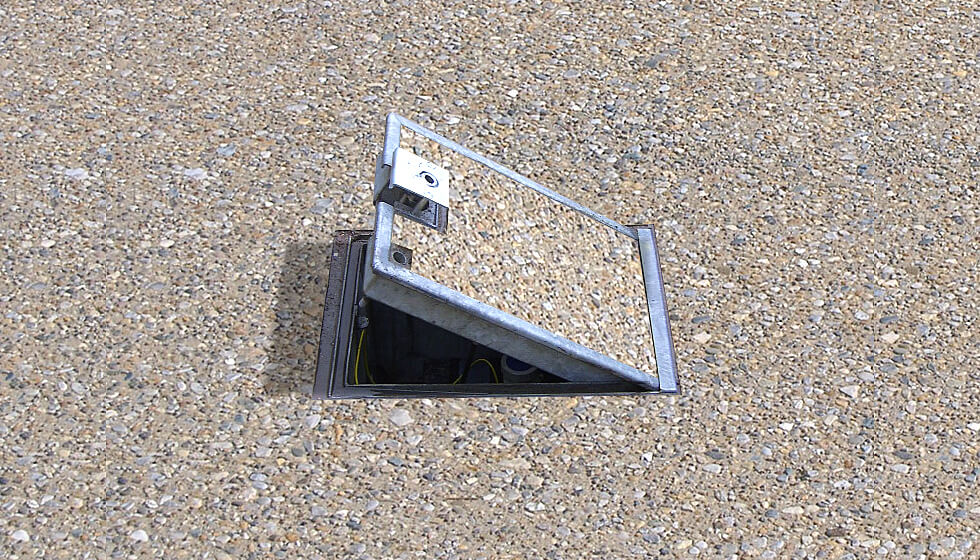

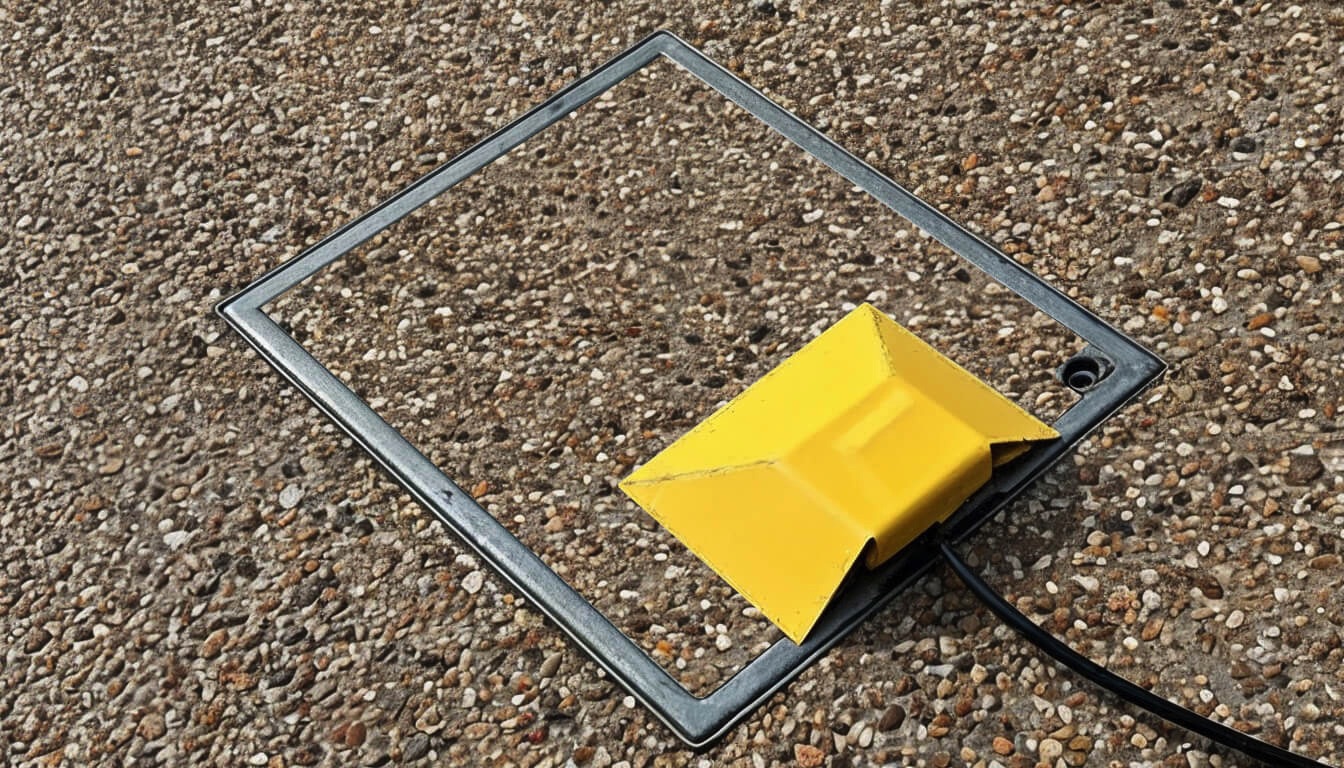

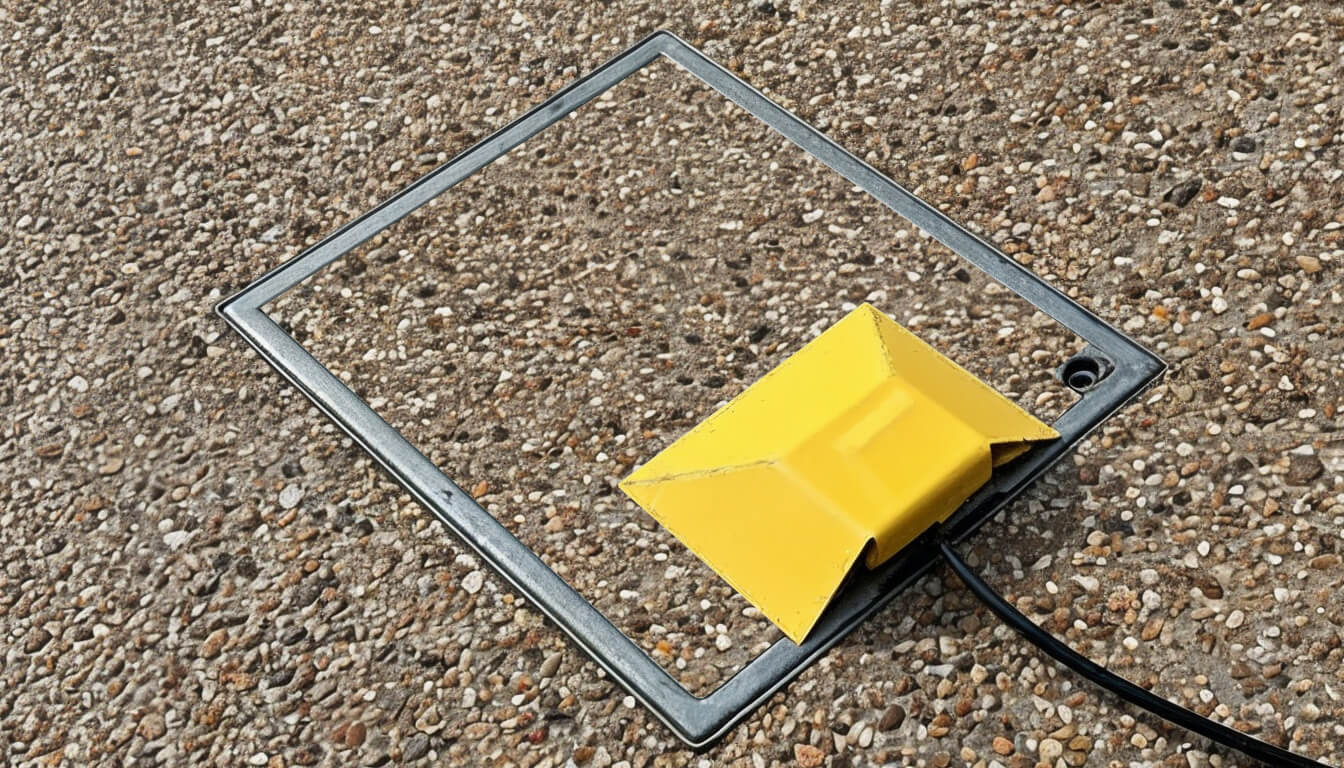

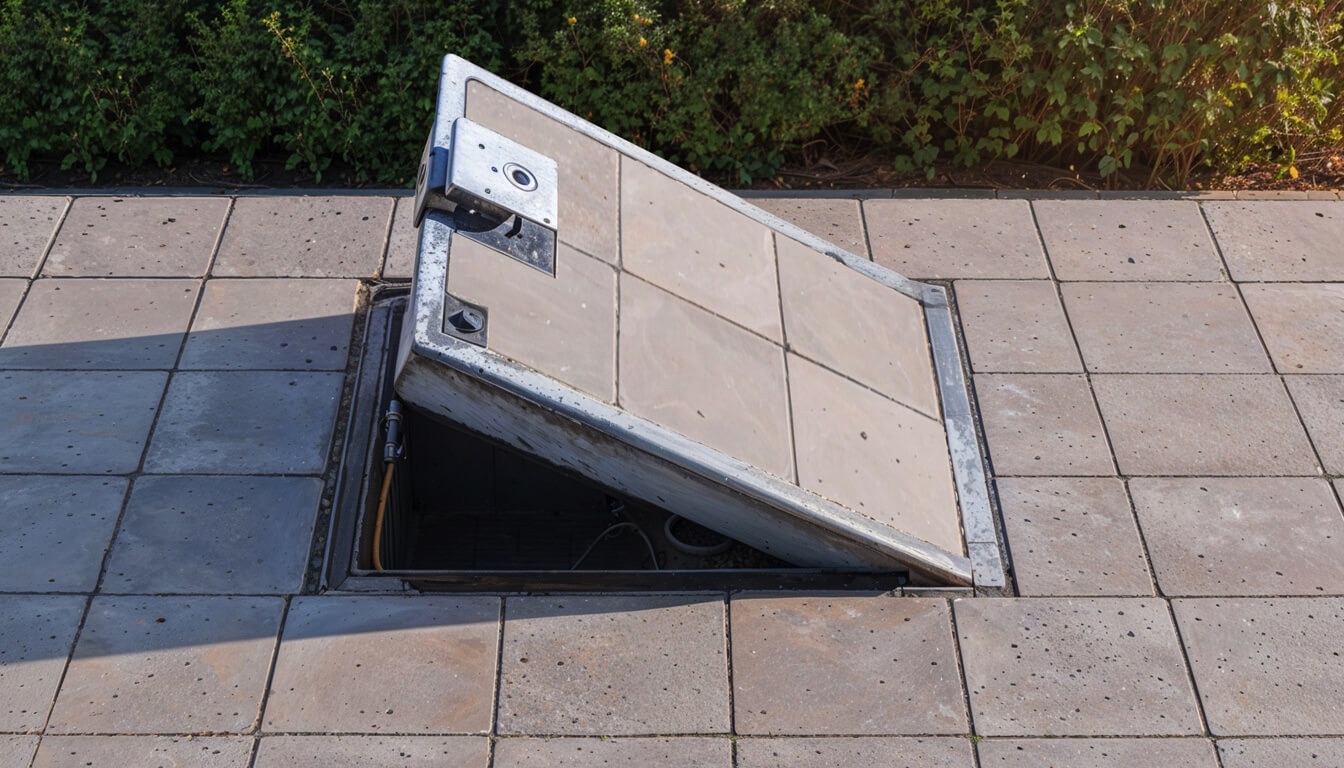

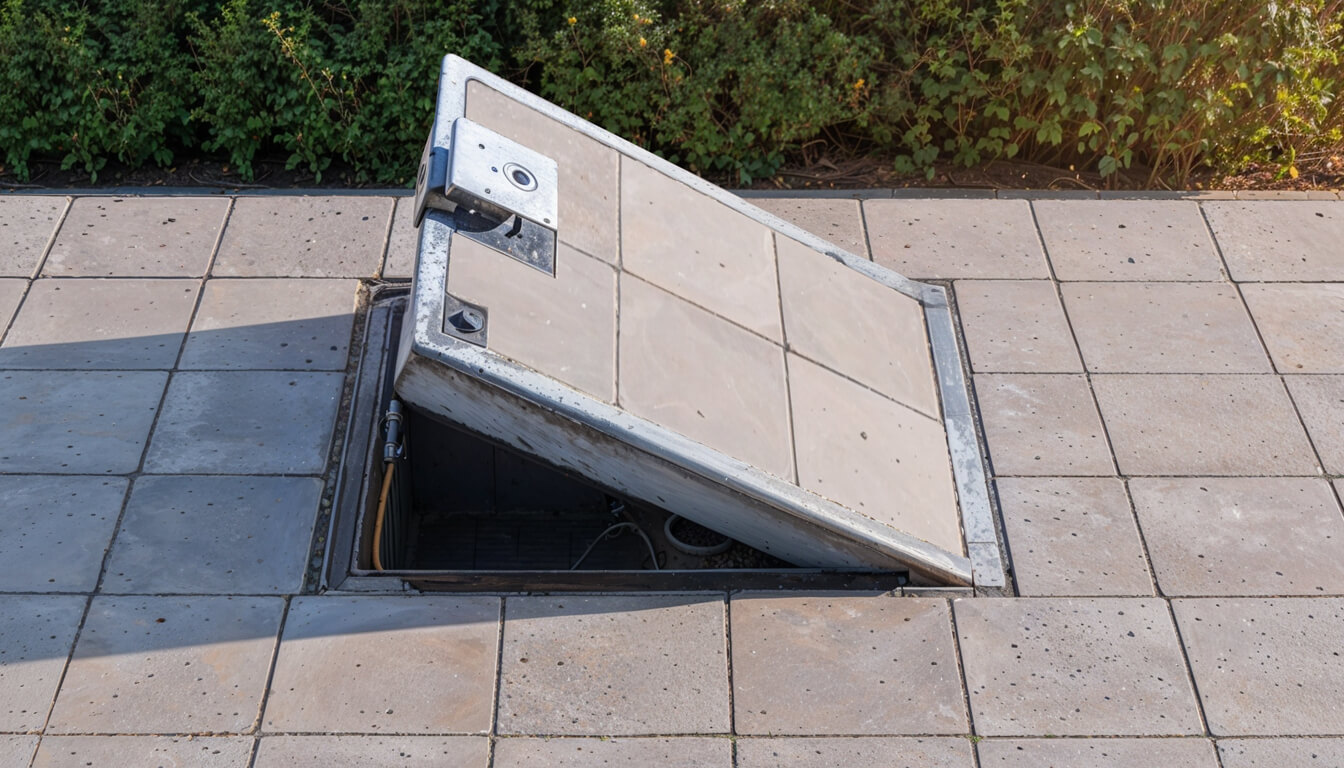

Flip-lid in-ground power units like this accommodate paving and other surface materials in a recessed lid which means they complement their surroundings.
Paved flip-lid in-ground power unit

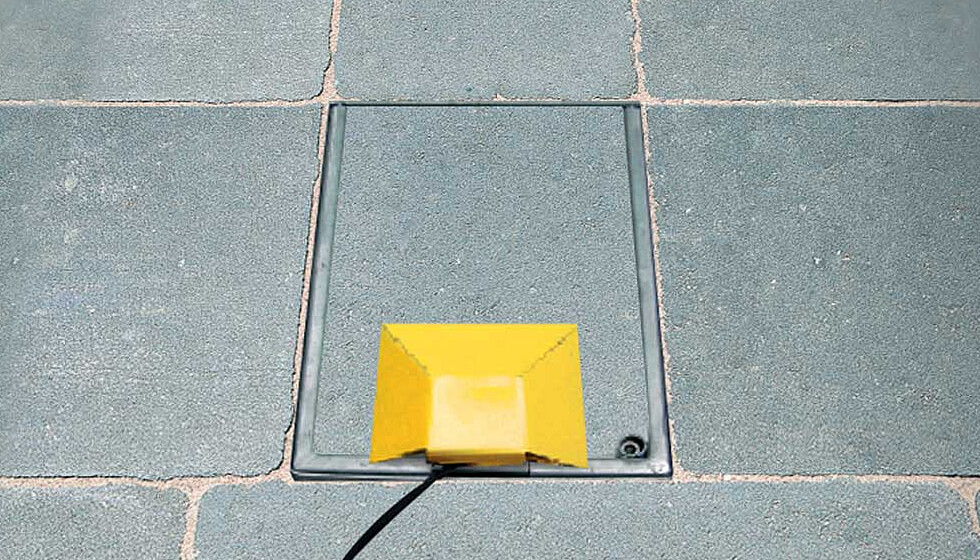

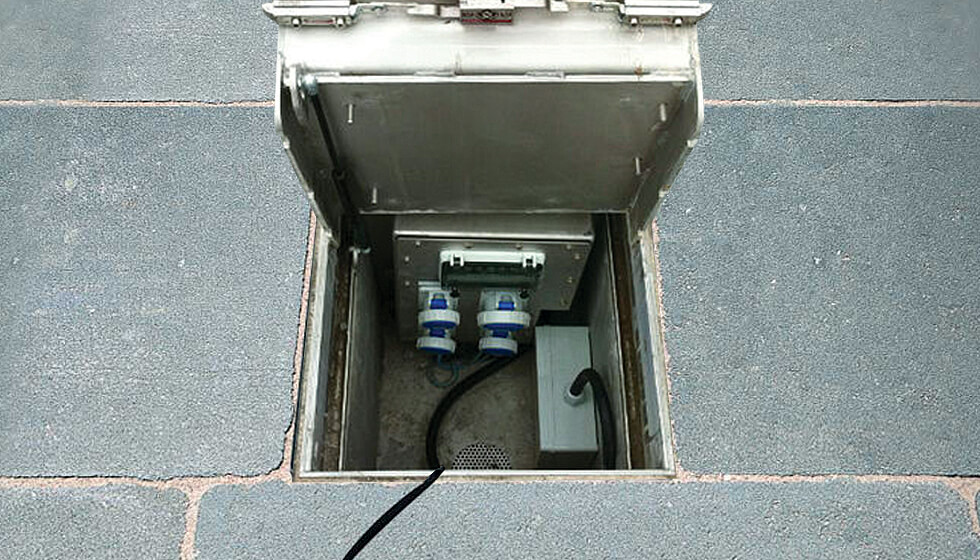

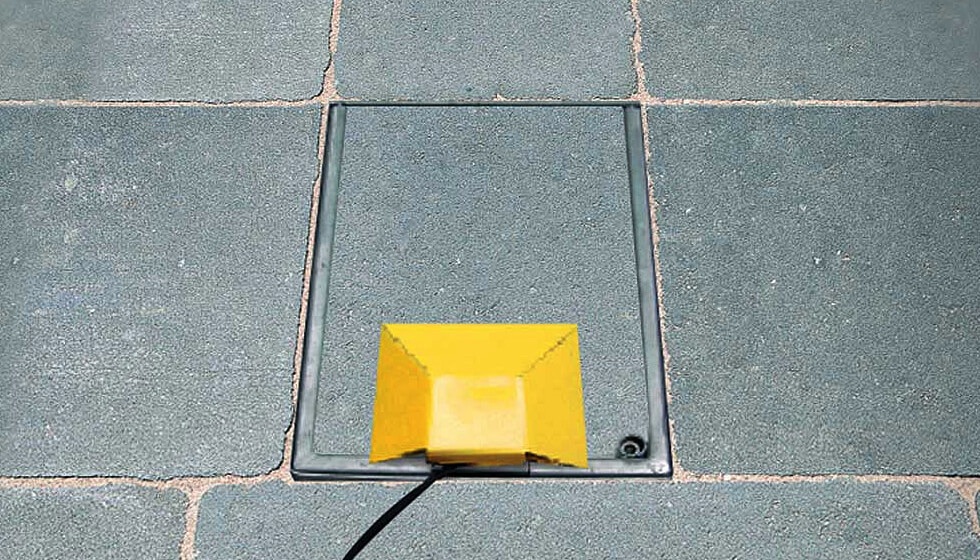

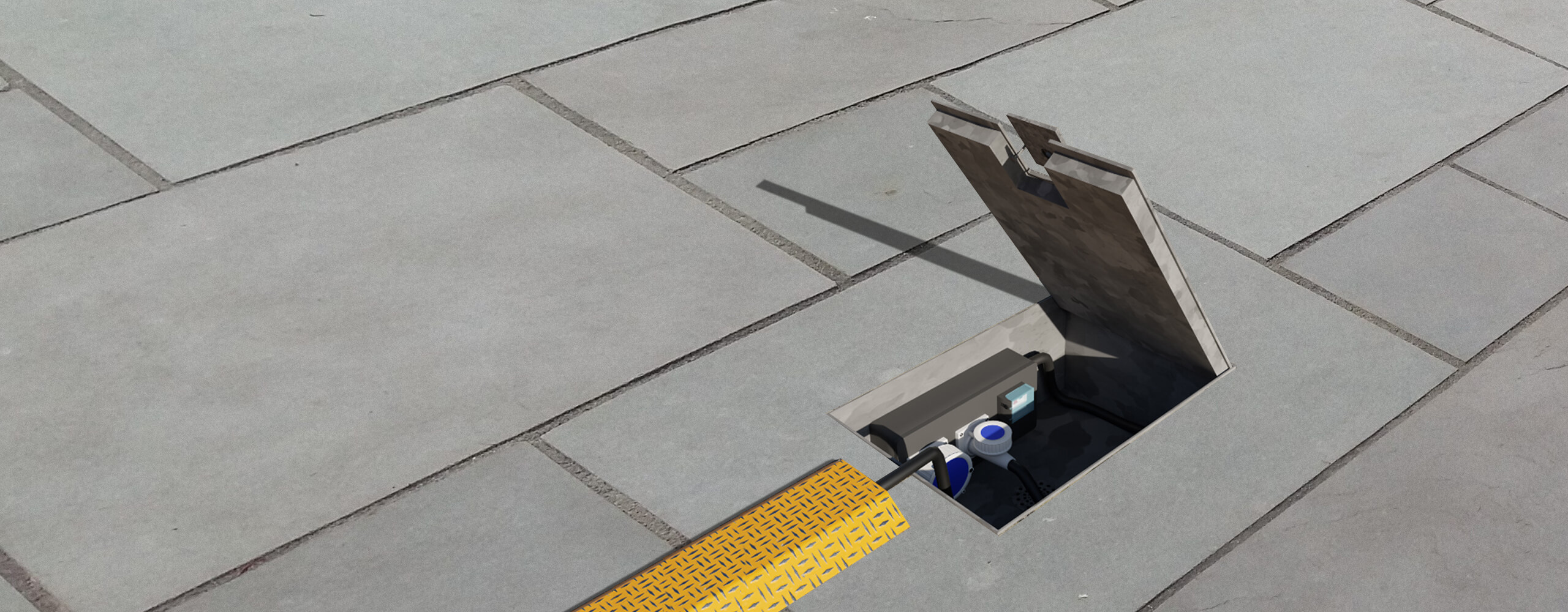

In-ground service units provide clear access to power and other services via a flip-lid which closes flat to minimise obstruction and trip hazards in public places.
In-ground service units open

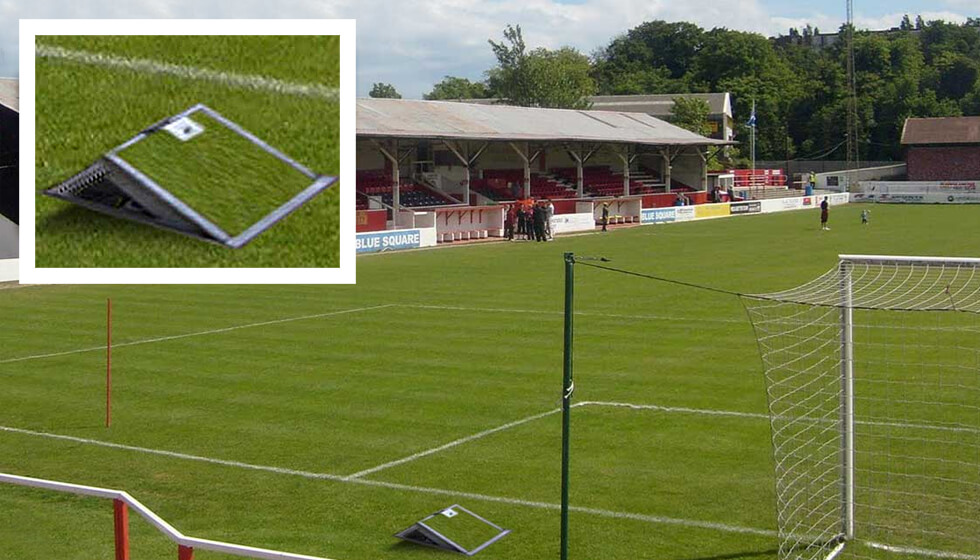

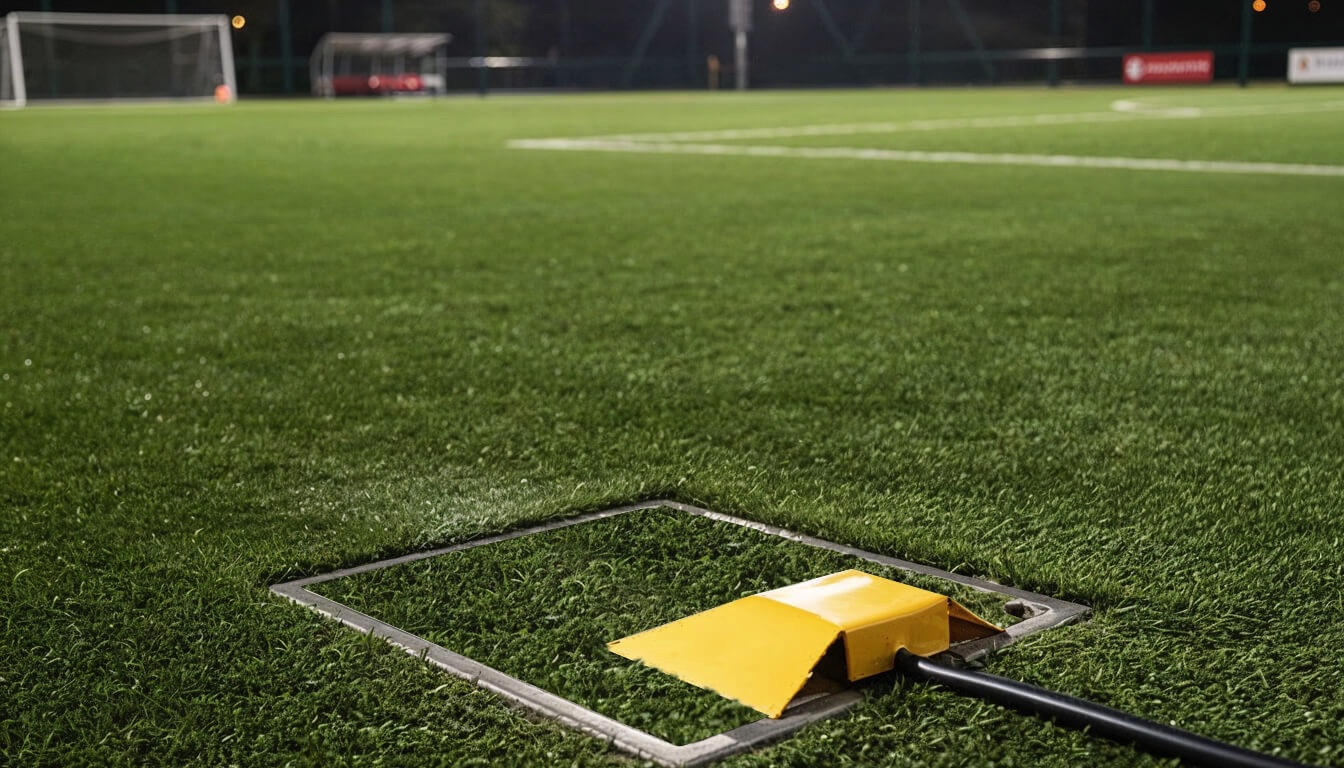

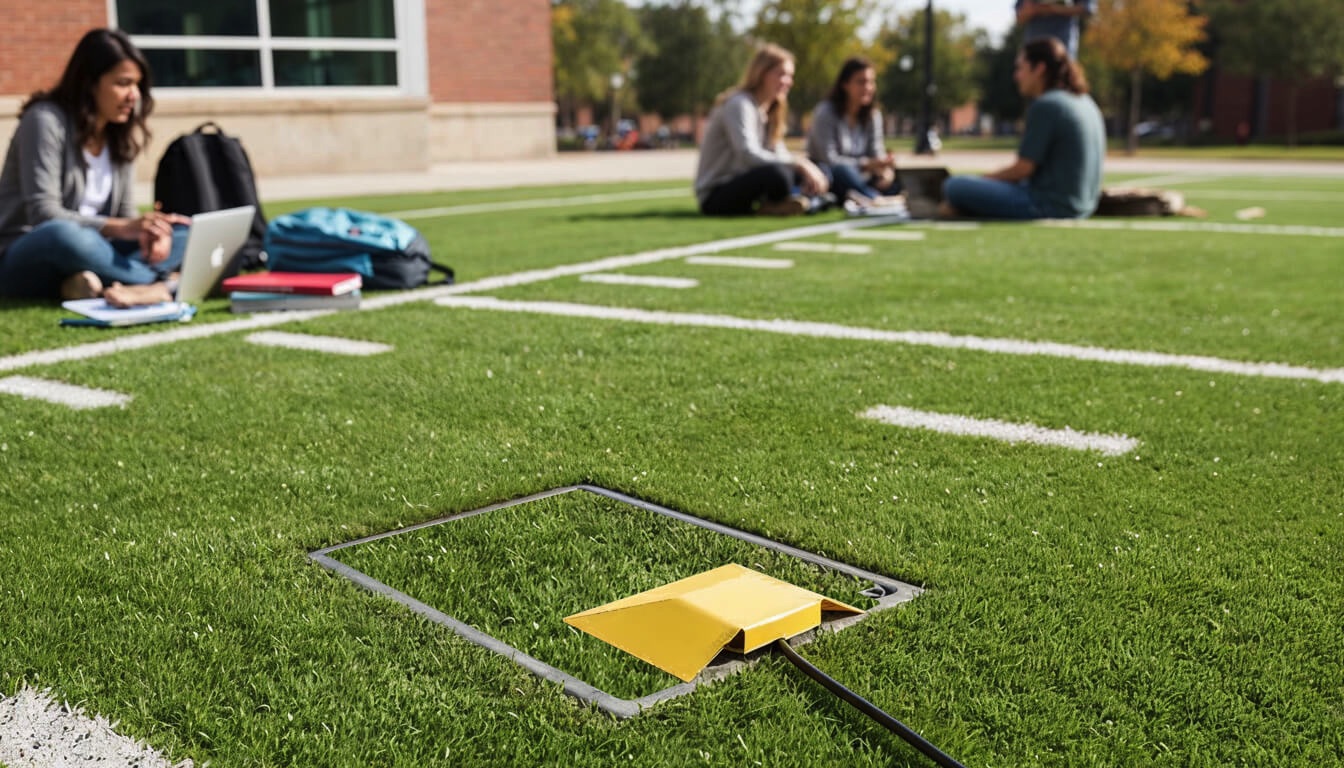

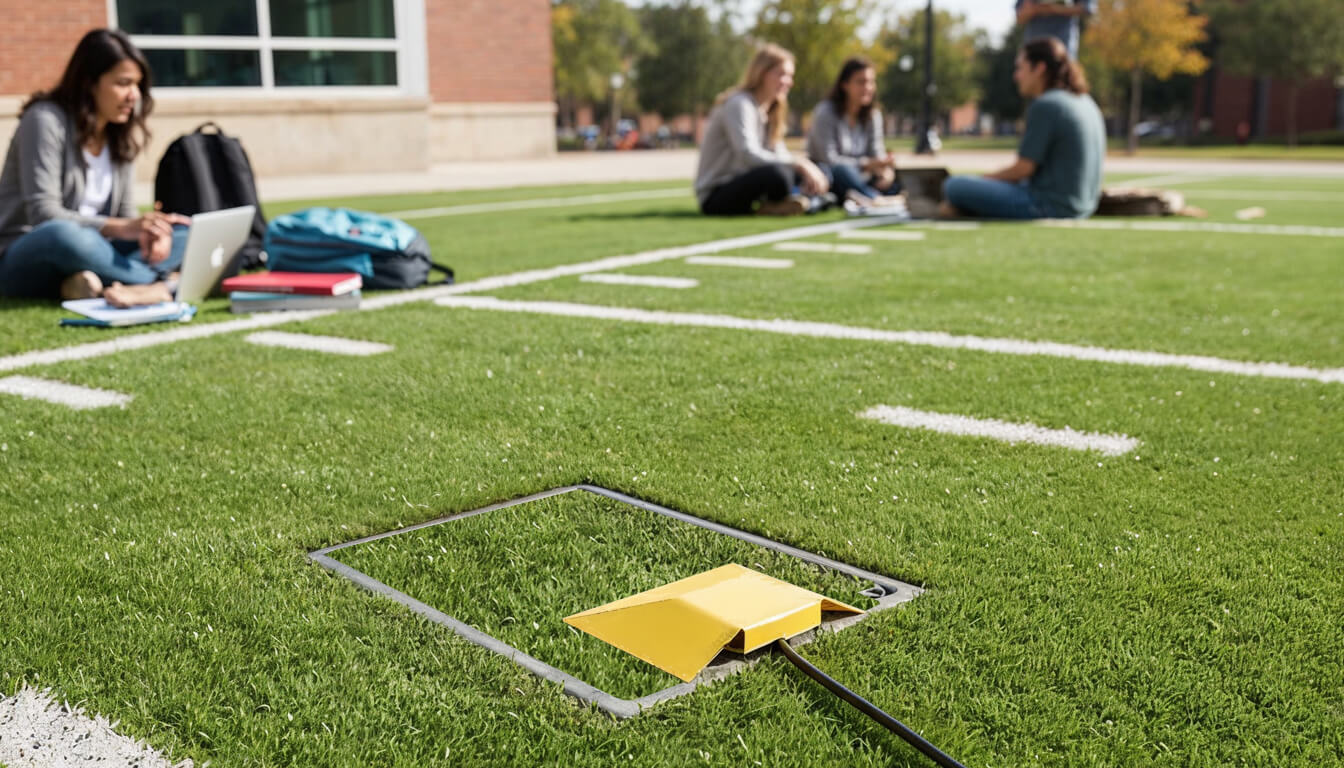

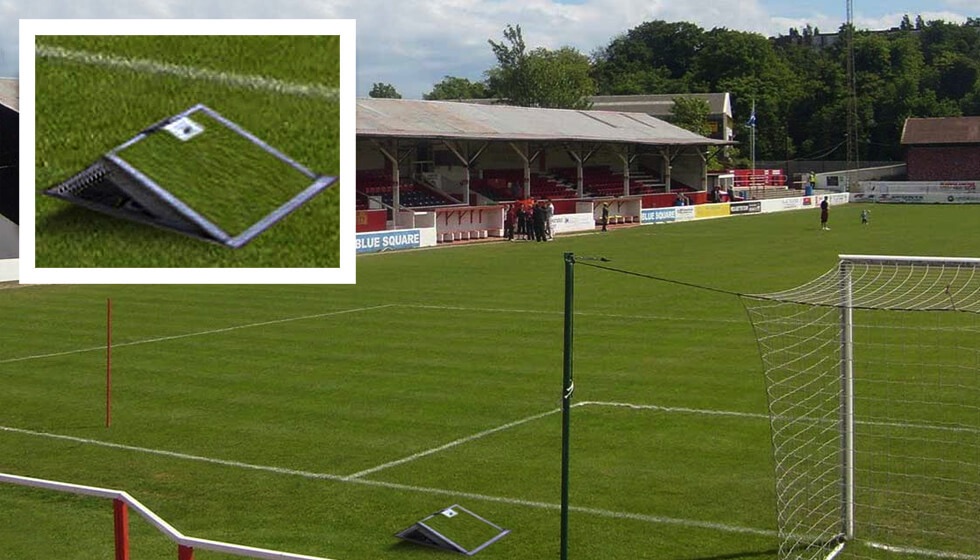

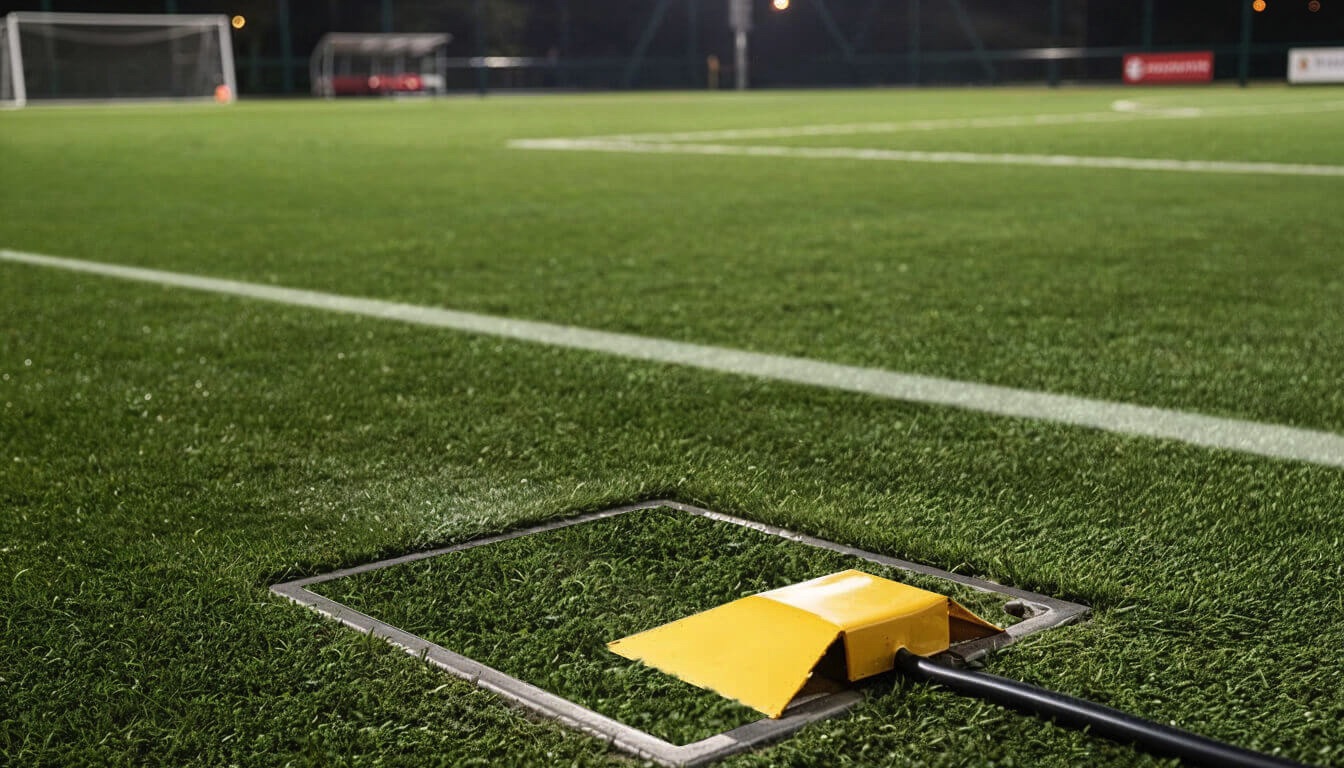

A flip-lid in-ground service unit installed on the edge of a football pitch, providing access to power and water to assist with maintaining the pitch.
Football pitch flip-lid in-ground service unit

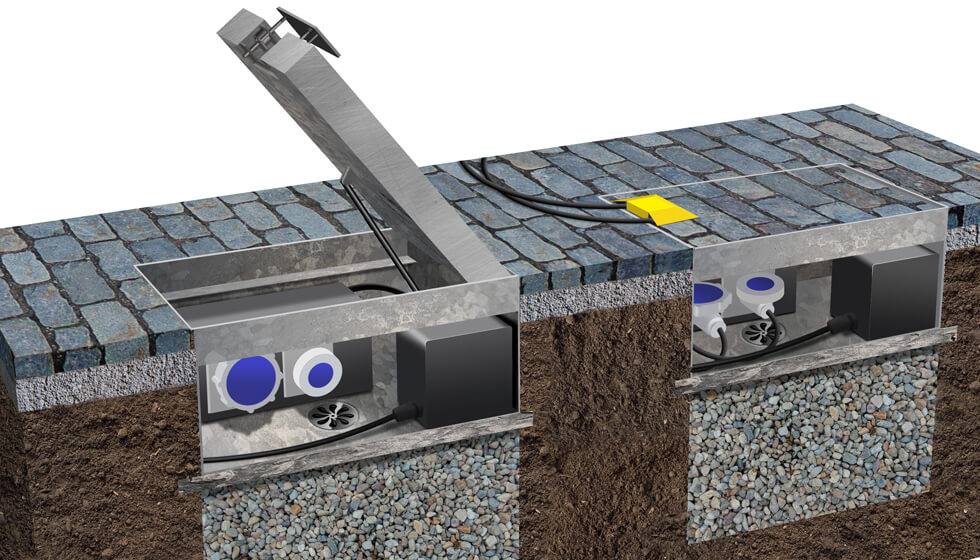

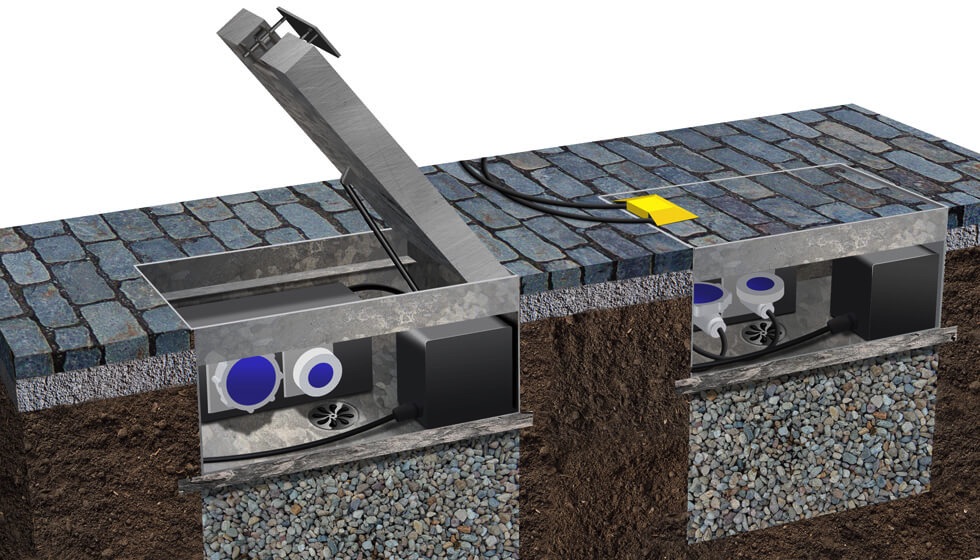

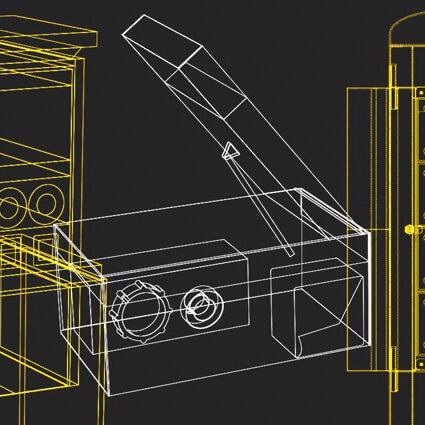

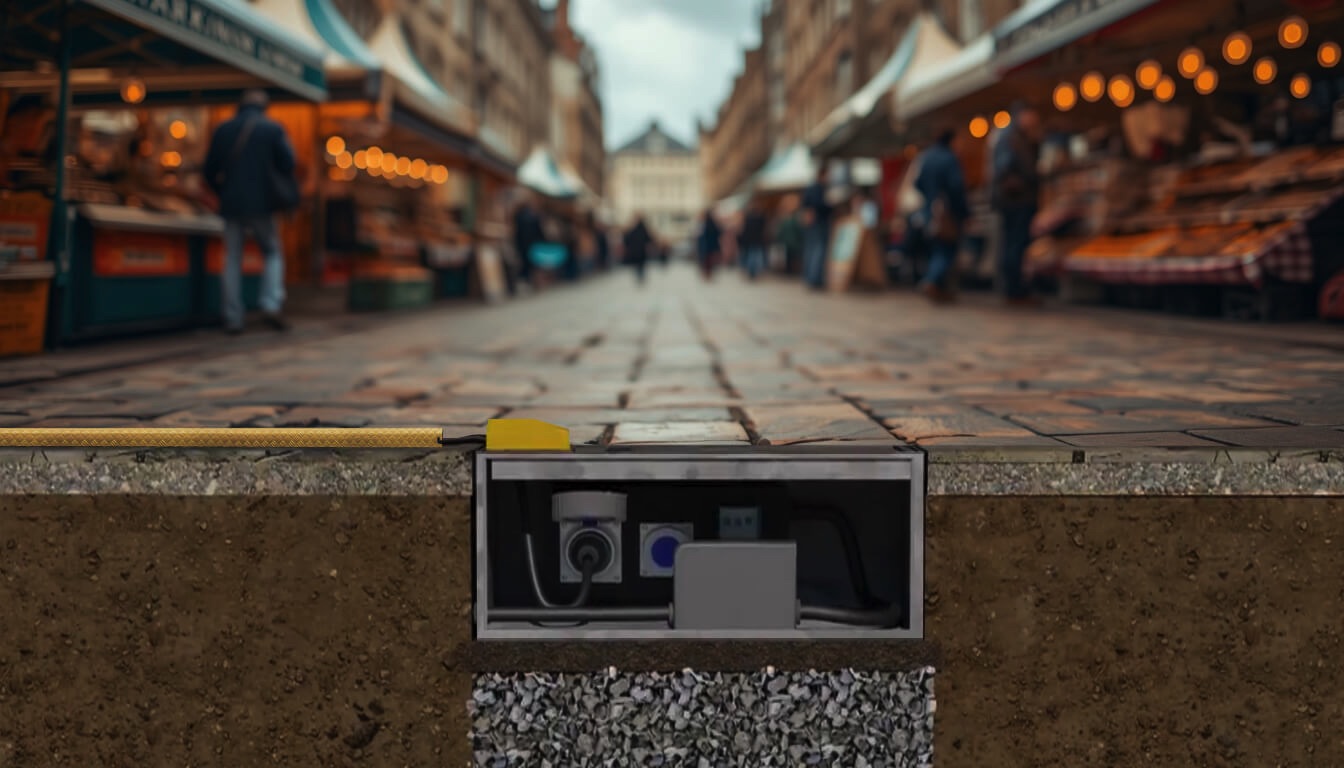

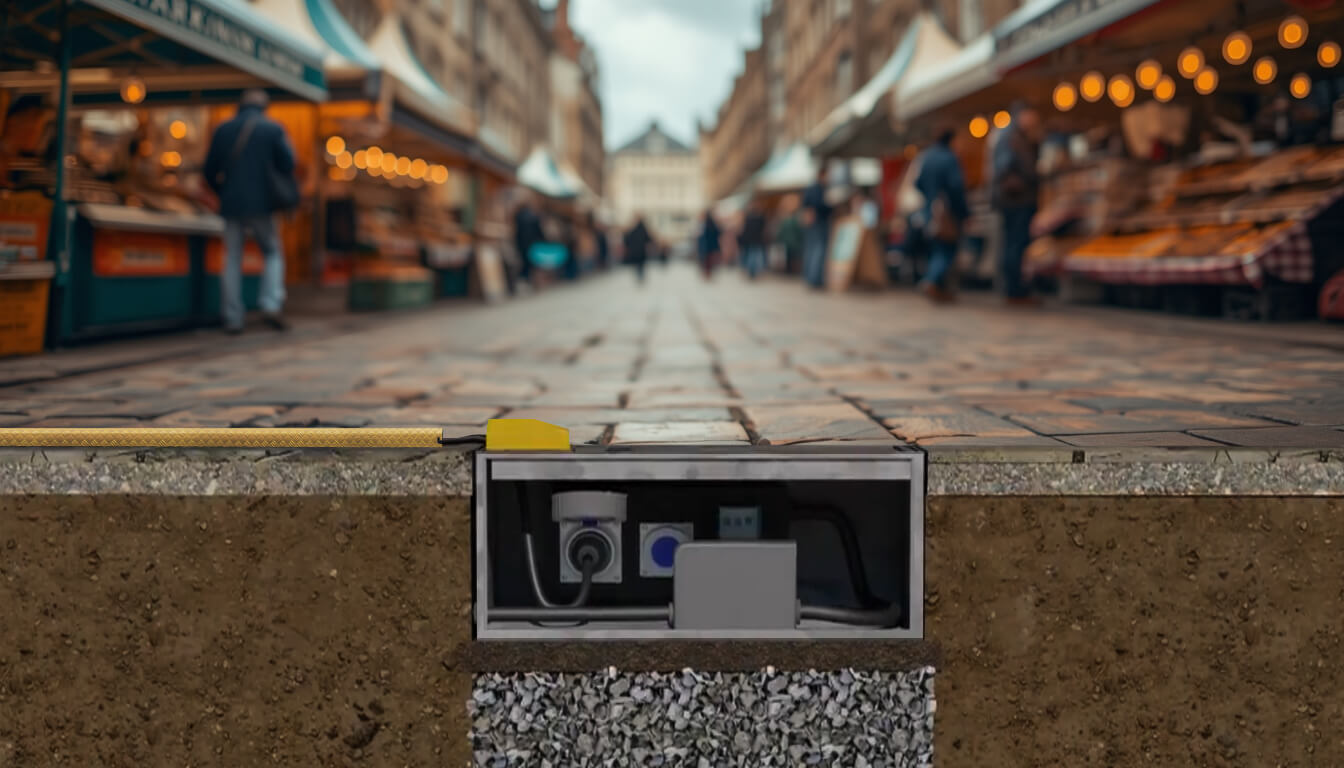

The principle of the in-ground service unit is clear to see in this diagram showing how the power sockets and other service points are neatly contained and submerged.
Cut away diagram of in-ground units

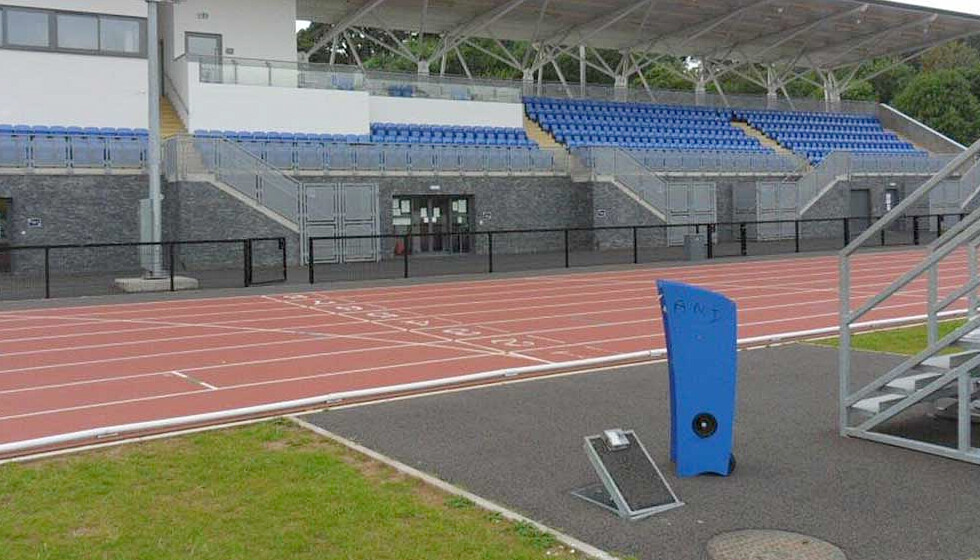

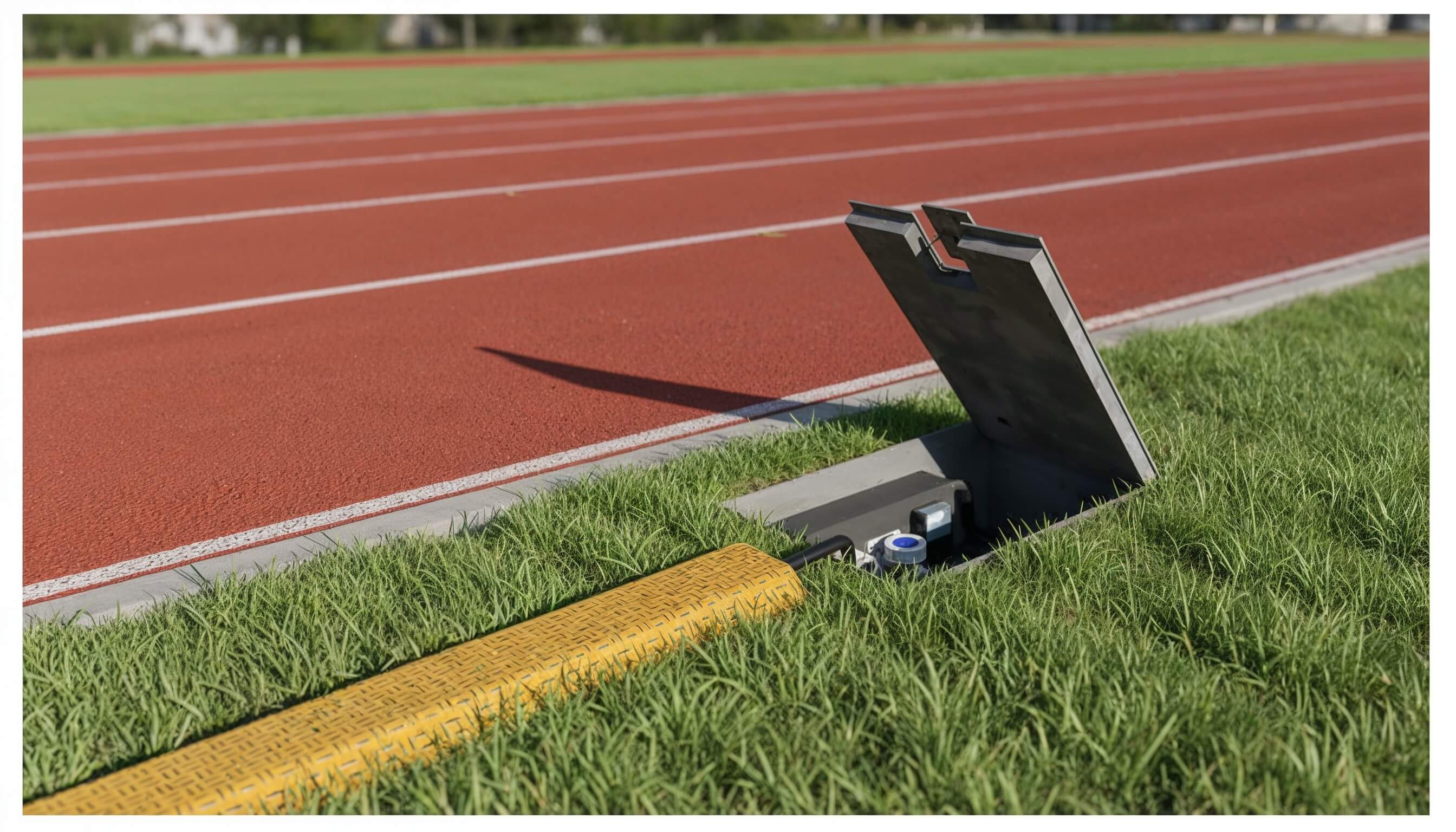

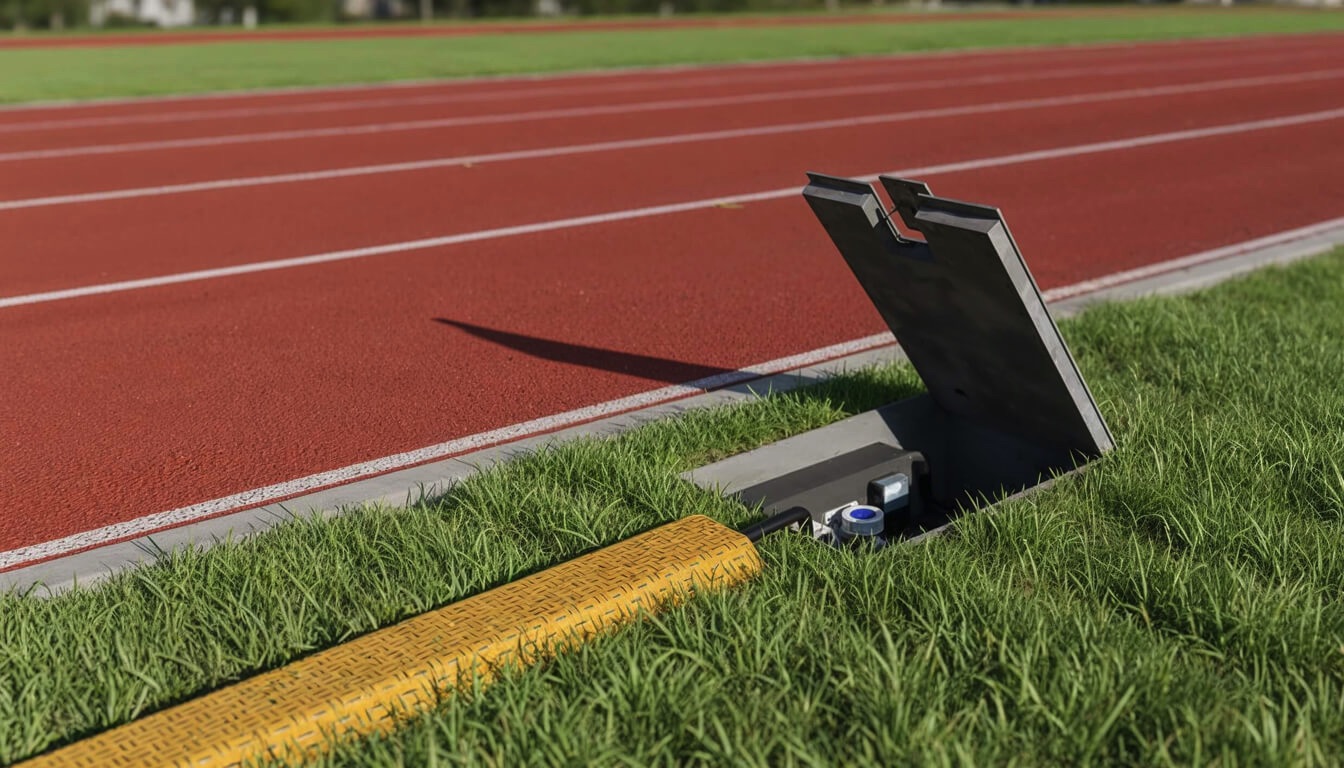

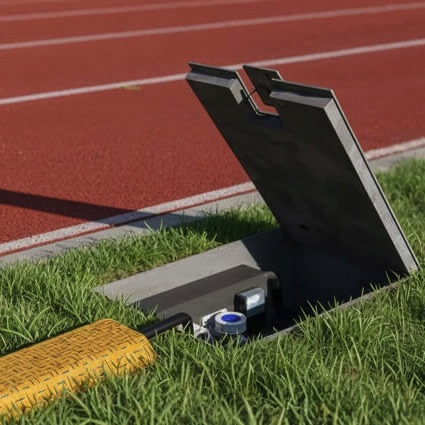

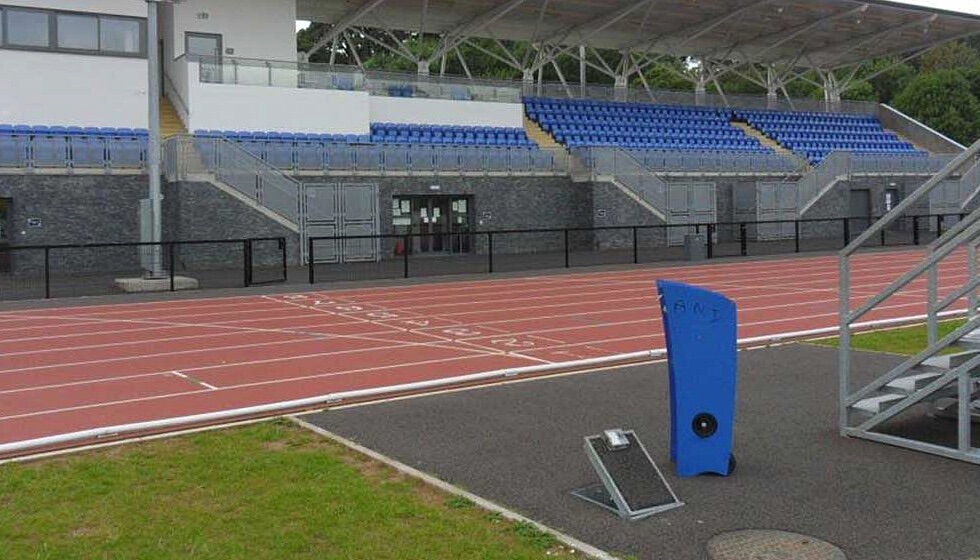

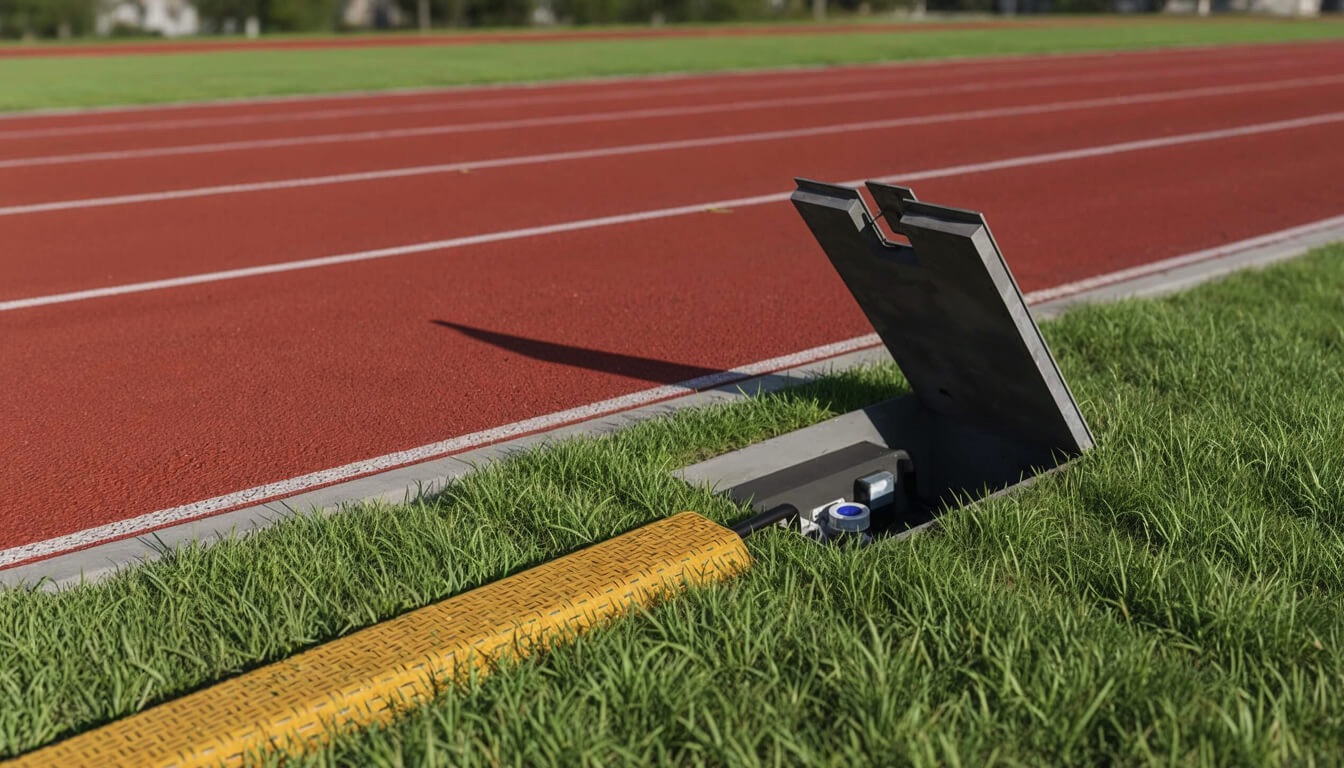

A flip-lid in-ground service unit installed at an athletics stadium, providing power and water supplies when required to assist with maintaining the ground and powering equipment during events.
Athletics stadium installation
