POP UP UNITS
PUPS CRUISER

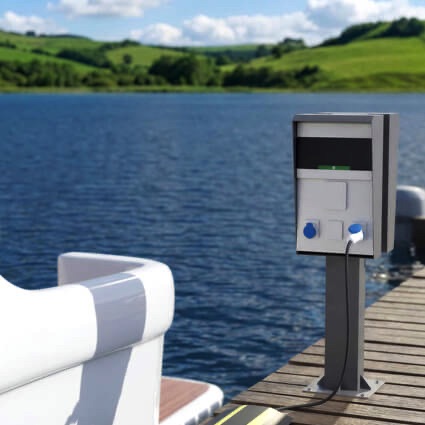

Essential power supplies for marinas, canals and camping sites
SAFE, RELIABLE POWER FOR CAMPSITES, TOWPATHS AND MOORINGS
Safe, secure, lockable electrical supply units
240 volts and up to 63 amps of power (for Duo)
Configuration 2 or 4 x 16 amp IP44 CEE sockets
Supplied in micaceous grey (RAL 7035) as standard
Other RAL colours are available at a small addition cost
Energy consumption meters per socket are available

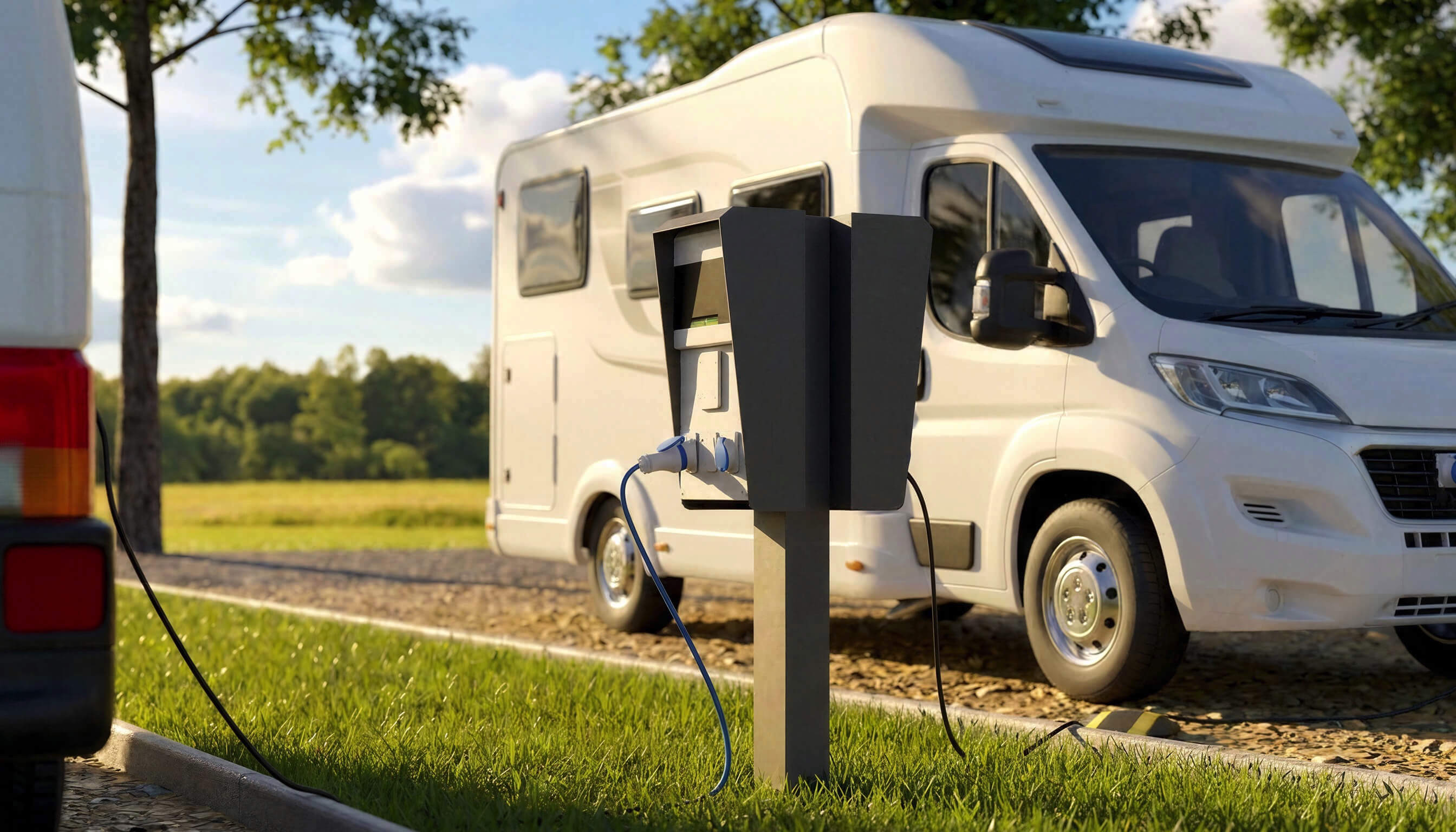

A simple and robust unit for tracking and distributing power to campervans, canal boats and other leisure vehicles. Made from AISI 304 stainless steel, also available in AISI 316L on demand. We do recommend this feature for areas exposed to the sea.
Safe supply of 16 amp single phase supply with RCBO protection and the option to include individual energy consumption meters on each socket.
CRUISER TYPES
CRUISER MONO
Single sided unit, with 2x 16 amp sockets with RCBO protection.
CRUISER DUO
Double sided unit, with 4x 16 amp sockets with RCBO protection.
OUR CRUISER UNITS

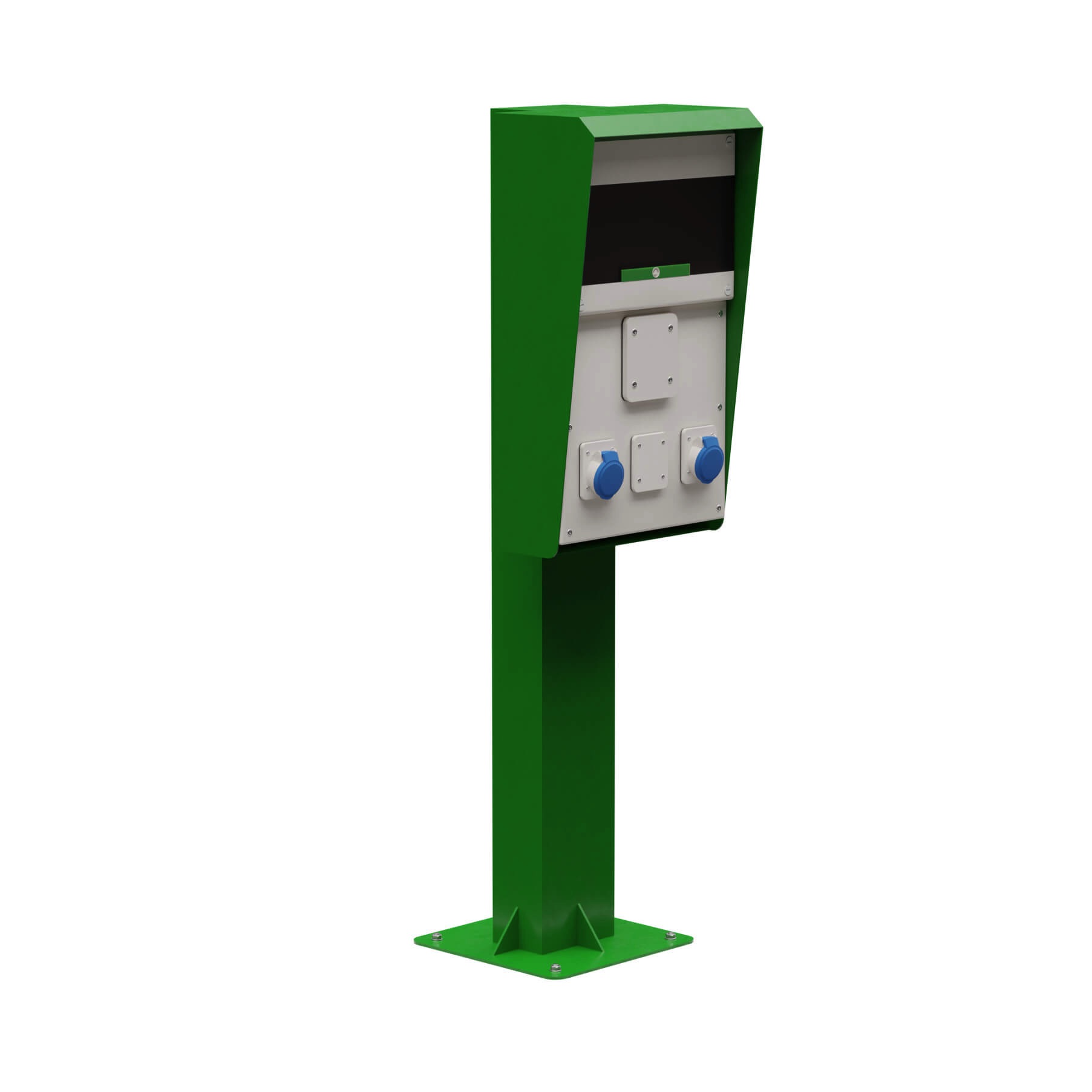

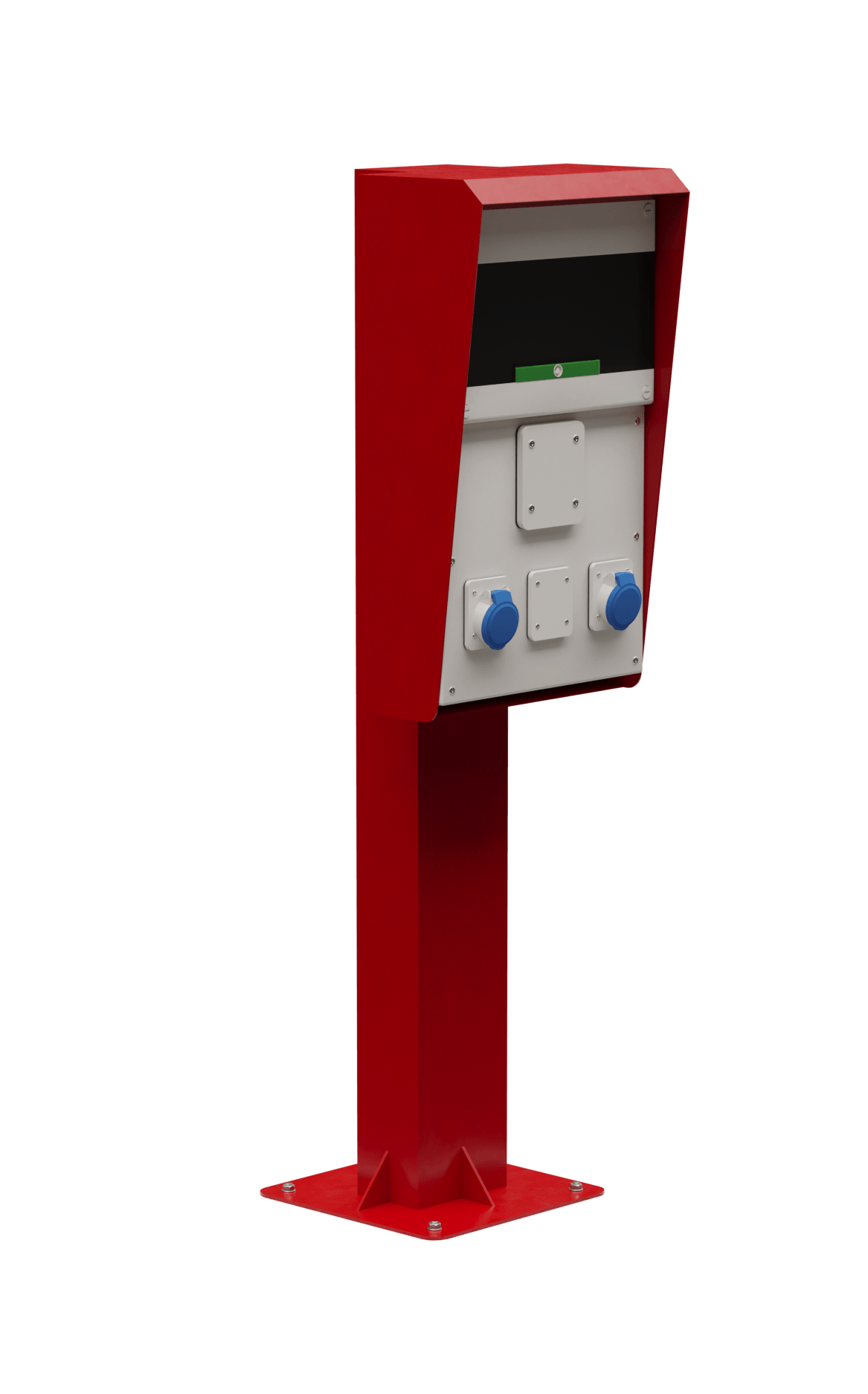

CRUISER MONO
Power distribution unit Cruiser Mono for marinas and camping sites tubular structure, made of stainless steel AISI 304. Sheet thickness 2mm - exterior finished in a RAL colour of your choice. Internal fixing system.
DATA SHEET- PRODUCT DATA
- MECHANICAL SPECIFICATIONS
- AISI 304 stainless steel cover and frame
- AISI 316L stainless steel (only on demand)
- External dimensions 304 x 340mm, height 1204mm
- Total unit weight 35kg
ELECTRICAL SPECIFICATIONS- 32 amps
- Voltage 230V single phase incoming supply
- Frequency from 50hz to 60hz
- Standard protection IP44 sockets (IP67 on demand)
- Complies with regulation EN 60947-1 and EN 61439
- SUGGESTED SOCKET CONFIGURATIONS
- 2 x 16 amp single phase with RCBO protection
- PHYSICAL INFORMATION
- STRUCTURE
- Made of press-bent AISI 304 stainless steel
- Available with AISI 316L stainless steel (only on demand)
- External dimensions 304 x 340mm, height 1204mm
- Total unit weight 35kg
CONNECTION SYSTEM- Internal connection point with terminals for incoming cable
- ADDITIONAL EQUIPMENT
- Individual energy consumption
meters per socket
- Individual energy consumption
meters per socket

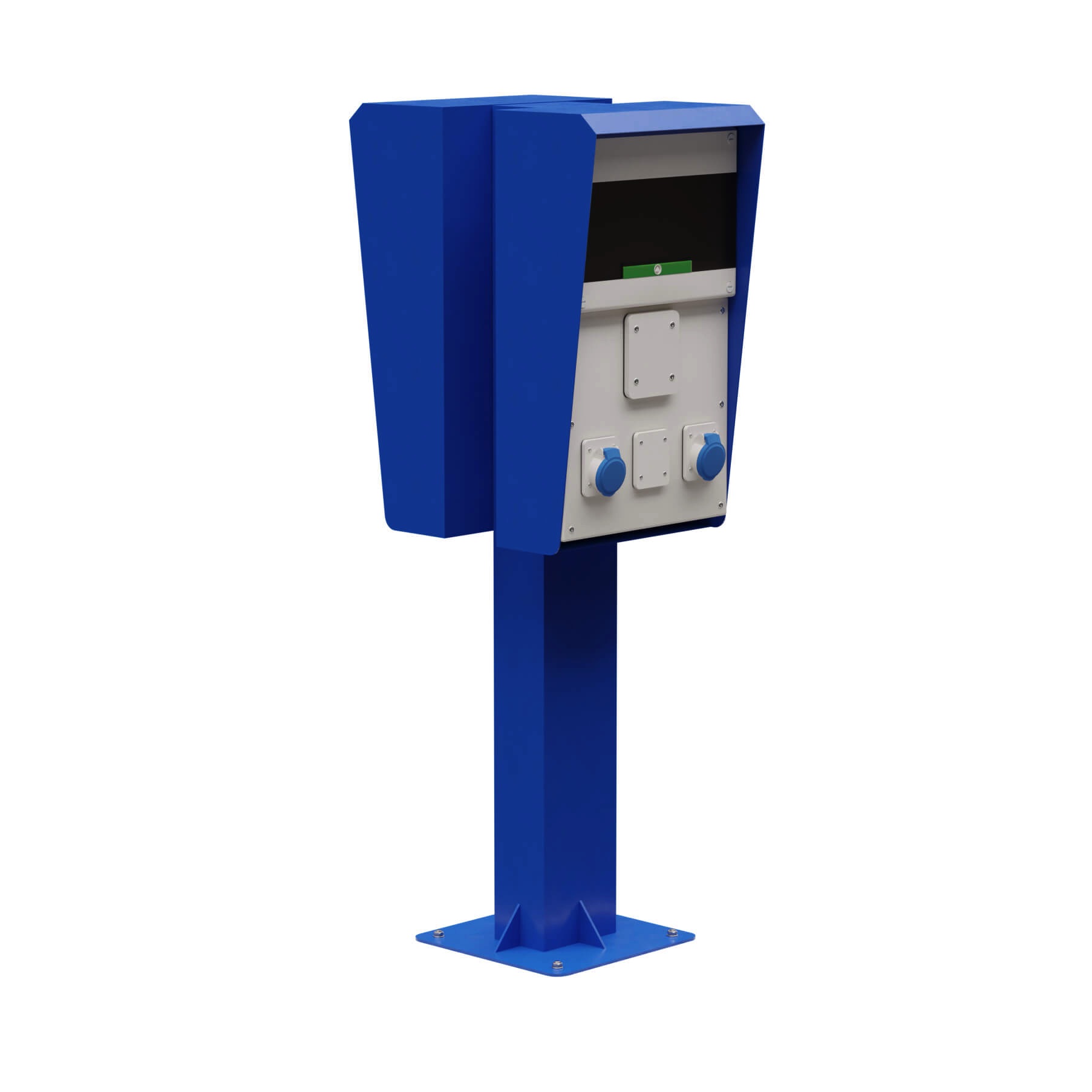

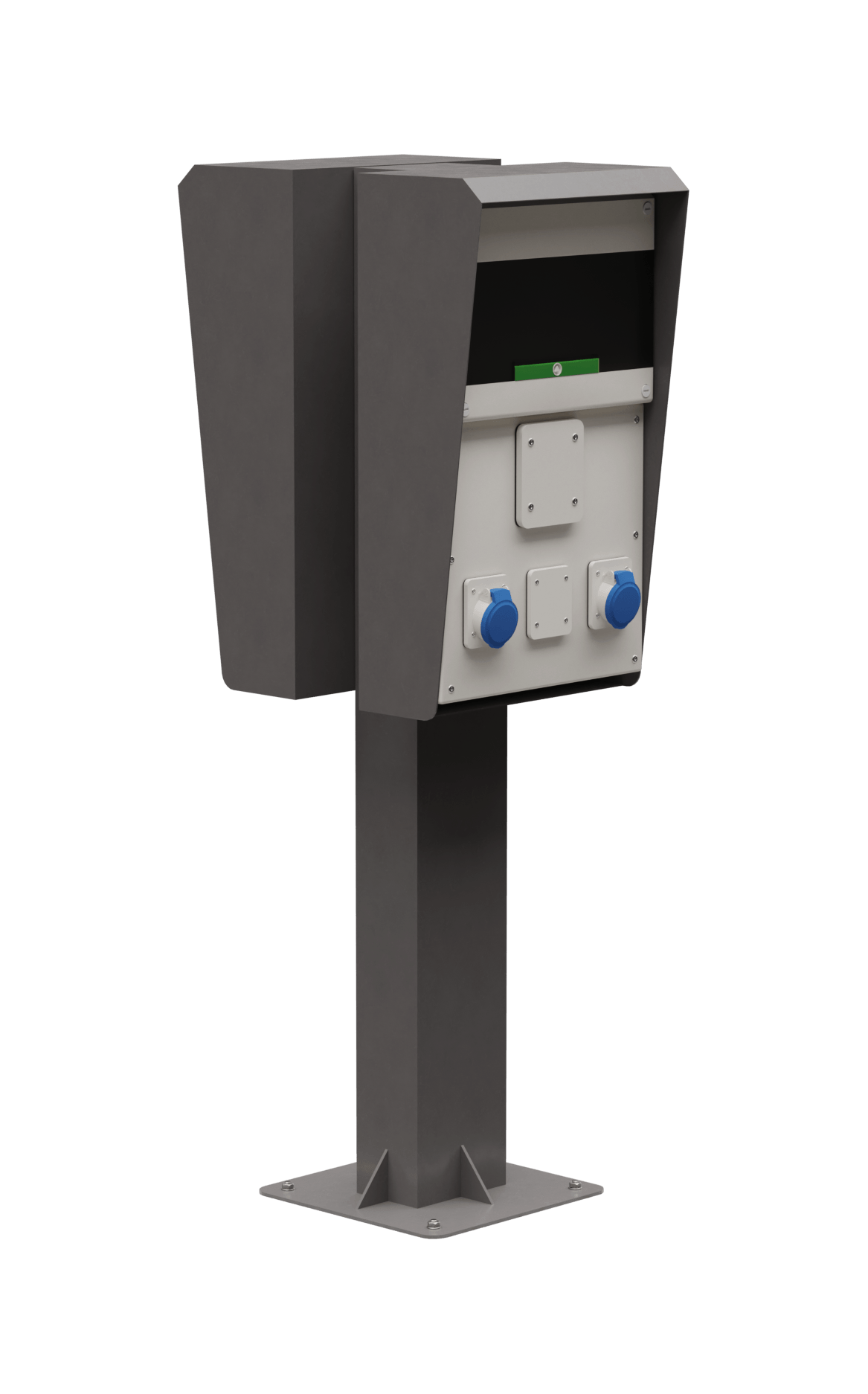

CRUISER DUO
Power distribution unit Cruiser Duo, for marinas and campsites.
DATA SHEET- PRODUCT DATA
- MECHANICAL SPECIFICATIONS
- AISI 304 stainless steel cover and frame
- AISI 316L stainless steel (only on demand)
- External dimensions 304 x 480mm, height 1204mm
- Total unit weight 60kg
ELECTRICAL SPECIFICATIONS- 63 amps
- Voltage 230V single phase incoming supply
- Frequency from 50hz to 60hz
- Standard protection IP44 sockets (IP67 on demand)
- Complies with regulation EN 60947-1 and EN 61439
- SUGGESTED SOCKET CONFIGURATIONS
-
- 4x 16 amp single phase with RCBO protection
- PHYSICAL INFORMATION
- STRUCTURE
- Made of press-bent AISI 304 stainless steel
- Available with AISI 316L stainless steel (only on demand)
- External dimensions 304 x 480mm, height 1204mm
- Total unit weight 60kg
CONNECTION SYSTEM- Internal connection point with terminals for incoming cable
- ADDITIONAL EQUIPMENT
- Individual energy consumption
meters per socket
- Individual energy consumption
meters per socket

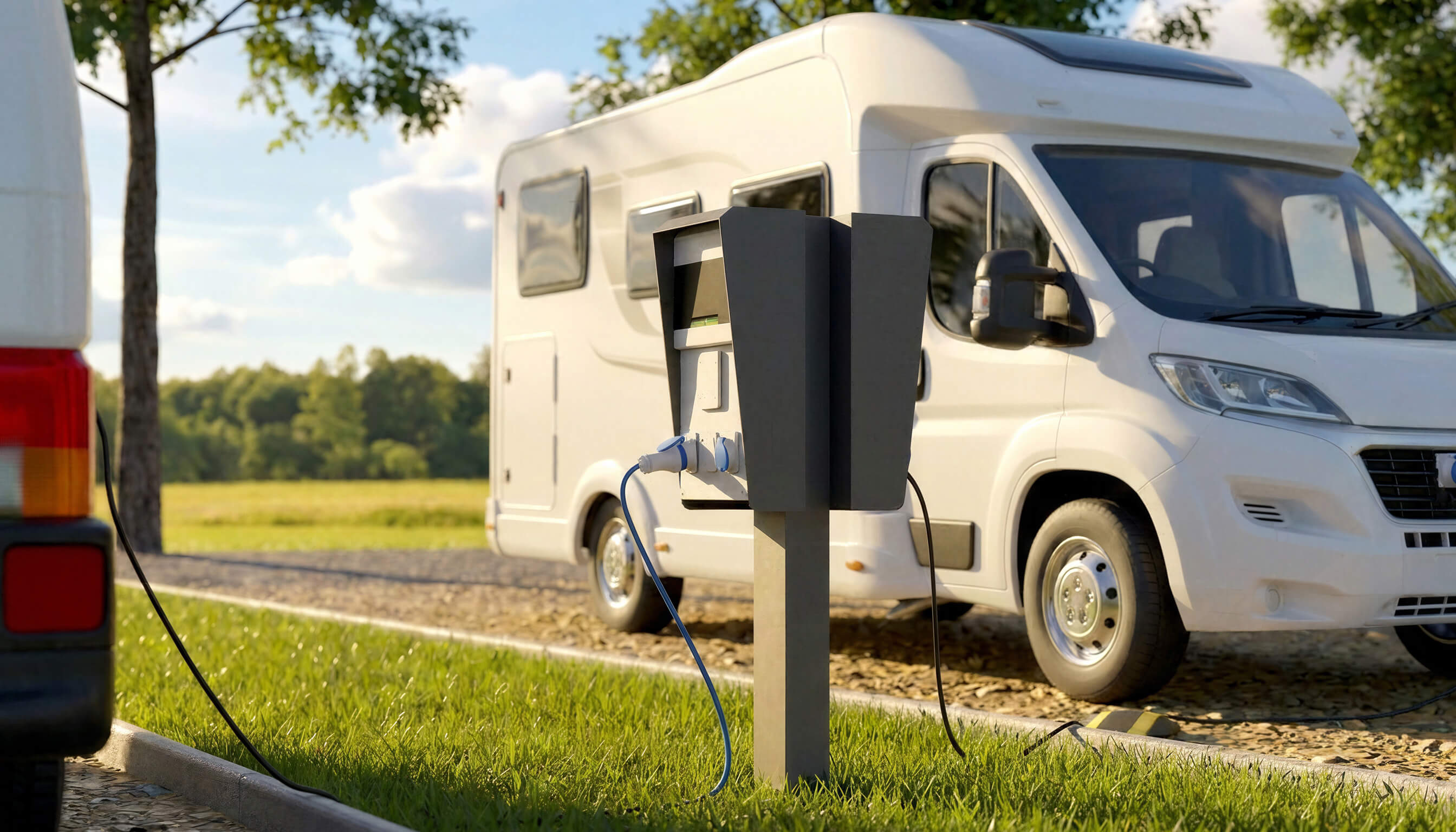

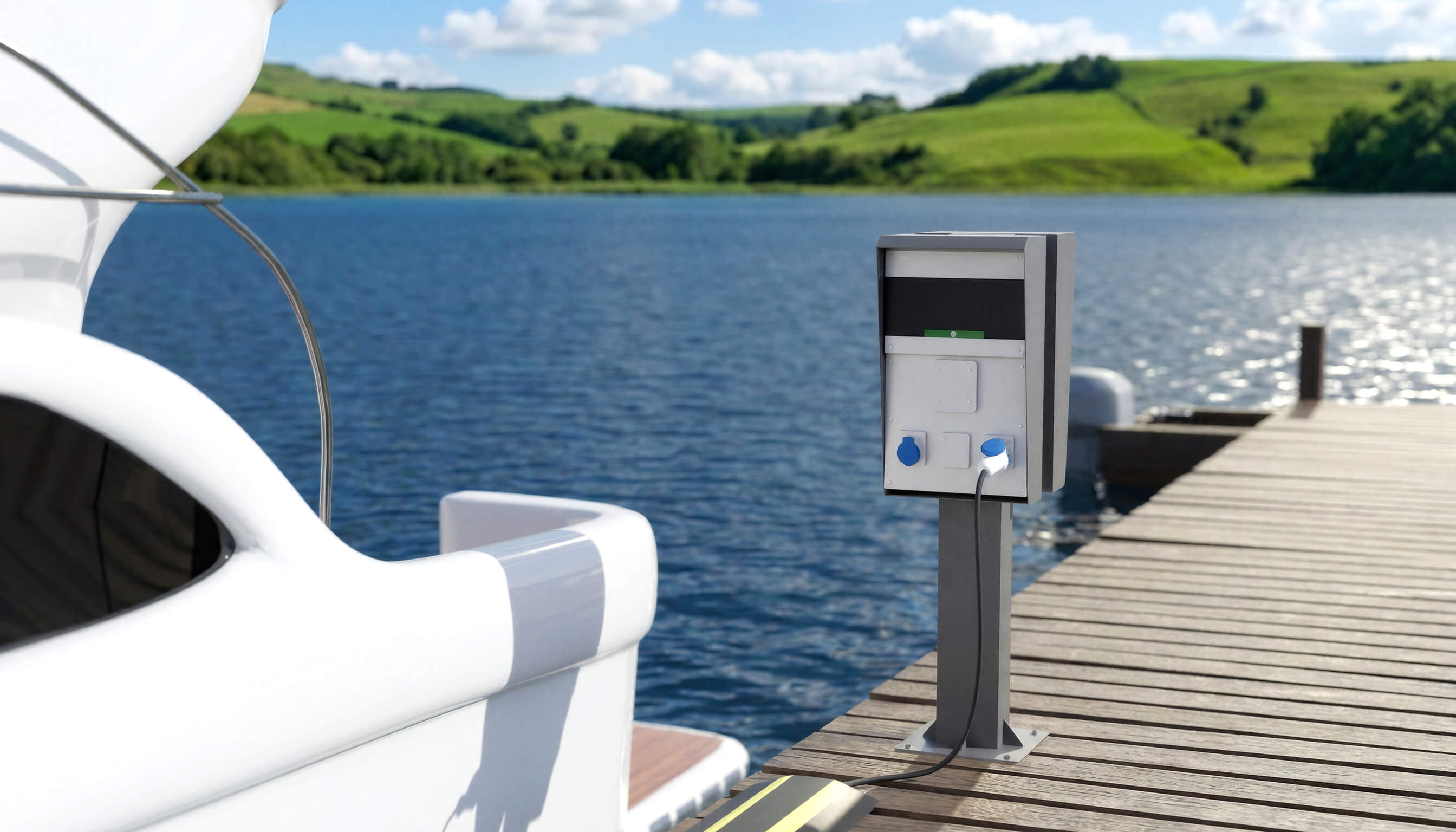

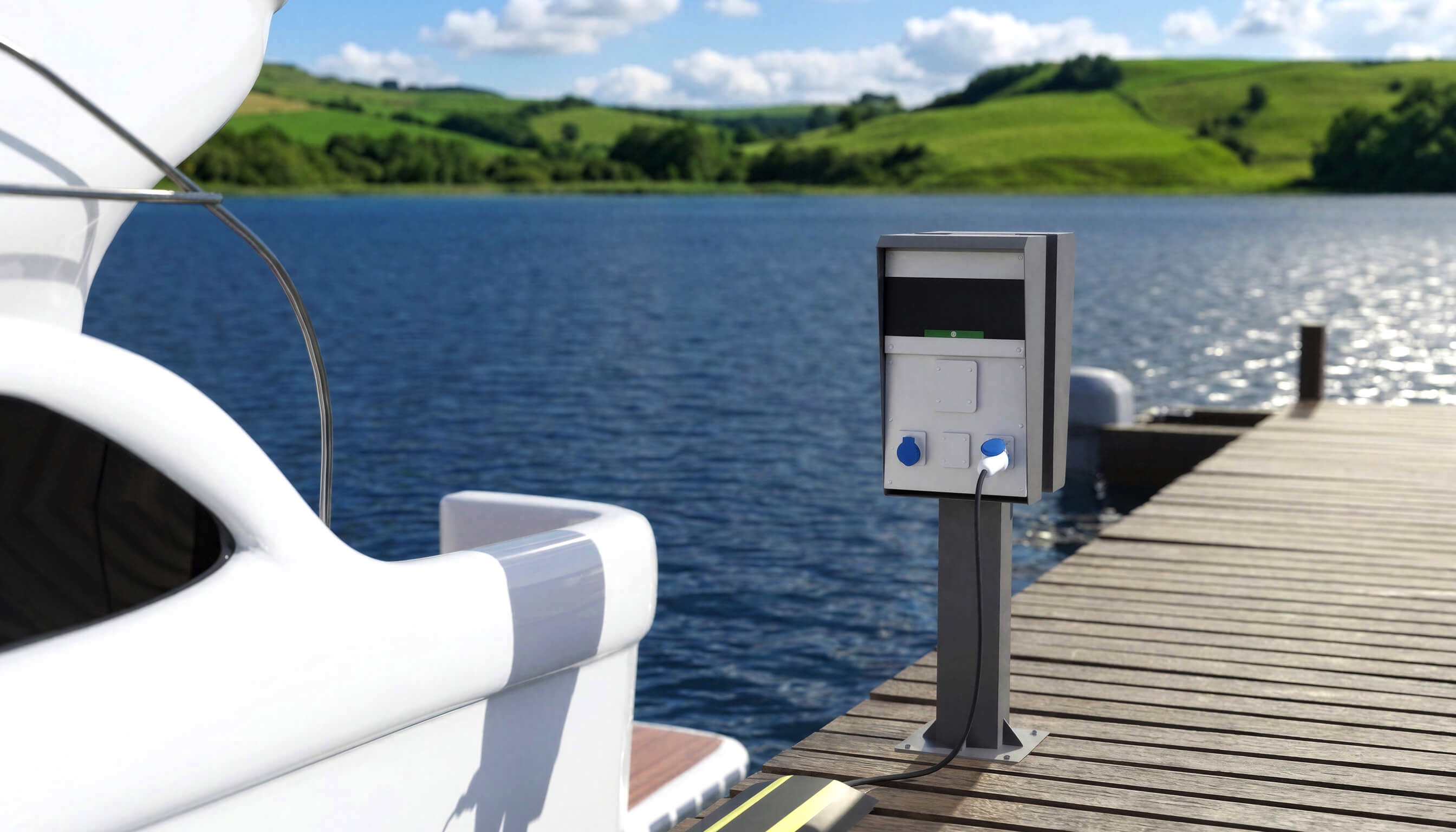

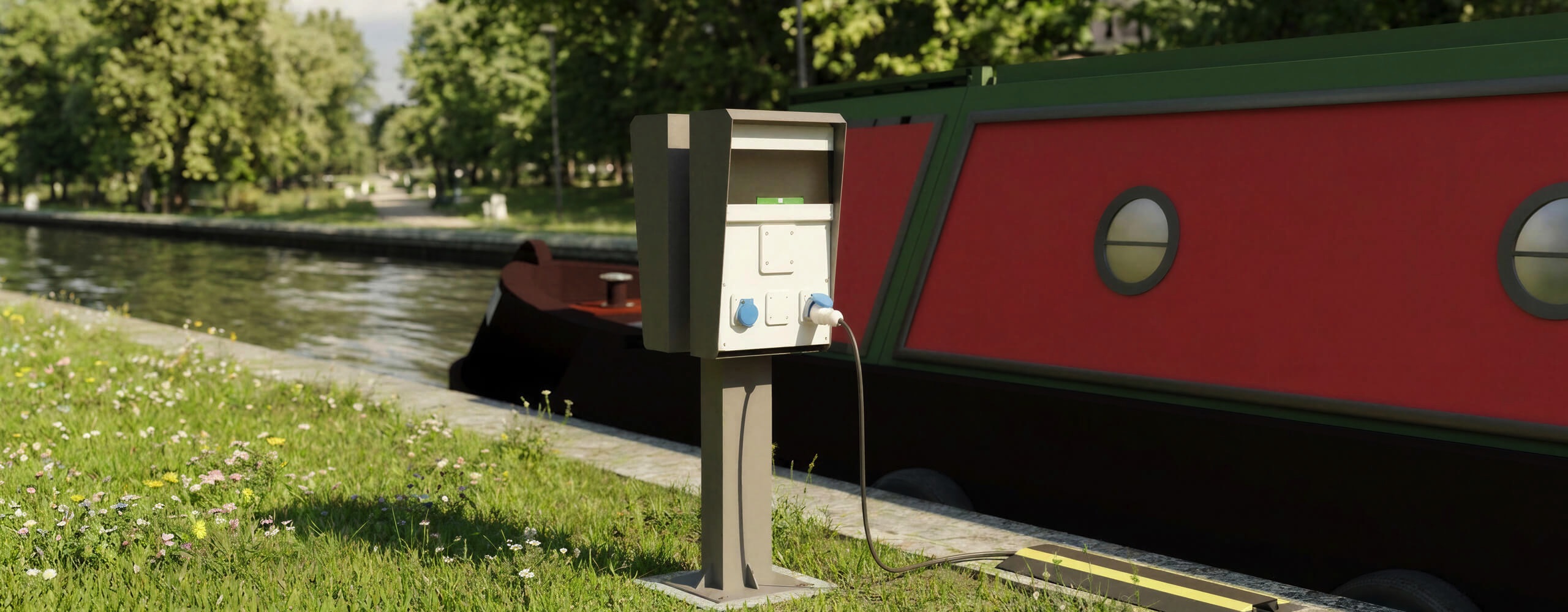

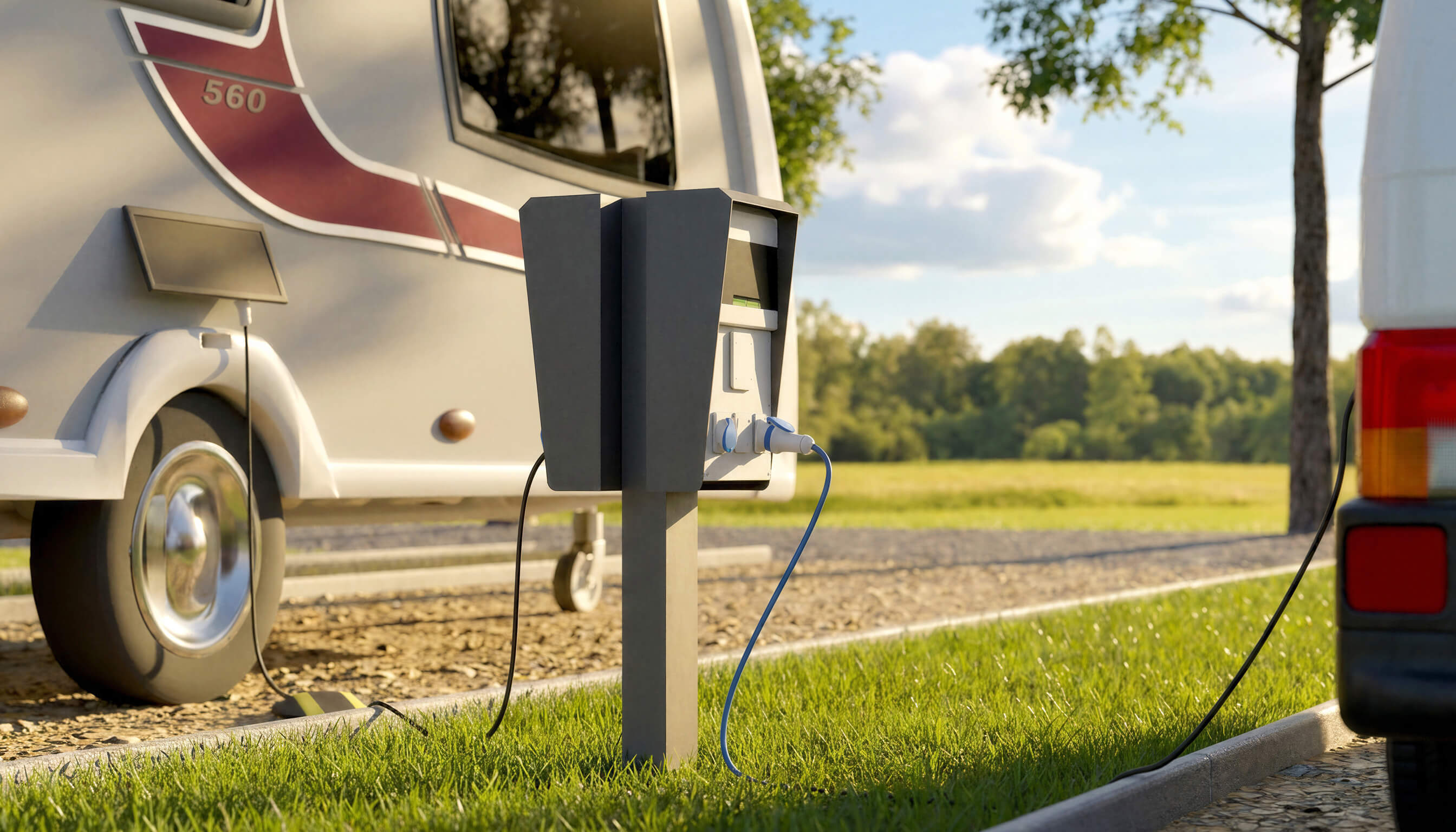

PUPS CRUISER GALLERY
