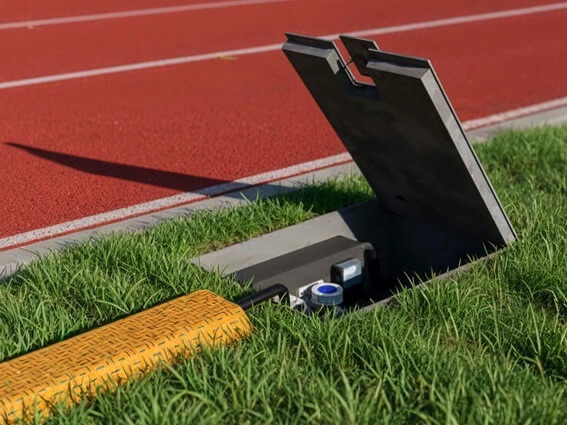

IN GROUND UNITS

STEP BY STEP INSTALLATION AND OPERATION GUIDE

OPERATION AND USE

Operation
The images below illustrate the simple operation of the In Ground Units.

After Use
Once the power is no longer require, simple perform actions A to H in reverse.

Pop Up Power Supplies In Ground Unit Operation Guide

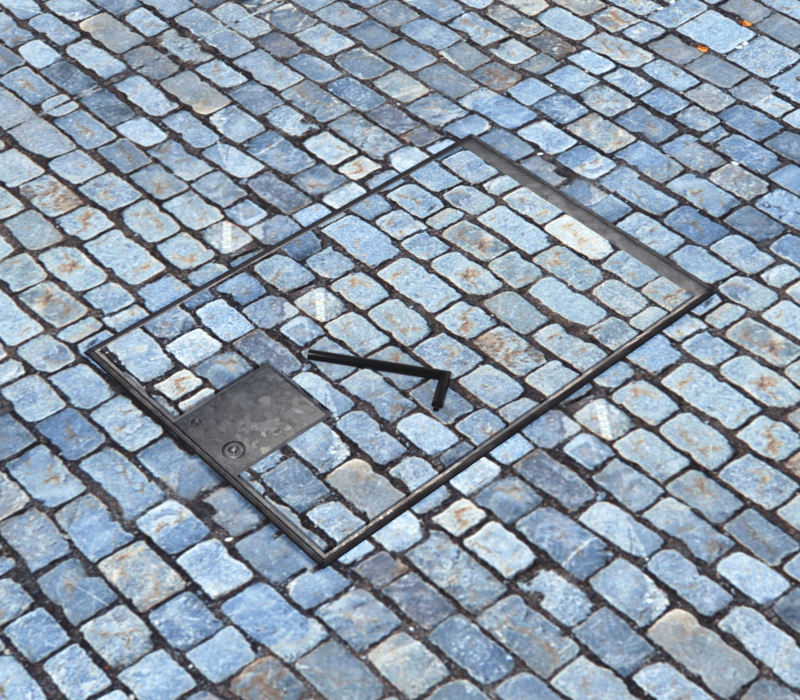

1. You will need the Pop Up Power® Locking Key. One key is supplied with each unit.

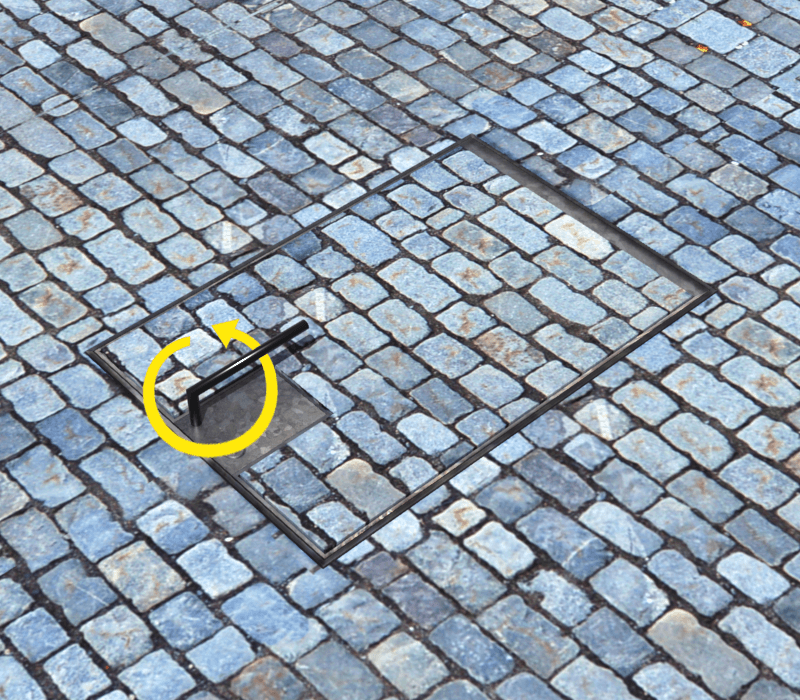

2. Insert the short length of the key into the IGU handle and turn anti-clockwise.

Pop Up Power Supplies In Ground Unit Operation Guide

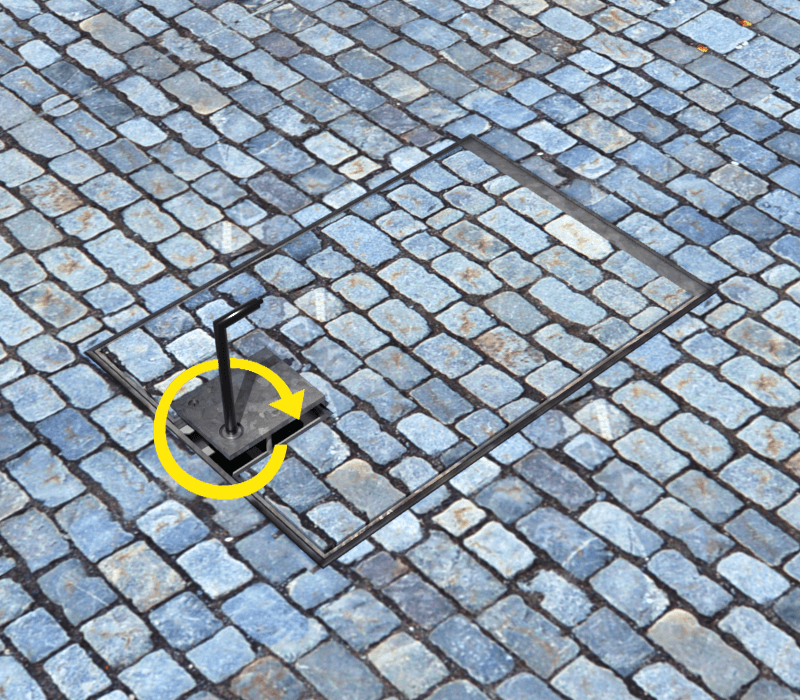

3. Then insert the long length of the key into the IGU handle and turn clockwise.

Pop Up Power Supplies In Ground Unit Operation Guide

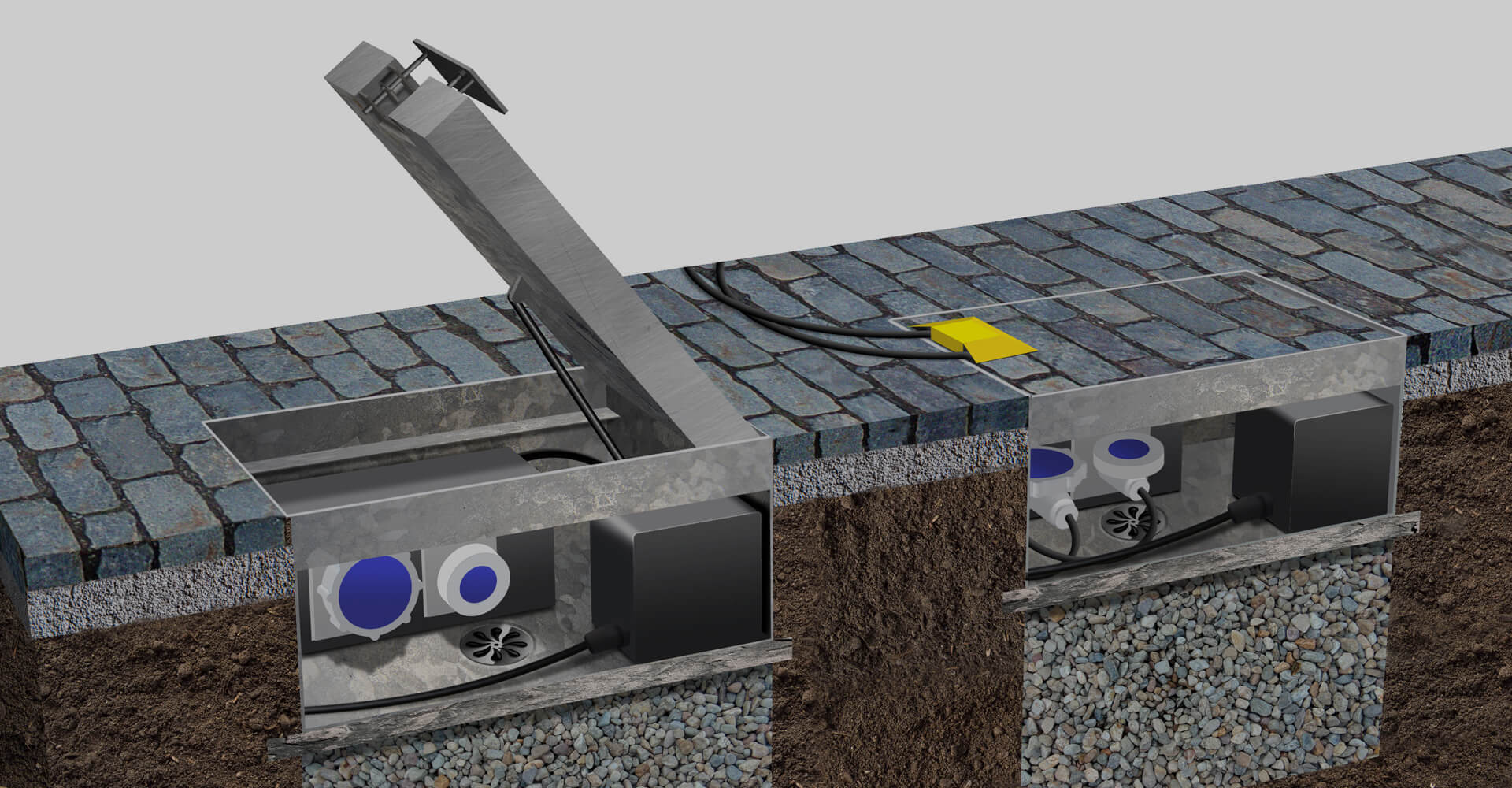

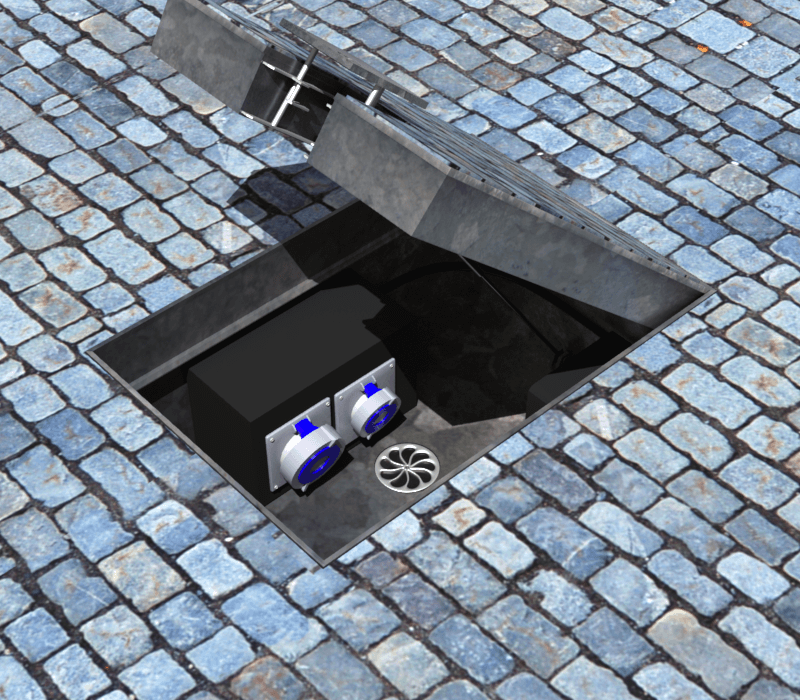

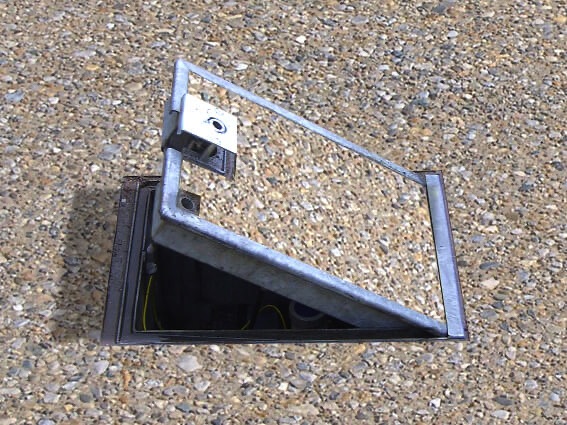

4. Lift the IGU lid which is assisted by the gas strut within.

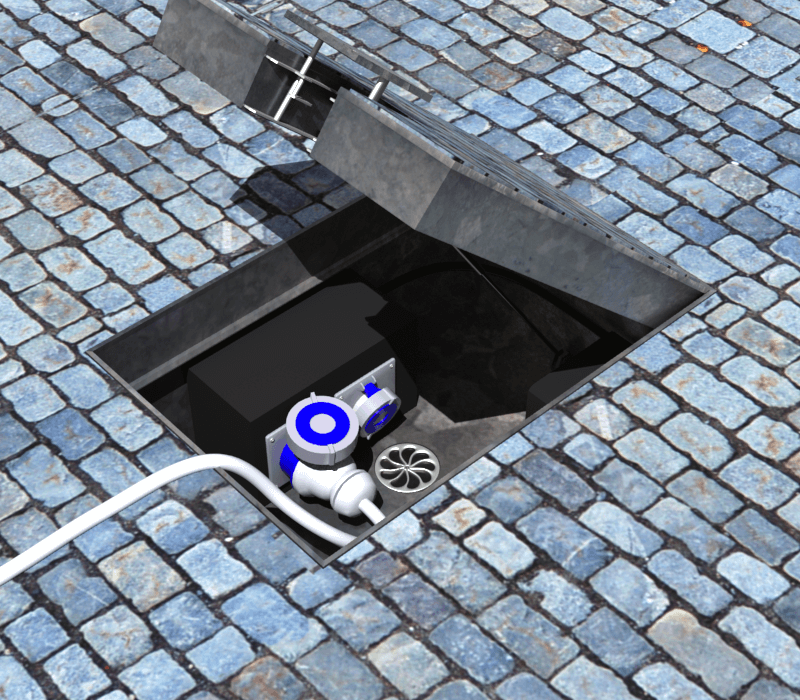

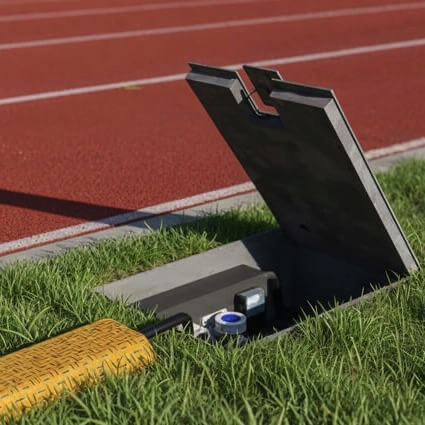

5. Once the lid is lifted to give suitable clearance, plugs can be inserted into the IGU sockets.

Pop Up Power Supplies In Ground Unit Operation Guide

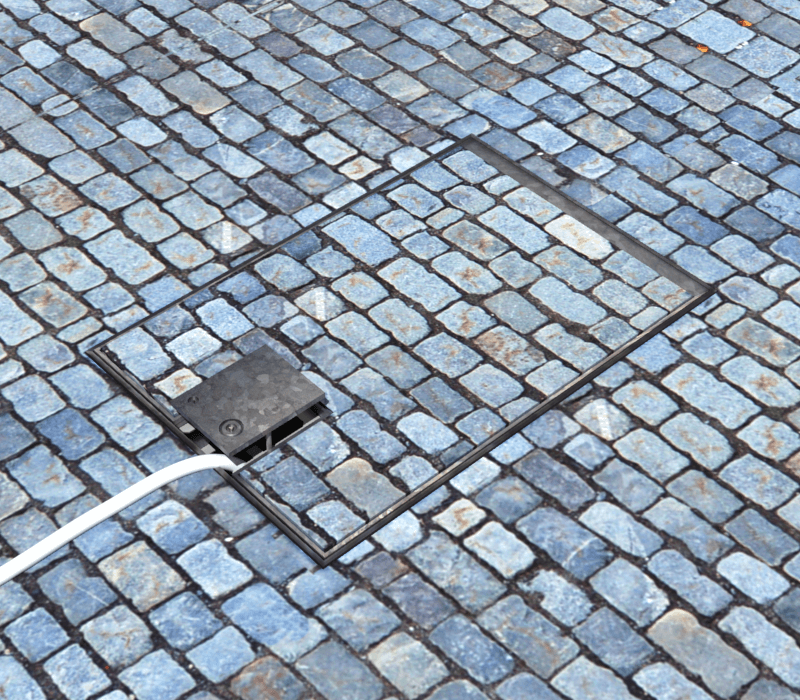

6. The IGU lid can then be lowered, cables fed through the handle opening.

Pop Up Power Supplies In Ground Unit Operation Guide

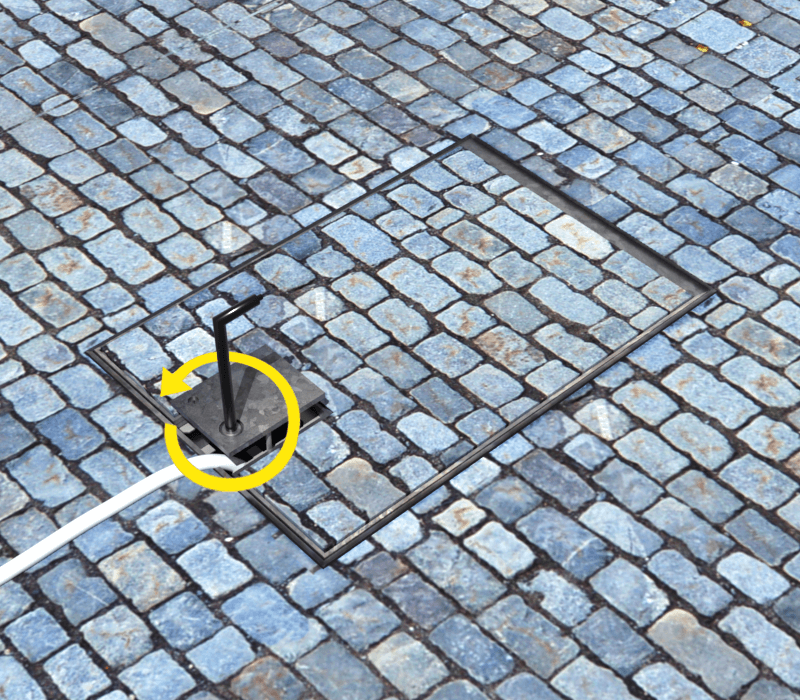

7. Lock the raised handle by inserting the longer length of the Locking Key and turn anti-clockwise.

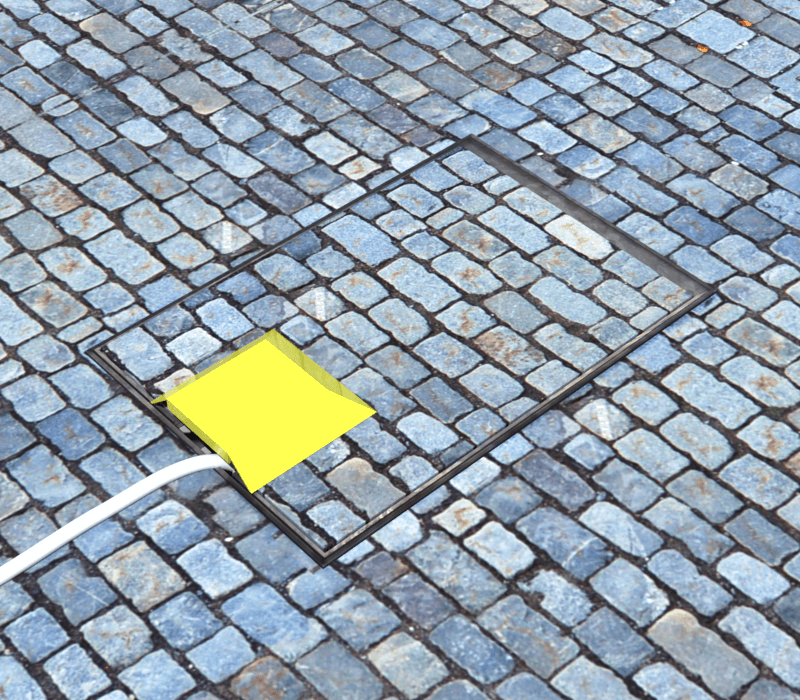

8. Place the yellow safety cap (supplied with the unit) over the raised handle.

Pop Up Power Supplies In Ground Unit Operation Guide

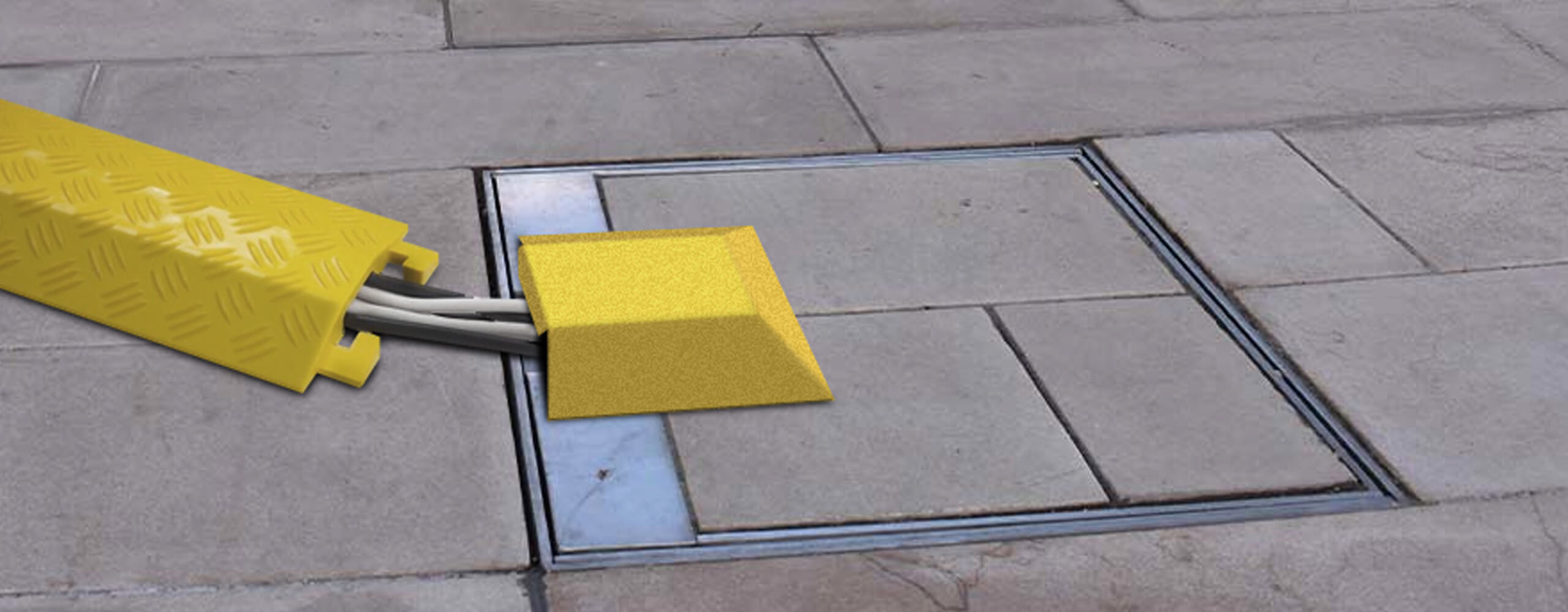

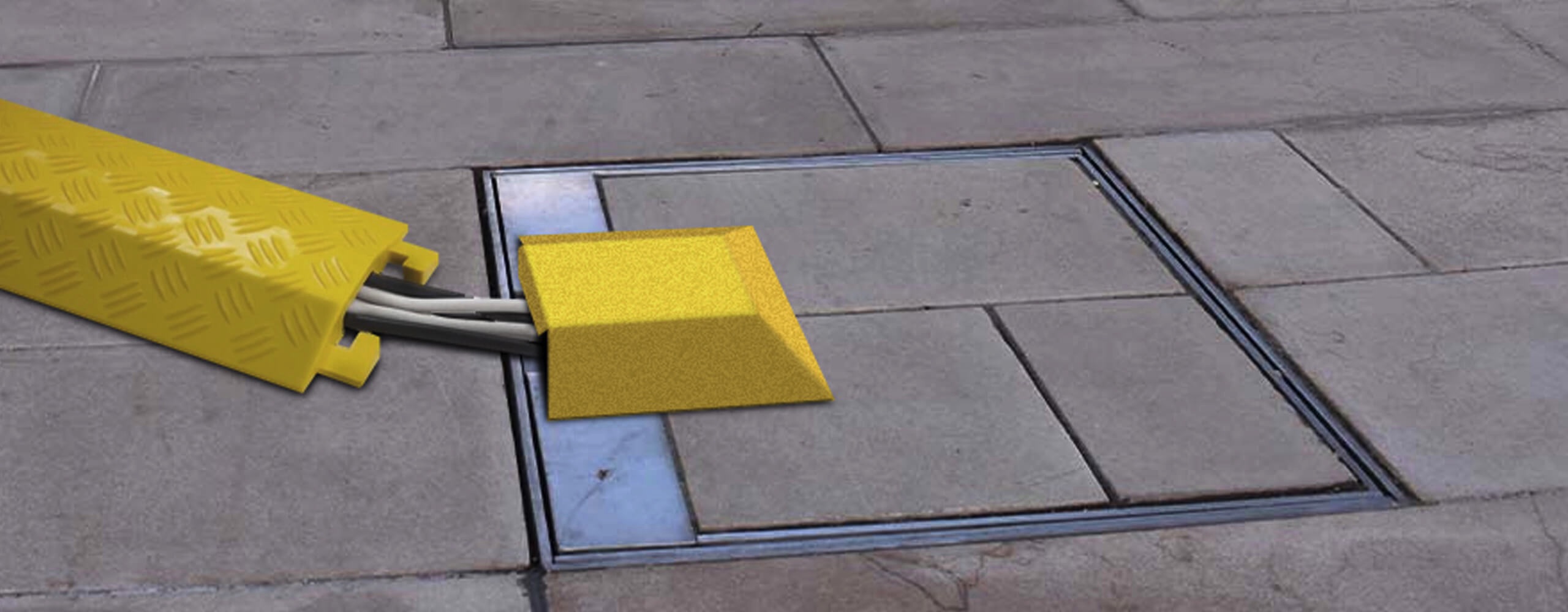

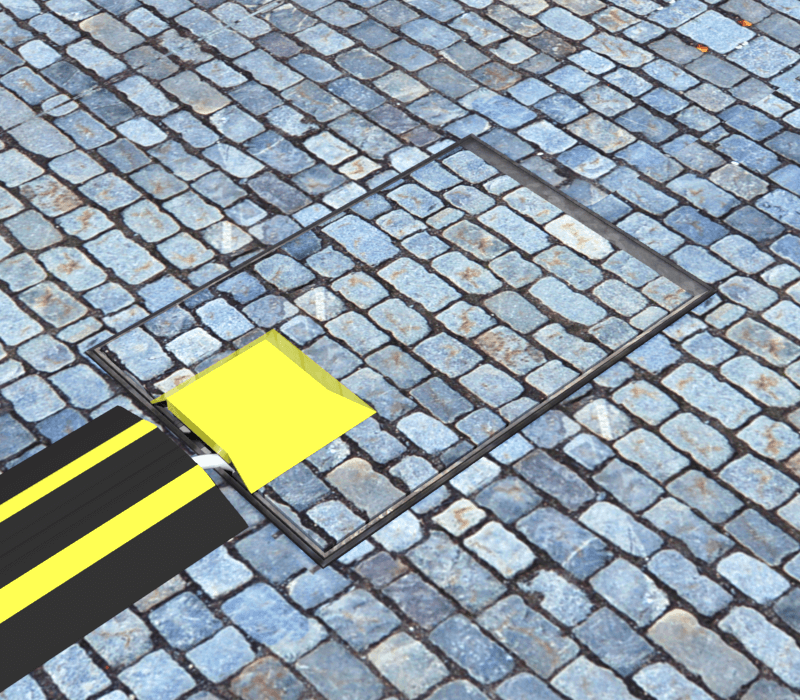

9. Anti-trip cable guards are recommeded to cover the trailing cables.
