SAFE, RELIABLE POWER FOR OUTDOOR EVENTS THROUGHOUT THE UK

Safe, secure, lockable bollards

220 - 400 volts and up to 125A of power

Configuration 2, 4, 6 or 8 CEE sockets

Can incorporate a LED light diffuser

Electricity, RJ jacks, data, audio, video

Stainless steel - four designs, satin, mirror, or any RAL colour

Pop Up Power Supplies Power Bollards

Our Power Bollards provide a reliable and efficient outdoor power supply, in bollard format. The stainless steel bollards are elegantly designed as street furniture, and provide power for outdoor settings.

A stainless steel bollard can provide between 220 and 400 volts and 125A of power. They are available with configurations to suit the client’s needs. Additional equipment is also available.

Our Power Bollards are located throughout the UK providing reliable and safe power for all outdoor requirements.

Versatile and available to connect on-demand, our Power Bollards are used in many outdoor applications.


ENQUIRE ABOUT POWER BOLLARDS

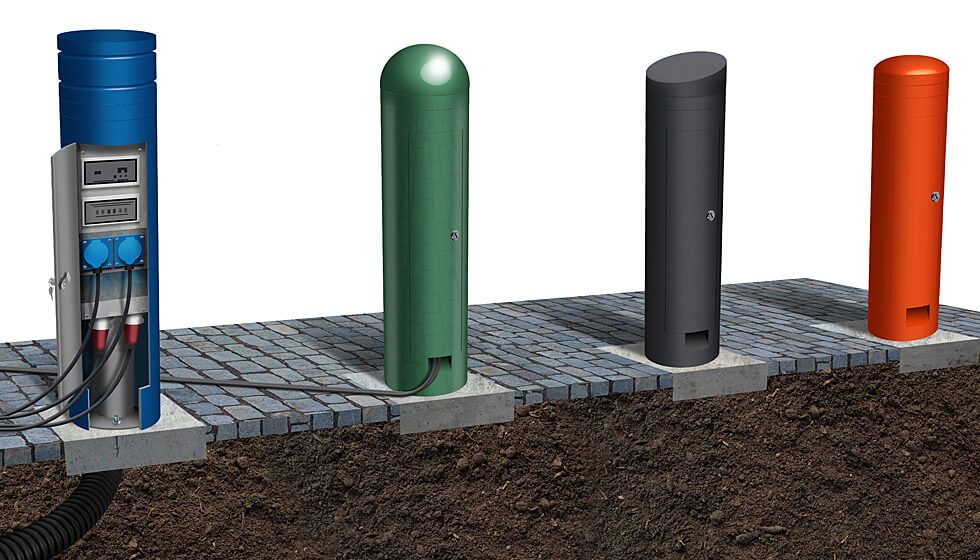

BOLLARD TYPES

3

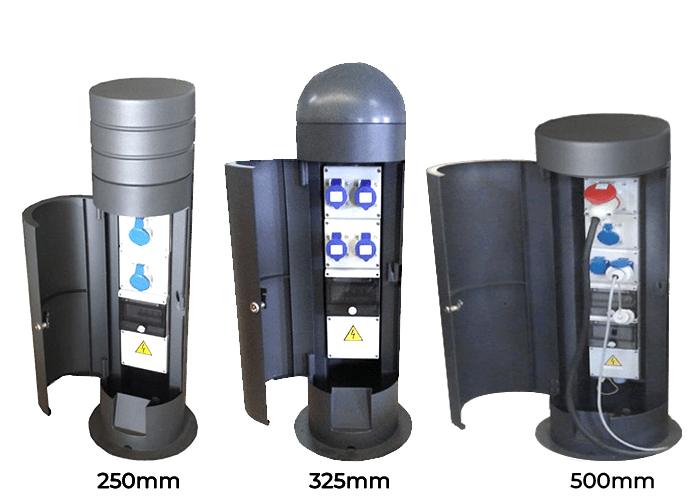

Standard Diameters

Power bollards from Pop Up Power Supplies available in three sizes – 250mm, 325mm and 500mm.

4

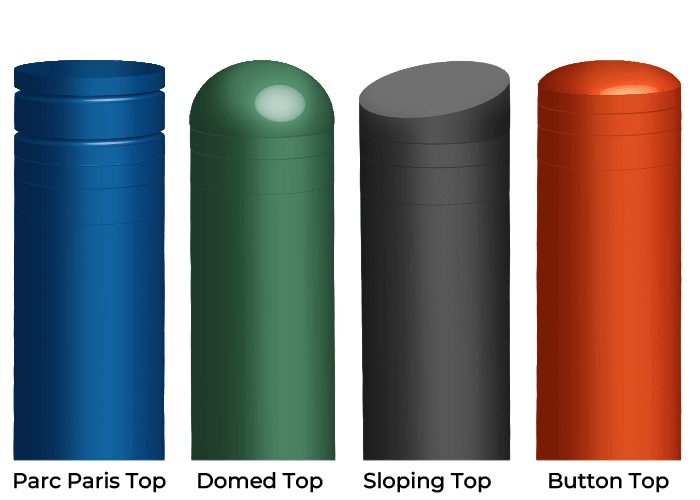

Bollard Top Styles

Power bollards from Pop Up Power Supplies available in four elegant shapes – Parc Paris, domed, sloping and button.

OUR FULL RANGE OF POWER BOLLARDS

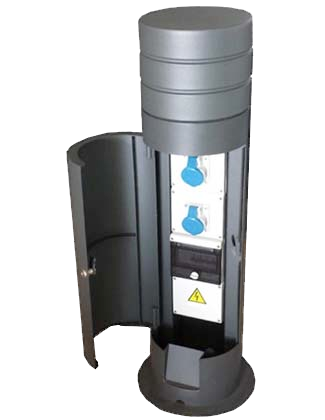

PARC PARIS BOLLARD

Classic flat-top with hatch closure that allows passing cable with plug inserted. Steel structure of elegant design, suitable for street furniture, manufactured from AISI 304 stainless steel - AISI 316 option also available. Plate thickness 2mm - painted in RAL colours to blend with its surroundings - internal connection system.

PRODUCT DATA
  • Classic flat-top with hatch closure that allow passing cable with plug inserted
  • Steel structure of elegant design, suitable for street furniture, made of AISI 304 stainless steel AISI 316. Plate thickness 2mm, painted for exterior, internal fixing system
TECHNICAL DATA
Standard sizes:
Diameter: Ø 250 Ø 325 Ø 500 mm, Height 800mm, 1100mm, 1235mm
Electrical specs:
VOLTAGE: 220-400V
POWER: MAX 125A
FREQUENCE: 50-60hz
IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating
REGULATIONS: EN 60947-1 EN 60439-1-2-3
 Suggested socket configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a equipment available for configuration on demand
NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
AVAILABLE FINISHES
  • Crude
  • Brushed
  • Mirror Polish
  • Powder Painted RAL Colours
ADDITIONAL EQUIPMENT
  • LED light diffuser
  • Sound system
  • Gas system
  • RJ jacks
  • Voice/data connection
  • Audio/video connectors

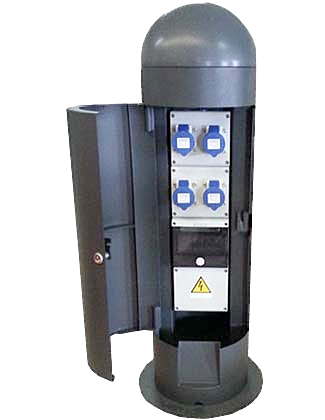

DOME TOP BOLLARD

Domed top with hatch closure that allows passing cable with plug inserted. Steel structure of elegant design, suitable for street furniture, manufactured from AISI 304 stainless steel - AISI 316 option also available. Plate thickness 2mm - painted in RAL colours to blend with its surroundings - internal connection system.

PRODUCT DATA
Domed top with hatch closure, that allow passing cable with plug inserted, steel structure of elegant design, suitable for street furniture, made of AISI 304 stainless steel AISI 316. Plate thickness 2mm; painted for exterior; internal fixing system.
TECHNICAL DATA
Standard sizes:
Diameter: Ø 250 Ø 325 Ø 500 mm Height 800mm, 1100mm, 1235mm
Electrical specs:
VOLTAGE: 220-400V
POWER: MAX 125A
FREQUENCE: 50-60hz
IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating
REGULATIONS: EN 60947-1 EN 60439-1-2-3
 Suggested socket configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a
Equipment available for configuration on demand.
NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
AVAILABLE FINISHES
Stainless steel AISI 304/316:
  • Crude
  • Brushed
  • Mirror Polish
  • Powder Painted RAL Colours
ADDITIONAL EQUIPMENT
  • LED light diffuser
  • Sound system
  • Gas system
  • RJ jacks
  • Voice/data connection
  • Audio/video connectors

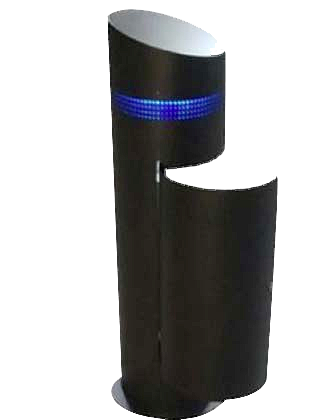

SLOPED TOP BOLLARD

Sloped top with hatch closure that allows passing cable with plug inserted. Steel structure of elegant design, suitable for street furniture, manufactured from AISI 304 stainless steel - AISI 316 option also available. Plate thickness 2mm - painted in RAL colours to blend with its surroundings - internal connection system.

PRODUCT DATA
Sloped top with hatch closure, that allow passing cable with plug inserted, steel structure of elegant design, suitable for street furniture, made of AISI 304 stainless steel AISI 316. Plate thickness 2mm; painted for exterior; internal fixing system.
TECHNICAL DATA
Standard sizes:
Diameter: Ø 250 Ø 325 Ø 500 mm : Height 800mm, 1100mm, 1235mm
 Electrical specs:
VOLTAGE: 220-400V
POWER: MAX 125A
FREQUENCE: 50-60hz
IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating
REGULATIONS: EN 60947-1 EN 60439-1-2-3
 Suggested socket configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a
Equipment available for configuration on demand.
NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
AVAILABLE FINISHES
Stainless steel AISI 304/316:
  • Crude
  • Brushed
  • Mirror Polish
  • Powder Painted RAL Colours
ADDITIONAL EQUIPMENT
  • LED light diffuser
  • Sound system
  • Gas system
  • RJ jacks
  • Voice/data connection
  • Audio/video connectors

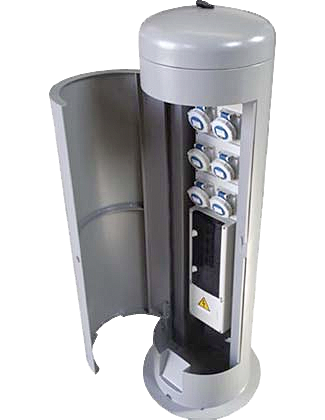

BUTTON TOP BOLLARD

Button top with hatch closure that allows passing cable with plug inserted. Steel structure of elegant design, suitable for street furniture, manufactured from AISI 304 stainless steel - AISI 316 option also available. Plate thickness 2mm - painted in RAL colours to blend with its surroundings - internal connection system.

PRODUCT DATA
Button top with hatch closure, that allow passing cable with plug inserted, steel structure of elegant design, suitable for street furniture, made of AISI 304 stainless steel AISI 316. Plate thickness 2mm; painted for exterior; internal fixing system.
TECHNICAL DATA
Standard sizes:
Diameter: Ø 250 Ø 325 Ø 500 mm : Height 800mm, 1100mm, 1235mm
 Electrical specs:
VOLTAGE: 220-400V
POWER: MAX 125A
FREQUENCE: 50-60hz
IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating
REGULATIONS: EN 60947-1 EN 60439-1-2-3
 Standard configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a
Equipment available for configuration on demand.
NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
AVAILABLE FINISHES
Stainless steel AISI 304/316:
  • Crude
  • Brushed
  • Mirror Polish
  • Powder Painted RAL Colours
  • Custom Paint or Logo Airbrushed
ADDITIONAL EQUIPMENT
  • LED light diffuser
  • Sound system
  • Gas system
  • RJ jacks
  • Voice/data connection
  • Audio/video connectors

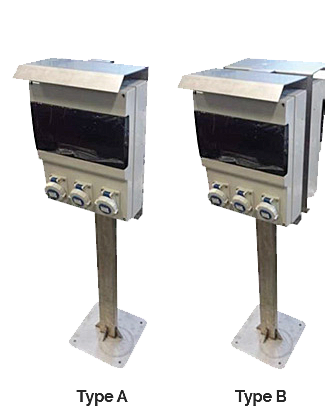

PUPS CRUISER

Power distribution unit CRUISER, (for marinas and camping sites) tubular structure, made of stainless steel AISI 304. Sheet thickness 2 mm – exterior finished in mirror polished stainless steel or powder coated RAL colour of your choice. Internal fixing system. Available in ONE-SIDED version (TYPE A) or DOUBLE-SIDED version (TYPE B).

PRODUCT DATA
Power distribution unit CRUISER, (for marinas and camping sites) tubular structure, made of stainless steel AISI 304. Sheet thickness 2 mm – exterior finished in mirror polished stainless steel or powder coated RAL colour of your choice. Internal fixing system. Available in ONE-SIDED version (TYPE A) or DOUBLE-SIDED version (TYPE B).
TECHNICAL DATA
Standard sizes:
340mm high x 300mm wide
 Electrical specs:
VOLTAGE: 220-400V
POWER: MAX 125A
FREQUENCE: 50-60hz
IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating
REGULATIONS: EN 60947-1 EN 60439-1-2-3
 Suggested socket configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a
Equipment available for configuration on demand.
NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
AVAILABLE FINISHES
Stainless steel AISI 304/316:
  • Mirror Polish
  • Stainless Steel
  • Powder Painted RAL Colours
ADDITIONAL EQUIPMENT
  • RJ jacks

IN GROUND UNITS GALLERY

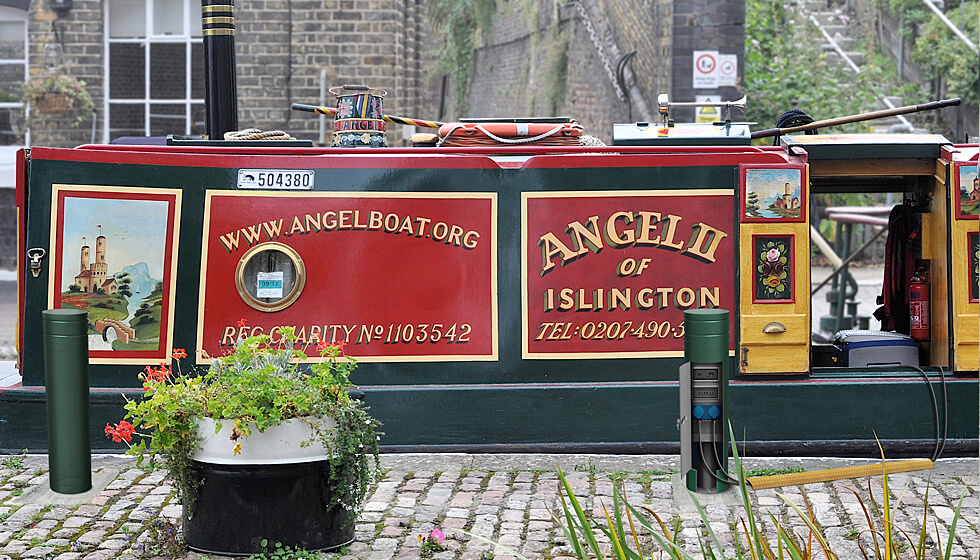

Power bollards with a Parc Paris shaped top installed at a canal side to provide moored barges and boats with access to power and other services.
Parc Paris bollard installed at a canal side
The range of the elegant power bollard designs from Pop Up Power Supplies.
The Power Bollard range

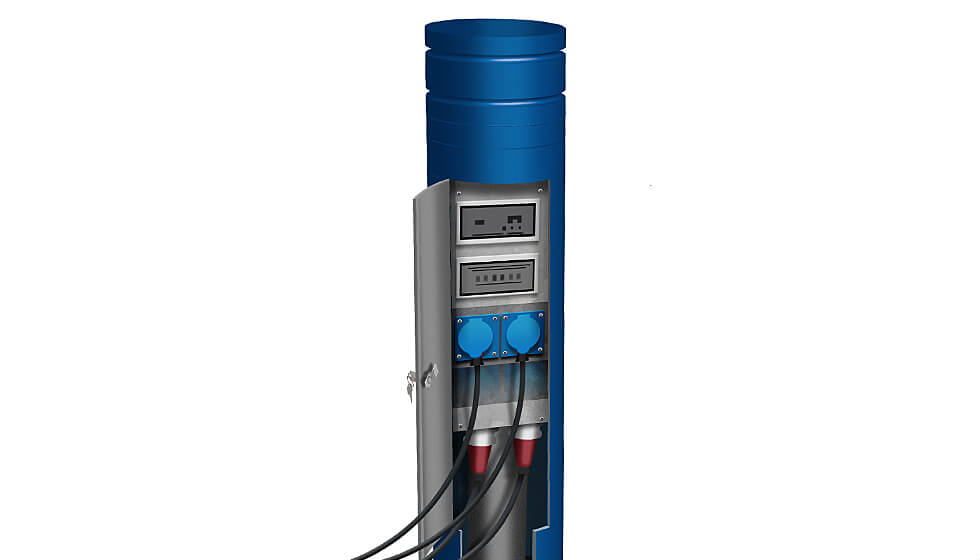

A close up of the Parc Paris shaped power bollard finished with a blue finish by Pop Up Power Supplies with the door open to show how connections to power can be configured.
Parc Paris Power Bollard

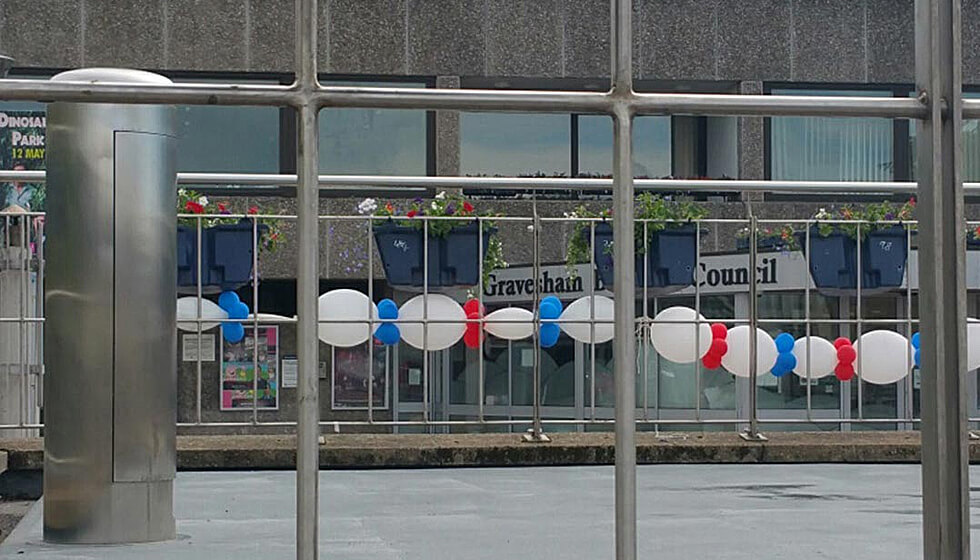

A power bollard with a dome shaped finished in silver provides an elegant street furniture feature in a space where outdoor events can be staged.
Dome top Power Bollard as street furniture
A close up of the Parc Paris shaped power bollard from Pop Up Power Supplies with the door open to show how connections to power can be configured.
The Parc Paris top with the door open

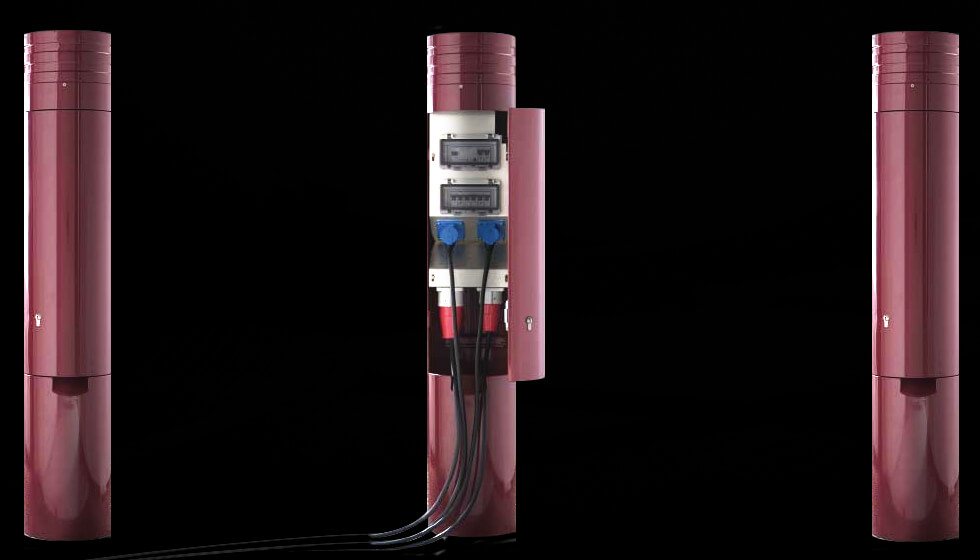

The Parc Paris shaped power bollard from Pop Up Power Supplies with the door in both the open and closed position.
The Parc Paris top open/closed position
