Pop Up Power Supplies Power Bollards

WHY ARE POP UP POWER UNITS SO USEFUL?


Pop Up units are manufactured in stainless steel AISI304 and have an epoxy-polyester powder finish. The tops are available in stainless steel or cast iron.

The adaptability of these retractable telescopic feeder pillars makes them suitable for all outdoor environments. Most importantly, the “Pop Up” nature of the units improves the quality of the area. The retractable units are space saving and mitigate the need for generators, which are both polluting and noisey.

Our Pop Up power units provide an outdoor power supply for many projects throughout the UK, including Wembley Arena Square, Covent Garden, Edinburgh Castle, and the University of Exeter to name a few. Our Pop Up Electrical Sockets can be used in a variety of settings. They provide a safe, silent and secure power supply and are suitable for most outdoor requirements.

ENQUIRE ABOUT POP UP UNITS

POP UP POWER UNIT FEATURES:

Raised using a turning handle

Allows power cables to be connected

Epoxy-polyester powder finish

Unit tops are stainless steel
 or cast iron

Can accommodate up to 40 tonnes

Sockets available 16, 32, 63 and 125 amps

Recessed top to accommodate surface material

OUR FULL RANGE OF RETRACTABLE POWER UNITS

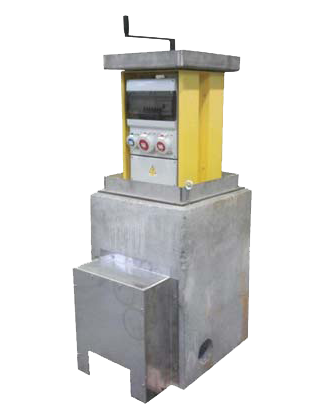

PUPS 01


For use in HGV areas. Total power 125 amps single or 3 phase incoming supply.

PUPS 01 PRODUCT DATA
  • Total power 125 amps single or 3 phase incoming supply
  • Can be used to supply electricity, gas and telephone
  • Raised by turning handle (suitable for use in HGV areas)
SUGGESTED SOCKET CONFIGURATIONS
1. (For a stage or events)
1x no. 63 amp 5P sockets with RCBO protection
2x no. 32 amp 2P sockets with RCBO protection
4x no. 16 amp 2P sockets with RCBO protection

 2. (For a stage or events)
1x no. 125 amp 5P sockets with RCBO protection
1x no. 32 amp 2P sockets with RCBO protection
1x no. 32 amp 5P sockets with RCBO protection

 3. (For a market)
4x no. 16 amp 2P sockets with RCBO protection
2x no. 32 amp 2P sockets with RCBO protection
6x no. 16 amp 2P sockets with RCBO protection

 4. (For a market)
4x no. 16 amp 2P sockets with RCBO protection
1x no. 32 amp 5P sockets with RCBO protection
1x no. 32 amp 2P sockets with RCBO protection
5x no. 16 amp 2P sockets with RCBO protection
1x no. RJ45 outlet

NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
PHYSICAL INFORMATION
Type of movement
Raised by turning handle
 Total weight
560kg
 Structure
Stainless steel, cast iron and concrete

NOTE:
The unit casing is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
ADDITIONAL EQUIPMENT
  • Gas connectors
  • Telephone connectors
  • RJ45 Data Connectors
  • Audio-video connectors

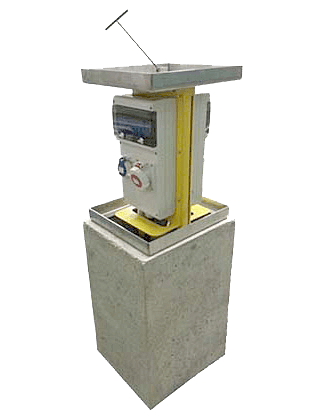

PUPS 04


For use in HGV areas. Total power 63 amps single or 3 phase incoming supply.

PUPS 04 PRODUCT DATA
  • Total power 63 amps single or 3 phase incoming supply
  • Can be used to supply electricity, gas and telephone
  • Raised by manual lifting (suitable for use in HGV areas)
SUGGESTED SOCKET CONFIGURATIONS
1. (For a stage or events)
1x no. 63 amp 5P sockets with RCBO protection
 2. (For a stage or events)
2x no. 32 amp 5P sockets with RCBO protection
 3. (For a market)
 6x no. 16 amp 2P sockets with RCBO protection
2x no. 32 amp 2P sockets with RCBO protection
 4. (For a market)
8x no. 16 amp 2P sockets with RCBO protection NOTE: 13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.

NOTE:
13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
PHYSICAL INFORMATION
Type of movement
Manual lifting (lessthan 15kg)
 Unit weight
170kg
 Structure
Cast iron, stainless steel and concrete

NOTE:
The unit casing is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
ADDITIONAL EQUIPMENT
  • Gas connectors
  • Telephone connectors
  • RJ45 Data Connectors
  • Audio-video connectors

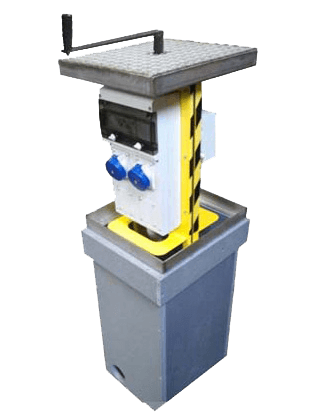

    PUPS 05


    For use in HGV areas. Total power 63 amps single or 3 phase incoming supply.

    PUPS 05 PRODUCT DATA
    • Total power 63 amps single or 3 phase incoming supply
    • Can be used to supply electricity, gas and telephone
    • Raised by turning handle (suitable for use in HGV areas)
    SUGGESTED SOCKET CONFIGURATIONS
    1. (For a stage or events)
    1x no. 63 amp 5P sockets with RCBO protection
     2. (For a stage or events)
    2x no. 32 amp 5P sockets with RCBO protection
     3. (For a market)
    6x no. 16 amp 2P sockets with RCBO protection 2x no. 32 amp 2P sockets with RCBO protection
    4. (For a market)
    8x no. 16 amp 2P sockets with RCBO protection

    NOTE:
    13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
    PHYSICAL INFORMATION
    Type of movement
    Raised by turning handle
     Unit weight
    180kg
     Structure
    Cast iron, stainless steel and concrete

    NOTE:
    The unit casing is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
    ADDITIONAL EQUIPMENT
    • Gas connectors
    • Telephone connectors
    • RJ45 Data Connectors
    • Audio-video connectors

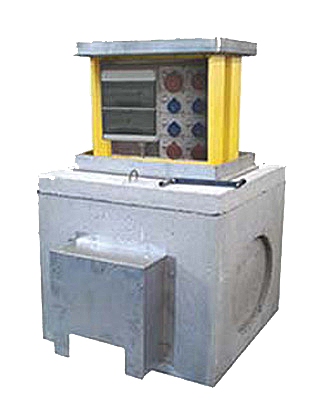

    PUPS 08


    For use in HGV areas. Total power 600 amps. Total weight loading 40 tons.

    PUPS 08 PRODUCT DATA
    • Total power 600 amps. Total weight loading 40 tons (suitable for use in HGV areas)
    • Can be used to supply electricity, gas and telephone. Dished top for paving
    • This is a special build unit tailored to client’s requirements
    • Suitable for large arenas and areas hosting big events
    SUGGESTED SOCKET CONFIGURATIONS
    1. (For a stage or events)
    1x no. 125 amp 5P sockets with RCBO protection
    1x no. 63 amp 5P sockets with RCBO protection
    2x no. 32 amp 5P sockets with RCBO protection
    1x no. 16 amp 5P sockets with RCBO protection 2x no. 32 amp 2P sockets with RCBO protection
    6x no. 16 amp 2P sockets with RCBO protection

     2. (For a stage or events)
    2x no. 125 amp 5P sockets with RCBO protection
    2x no. 63 amp 5P sockets with RCBO protection
    2x no. 32 amp 5P sockets with RCBO protection
    1x no. 16 amp 5P sockets with RCBO protection
    2x no. 32 amp 2P sockets with RCBO protection
    4x no. 16 amp 2P sockets with RCBO protection
    NOTE:
    13amp socket outlets in water tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
    PHYSICAL INFORMATION
    Type of movement
    Raised by turning handle
     Unit weight
    1200kg
     Structure
    Cast iron, stainless steel and concrete

    NOTE:
    The unit casing is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.
    ADDITIONAL EQUIPMENT
    • Gas connectors
    • Telephone connectors
    • RJ45 Data Connectors
    • Audio-video connectors

    POP UP POWER UNITS GALLERY

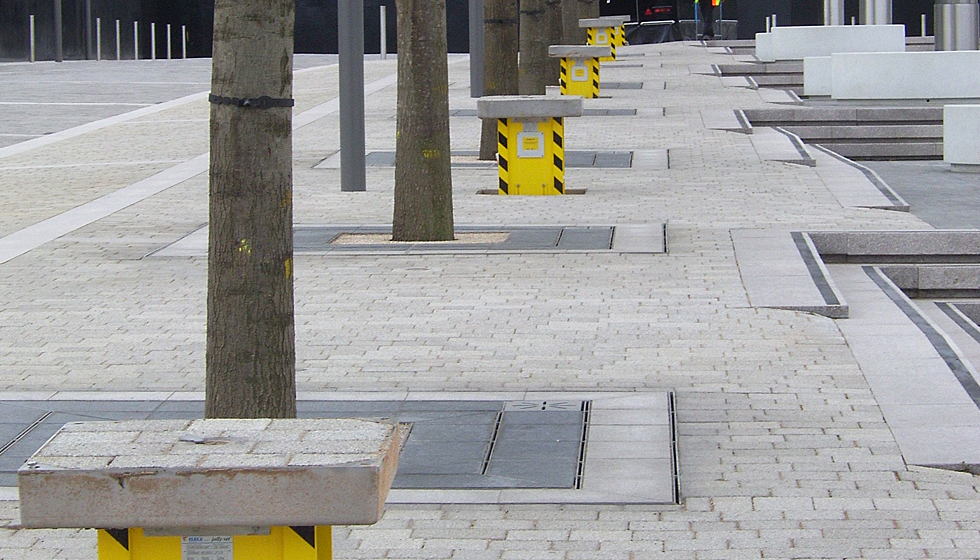

    Wembley Arena Square, where multiple Pop Up Power retractable service units are installed to help deliver outdoor events and facilities.
    WEMBLEY ARENA SQUARE

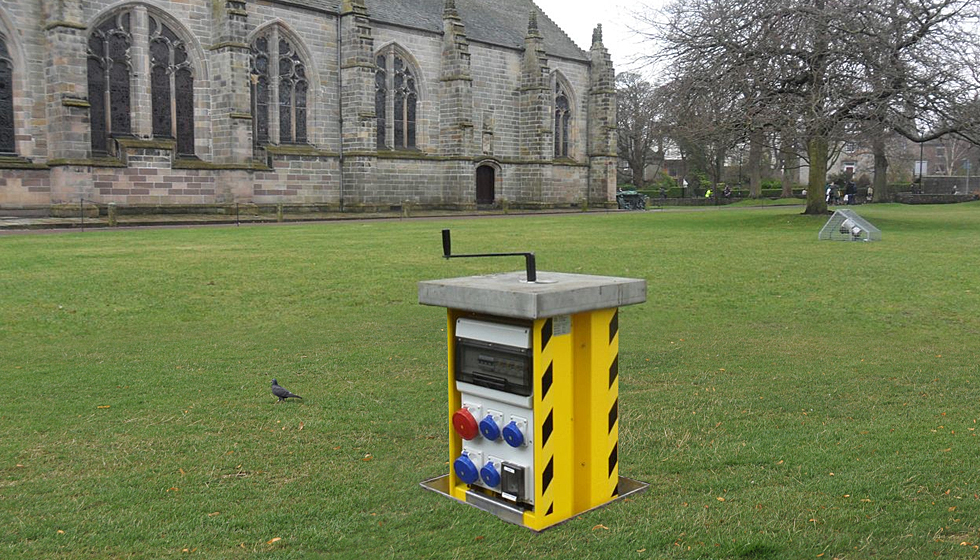

    A retractable service unit by Pop Up Power Supplies installed in a sensitive setting within the Aberdeen University campus.
    ABERDEEN UNIVERSITY

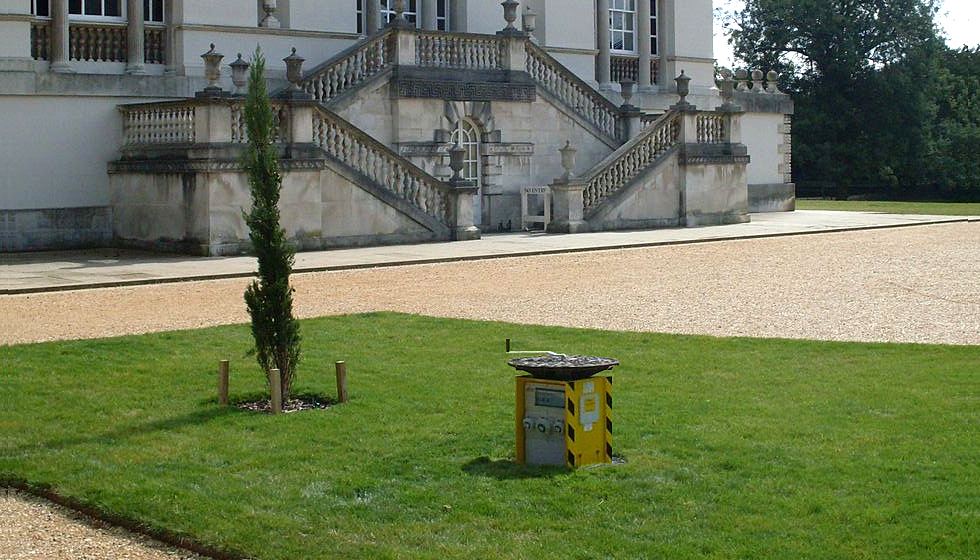

    Demonstrating how Pop Up Power’s retractable service units can be integrated into elegantly landscaped gardens, a pop up service unit at Chiswick House.
    CHISWICK HOUSE

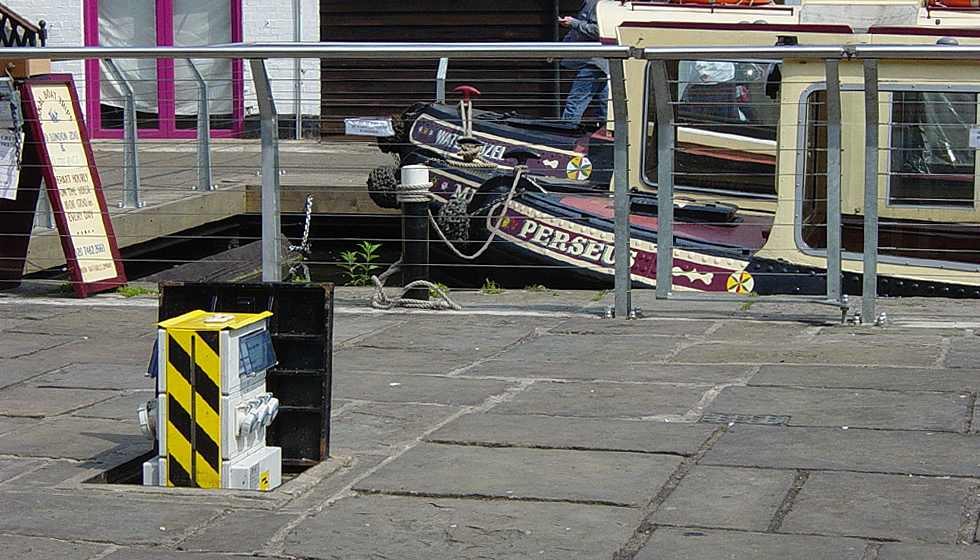

    A retractable service unit installed at Camden Lock to provide canal-side berths with access as and when required to power, water and more.
    CAMDEN LOCK

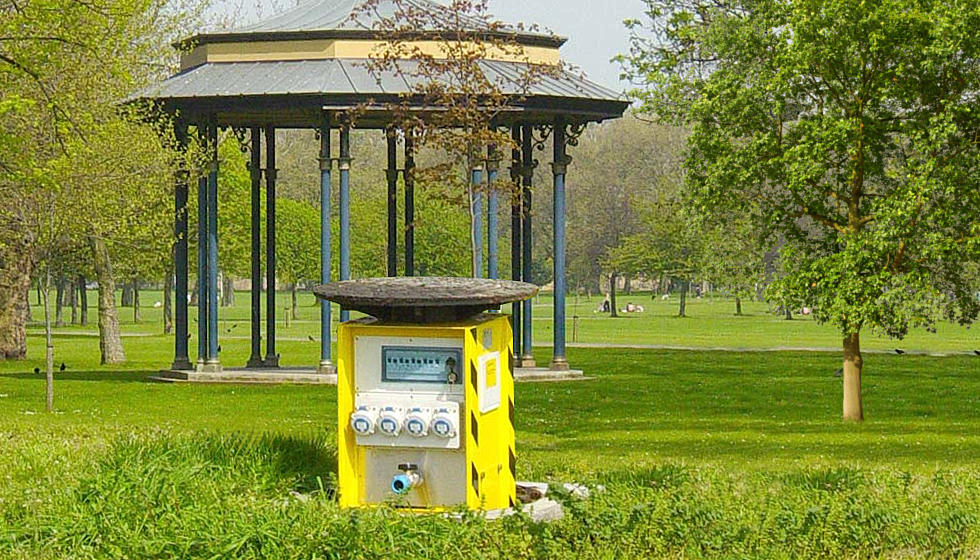

    A pop up, retractable service unit by Pop Up Power Supplies providing on-demand access to power and water in the heart of Regents Park.
    REGENTS PARK

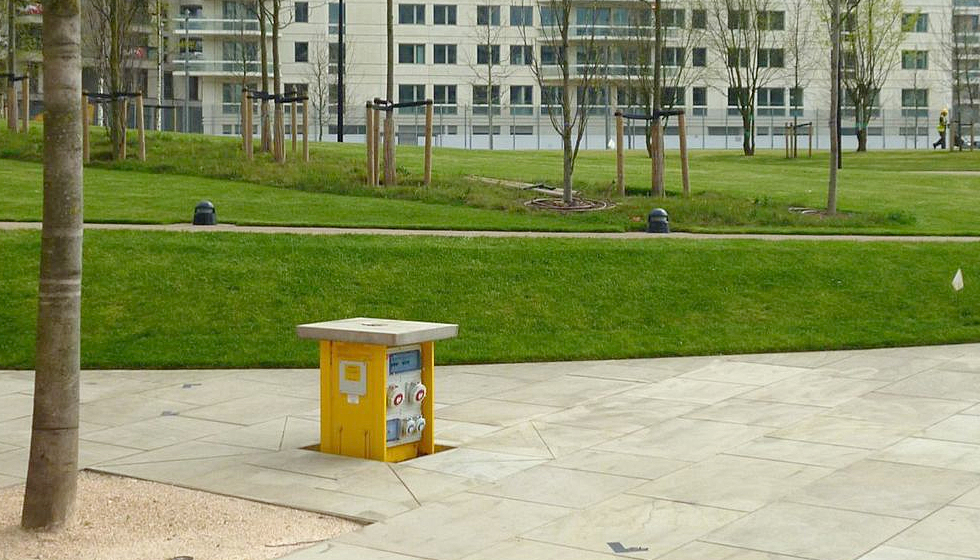

    A pop up service unit installed in the grounds of the Athletes’ Village in Stratford, which was home to those competing in the London 2012 Olympics.
    ATHLETES' VILLAGE STRATFORD

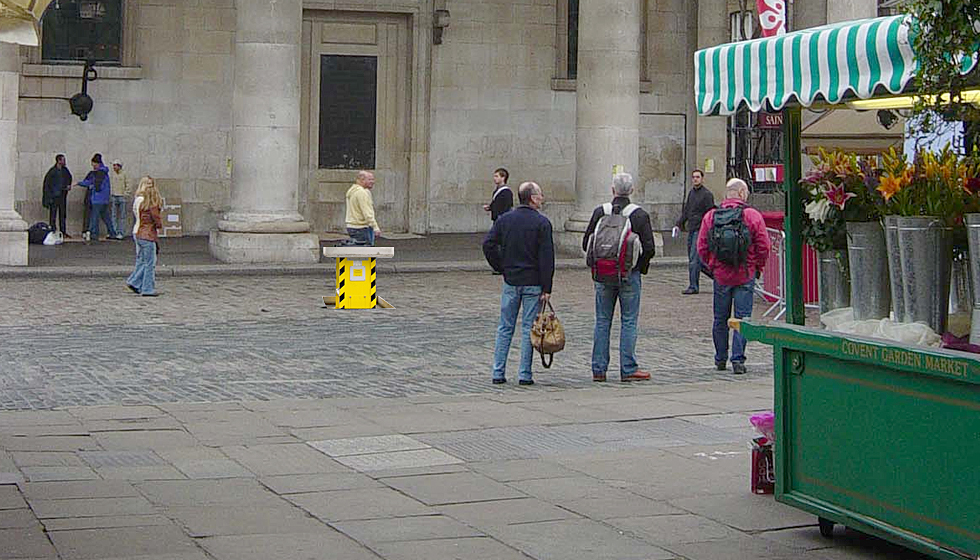

    A pop up, retractable service unit installed at London’s Covent Garden, where it allows outdoor events to be staged as and when required.
    COVENT GARDEN

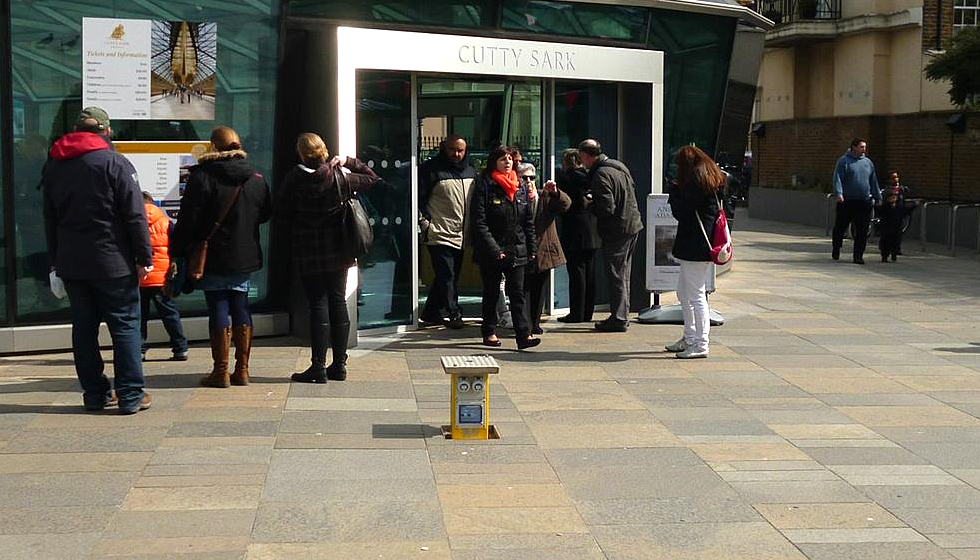

    On demand access to power and other services provided in the pedestrianised spaces of the Cutty Sark attraction by using a retractable service unit from Pop Up Power Supplies.
    CUTTY SARK, GREENWICH

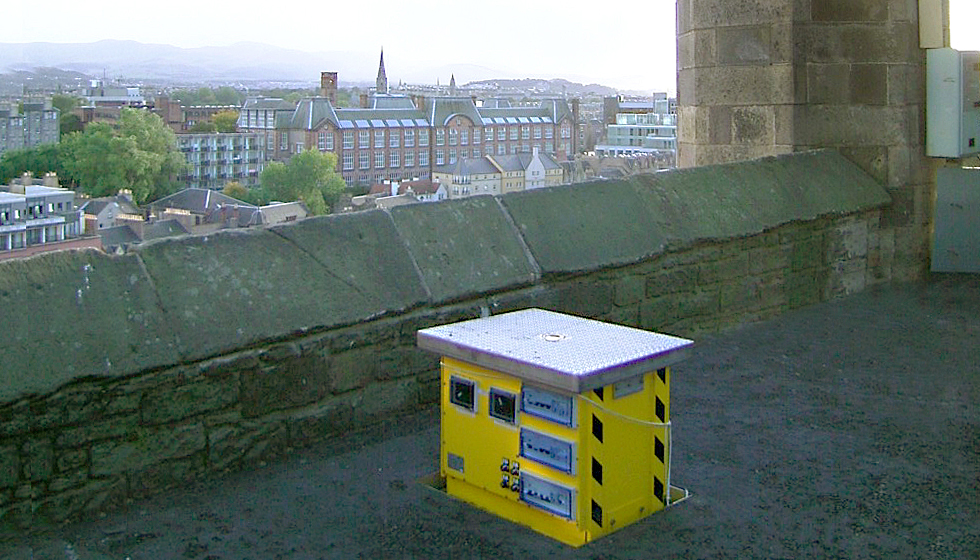

    A pop up service unit in the grounds of Edinburgh Castle, which enables the world-famous attraction to host events outdoors all year round.
    EDINBURGH CASTLE

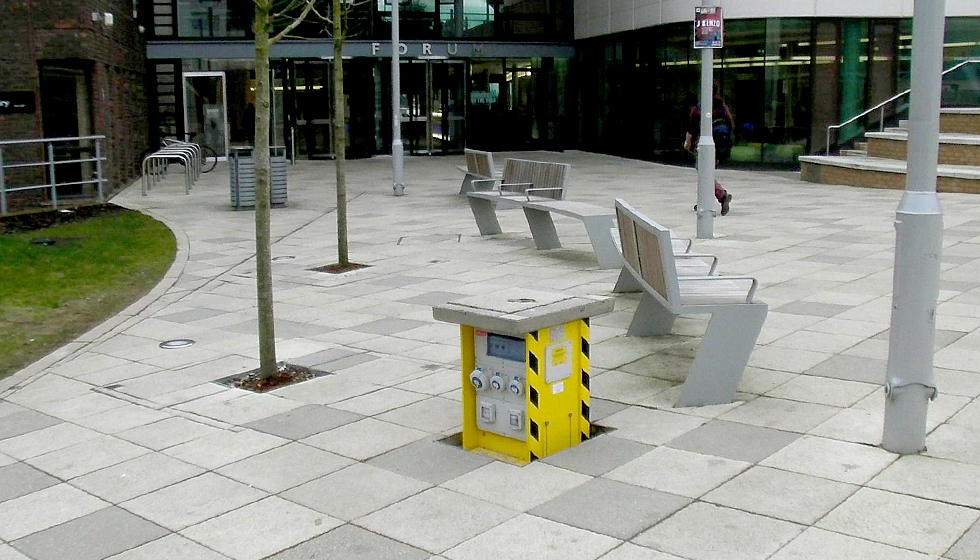

    Demonstrating their suitability for modern university campuses, a pop up service unit installed in a paved area on the grounds of Exeter University.
    EXETER UNIVERSITY

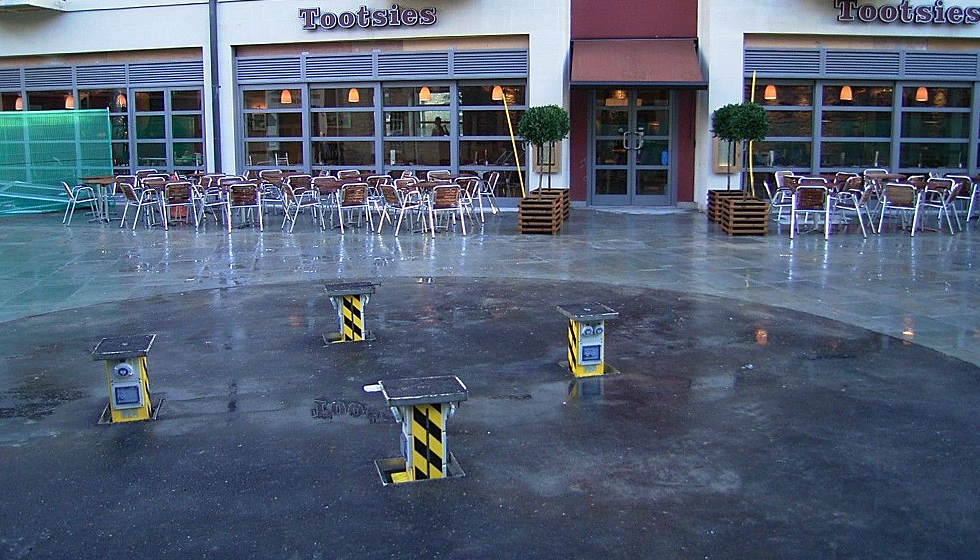

    A retractable service units provides safe, easy access to power and other services on-demand at the retail and leisure attraction, Oxford Castle Quarter.
    OXFORD CASTLE

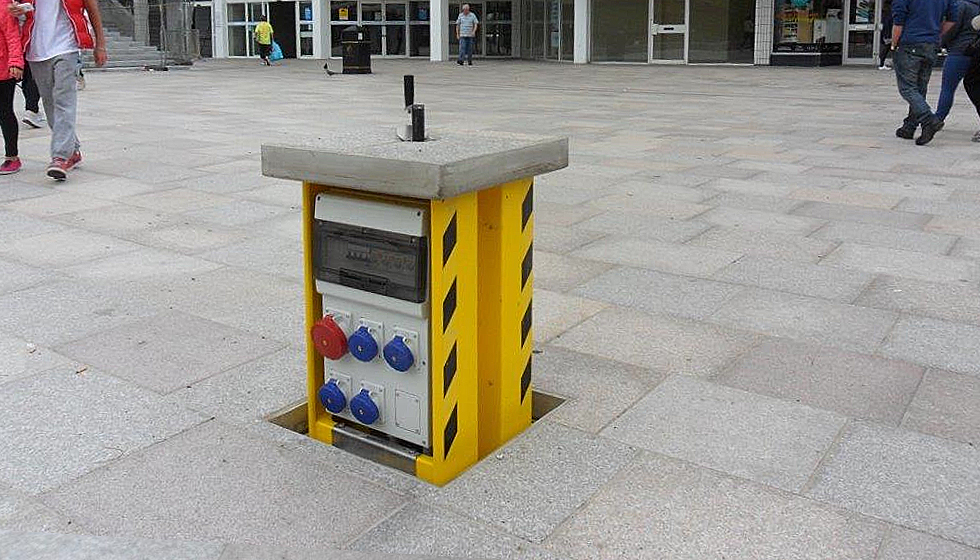

    A pop up service unit installed at the Rivergate Centre, Irvine, which enables the shopping centre to host outdoor events all year round.
    RIVERGATE CENTRE, IRVINE
